Husqvarna 345 Chainsaw (2004) Parts Diagram, Page 1

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Husqvarna 345 Chainsaw, or refer to the list below.

All Parts for Husqvarna 345 Chainsaw

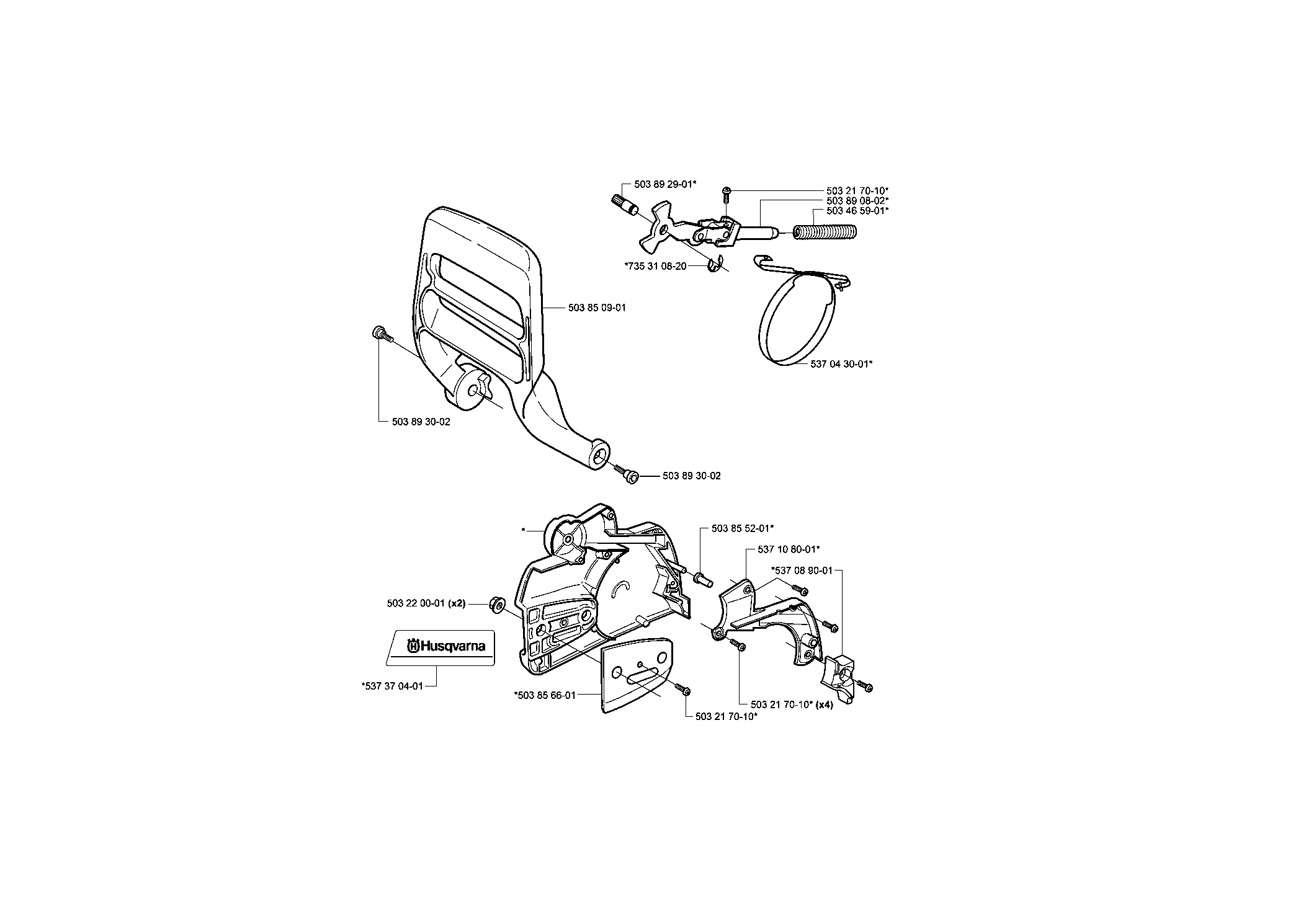

Husqvarna 345 Chainsaw (2004) Parts Diagram, Page 1

#	Part	Price
5032170-10	5032170-10 Husqvarna Screw	£1.64	Husqvarna Screw £1.64 P/N: 5032170-10, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5032200-01	5032200-01 Husqvarna Nut M6Mf M8	£2.88	Husqvarna Nut M6Mf M8 £2.88 P/N: 5032200-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5034659-01	5034659-01 Husqvarna Spring	£6.18	Husqvarna Spring £6.18 P/N: 5034659-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5038509-01	5038509-01 Husqvarna Hand Guard	£42.98	Husqvarna Hand Guard £42.98 P/N: 5038509-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5038552-01	5038552-01 Husqvarna Sleeve	£6.05	Husqvarna Sleeve £6.05 P/N: 5038552-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5038566-01	5038566-01 Husqvarna Plate	£6.88	Husqvarna Plate £6.88 P/N: 5038566-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5038908-02	5038908-02 Husqvarna Joint	£30.23	Husqvarna Joint £30.23 P/N: 5038908-02, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5038929-01	5038929-01 Husqvarna Pin	£1.52	Husqvarna Pin £1.52 P/N: 5038929-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5370430-01	5370430-03 Husqvarna Brake Band Assy	£15.11	Husqvarna Brake Band Assy £15.11 P/N: 5370430-03, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5370890-01	5370890-01 Husqvarna Protector	£8.93	Husqvarna Protector £8.93 P/N: 5370890-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5371080-01	5371080-01 Husqvarna Cover	£8.93	Husqvarna Cover £8.93 P/N: 5371080-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
5373704-01	5373704-01 Husqvarna Decal	£3.02	Husqvarna Decal £3.02 P/N: 5373704-01, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
7353108-20	7353108-20 Husqvarna E-Ring 4	£0.83	Husqvarna E-Ring 4 £0.83 P/N: 7353108-20, Genuine OEM spare part. Find other Husqvarna spares, parts and accessories.
