SEARCH FOR GENUINE BRIGGS & STRATTON REPLACEMENT SPARE PARTS
To start using our parts diagram lookup, please click on the orange Briggs Diagrams VIEW NOW button at the bottom of this page. The page will refresh, providing you with search options.
From the first drop down column, select Briggs & Stratton |  |
There are then two search options available to you:
Search Types:
- 1. Model & Type number (for complete engine drawing packs)
Enter the Model & Type numbers from your engine into the 'Model:' search box. It is very important that the numbers entered are accurate and in the correct format, failure to do so will prevent a match.

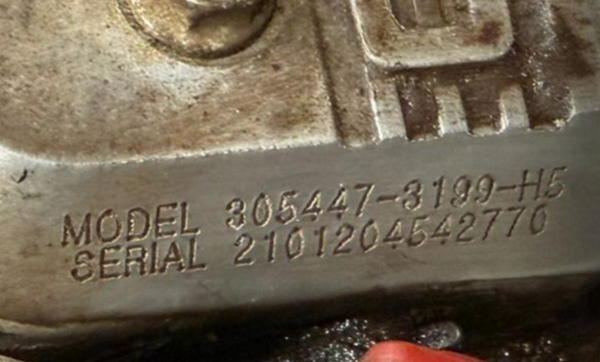

Here is an example of the correct format - an engine with a Model of 305447 and a Type of 3199-H5 would use 305447-3199-H5
If unsure, click on this link to go to the Briggs & Stratton Engine Identification Guide...
- 2. Part Number (to see where a part is used)
Search by part number or description. This method can be used to identify applications where specific parts are used.
Alternatively, please feel free to use our sister site BriggsBits
