Stihl RE 129 PLUS PRESSURE WASHER (RE 129 PLUS) Parts Diagram, B PUMP HOUSING

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl RE 129 PLUS PRESSURE WASHER, or refer to the list below.

All Parts for RE 129 PLUS PRESSURE WASHER

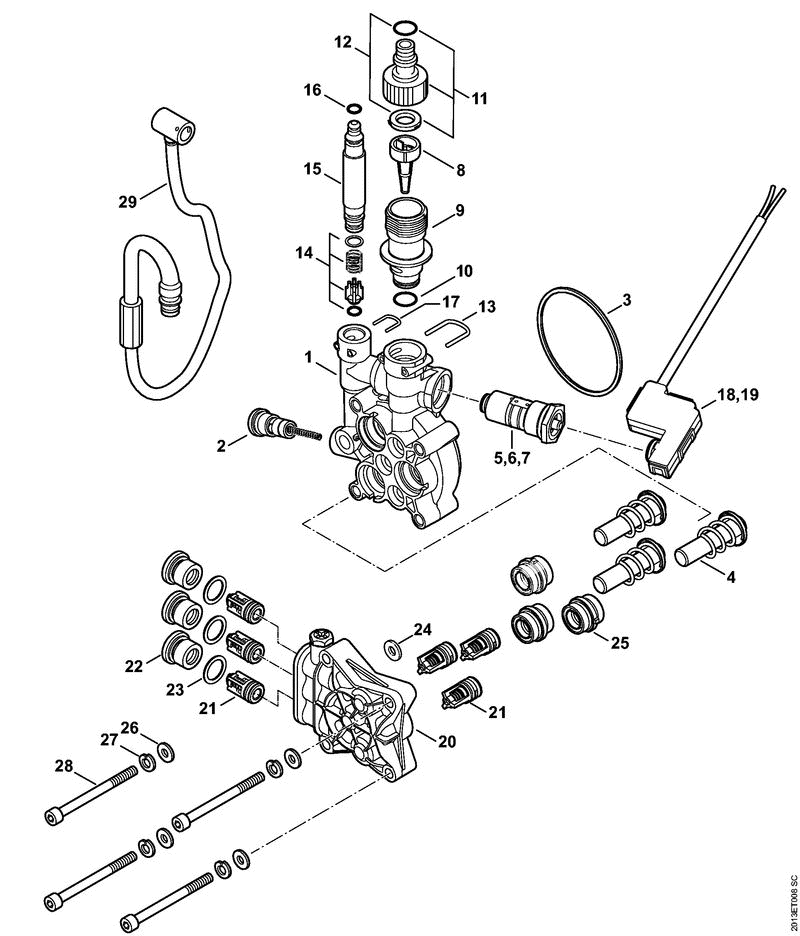

Stihl RE 129 PLUS PRESSURE WASHER (RE 129 PLUS) Parts Diagram, B PUMP HOUSING

#	Part	Price
1	4777 700 4000 Stihl Pump housing	£44.53	Stihl Pump housing £44.53 P/N: 4777 700 4000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	4776 510 3500 Stihl Valve insert	£15.02	Stihl Valve insert £15.02 P/N: 4776 510 3500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	9645 948 8484 Stihl O-ring 72x2,0	£4.86	Stihl O-ring 72x2,0 £4.86 P/N: 9645 948 8484, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	4776 760 7050 Stihl Set of pistons	£18.89	Stihl Set of pistons £18.89 P/N: 4776 760 7050, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	4776 510 0300 Stihl Control piston 3.2mm	£11.00	Stihl Control piston 3.2mm £11.00 P/N: 4776 510 0300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	4777 510 0301 Stihl Control piston Dia 3,05mm	£11.16	Stihl Control piston Dia 3,05mm £11.16 P/N: 4777 510 0301, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	4768 502 2100 Stihl Strainer	£19.06	Stihl Strainer £19.06 P/N: 4768 502 2100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	4776 677 8700 Stihl Connector	£6.91	Stihl Connector £6.91 P/N: 4776 677 8700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	9645 945 7560 Stihl O-ring 14x1.78	£0.58	Stihl O-ring 14x1.78 £0.58 P/N: 9645 945 7560, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	4719 700 7300 Stihl Hose connector	£5.06	Stihl Hose connector £5.06 P/N: 4719 700 7300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	4719 700 7300 Stihl Hose connector	£5.06	Stihl Hose connector £5.06 P/N: 4719 700 7300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	4776 701 4601 Stihl Retainer	£0.64	Stihl Retainer £0.64 P/N: 4776 701 4601, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	4776 510 0200 Stihl Non-return valve	£8.92	Stihl Non-return valve £8.92 P/N: 4776 510 0200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	47767007300 Stihl Hose connector		Stihl Hose connector £12.13 P/N: 47767007300, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
15	4776 700 7300 Stihl Hose connector	£15.49	Stihl Hose connector £15.49 P/N: 4776 700 7300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	9645 951 3076 Stihl O-ring 5.1x1.6-FKM90	£0.92	Stihl O-ring 5.1x1.6-FKM90 £0.92 P/N: 9645 951 3076, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	4776 701 4600 Stihl Retainer	£0.64	Stihl Retainer £0.64 P/N: 4776 701 4600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	4776 430 0501 Stihl Switch	£16.70	Stihl Switch £16.70 P/N: 4776 430 0501, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	4776 430 0502 Stihl Switch	£16.70	Stihl Switch £16.70 P/N: 4776 430 0502, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	4776 701 1201 Stihl Valve block	£30.90	Stihl Valve block £30.90 P/N: 4776 701 1201, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
21	4776 700 6200 Stihl Valve (set of 6)	£11.26	Stihl Valve (set of 6) £11.26 P/N: 4776 700 6200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
22	4776 700 2301 Stihl Screw plug	£0.64	Stihl Screw plug £0.64 P/N: 4776 700 2301, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
23	9645 948 7547 Stihl O-ring 11,7x2,0	£3.23	Stihl O-ring 11,7x2,0 £3.23 P/N: 9645 948 7547, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
24	9645 948 7515 Stihl O-ring 10x2,2-NBR90	£2.42	Stihl O-ring 10x2,2-NBR90 £2.42 P/N: 9645 948 7515, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
25	4775 007 1001 Stihl Kit of gaskets piston	£44.52	Stihl Kit of gaskets piston £44.52 P/N: 4775 007 1001, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
26	9298 021 3860 Stihl Washer 6,6x12x1.6	£1.07	Stihl Washer 6,6x12x1.6 £1.07 P/N: 9298 021 3860, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
27	9321 621 0140 Stihl Spring washer 6	£1.07	Stihl Spring washer 6 £1.07 P/N: 9321 621 0140, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
28	9045 371 1470 Stihl Socket head screw -M6x70 (Set of 4)	£0.54	Stihl Socket head screw -M6x70 (Set of 4) £0.54 P/N: 9045 371 1470, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
29	4778 670 0800 Stihl High pressure hose	£26.11	Stihl High pressure hose £26.11 P/N: 4778 670 0800, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
