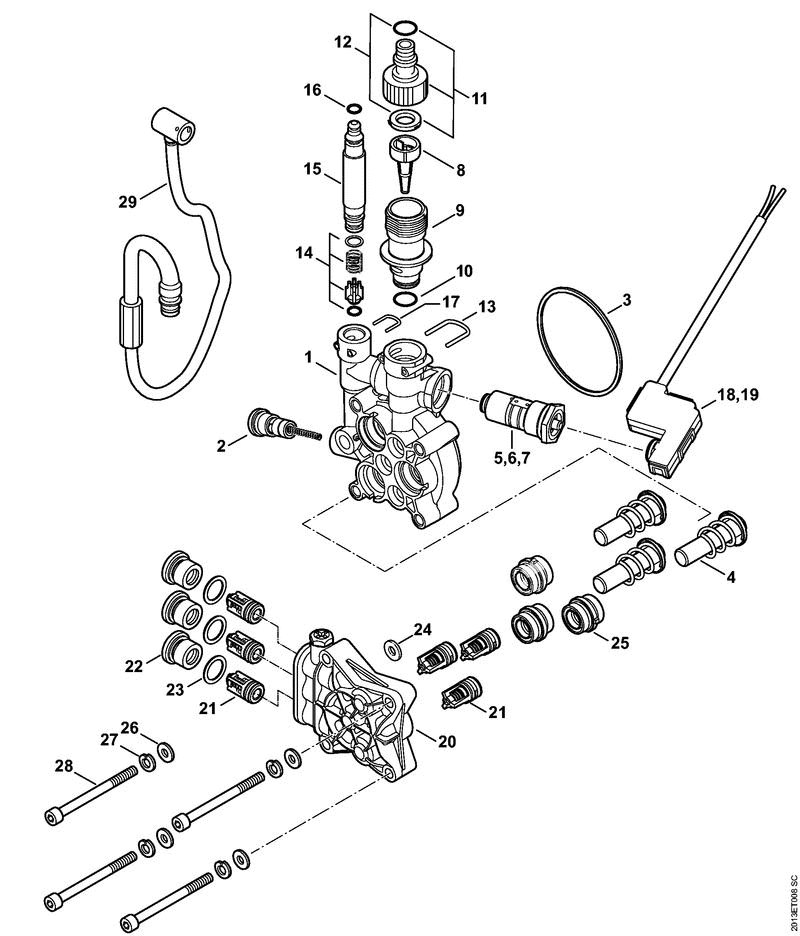

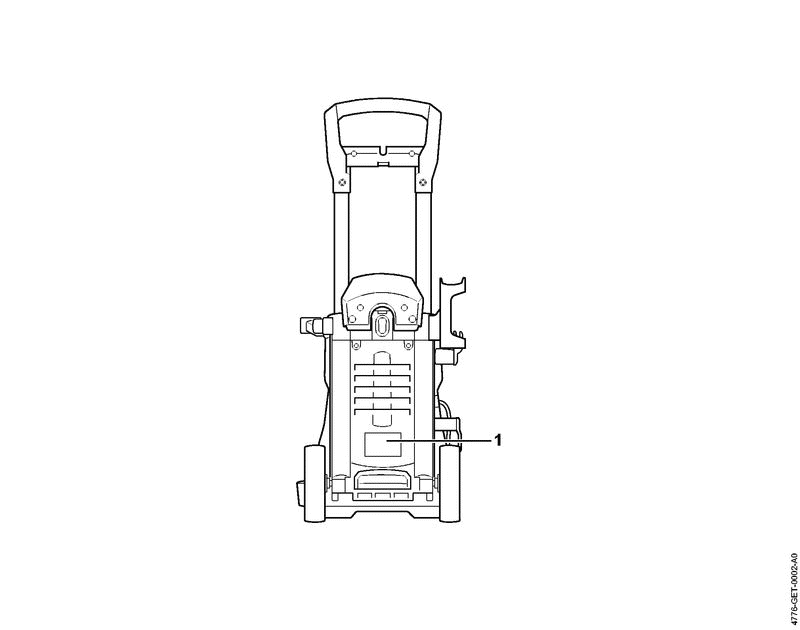

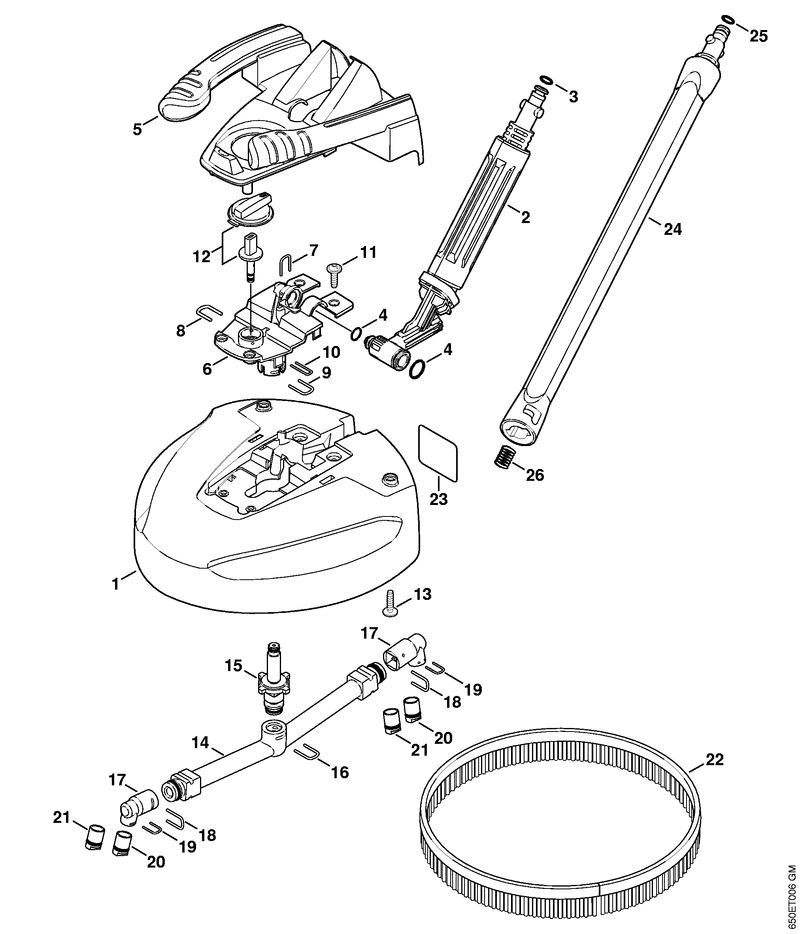

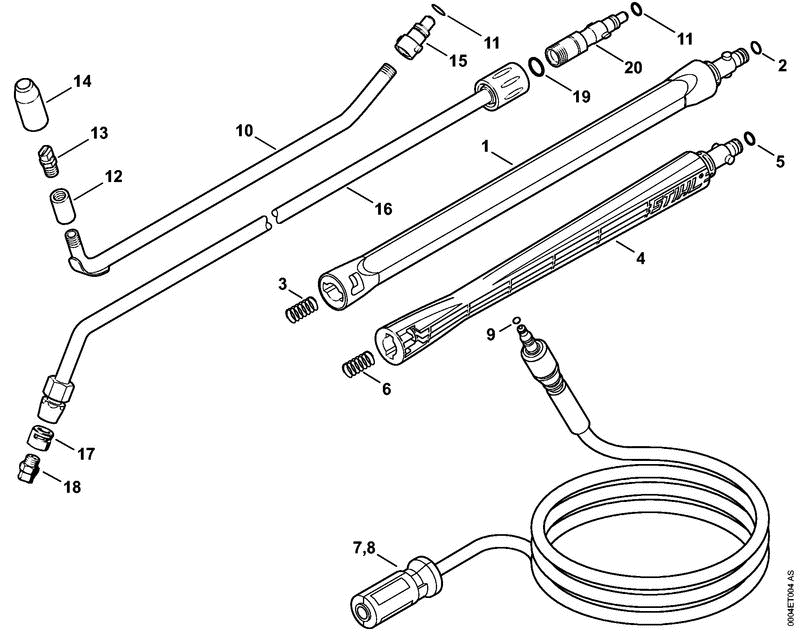

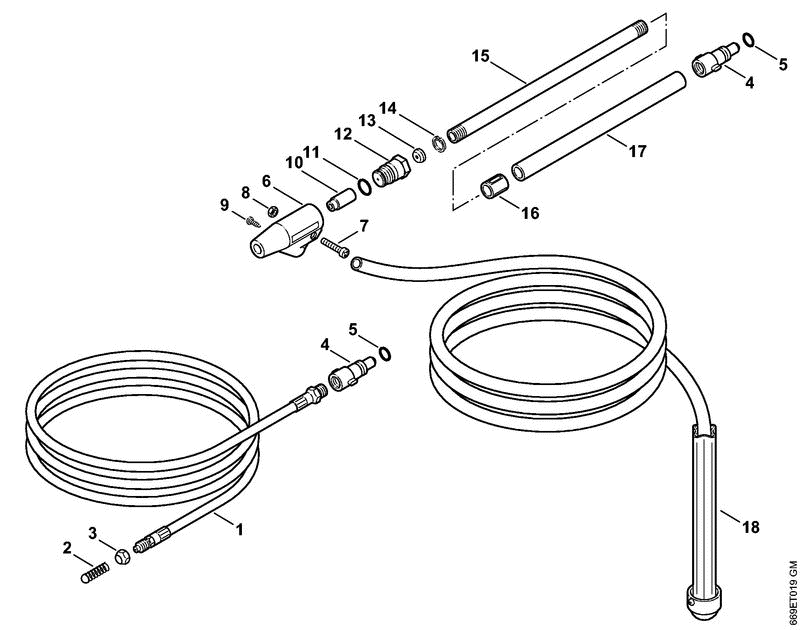

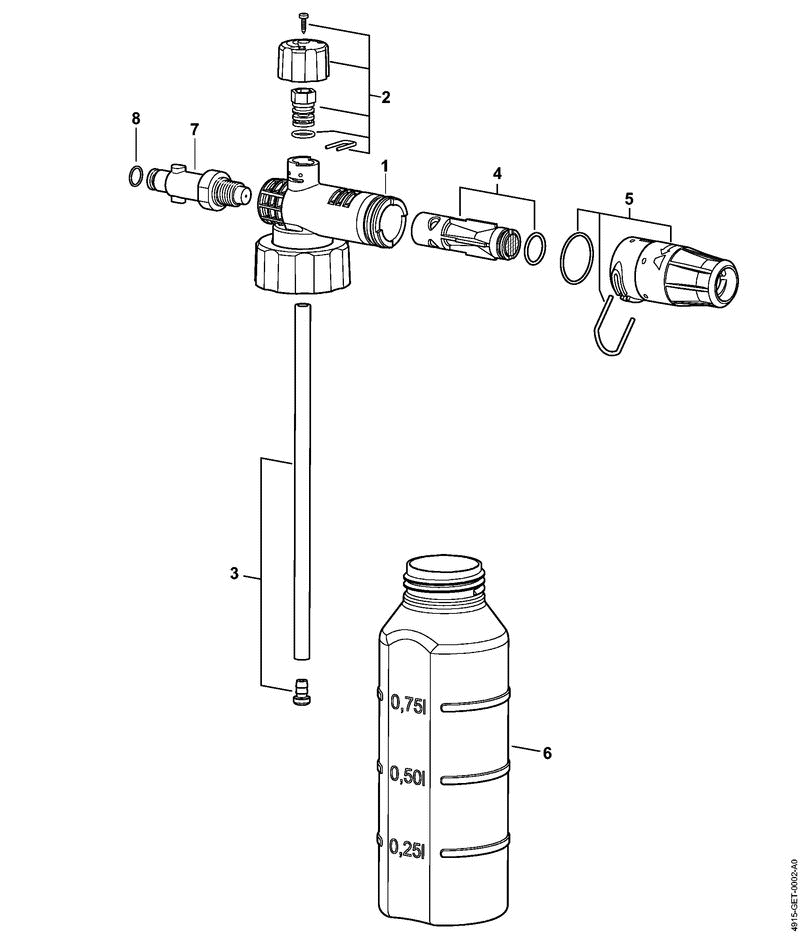

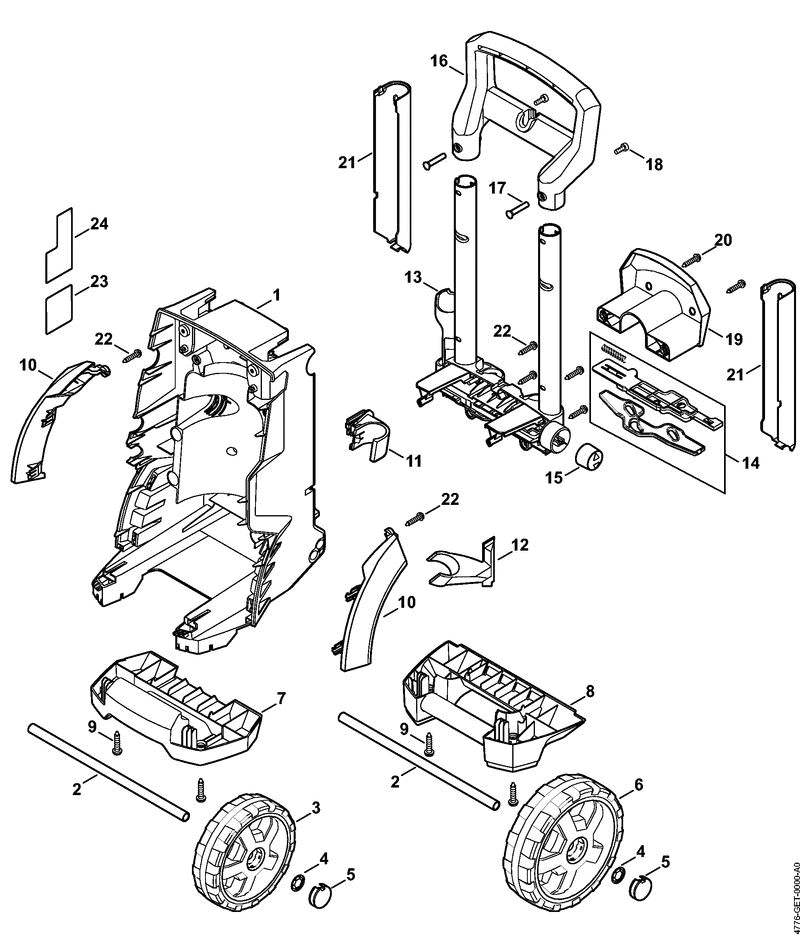

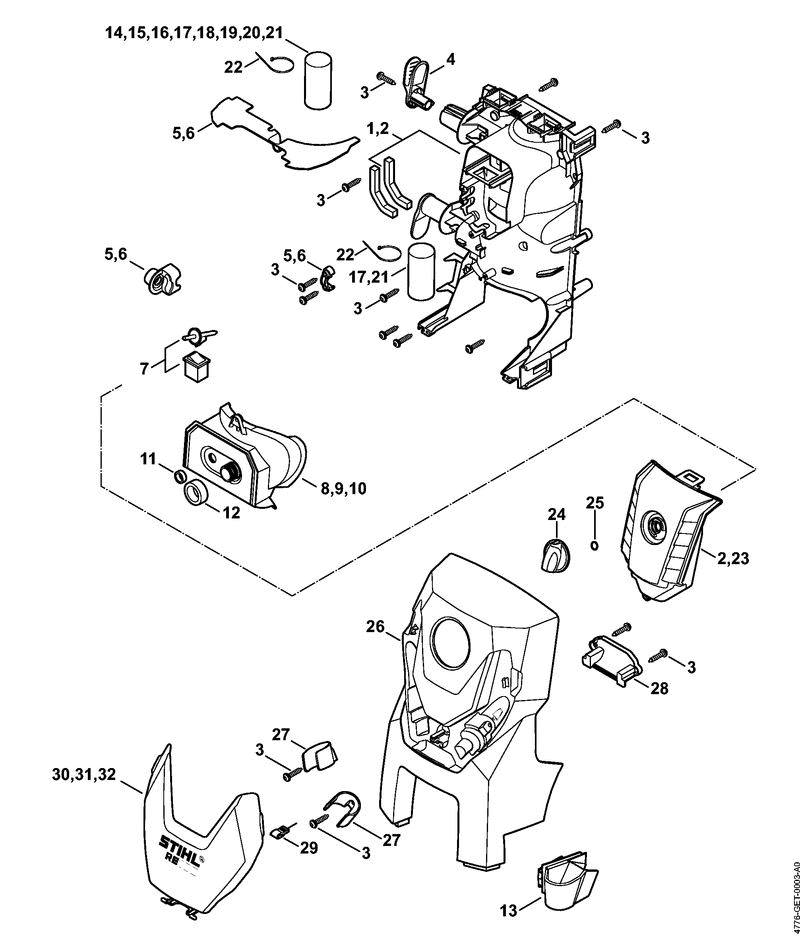

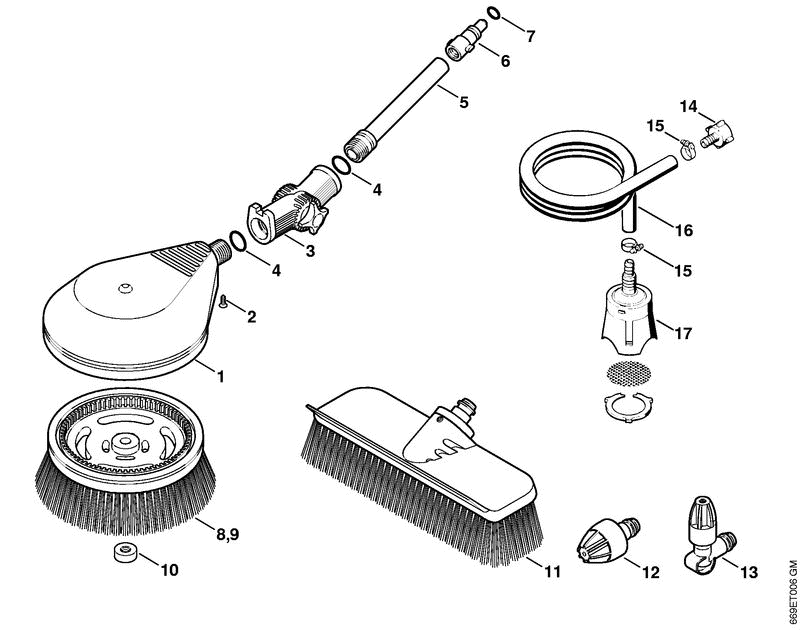

Stihl RE 109 PRESSURE WASHER (RE 109) Parts Diagram, B PUMP HOUSING

#	Part	Price
1	4777 700 4000 Stihl Pump housing	£44.53	Stihl Pump housing £44.53 P/N: 4777 700 4000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	4776 510 3500 Stihl Valve insert	£15.02	Stihl Valve insert £15.02 P/N: 4776 510 3500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	9645 948 8484 Stihl O-ring 72x2,0	£4.86	Stihl O-ring 72x2,0 £4.86 P/N: 9645 948 8484, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	4776 760 7050 Stihl Set of pistons	£18.89	Stihl Set of pistons £18.89 P/N: 4776 760 7050, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	4776 510 0300 Stihl Control piston 3.2mm	£11.00	Stihl Control piston 3.2mm £11.00 P/N: 4776 510 0300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	4768 502 2100 Stihl Strainer	£19.06	Stihl Strainer £19.06 P/N: 4768 502 2100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	4776 677 8700 Stihl Connector	£6.91	Stihl Connector £6.91 P/N: 4776 677 8700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	9645 945 7560 Stihl O-ring 14x1.78	£0.58	Stihl O-ring 14x1.78 £0.58 P/N: 9645 945 7560, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	4719 700 7300 Stihl Hose connector	£5.06	Stihl Hose connector £5.06 P/N: 4719 700 7300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	4719 700 7300 Stihl Hose connector	£5.06	Stihl Hose connector £5.06 P/N: 4719 700 7300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	4776 701 4601 Stihl Retainer	£0.64	Stihl Retainer £0.64 P/N: 4776 701 4601, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	4776 510 0200 Stihl Non-return valve	£8.92	Stihl Non-return valve £8.92 P/N: 4776 510 0200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	47767007300 Stihl Hose connector		Stihl Hose connector £12.13 P/N: 47767007300, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
15	4776 700 7300 Stihl Hose connector	£15.49	Stihl Hose connector £15.49 P/N: 4776 700 7300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	9645 951 3076 Stihl O-ring 5.1x1.6-FKM90	£0.92	Stihl O-ring 5.1x1.6-FKM90 £0.92 P/N: 9645 951 3076, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	4776 701 4600 Stihl Retainer	£0.64	Stihl Retainer £0.64 P/N: 4776 701 4600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	4776 430 0501 Stihl Switch	£16.70	Stihl Switch £16.70 P/N: 4776 430 0501, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	4776 430 0502 Stihl Switch	£16.70	Stihl Switch £16.70 P/N: 4776 430 0502, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	4776 701 1201 Stihl Valve block	£30.90	Stihl Valve block £30.90 P/N: 4776 701 1201, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
21	4776 700 6200 Stihl Valve (set of 6)	£11.26	Stihl Valve (set of 6) £11.26 P/N: 4776 700 6200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
22	4776 700 2301 Stihl Screw plug	£0.64	Stihl Screw plug £0.64 P/N: 4776 700 2301, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
23	9645 948 7547 Stihl O-ring 11,7x2,0	£3.23	Stihl O-ring 11,7x2,0 £3.23 P/N: 9645 948 7547, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
24	9645 948 7515 Stihl O-ring 10x2,2-NBR90	£2.42	Stihl O-ring 10x2,2-NBR90 £2.42 P/N: 9645 948 7515, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
25	4775 007 1001 Stihl Kit of gaskets piston	£44.52	Stihl Kit of gaskets piston £44.52 P/N: 4775 007 1001, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
26	9298 021 3860 Stihl Washer 6,6x12x1.6	£1.07	Stihl Washer 6,6x12x1.6 £1.07 P/N: 9298 021 3860, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
27	9321 621 0140 Stihl Spring washer 6	£1.07	Stihl Spring washer 6 £1.07 P/N: 9321 621 0140, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
28	9045 371 1470 Stihl Socket head screw -M6x70 (Set of 4)	£0.54	Stihl Socket head screw -M6x70 (Set of 4) £0.54 P/N: 9045 371 1470, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
