Stihl RE 104 K Pressure Washer (RE 104 K) Parts Diagram, D-Shroud

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl RE 104 K Pressure Washer, or refer to the list below.

All Parts for RE 104 K Pressure Washer

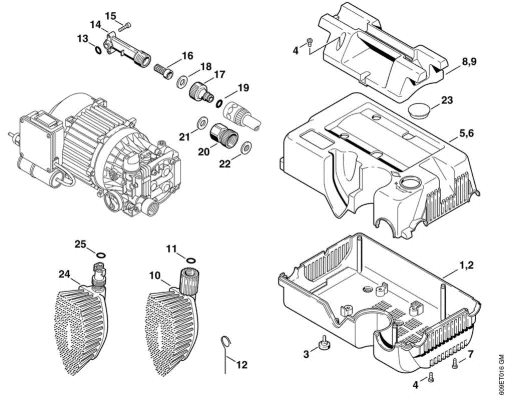

Stihl RE 104 K Pressure Washer (RE 104 K) Parts Diagram, D-Shroud

#	Part	Price
1	4719 706 2110 Stihl SHROUD BOTTOM		Stihl SHROUD BOTTOM £33.86 P/N: 4719 706 2110, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
3	4719 708 2800 Stihl BUFFER		Stihl BUFFER £1.31 P/N: 4719 708 2800, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
4	9041 216 0950 Stihl Pan head screw DIN84-M5x10-5.8	£0.80	Stihl Pan head screw DIN84-M5x10-5.8 £0.80 P/N: 9041 216 0950, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	9093 021 2490 Stihl SELF TAPPING SCREW		Stihl SELF TAPPING SCREW £0.20 P/N: 9093 021 2490, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
11	9645 945 7501 Stihl O-ring 9.3x2.4	£0.37	Stihl O-ring 9.3x2.4 £0.37 P/N: 9645 945 7501, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	4915 502 0800 Stihl CLEANING PIN		Stihl CLEANING PIN P/N: 4915 502 0800, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
13	9645 945 7542 Stihl O-ring 12.5x1.8		Stihl O-ring 12.5x1.8 £1.46 P/N: 9645 945 7542, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
14	4719 701 2901 Stihl Intake Fitting		Stihl Intake Fitting £6.53 P/N: 4719 701 2901, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
15	9045 319 1020 Stihl Socket head screw DIN912-M5x20-8.8	£0.92	Stihl Socket head screw DIN912-M5x20-8.8 £0.92 P/N: 9045 319 1020, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	4719 502 2101 Stihl Strainer	£5.36	Stihl Strainer £5.36 P/N: 4719 502 2101, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	4719 700 7300 Stihl Hose connector	£5.06	Stihl Hose connector £5.06 P/N: 4719 700 7300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
150	4719 700 7300 Stihl Hose connector	£5.06	Stihl Hose connector £5.06 P/N: 4719 700 7300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
151	4719 007 1050 Stihl Set of gaskets	£58.88	Stihl Set of gaskets £58.88 P/N: 4719 007 1050, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
