Stihl MS 880 Chainsaw (MS880 R) Parts Diagram, Cylinder

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl MS 880 Chainsaw, or refer to the list below.

All Parts for MS 880 Chainsaw

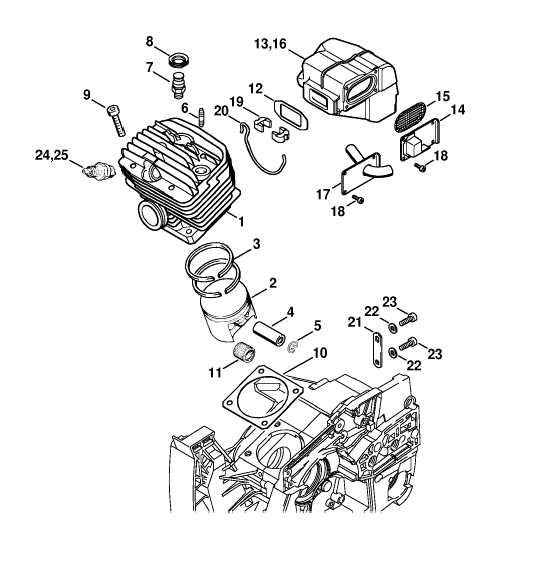

Stihl MS 880 Chainsaw (MS880 R) Parts Diagram, Cylinder

#	Part	Price
1	1124 020 1207 Stihl Cylinder and piston 60mm		Stihl Cylinder and piston 60mm £268.44 P/N: 1124 020 1207, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
2	1124 030 2007 Stihl Piston 60mm	£167.90	Stihl Piston 60mm £167.90 P/N: 1124 030 2007, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	1124 034 3010 Stihl Piston ring 1.2mm	£14.50	Stihl Piston ring 1.2mm £14.50 P/N: 1124 034 3010, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	1124 034 1500 Stihl Piston pin 13x8x39	£8.28	Stihl Piston pin 13x8x39 £8.28 P/N: 1124 034 1500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	9463 650 1300 Stihl Snap ring DIN73130-C13x1	£0.80	Stihl Snap ring DIN73130-C13x1 £0.80 P/N: 9463 650 1300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	0000 953 0818 Stihl Stud	£1.62	Stihl Stud £1.62 P/N: 0000 953 0818, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	1124 020 9410 Stihl Decompression valve	£35.64	Stihl Decompression valve £35.64 P/N: 1124 020 9410, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	1122 084 1405 Stihl Cover	£3.11	Stihl Cover £3.11 P/N: 1122 084 1405, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	9022 341 1370 Stihl Spline screw IS-M6x30	£1.27	Stihl Spline screw IS-M6x30 £1.27 P/N: 9022 341 1370, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	1124 029 2310 Stihl Cylinder gasket	£3.22	Stihl Cylinder gasket £3.22 P/N: 1124 029 2310, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	9512 003 3440 Stihl Needle cage 13x17x17.5	£9.42	Stihl Needle cage 13x17x17.5 £9.42 P/N: 9512 003 3440, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	1124 149 0610 Stihl Muffler gasket	£3.22	Stihl Muffler gasket £3.22 P/N: 1124 149 0610, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	1124 145 2905 Stihl EXHAUST COVER		Stihl EXHAUST COVER £28.44 P/N: 1124 145 2905, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
15	1124 141 9005 Stihl SCREEN		Stihl SCREEN £4.76 P/N: 1124 141 9005, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
16	1124 140 0620 Stihl Muffler		Stihl Muffler £88.12 P/N: 1124 140 0620, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
17	1124 145 2900 Stihl Muffler cover		Stihl Muffler cover £34.30 P/N: 1124 145 2900, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
18	9022 313 0660 Stihl Spline screw IS-M4x12	£0.80	Stihl Spline screw IS-M4x12 £0.80 P/N: 9022 313 0660, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	1124 145 1905 Stihl Tension wedge	£4.25	Stihl Tension wedge £4.25 P/N: 1124 145 1905, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	1124 145 1800 Stihl Tension spring		Stihl Tension spring £1.92 P/N: 1124 145 1800, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
21	1124 145 2005 Stihl Support		Stihl Support £3.55 P/N: 1124 145 2005, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
22	9291 021 0120 Stihl Washer DIN125-A5,3	£0.35	Stihl Washer DIN125-A5,3 £0.35 P/N: 9291 021 0120, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
23	9039 488 0984 Stihl Screw DIN 7500-M5x16	£0.92	Stihl Screw DIN 7500-M5x16 £0.92 P/N: 9039 488 0984, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
24	0000 400 7000 Stihl Spark plug NGK BPMR7A	£4.03	Stihl Spark plug NGK BPMR7A £4.03 P/N: 0000 400 7000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
25	0000 400 7000 Stihl Spark plug NGK BPMR7A	£4.03	Stihl Spark plug NGK BPMR7A £4.03 P/N: 0000 400 7000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
26	1124 007 1051 Stihl Set of gaskets 088	£17.83	Stihl Set of gaskets 088 £17.83 P/N: 1124 007 1051, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
