Stihl MS 311 Chainsaw (MS311) Parts Diagram, Cylinder

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl MS 311 Chainsaw, or refer to the list below.

All Parts for MS 311 Chainsaw

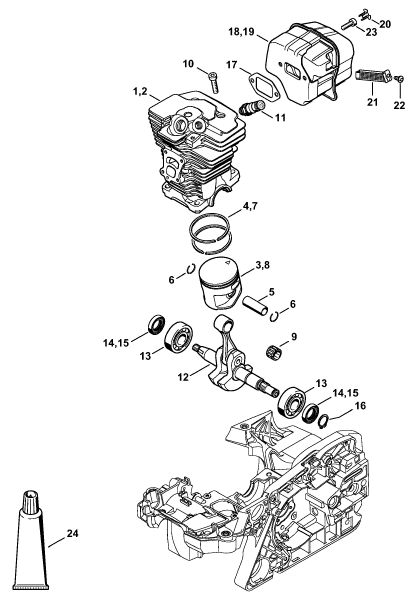

Stihl MS 311 Chainsaw (MS311) Parts Diagram, Cylinder

#	Part	Price
1	1140 020 1201 Stihl Cylinder with piston � 47mm	£362.26	Stihl Cylinder with piston � 47mm £362.26 P/N: 1140 020 1201, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	1140 030 2002 Stihl Piston 47mm		Stihl Piston 47mm £99.18 P/N: 1140 030 2002, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
4	1140 034 3008 Stihl Piston ring � 47x1.2mm	£10.58	Stihl Piston ring � 47x1.2mm £10.58 P/N: 1140 034 3008, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	1122 034 1500 Stihl Piston pin 12x8x33	£7.70	Stihl Piston pin 12x8x33 £7.70 P/N: 1122 034 1500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	9463 650 1200 Stihl Snap ring DIN73130-C12x1	£0.70	Stihl Snap ring DIN73130-C12x1 £0.70 P/N: 9463 650 1200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	9512 003 3061 Stihl Needle cage 12x15x15	£7.93	Stihl Needle cage 12x15x15 £7.93 P/N: 9512 003 3061, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	1140 022 9500 Stihl Screw IS-M6x25	£1.73	Stihl Screw IS-M6x25 £1.73 P/N: 1140 022 9500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	1135 020 9400 Stihl Decompression valve	£31.85	Stihl Decompression valve £31.85 P/N: 1135 020 9400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	1140 030 0401 Stihl Crankshaft	£284.04	Stihl Crankshaft £284.04 P/N: 1140 030 0401, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	9523 003 4301 Stihl Grooved ball bearing 15x38x11	£17.48	Stihl Grooved ball bearing 15x38x11 £17.48 P/N: 9523 003 4301, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	9639 003 1585 Stihl Oil seal DIN3760-AS15x25x5	£6.79	Stihl Oil seal DIN3760-AS15x25x5 £6.79 P/N: 9639 003 1585, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	9638 003 1581 Stihl Oil seal BS15x25x5	£13.45	Stihl Oil seal BS15x25x5 £13.45 P/N: 9638 003 1581, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	9455 621 1520 Stihl Circlips DIN471-15x1	£0.92	Stihl Circlips DIN471-15x1 £0.92 P/N: 9455 621 1520, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	1140 149 0600 Stihl Muffler gasket	£4.14	Stihl Muffler gasket £4.14 P/N: 1140 149 0600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	1140 140 0653 Stihl Muffler	£51.30	Stihl Muffler £51.30 P/N: 1140 140 0653, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	1135 145 9002 Stihl Plug	£2.65	Stihl Plug £2.65 P/N: 1135 145 9002, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
23	9039 488 0984 Stihl Screw DIN 7500-M5x16	£0.92	Stihl Screw DIN 7500-M5x16 £0.92 P/N: 9039 488 0984, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
24	0783 830 2000 Stihl Tube of sealant HT red 70ml		Stihl Tube of sealant HT red 70ml £18.52 P/N: 0783 830 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
