Stihl MS 280 Chainsaw (MS280 C-BQ IZ) Parts Diagram, Cylinder MS280

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl MS 280 Chainsaw, or refer to the list below.

All Parts for MS 280 Chainsaw

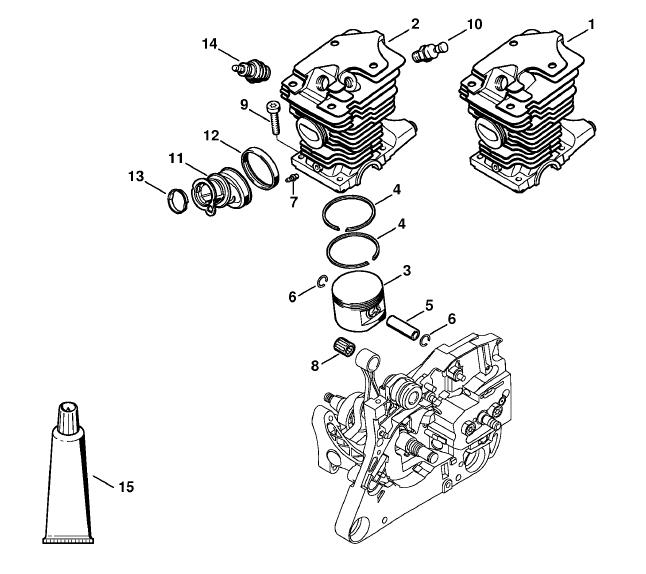

Stihl MS 280 Chainsaw (MS280 C-BQ IZ) Parts Diagram, Cylinder MS280

#	Part	Price
1	1133 020 1202 Stihl Cylinder and piston 46mm	£322.00	Stihl Cylinder and piston 46mm £322.00 P/N: 1133 020 1202, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	1133 030 2001 Stihl Piston 46mm	£143.76	Stihl Piston 46mm £143.76 P/N: 1133 030 2001, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	4116 034 3005 Stihl Piston ring 46x1.2mm	£10.24	Stihl Piston ring 46x1.2mm £10.24 P/N: 4116 034 3005, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	1110 034 1500 Stihl Piston pin	£7.60	Stihl Piston pin £7.60 P/N: 1110 034 1500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	9463 650 1000 Stihl Snap ring DIN73130-C10	£0.70	Stihl Snap ring DIN73130-C10 £0.70 P/N: 9463 650 1000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	0000 988 5211 Stihl Connector	£1.96	Stihl Connector £1.96 P/N: 0000 988 5211, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	9512 003 2275 Stihl Needle cage 10x13x14.5	£7.82	Stihl Needle cage 10x13x14.5 £7.82 P/N: 9512 003 2275, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	9022 341 0900 Stihl Spline screw IS-M5x28	£1.03	Stihl Spline screw IS-M5x28 £1.03 P/N: 9022 341 0900, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	1133 141 2202 Stihl Manifold	£45.19	Stihl Manifold £45.19 P/N: 1133 141 2202, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	1133 148 7000 Stihl Tightening ring	£4.60	Stihl Tightening ring £4.60 P/N: 1133 148 7000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	1117 141 1800 Stihl Sleeve	£1.14	Stihl Sleeve £1.14 P/N: 1117 141 1800, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	0000 400 7000 Stihl Spark plug NGK BPMR7A	£4.03	Stihl Spark plug NGK BPMR7A £4.03 P/N: 0000 400 7000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	0783 830 2000 Stihl Tube of sealant HT red 70ml		Stihl Tube of sealant HT red 70ml £18.52 P/N: 0783 830 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
