Stihl MS 241 Chainsaw (MS241 C-MVW) Parts Diagram, Cylinder

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl MS 241 Chainsaw, or refer to the list below.

All Parts for MS 241 Chainsaw

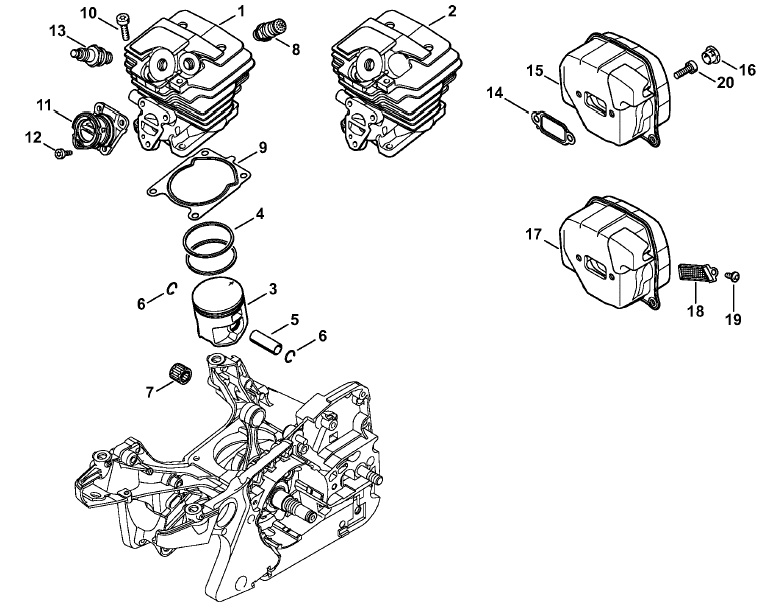

Stihl MS 241 Chainsaw (MS241 C-MVW) Parts Diagram, Cylinder

#	Part	Price
1	1143 020 1200 Stihl Cylinder and piston 42.5mm	£240.36	Stihl Cylinder and piston 42.5mm £240.36 P/N: 1143 020 1200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	1143 030 2004 Stihl Piston 42.5mm	£101.20	Stihl Piston 42.5mm £101.20 P/N: 1143 030 2004, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	1143 034 3000 Stihl Piston ring 42.5x1.2mm	£8.86	Stihl Piston ring 42.5x1.2mm £8.86 P/N: 1143 034 3000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	1143 034 1500 Stihl Piston pin 10x8x27.88	£7.25	Stihl Piston pin 10x8x27.88 £7.25 P/N: 1143 034 1500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	9463 650 1000 Stihl Snap ring DIN73130-C10	£0.70	Stihl Snap ring DIN73130-C10 £0.70 P/N: 9463 650 1000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	9512 003 2331 Stihl Needle cage 10x14x12.5	£8.28	Stihl Needle cage 10x14x12.5 £8.28 P/N: 9512 003 2331, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	1143 020 9400 Stihl Decompression valve	£31.85	Stihl Decompression valve £31.85 P/N: 1143 020 9400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	1143 029 2300 Stihl Cylinder gasket	£3.22	Stihl Cylinder gasket £3.22 P/N: 1143 029 2300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	9022 371 1020 Stihl Spline screw IS-M5x20	£0.92	Stihl Spline screw IS-M5x20 £0.92 P/N: 9022 371 1020, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	1143 140 2500 Stihl Manifold	£45.89	Stihl Manifold £45.89 P/N: 1143 140 2500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	9075 478 3012 Stihl Pan head self-tapping screw IS D4x12	£0.80	Stihl Pan head self-tapping screw IS D4x12 £0.80 P/N: 9075 478 3012, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	0000 400 7011 Stihl Spark plug NGK CMR6H	£4.03	Stihl Spark plug NGK CMR6H £4.03 P/N: 0000 400 7011, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	1141 149 0600 Stihl Muffler gasket	£2.18	Stihl Muffler gasket £2.18 P/N: 1141 149 0600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	1143 140 0650 Stihl Muffler	£62.68	Stihl Muffler £62.68 P/N: 1143 140 0650, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	1143 145 9000 Stihl Plug	£2.87	Stihl Plug £2.87 P/N: 1143 145 9000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	9022 341 0983 Stihl Spline screw IS-M5x16-12.9	£0.92	Stihl Spline screw IS-M5x16-12.9 £0.92 P/N: 9022 341 0983, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
21	1143 007 1600 Stihl Set of gaskets	£14.26	Stihl Set of gaskets £14.26 P/N: 1143 007 1600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
