Stihl MS 192 Chainsaw (MS192TC) Parts Diagram, Cylinder with Piston

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl MS 192 Chainsaw, or refer to the list below.

All Parts for MS 192 Chainsaw

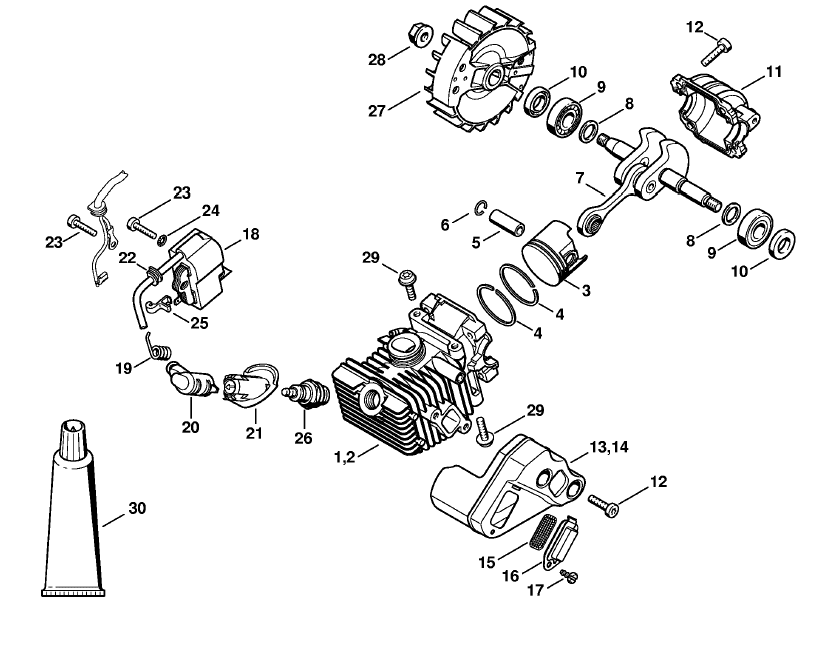

Stihl MS 192 Chainsaw (MS192TC) Parts Diagram, Cylinder with Piston

#	Part	Price
1	1137 020 1203 Stihl Cylinder and piston 37mm	£123.06	Stihl Cylinder and piston 37mm £123.06 P/N: 1137 020 1203, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	1137 020 1204 Stihl Cylinder with piston � 37mm	£109.82	Stihl Cylinder with piston � 37mm £109.82 P/N: 1137 020 1204, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	1137 030 2002 Stihl Piston 37mm	£59.80	Stihl Piston 37mm £59.80 P/N: 1137 030 2002, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	1130 034 3003 Stihl Piston ring 37x1.2mm	£6.32	Stihl Piston ring 37x1.2mm £6.32 P/N: 1130 034 3003, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	1132 034 1501 Stihl Piston pin 10x6.5x25	£7.25	Stihl Piston pin 10x6.5x25 £7.25 P/N: 1132 034 1501, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	9463 650 1000 Stihl Snap ring DIN73130-C10	£0.70	Stihl Snap ring DIN73130-C10 £0.70 P/N: 9463 650 1000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	1137 030 0400 Stihl Crankshaft	£85.10	Stihl Crankshaft £85.10 P/N: 1137 030 0400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	1137 036 0300 Stihl Washer	£1.27	Stihl Washer £1.27 P/N: 1137 036 0300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	9503 003 0210 Stihl Grooved ball bearing DIN625-6001	£11.62	Stihl Grooved ball bearing DIN625-6001 £11.62 P/N: 9503 003 0210, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	9639 003 1205 Stihl Oil seal DIN3760-AS12x22x4.5	£5.41	Stihl Oil seal DIN3760-AS12x22x4.5 £5.41 P/N: 9639 003 1205, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	9639 003 1206 Stihl Oil seal DIN3760-AS12x22x4.5	£10.69	Stihl Oil seal DIN3760-AS12x22x4.5 £10.69 P/N: 9639 003 1206, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	1137 021 2500 Stihl Engine pan	£13.69	Stihl Engine pan £13.69 P/N: 1137 021 2500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	9075 478 4136 Stihl Pan head self-tapping screw IS-D5x20	£0.92	Stihl Pan head self-tapping screw IS-D5x20 £0.92 P/N: 9075 478 4136, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	1137 140 0600 Stihl Muffler	£26.80	Stihl Muffler £26.80 P/N: 1137 140 0600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	1137 400 1307 Stihl Ignition module	£59.80	Stihl Ignition module £59.80 P/N: 1137 400 1307, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	0000 998 0604 Stihl Torsion spring	£1.38	Stihl Torsion spring £1.38 P/N: 0000 998 0604, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	1128 405 1000 Stihl Spark plug boot	£6.66	Stihl Spark plug boot £6.66 P/N: 1128 405 1000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
22	0000 989 0507 Stihl Grommet	£1.49	Stihl Grommet £1.49 P/N: 0000 989 0507, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
23	9075 478 3022 Stihl Pan head self-tapping screw IS-D4x20	£0.92	Stihl Pan head self-tapping screw IS-D4x20 £0.92 P/N: 9075 478 3022, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
24	9291 021 0100 Stihl Washer DIN125-A4,3	£0.24	Stihl Washer DIN125-A4,3 £0.24 P/N: 9291 021 0100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
25	1137 448 1201 Stihl LEAD RETAINER		Stihl LEAD RETAINER £0.37 P/N: 1137 448 1201, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
26	0000 400 7000 Stihl Spark plug NGK BPMR7A	£4.03	Stihl Spark plug NGK BPMR7A £4.03 P/N: 0000 400 7000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
26	0000 400 7000 Stihl Spark plug NGK BPMR7A	£4.03	Stihl Spark plug NGK BPMR7A £4.03 P/N: 0000 400 7000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
27	1137 400 1200 Stihl Flywheel	£71.30	Stihl Flywheel £71.30 P/N: 1137 400 1200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
28	0000 955 0802 Stihl Collar nut	£1.38	Stihl Collar nut £1.38 P/N: 0000 955 0802, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
29	0000 951 1100 Stihl Screw	£1.62	Stihl Screw £1.62 P/N: 0000 951 1100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
30	0783 830 2000 Stihl Tube of sealant HT red 70ml		Stihl Tube of sealant HT red 70ml £18.52 P/N: 0783 830 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
