Stihl MM 55 Multi Tool Engine (MM 55) Parts Diagram, Rewind starter

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl MM 55 Multi Tool Engine, or refer to the list below.

All Parts for MM 55 Multi Tool Engine

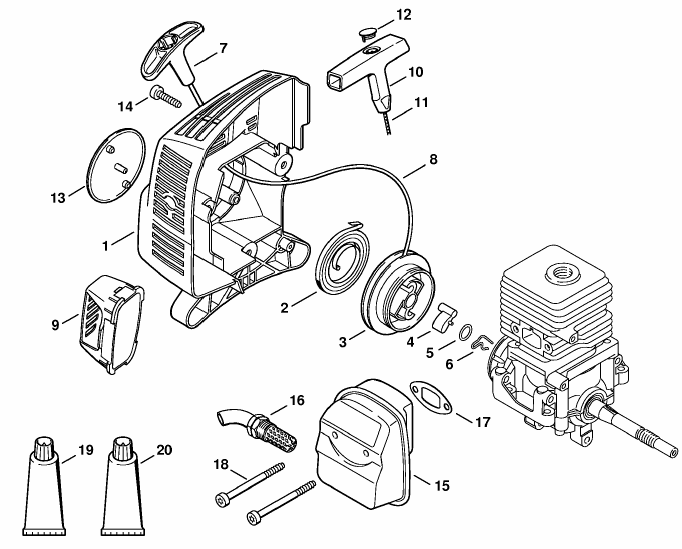

Stihl MM 55 Multi Tool Engine (MM 55) Parts Diagram, Rewind starter

#	Part	Price
1	4601 190 4000 Stihl Rewind starter	£60.96	Stihl Rewind starter £60.96 P/N: 4601 190 4000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	4140 190 0601 Stihl Rewind spring	£10.46	Stihl Rewind spring £10.46 P/N: 4140 190 0601, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	4601 195 0400 Stihl Rope rotor	£9.20	Stihl Rope rotor £9.20 P/N: 4601 195 0400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	4116 195 7200 Stihl Pawl	£2.30	Stihl Pawl £2.30 P/N: 4116 195 7200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	0000 958 0923 Stihl Washer	£1.14	Stihl Washer £1.14 P/N: 0000 958 0923, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	1118 195 3500 Stihl Spring	£1.14	Stihl Spring £1.14 P/N: 1118 195 3500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	4140 195 3400 Stihl Starter grip	£4.03	Stihl Starter grip £4.03 P/N: 4140 195 3400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	4601 195 8200 Stihl Starter rope	£9.90	Stihl Starter rope £9.90 P/N: 4601 195 8200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	4140 084 6802 Stihl Spacer	£5.28	Stihl Spacer £5.28 P/N: 4140 084 6802, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	0000 190 3405 Stihl Starter grip ElastoStart 3mm	£20.70	Stihl Starter grip ElastoStart 3mm £20.70 P/N: 0000 190 3405, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	0000 195 8203 Stihl Starter rope 3 x 850mm	£3.11	Stihl Starter rope 3 x 850mm £3.11 P/N: 0000 195 8203, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	0000 195 7000 Stihl Cap	£1.62	Stihl Cap £1.62 P/N: 0000 195 7000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	4601 967 1500 Stihl Model plate MM 55	£4.72	Stihl Model plate MM 55 £4.72 P/N: 4601 967 1500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	0000 951 1100 Stihl Screw	£1.62	Stihl Screw £1.62 P/N: 0000 951 1100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	4140 140 0607 Stihl Muffler	£21.16	Stihl Muffler £21.16 P/N: 4140 140 0607, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	4140 140 6902 Stihl Stub with screen	£11.96	Stihl Stub with screen £11.96 P/N: 4140 140 6902, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	4140 149 0602 Stihl Muffler gasket	£1.49	Stihl Muffler gasket £1.49 P/N: 4140 149 0602, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	9075 478 4268 Stihl Pan head self-tapping screw IS-D5x60	£1.49	Stihl Pan head self-tapping screw IS-D5x60 £1.49 P/N: 9075 478 4268, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	0783 830 2000 Stihl Tube of sealant HT red 70ml		Stihl Tube of sealant HT red 70ml £18.52 P/N: 0783 830 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
20	0781 120 6000 Stihl Shaft lubricant 40g		Stihl Shaft lubricant 40g £22.55 P/N: 0781 120 6000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
21	0000 930 2208 Stihl Starter cord 3.0mm x 30.5m	£36.68	Stihl Starter cord 3.0mm x 30.5m £36.68 P/N: 0000 930 2208, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
22	4140 007 1050 Stihl Set of gaskets	£14.38	Stihl Set of gaskets £14.38 P/N: 4140 007 1050, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
