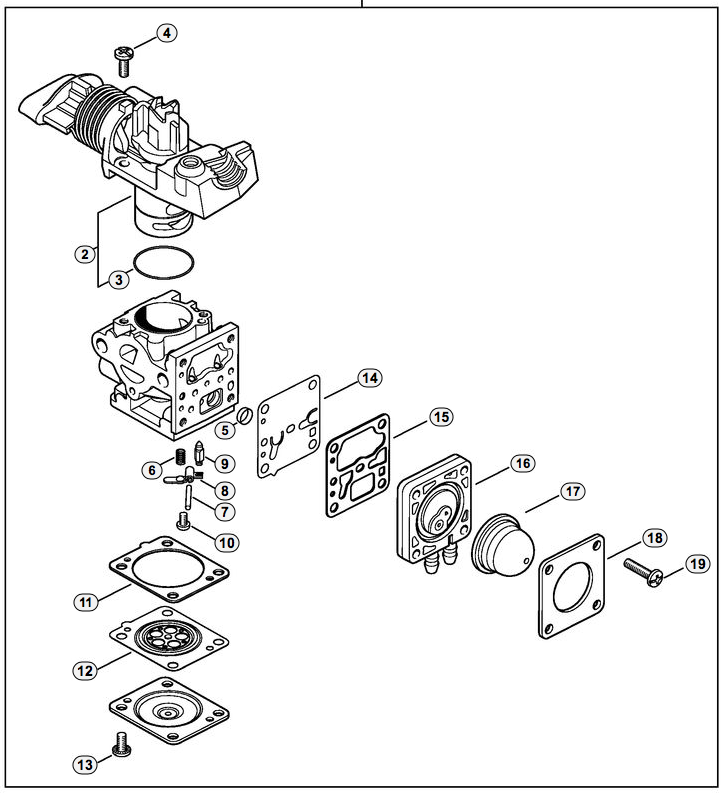

Stihl KM 94 RC-E ENGINE (KM 94 RC-E ENGINE) Parts Diagram, Carb 4149/02 from serial 516674202
Look at the diagram and find parts that fit a Stihl KM 94 RC-E ENGINE, or refer to the list below.
All Parts for KM 94 RC-E ENGINE
| # | Part | Price | |
|---|---|---|---|
| 1 |
4149 120 0602 Stihl Carburettor 4149/02 |
£89.12 |
 Stihl Carburettor 4149/02£89.12
P/N: 4149 120 0602, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 2 |
Z010 078 K000 Stihl Rotor cover kit |
£42.89 |
 Stihl Rotor cover kit£42.89
P/N: Z010 078 K000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 3 |
9645 945 2130 Stihl O-ring 20x0.5-NBR70 |
£0.70 |
Stihl O-ring 20x0.5-NBR70£0.70
P/N: 9645 945 2130, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 4 |
1128 122 7100 Stihl Screw |
£4.38 |
Stihl Screw£4.38
P/N: 1128 122 7100, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 5 |
1120 121 7800 Stihl Strainer |
£3.46 |
Stihl Strainer£3.46
P/N: 1120 121 7800, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 6 |
4128 122 3000 Stihl Spring |
£2.41 |
Stihl Spring£2.41
P/N: 4128 122 3000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 7 |
1120 121 9200 Stihl Spindle |
£1.38 |
Stihl Spindle£1.38
P/N: 1120 121 9200, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 8 |
4229 121 5000 Stihl Inlet control lever |
£3.34 |
Stihl Inlet control lever£3.34
P/N: 4229 121 5000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 9 |
4149 121 5101 Stihl Inlet needle |
£11.28 |
Stihl Inlet needle£11.28
P/N: 4149 121 5101, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 10 |
0000 122 7101 Stihl Screw |
£4.60 |
Stihl Screw£4.60
P/N: 0000 122 7101, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 11 |
4149 129 0904 Stihl Gasket |
£2.30 |
Stihl Gasket£2.30
P/N: 4149 129 0904, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 12 |
4149 121 4702 Stihl Metering diaphragm |
£15.64 |
Stihl Metering diaphragm£15.64
P/N: 4149 121 4702, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 13 |
4132 122 6600 Stihl Collar screw |
£4.60 |
Stihl Collar screw£4.60
P/N: 4132 122 6600, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 14 |
4149 121 4801 Stihl Pump diaphragm |
£15.64 |
Stihl Pump diaphragm£15.64
P/N: 4149 121 4801, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 15 |
4149 129 0905 Stihl Gasket |
£2.30 |
Stihl Gasket£2.30
P/N: 4149 129 0905, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 16 |
4149 120 2202 Stihl Flange |
£34.26 |
Stihl Flange£34.26
P/N: 4149 120 2202, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 17 |
4149 121 2700 Stihl Cap |
£5.87 |
Stihl Cap£5.87
P/N: 4149 121 2700, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 18 |
4149 121 0801 Stihl End cover |
£17.94 |
Stihl End cover£17.94
P/N: 4149 121 0801, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 19 |
4241 122 7100 Stihl Screw |
£4.38 |
Stihl Screw£4.38
P/N: 4241 122 7100, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
