Look at the diagram and find parts that fit a Stihl KM 56 RC-E Engine, or refer to the list below.

All Parts for KM 56 RC-E Engine

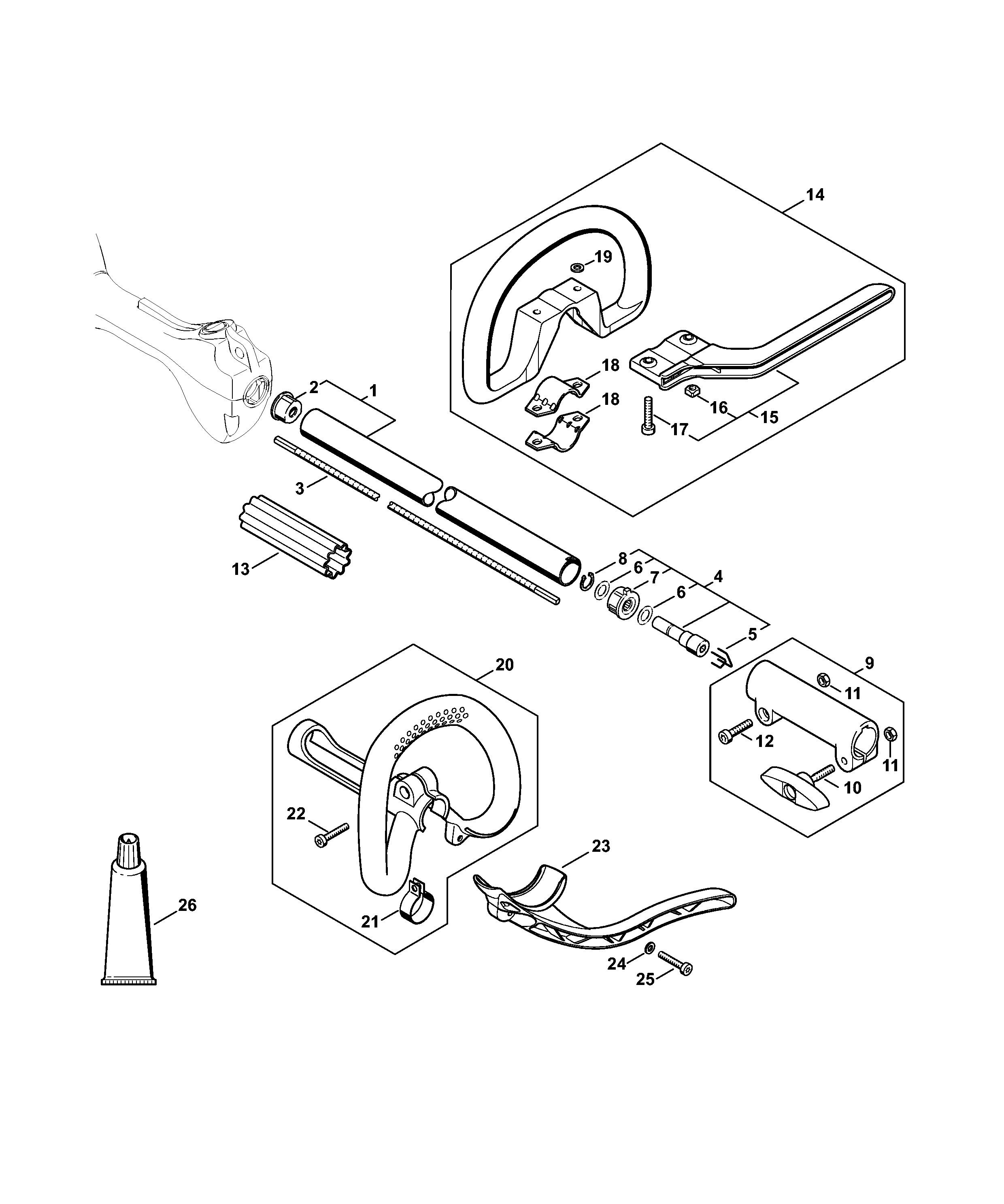

Drive Tube Assembly, Loop Handle KM 56 RC

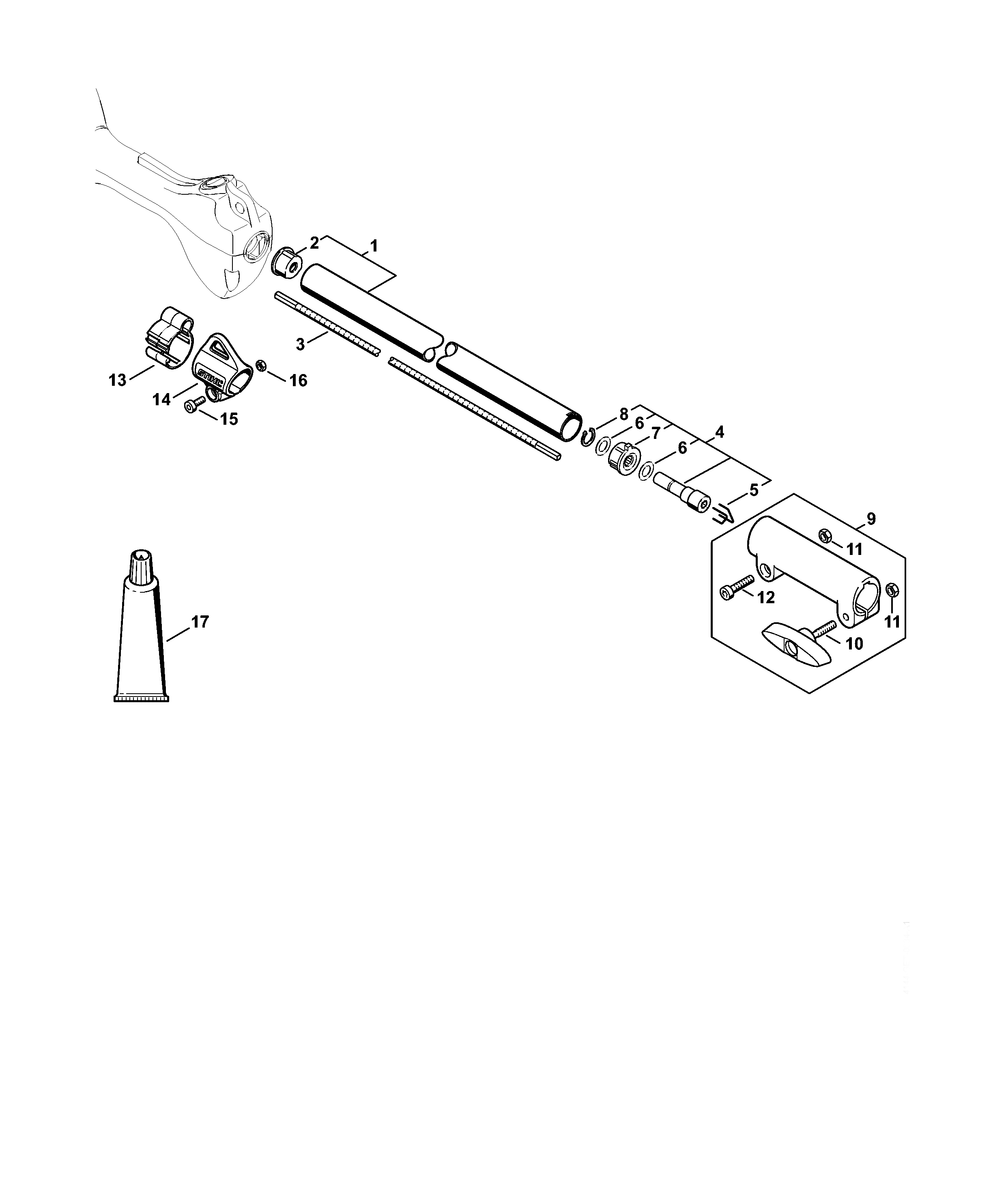

Stihl KM 56 RC-E Engine (KM 56 RC-E) Parts Diagram, Drive Tube Assembly KM 56 C

#	Part	Price
1	4140 710 7128 Stihl Drive tube assembly 25.4mm / 1" 2	£39.22	Stihl Drive tube assembly 25.4mm / 1" £39.22 2 P/N: 4140 710 7128, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	4137 711 2101 Stihl Plug	£0.80	Stihl Plug £0.80 P/N: 4137 711 2101, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	4140 711 3203 Stihl Drive shaft	£28.40	Stihl Drive shaft £28.40 P/N: 4140 711 3203, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	4140 740 3501 Stihl Driver 05-Aug	£52.68	Stihl Driver £52.68 05-Aug P/N: 4140 740 3501, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	4140 716 2200 Stihl Bow	£1.73	Stihl Bow £1.73 P/N: 4140 716 2200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	1118 162 8935 Stihl Washer	£1.14	Stihl Washer £1.14 P/N: 1118 162 8935, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	4140 160 5201 Stihl Bushing	£7.14	Stihl Bushing £7.14 P/N: 4140 160 5201, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	9455 621 0850 Stihl Circlips DIN471-10x1	£0.70	Stihl Circlips DIN471-10x1 £0.70 P/N: 9455 621 0850, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	4140 160 0700 Stihl Coupling sleeve 10-Dec	£38.75	Stihl Coupling sleeve £38.75 10-Dec P/N: 4140 160 0700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	4140 790 7501 Stihl Tommy screw	£5.87	Stihl Tommy screw £5.87 P/N: 4140 790 7501, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	9210 319 0900 Stihl Hexagon nut DIN934-M6-10	£0.46	Stihl Hexagon nut DIN934-M6-10 £0.46 P/N: 9210 319 0900, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	9022 341 1350 Stihl Spline screw IS-M6x25-10.9	£1.03	Stihl Spline screw IS-M6x25-10.9 £1.03 P/N: 9022 341 1350, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	0000 182 2100 Stihl Support � 25.4mm	£3.79	Stihl Support � 25.4mm £3.79 P/N: 0000 182 2100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	0000 790 8803 Stihl Loop � 25.4 15, 16	£13.22	Stihl Loop � 25.4 £13.22 15, 16 P/N: 0000 790 8803, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	9039 488 0984 Stihl Screw DIN 7500-M5x16	£0.92	Stihl Screw DIN 7500-M5x16 £0.92 P/N: 9039 488 0984, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	9210 260 0700 Stihl Hexagon nut DIN934-M5-8	£0.35	Stihl Hexagon nut DIN934-M5-8 £0.35 P/N: 9210 260 0700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	0781 120 1110 Stihl Multipurpose grease 225 g Tube	£27.71	Stihl Multipurpose grease 225 g Tube £27.71 P/N: 0781 120 1110, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
