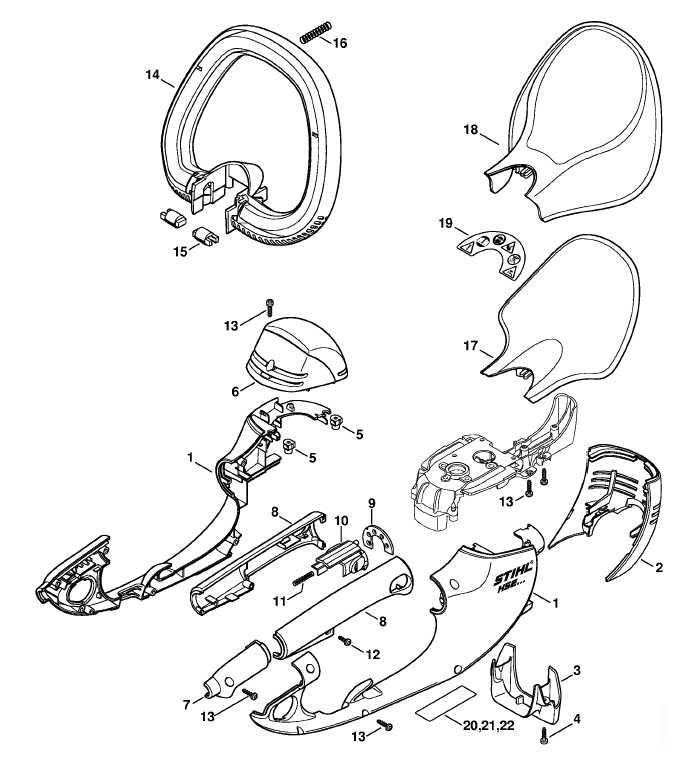

Stihl HSE 71 Electric Hedgetrimmer (HSE 71) Parts Diagram, Engine Housing
Look at the diagram and find parts that fit a Stihl HSE 71 Electric Hedgetrimmer, or refer to the list below.
All Parts for HSE 71 Electric Hedgetrimmer
| # | Part | Price | |
|---|---|---|---|
| 1 |
4812 600 0807 Stihl Motor housing |
£57.04 |
 Stihl Motor housing£57.04
P/N: 4812 600 0807, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 2 |
6460 602 1210 Stihl Motor housing |
£23.35 |
Stihl Motor housing£23.35
P/N: 6460 602 1210, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 5 |
9286 929 0030 Stihl Slip-on nut 40x2,5x5 |
£1.14 |
Stihl Slip-on nut 40x2,5x5£1.14
P/N: 9286 929 0030, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 7 |
4812 791 9202 Stihl Cap |
£5.17 |
 Stihl Cap£5.17
P/N: 4812 791 9202, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 8 |
4812 790 0604 Stihl Handle moulding |
£12.24 |
Stihl Handle moulding£12.24
P/N: 4812 790 0604, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 9 |
4812 792 1800 Stihl Notched quadrant |
£2.87 |
Stihl Notched quadrant£2.87
P/N: 4812 792 1800, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 10 |
4812 792 7000 Stihl Slide |
Stihl Slide£5.28
P/N: 4812 792 7000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 11 |
4812 716 2404 Stihl Compression spring |
£1.14 |
Stihl Compression spring£1.14
P/N: 4812 716 2404, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 12 |
9104 003 8731 Stihl Self-tapping screw IS-P4x12 |
£0.80 |
Stihl Self-tapping screw IS-P4x12£0.80
P/N: 9104 003 8731, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 13 |
9104 003 8736 Stihl Self-tapping screw IS-P4x16 |
£0.80 |
Stihl Self-tapping screw IS-P4x16£0.80
P/N: 9104 003 8736, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 14 |
6460 790 1200 Stihl Loop Handle |
Stihl Loop Handle£23.57
P/N: 6460 790 1200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 15 |
6460 791 6000 Stihl Pin |
£2.76 |
Stihl Pin£2.76
P/N: 6460 791 6000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 16 |
6460 716 2400 Stihl Compression spring |
£1.14 |
Stihl Compression spring£1.14
P/N: 6460 716 2400, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 17 |
4812 790 9106 Stihl Hand guard |
£18.29 |
Stihl Hand guard£18.29
P/N: 4812 790 9106, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 19 |
0000 967 7206 Stihl Warning pictogram HSE |
Stihl Warning pictogram HSE£2.09
P/N: 0000 967 7206, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 21 |
4812 967 1802 Stihl Rating plate HSE 71 |
£2.09 |
Stihl Rating plate HSE 71£2.09
P/N: 4812 967 1802, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
