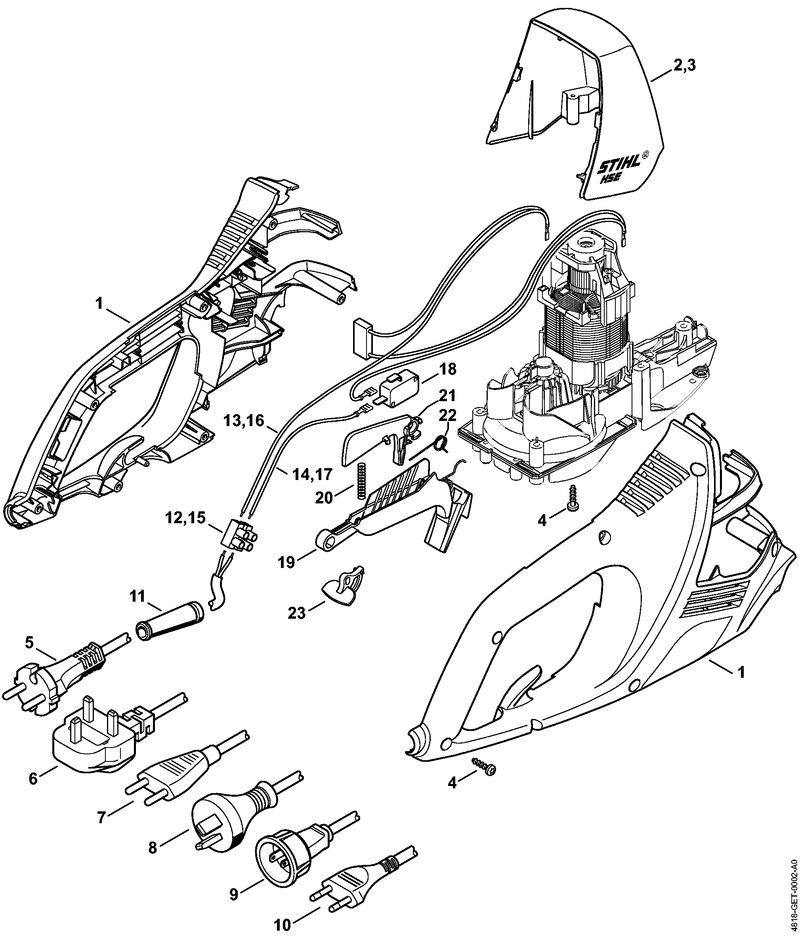

Stihl HSE 52 Electric Hedgetrimmer (HSE 52) Parts Diagram, A MOTOR HOUSING
Look at the diagram and find parts that fit a Stihl HSE 52 Electric Hedgetrimmer, or refer to the list below.
All Parts for HSE 52 Electric Hedgetrimmer
| # | Part | Price | |
|---|---|---|---|
| 1 |
4818 600 0800 Stihl Motor housing |
£43.58 |
 Stihl Motor housing£43.58
P/N: 4818 600 0800, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 3 |
4818 600 3501 Stihl Cover HSE 52 |
£13.34 |
Stihl Cover HSE 52£13.34
P/N: 4818 600 3501, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 4 |
9104 003 8736 Stihl Self-tapping screw IS-P4x16 |
£0.80 |
Stihl Self-tapping screw IS-P4x16£0.80
P/N: 9104 003 8736, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 5 |
6010 440 2010 Stihl CONNECTING LEAD |
Stihl CONNECTING LEAD£2.69
P/N: 6010 440 2010, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 6 |
6010 440 2012 Stihl Connecting cable 10m GB |
£27.25 |
Stihl Connecting cable 10m GB£27.25
P/N: 6010 440 2012, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 11 |
6010 431 2400 Stihl Cable protector |
£2.41 |
Stihl Cable protector£2.41
P/N: 6010 431 2400, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 12 |
6010 431 3000 Stihl Terminal Block |
Stihl Terminal Block£2.65
P/N: 6010 431 3000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 13 |
4818 440 3000 Stihl Wiring harness |
£10.01 |
Stihl Wiring harness£10.01
P/N: 4818 440 3000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 14 |
4818 440 1900 Stihl Lead |
£3.22 |
Stihl Lead£3.22
P/N: 4818 440 1900, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 18 |
4818 435 0300 Stihl Switch |
£6.22 |
Stihl Switch£6.22
P/N: 4818 435 0300, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 19 |
4818 430 2100 Stihl Trigger switch |
£7.25 |
Stihl Trigger switch£7.25
P/N: 4818 430 2100, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 20 |
4812 716 2401 Stihl Compression spring |
£1.14 |
Stihl Compression spring£1.14
P/N: 4812 716 2401, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 21 |
4818 435 6300 Stihl Trigger switch lockout |
£4.49 |
Stihl Trigger switch lockout£4.49
P/N: 4818 435 6300, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 22 |
4812 435 2100 Stihl Torsion spring |
£1.14 |
Stihl Torsion spring£1.14
P/N: 4812 435 2100, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 23 |
4812 435 7300 Stihl Trigger interlock |
Stihl Trigger interlock£3.79
P/N: 4812 435 7300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
