Stihl HSE 42 Electric Hedgetrimmer (HSE 42) Parts Diagram, Gear Head/Cutter Bar

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl HSE 42 Electric Hedgetrimmer, or refer to the list below.

All Parts for HSE 42 Electric Hedgetrimmer

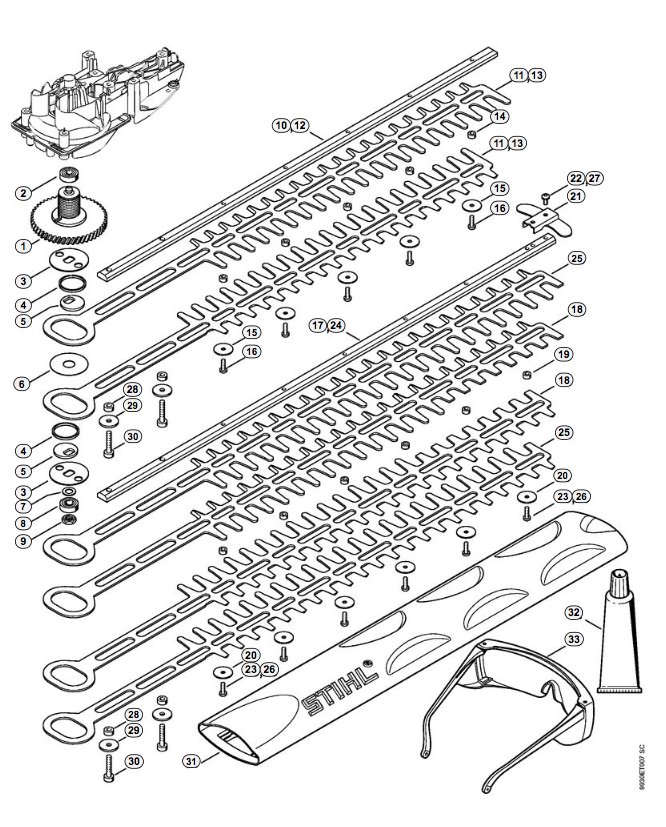

Stihl HSE 42 Electric Hedgetrimmer (HSE 42) Parts Diagram, Gear Head/Cutter Bar

#	Part	Price
	4818 710 5902 Stihl Cutter bar assembly	£105.23	Stihl Cutter bar assembly £105.23 P/N: 4818 710 5902, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
1	4818 640 2400 Stihl Drive shaft	£65.56	Stihl Drive shaft £65.56 P/N: 4818 640 2400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	9503 003 9371 Stihl Grooved ball bearing DIN625-607-2Z	£10.69	Stihl Grooved ball bearing DIN625-607-2Z £10.69 P/N: 9503 003 9371, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	4818 642 3901 Stihl Drive disc	£2.41	Stihl Drive disc £2.41 P/N: 4818 642 3901, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	6010 642 4000 Stihl Slip ring	£5.87	Stihl Slip ring £5.87 P/N: 6010 642 4000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	6010 642 9400 Stihl Eccentric disc	£2.41	Stihl Eccentric disc £2.41 P/N: 6010 642 9400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	4818 642 8702 Stihl Thrust washer	£2.18	Stihl Thrust washer £2.18 P/N: 4818 642 8702, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	9296 021 1541 Stihl Washer DIN988-8x14x1,0	£0.35	Stihl Washer DIN988-8x14x1,0 £0.35 P/N: 9296 021 1541, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	9503 003 9892 Stihl Grooved ball bearing 698-2Z	£10.36	Stihl Grooved ball bearing 698-2Z £10.36 P/N: 9503 003 9892, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	9208 260 1142 Stihl Hexagon nut (DIN439)-M8x1 LH-04	£0.46	Stihl Hexagon nut (DIN439)-M8x1 LH-04 £0.46 P/N: 9208 260 1142, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	4818 641 4604 Stihl Guide 450 mm	£15.88	Stihl Guide 450 mm £15.88 P/N: 4818 641 4604, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	4818 710 6052 Stihl Blade 450mm	£84.53	Stihl Blade 450mm £84.53 P/N: 4818 710 6052, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	4818 641 4601 Stihl *GUIDE		Stihl *GUIDE £11.94 P/N: 4818 641 4601, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
13	4818 710 6050 Stihl Blade	£80.58	Stihl Blade £80.58 P/N: 4818 710 6050, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	4818 648 6702 Stihl Slider	£1.96	Stihl Slider £1.96 P/N: 4818 648 6702, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	9298 003 3540 Stihl Washer 4.1x20x1.2	£1.03	Stihl Washer 4.1x20x1.2 £1.03 P/N: 9298 003 3540, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	9039 488 0652 Stihl Self-tapping screw (DIN7500)-C M4x12	£0.80	Stihl Self-tapping screw (DIN7500)-C M4x12 £0.80 P/N: 9039 488 0652, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
28	4818 641 4901 Stihl Sleeve	£1.14	Stihl Sleeve £1.14 P/N: 4818 641 4901, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
29	4237 958 0500 Stihl Washer	£1.38	Stihl Washer £1.38 P/N: 4237 958 0500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
30	9075 478 4175 Stihl Pan head self-tapping screw IS-D5x28	£1.03	Stihl Pan head self-tapping screw IS-D5x28 £1.03 P/N: 9075 478 4175, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
31	0000 792 9600 Stihl Cutter guard 500 mm / 20"	£13.69	Stihl Cutter guard 500 mm / 20" £13.69 P/N: 0000 792 9600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
32	0781 120 1109 Stihl Multipurpose grease 80 g Tube	£11.39	Stihl Multipurpose grease 80 g Tube £11.39 P/N: 0781 120 1109, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
33	0000 884 0307 Stihl STANDARD safety glasses		Stihl STANDARD safety glasses £5.76 P/N: 0000 884 0307, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
