Stihl HSA 86 Cordless Hedgetrimmer (HSA 86) Parts Diagram, D CUTTER BAR

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl HSA 86 Cordless Hedgetrimmer, or refer to the list below.

All Parts for HSA 86 Cordless Hedgetrimmer

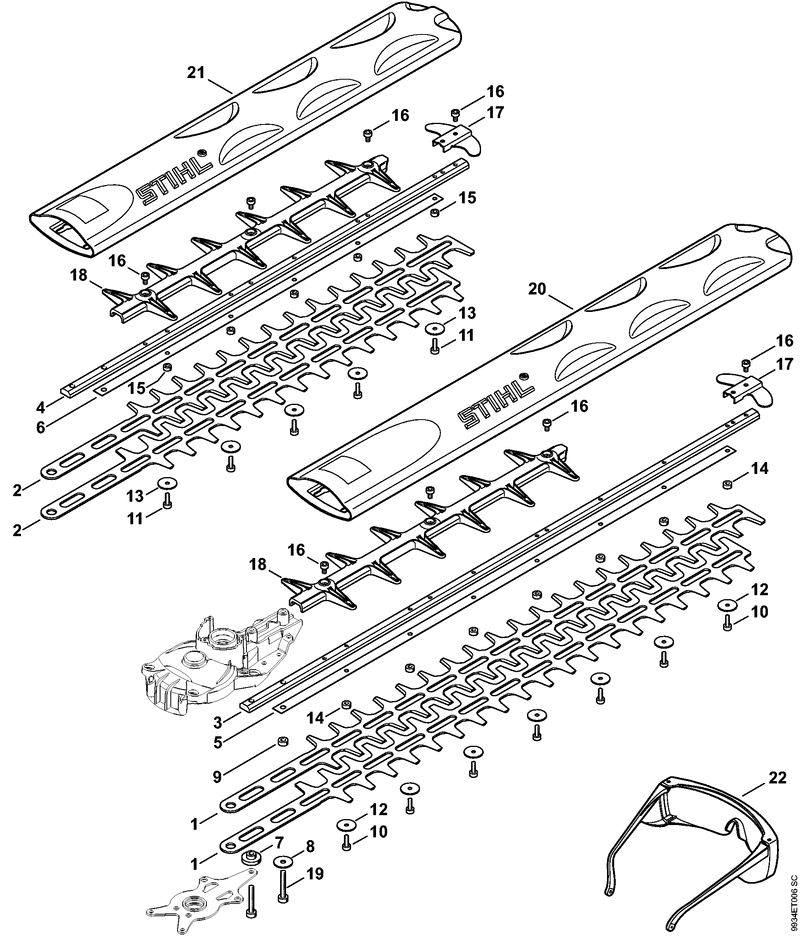

Stihl HSA 86 Cordless Hedgetrimmer (HSA 86) Parts Diagram, D CUTTER BAR

#	Part	Price
Not shown	4851 710 5904 Stihl Cutter bar assembly 24"	£186.30	Stihl Cutter bar assembly 24" £186.30 P/N: 4851 710 5904, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
Not shown	48517105906 Stihl Cutter bar assembly 18"		Stihl Cutter bar assembly 18" £145.44 P/N: 48517105906, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
Not shown	4851 710 5906 Stihl Cutter bar assembly 18"	£146.04	Stihl Cutter bar assembly 18" £146.04 P/N: 4851 710 5906, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
1	4851 710 6054 Stihl Blade	£158.70	Stihl Blade £158.70 P/N: 4851 710 6054, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	48517106056 Stihl Blade (set of 2)		Stihl Blade (set of 2) £111.90 P/N: 48517106056, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
2	4851 710 6056 Stihl Blade (set of 2)	£120.76	Stihl Blade (set of 2) £120.76 P/N: 4851 710 6056, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	4851 713 6706 Stihl Guide	£16.21	Stihl Guide £16.21 P/N: 4851 713 6706, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	4851 713 6708 Stihl Guide	£15.76	Stihl Guide £15.76 P/N: 4851 713 6708, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	4851 713 2200 Stihl Blade friction plate	£11.39	Stihl Blade friction plate £11.39 P/N: 4851 713 2200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	4851 713 2201 Stihl Blade friction plate 450 mm / 18"	£10.58	Stihl Blade friction plate 450 mm / 18" £10.58 P/N: 4851 713 2201, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	4851 641 4900 Stihl Sleeve	£5.28	Stihl Sleeve £5.28 P/N: 4851 641 4900, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	4237 958 0500 Stihl Washer	£1.38	Stihl Washer £1.38 P/N: 4237 958 0500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	4818 641 4901 Stihl Sleeve	£1.14	Stihl Sleeve £1.14 P/N: 4818 641 4901, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	9075 478 2995 Stihl Pan head self-tapping screw IS-D4x12.	£0.80	Stihl Pan head self-tapping screw IS-D4x12. £0.80 P/N: 9075 478 2995, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	9075 478 2995 Stihl Pan head self-tapping screw IS-D4x12.	£0.80	Stihl Pan head self-tapping screw IS-D4x12. £0.80 P/N: 9075 478 2995, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	9298 003 3540 Stihl Washer 4.1x20x1.2	£1.03	Stihl Washer 4.1x20x1.2 £1.03 P/N: 9298 003 3540, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	9298 003 3540 Stihl Washer 4.1x20x1.2	£1.03	Stihl Washer 4.1x20x1.2 £1.03 P/N: 9298 003 3540, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	4851 648 6700 Stihl Slider	£1.96	Stihl Slider £1.96 P/N: 4851 648 6700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	4851 648 6700 Stihl Slider	£1.96	Stihl Slider £1.96 P/N: 4851 648 6700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	9075 478 0630 Stihl Pan head self-tapping screw IS D4x8	£0.80	Stihl Pan head self-tapping screw IS D4x8 £0.80 P/N: 9075 478 0630, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	4851 792 9001 Stihl Guide guard	£6.32	Stihl Guide guard £6.32 P/N: 4851 792 9001, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	4851 792 9701 Stihl Blade guard	£19.67	Stihl Blade guard £19.67 P/N: 4851 792 9701, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	9075 478 4167 Stihl Pan head self-tapping screw IS-D5x32	£1.03	Stihl Pan head self-tapping screw IS-D5x32 £1.03 P/N: 9075 478 4167, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	0000 792 9601 Stihl Cutter guard 600 mm / 24"	£15.88	Stihl Cutter guard 600 mm / 24" £15.88 P/N: 0000 792 9601, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
21	0000 792 9600 Stihl Cutter guard 500 mm / 20"	£13.69	Stihl Cutter guard 500 mm / 20" £13.69 P/N: 0000 792 9600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
22	0000 884 0307 Stihl STANDARD safety glasses		Stihl STANDARD safety glasses £5.76 P/N: 0000 884 0307, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
