Stihl HS 46 & HS 56 Petrol Hedgtrimmers (HS46&56) Parts Diagram, Crank Case

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl HS 46 & HS 56 Petrol Hedgtrimmers, or refer to the list below.

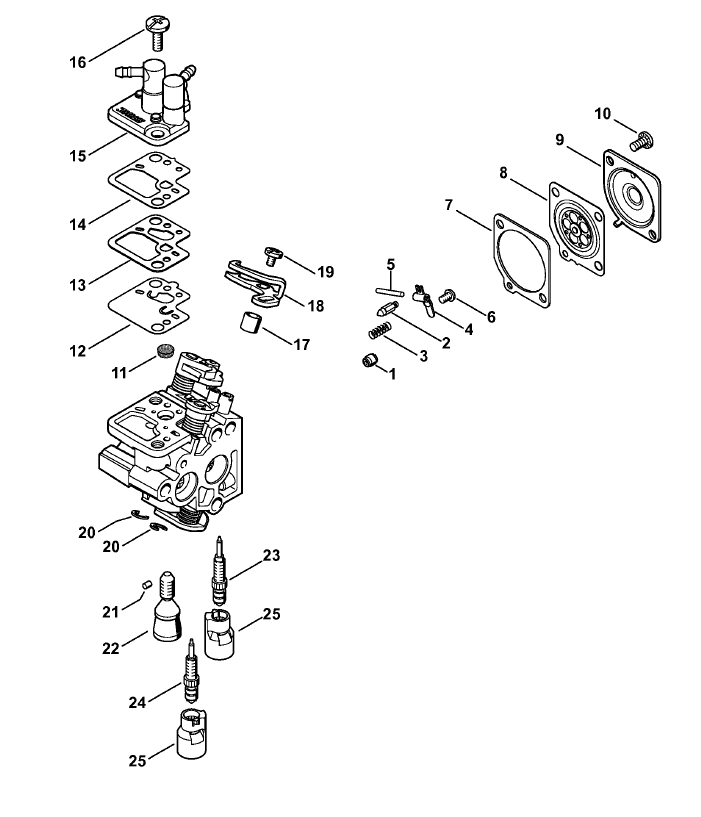

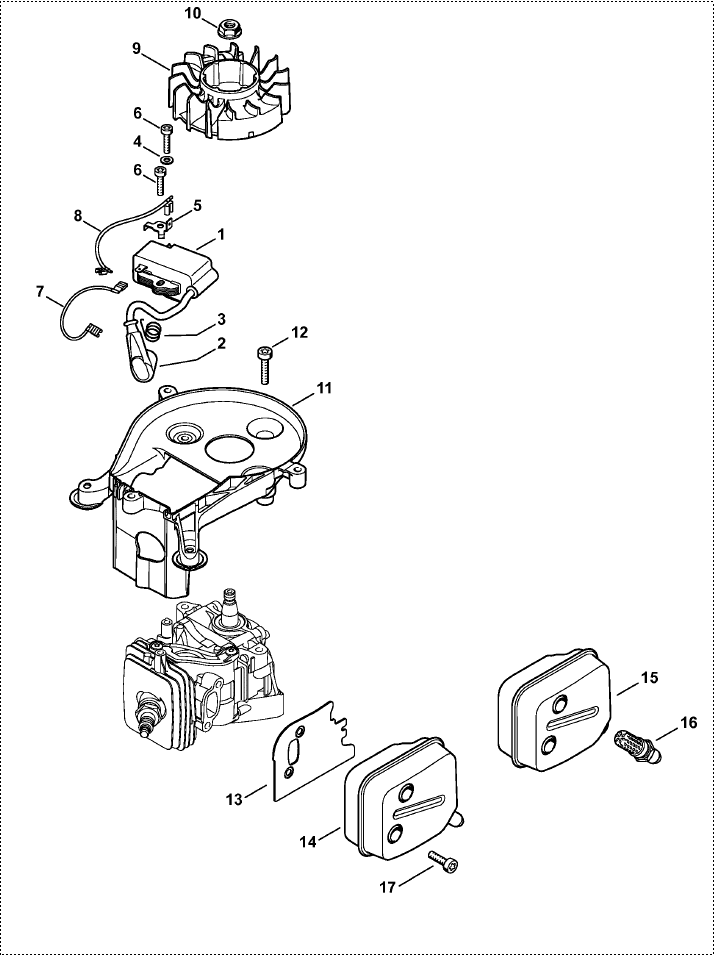

All Parts for HS 46 & HS 56 Petrol Hedgtrimmers

Stihl HS 46 & HS 56 Petrol Hedgtrimmers (HS46&56) Parts Diagram, Crank Case

#	Part	Price
1	4242 021 0300 Stihl Crankcase	£71.30	Stihl Crankcase £71.30 P/N: 4242 021 0300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	4242 030 0400 Stihl Crankshaft	£52.68	Stihl Crankshaft £52.68 P/N: 4242 030 0400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	9503 003 0215 Stihl Grooved ball bearing DIN625-6001	£11.62	Stihl Grooved ball bearing DIN625-6001 £11.62 P/N: 9503 003 0215, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	9639 003 1205 Stihl Oil seal DIN3760-AS12x22x4.5	£5.41	Stihl Oil seal DIN3760-AS12x22x4.5 £5.41 P/N: 9639 003 1205, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	4242 021 2500 Stihl Engine pan	£12.53	Stihl Engine pan £12.53 P/N: 4242 021 2500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	9075 478 4186 Stihl Pan head self-tapping screw IS D5x40	£1.27	Stihl Pan head self-tapping screw IS D5x40 £1.27 P/N: 9075 478 4186, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	4242 029 2300 Stihl Cylinder gasket	£3.22	Stihl Cylinder gasket £3.22 P/N: 4242 029 2300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	4242 020 1201 Stihl Cylinder with piston � 33 mm	£48.76	Stihl Cylinder with piston � 33 mm £48.76 P/N: 4242 020 1201, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	4242 030 2004 Stihl Piston � 33 mm	£37.96	Stihl Piston � 33 mm £37.96 P/N: 4242 030 2004, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	4242 034 3000 Stihl Piston ring	£4.49	Stihl Piston ring £4.49 P/N: 4242 034 3000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	4137 034 1500 Stihl Piston pin 8x5x22	£6.66	Stihl Piston pin 8x5x22 £6.66 P/N: 4137 034 1500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	9463 650 0805 Stihl Snap ring 8x0.7	£0.70	Stihl Snap ring 8x0.7 £0.70 P/N: 9463 650 0805, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	0000 400 7011 Stihl Spark plug NGK CMR6H	£4.03	Stihl Spark plug NGK CMR6H £4.03 P/N: 0000 400 7011, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	4242 160 2000 Stihl Clutch	£28.87	Stihl Clutch £28.87 P/N: 4242 160 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	0783 830 2000 Stihl Tube of sealant HT red 70ml		Stihl Tube of sealant HT red 70ml £18.52 P/N: 0783 830 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
16	4242 007 1600 Stihl Set of gaskets	£13.12	Stihl Set of gaskets £13.12 P/N: 4242 007 1600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
