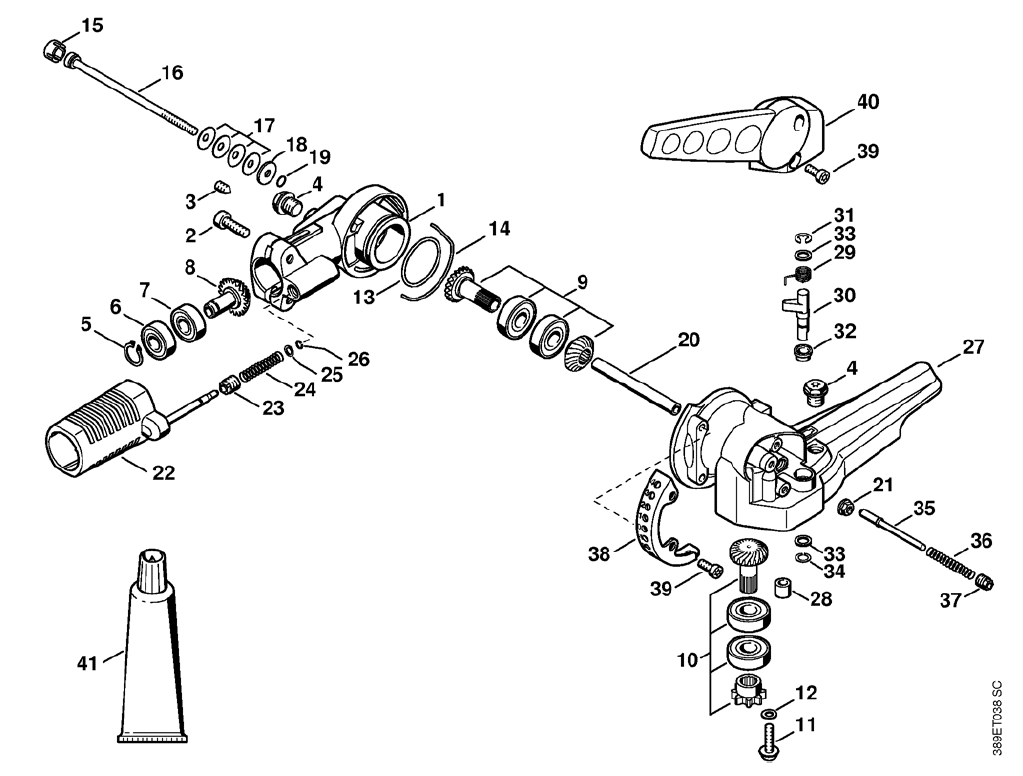

Stihl HL 75 K Long Reach Hedgetrimmer (HL75K) Parts Diagram, HL 75 K 0-135 Angle Drive

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl HL 75 K Long Reach Hedgetrimmer, or refer to the list below.

All Parts for HL 75 K Long Reach Hedgetrimmer

Stihl HL 75 K Long Reach Hedgetrimmer (HL75K) Parts Diagram, HL 75 K 0-135 Angle Drive

#	Part	Price
1	4230 640 0506 Stihl Gear housing	£62.10	Stihl Gear housing £62.10 P/N: 4230 640 0506, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	9022 341 1300 Stihl Spline screw IS-M6x20	£0.92	Stihl Spline screw IS-M6x20 £0.92 P/N: 9022 341 1300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	0000 953 1001 Stihl Grub screw	£2.41	Stihl Grub screw £2.41 P/N: 0000 953 1001, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	4119 713 6500 Stihl Screw plug	£3.22	Stihl Screw plug £3.22 P/N: 4119 713 6500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	9455 621 0750 Stihl Circlips DIN471-9x1	£0.70	Stihl Circlips DIN471-9x1 £0.70 P/N: 9455 621 0750, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	9503 003 9856 Stihl Grooved ball bearing 609-Z	£12.53	Stihl Grooved ball bearing 609-Z £12.53 P/N: 9503 003 9856, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	9503 003 9850 Stihl Grooved ball bearing DIN625-609	£10.46	Stihl Grooved ball bearing DIN625-609 £10.46 P/N: 9503 003 9850, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	0000 951 1100 Stihl Screw	£1.62	Stihl Screw £1.62 P/N: 0000 951 1100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	0000 958 0520 Stihl Washer	£1.14	Stihl Washer £1.14 P/N: 0000 958 0520, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	9645 945 7908 Stihl O-ring 34.5x2	£0.80	Stihl O-ring 34.5x2 £0.80 P/N: 9645 945 7908, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	4230 642 8200 Stihl Ring	£2.18	Stihl Ring £2.18 P/N: 4230 642 8200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	4230 641 7400 Stihl Cap	£2.65	Stihl Cap £2.65 P/N: 4230 641 7400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	9022 341 1170 Stihl Spline screw IS-M5x102x20	£2.08	Stihl Spline screw IS-M5x102x20 £2.08 P/N: 9022 341 1170, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	9485 648 0362 Stihl Cup spring 15x5.2x0.7	£0.70	Stihl Cup spring 15x5.2x0.7 £0.70 P/N: 9485 648 0362, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	0000 958 0527 Stihl Washer	£1.38	Stihl Washer £1.38 P/N: 0000 958 0527, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	9645 945 7455 Stihl O-ring 4.9x1.9	£0.46	Stihl O-ring 4.9x1.9 £0.46 P/N: 9645 945 7455, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	4230 641 9400 Stihl Bearing bushing	£23.22	Stihl Bearing bushing £23.22 P/N: 4230 641 9400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
21	9216 261 0700 Stihl Hexagon nut M5	£0.46	Stihl Hexagon nut M5 £0.46 P/N: 9216 261 0700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
22	4230 640 4513 Stihl Lock	£34.15	Stihl Lock £34.15 P/N: 4230 640 4513, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
23	4230 642 9010 Stihl Screw sleeve	£1.73	Stihl Screw sleeve £1.73 P/N: 4230 642 9010, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
24	4230 641 3110 Stihl Spring	£1.38	Stihl Spring £1.38 P/N: 4230 641 3110, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
25	9291 021 3861 Stihl Washer 5.1x7,5x0.8	£0.35	Stihl Washer 5.1x7,5x0.8 £0.35 P/N: 9291 021 3861, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
26	9461 620 0512 Stihl Snap ring DIN7993-A5.0	£0.46	Stihl Snap ring DIN7993-A5.0 £0.46 P/N: 9461 620 0512, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
27	4230 640 0503 Stihl Gear housing	£88.56	Stihl Gear housing £88.56 P/N: 4230 640 0503, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
28	9513 003 1570 Stihl Needle cage 6x10x9	£7.36	Stihl Needle cage 6x10x9 £7.36 P/N: 9513 003 1570, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
29	4230 708 4500 Stihl Torsion spring	£1.38	Stihl Torsion spring £1.38 P/N: 4230 708 4500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
30	4230 700 6700 Stihl Pin	£5.87	Stihl Pin £5.87 P/N: 4230 700 6700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
31	9460 624 0600 Stihl E-clip DIN6799-6	£0.35	Stihl E-clip DIN6799-6 £0.35 P/N: 9460 624 0600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
32	4230 700 6700 Stihl Pin	£5.87	Stihl Pin £5.87 P/N: 4230 700 6700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
33	9298 021 3873 Stihl Washer 7,2x11x1.0	£0.35	Stihl Washer 7,2x11x1.0 £0.35 P/N: 9298 021 3873, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
34	9452 621 0155 Stihl Circlips 7x0.6	£0.46	Stihl Circlips 7x0.6 £0.46 P/N: 9452 621 0155, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
35	4230 711 9200 Stihl Pressure pin	£2.41	Stihl Pressure pin £2.41 P/N: 4230 711 9200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
36	4230 708 3300 Stihl Spring	£1.38	Stihl Spring £1.38 P/N: 4230 708 3300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
37	4230 708 2100 Stihl Plug	£1.62	Stihl Plug £1.62 P/N: 4230 708 2100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
38	4230 642 4600 Stihl Perforated strip	£6.55	Stihl Perforated strip £6.55 P/N: 4230 642 4600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
39	9022 341 0961 Stihl Spline screw IS-M5x12	£0.80	Stihl Spline screw IS-M5x12 £0.80 P/N: 9022 341 0961, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
40	4230 643 3502 Stihl Adjusting lever	£16.45	Stihl Adjusting lever £16.45 P/N: 4230 643 3502, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
41	0781 120 1117 Stihl Heavy duty gear grease 80g	£11.39	Stihl Heavy duty gear grease 80g £11.39 P/N: 0781 120 1117, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
42	4230 640 7305 Stihl Set of pinions	£148.36	Stihl Set of pinions £148.36 P/N: 4230 640 7305, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
