Stihl HL 145 (HL 145) Parts Diagram, Angle Drive, Adjustable Thru 145, 600mm

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl HL 145, or refer to the list below.

All Parts for HL 145

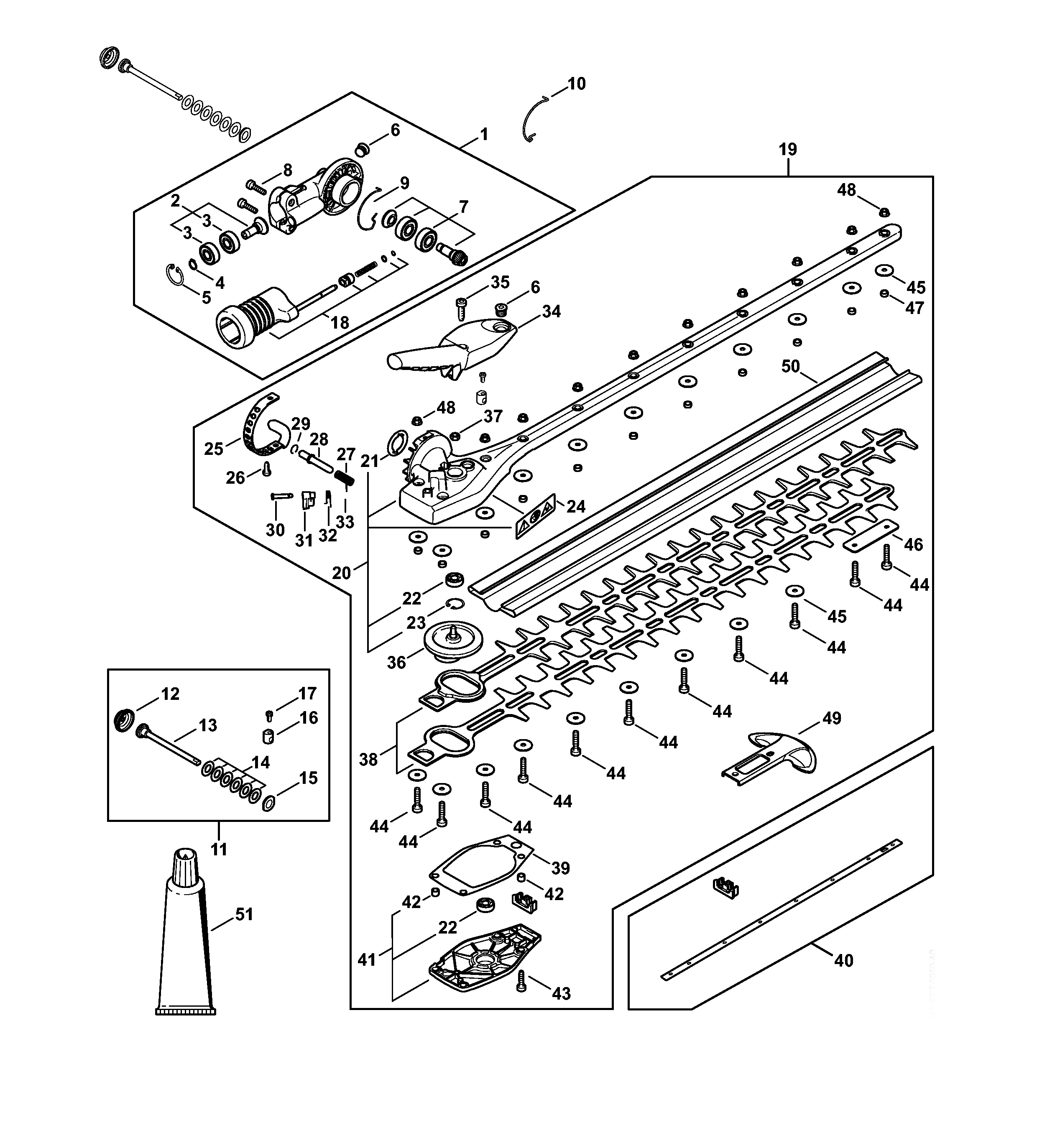

Stihl HL 145 (HL 145) Parts Diagram, Angle Drive, Adjustable Thru 145, 600mm

#	Part	Price
1	4243 640 0535 Stihl Gear housing	£103.50	Stihl Gear housing £103.50 P/N: 4243 640 0535, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	4243 640 2502 Stihl Drive pinion	£22.08	Stihl Drive pinion £22.08 P/N: 4243 640 2502, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	9503 003 9870 Stihl Grooved ball bearing DIN625-609-2Z	£12.53	Stihl Grooved ball bearing DIN625-609-2Z £12.53 P/N: 9503 003 9870, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	9455 621 0750 Stihl Circlips DIN471-9x1	£0.70	Stihl Circlips DIN471-9x1 £0.70 P/N: 9455 621 0750, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	9456 621 2660 Stihl Circlips DIN472-24x1.2	£1.03	Stihl Circlips DIN472-24x1.2 £1.03 P/N: 9456 621 2660, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	4226 641 6500 Stihl Screw plug	£2.65	Stihl Screw plug £2.65 P/N: 4226 641 6500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	4243 640 2503 Stihl Drive pinion	£29.78	Stihl Drive pinion £29.78 P/N: 4243 640 2503, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	9022 371 1020 Stihl Spline screw IS-M5x20	£0.92	Stihl Spline screw IS-M5x20 £0.92 P/N: 9022 371 1020, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	4243 642 8201 Stihl Ring	£3.34	Stihl Ring £3.34 P/N: 4243 642 8201, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	4243 642 8200 Stihl Ring	£3.34	Stihl Ring £3.34 P/N: 4243 642 8200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	4243 007 1300 Stihl Set fastening parts	£18.52	Stihl Set fastening parts £18.52 P/N: 4243 007 1300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	4243 642 1900 Stihl Cap	£2.65	Stihl Cap £2.65 P/N: 4243 642 1900, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	4243 951 9700 Stihl Screw	£16.32	Stihl Screw £16.32 P/N: 4243 951 9700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	9486 648 1012 Stihl Cup spring 15x8,2x0,8	£0.70	Stihl Cup spring 15x8,2x0,8 £0.70 P/N: 9486 648 1012, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	4243 642 7801 Stihl Washer	£1.14	Stihl Washer £1.14 P/N: 4243 642 7801, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	4243 642 9002 Stihl Screw sleeve	£2.08	Stihl Screw sleeve £2.08 P/N: 4243 642 9002, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	9022 373 0334 Stihl Spline screw IS-M3x7-12.9	£0.70	Stihl Spline screw IS-M3x7-12.9 £0.70 P/N: 9022 373 0334, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	4243 640 4506 Stihl Lock	£29.33	Stihl Lock £29.33 P/N: 4243 640 4506, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	4243 640 0537 Stihl Gear housing	£460.00	Stihl Gear housing £460.00 P/N: 4243 640 0537, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	4243 640 0517 Stihl Gear housing (145�, 600 mm)	£106.96	Stihl Gear housing (145�, 600 mm) £106.96 P/N: 4243 640 0517, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
21	4243 641 2602 Stihl Washer	£1.38	Stihl Washer £1.38 P/N: 4243 641 2602, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
22	4243 640 5100 Stihl Ball bearing	£10.69	Stihl Ball bearing £10.69 P/N: 4243 640 5100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
23	9456 621 2000 Stihl Circlips DIN472-19x1	£0.92	Stihl Circlips DIN472-19x1 £0.92 P/N: 9456 621 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
24	0000 967 7299 Stihl Warning pictogram	£2.18	Stihl Warning pictogram £2.18 P/N: 0000 967 7299, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
25	4243 642 4601 Stihl Perforated strip	£4.25	Stihl Perforated strip £4.25 P/N: 4243 642 4601, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
26	9075 478 3012 Stihl Pan head self-tapping screw IS D4x12	£0.80	Stihl Pan head self-tapping screw IS D4x12 £0.80 P/N: 9075 478 3012, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
27	0000 997 2020 Stihl Compression spring	£1.49	Stihl Compression spring £1.49 P/N: 0000 997 2020, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
28	4243 642 4500 Stihl Locking pin	£7.48	Stihl Locking pin £7.48 P/N: 4243 642 4500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
29	9458 621 1421 Stihl Snap ring DIN7993-B10	£0.70	Stihl Snap ring DIN7993-B10 £0.70 P/N: 9458 621 1421, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
30	4243 704 0900 Stihl Shaft	£2.30	Stihl Shaft £2.30 P/N: 4243 704 0900, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
31	4243 708 6202 Stihl Notched quadrant	£4.03	Stihl Notched quadrant £4.03 P/N: 4243 708 6202, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
32	4243 182 4501 Stihl Torsion spring	£1.14	Stihl Torsion spring £1.14 P/N: 4243 182 4501, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
33	9460 624 0320 Stihl E-clip DIN6799-3.2	£0.24	Stihl E-clip DIN6799-3.2 £0.24 P/N: 9460 624 0320, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
34	4243 700 2901 Stihl Adjusting lever	£15.98	Stihl Adjusting lever £15.98 P/N: 4243 700 2901, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
35	9075 478 4136 Stihl Pan head self-tapping screw IS-D5x20	£0.92	Stihl Pan head self-tapping screw IS-D5x20 £0.92 P/N: 9075 478 4136, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
36	4243 640 1600 Stihl Cam	£64.40	Stihl Cam £64.40 P/N: 4243 640 1600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
37	9210 319 0900 Stihl Hexagon nut DIN934-M6-10	£0.46	Stihl Hexagon nut DIN934-M6-10 £0.46 P/N: 9210 319 0900, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
38	4243 710 6004 Stihl Blade 60cm/24"	£141.46	Stihl Blade 60cm/24" £141.46 P/N: 4243 710 6004, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
39	4243 649 0300 Stihl Gasket	£1.73	Stihl Gasket £1.73 P/N: 4243 649 0300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
40	4243 007 1004 Stihl Cover plate kit 600mm	£48.65	Stihl Cover plate kit 600mm £48.65 P/N: 4243 007 1004, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
41	4243 640 5800 Stihl Gearbox cover	£30.71	Stihl Gearbox cover £30.71 P/N: 4243 640 5800, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
42	0000 988 8600 Stihl Sleeve	£1.14	Stihl Sleeve £1.14 P/N: 0000 988 8600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
43	9075 478 4136 Stihl Pan head self-tapping screw IS-D5x20	£0.92	Stihl Pan head self-tapping screw IS-D5x20 £0.92 P/N: 9075 478 4136, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
44	4237 716 0400 Stihl Spline screw	£1.73	Stihl Spline screw £1.73 P/N: 4237 716 0400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
45	4237 958 0500 Stihl Washer	£1.38	Stihl Washer £1.38 P/N: 4237 958 0500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
47	4242 641 4900 Stihl Sleeve	£1.14	Stihl Sleeve £1.14 P/N: 4242 641 4900, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
48	9216 263 0700 Stihl Hexagon nut M5-10	£0.46	Stihl Hexagon nut M5-10 £0.46 P/N: 9216 263 0700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
49	4237 792 9006 Stihl Tip protector	£14.60	Stihl Tip protector £14.60 P/N: 4237 792 9006, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
50	0000 790 9201 Stihl Blade guard 60cm/24"	£13.22	Stihl Blade guard 60cm/24" £13.22 P/N: 0000 790 9201, Genuine OEM spare part. Find other Stihl spares, parts and accessories.

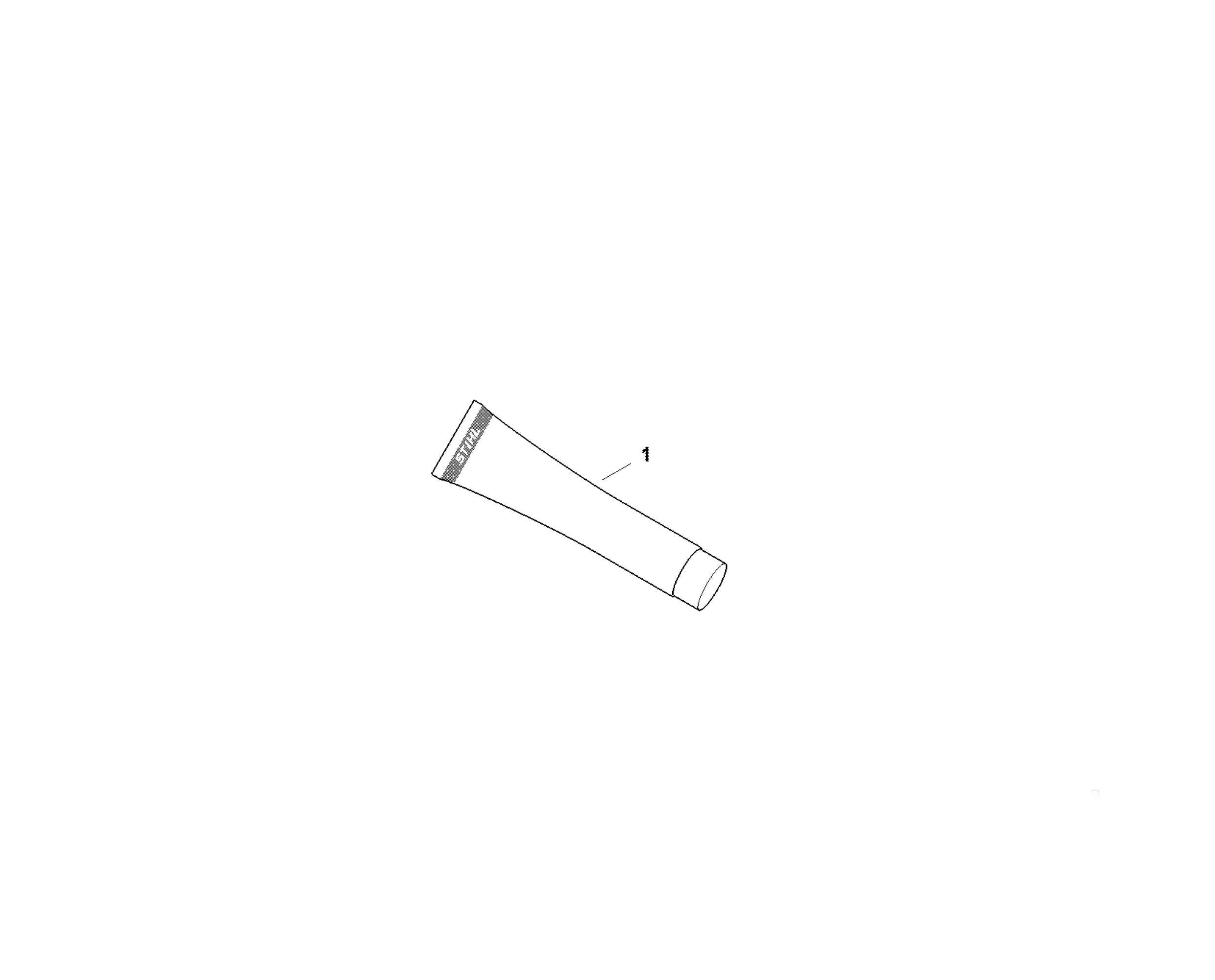

51	0781 120 1109 Stihl Multipurpose grease 80 g Tube	£11.39	Stihl Multipurpose grease 80 g Tube £11.39 P/N: 0781 120 1109, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
