Stihl FW 20 Cut Quik Cart (FW 20) Parts Diagram, Frame

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl FW 20 Cut Quik Cart, or refer to the list below.

All Parts for FW 20 Cut Quik Cart

Support Throttle Control TS 410 & TS 420

Support Throttle Control TS 700 & TS 800

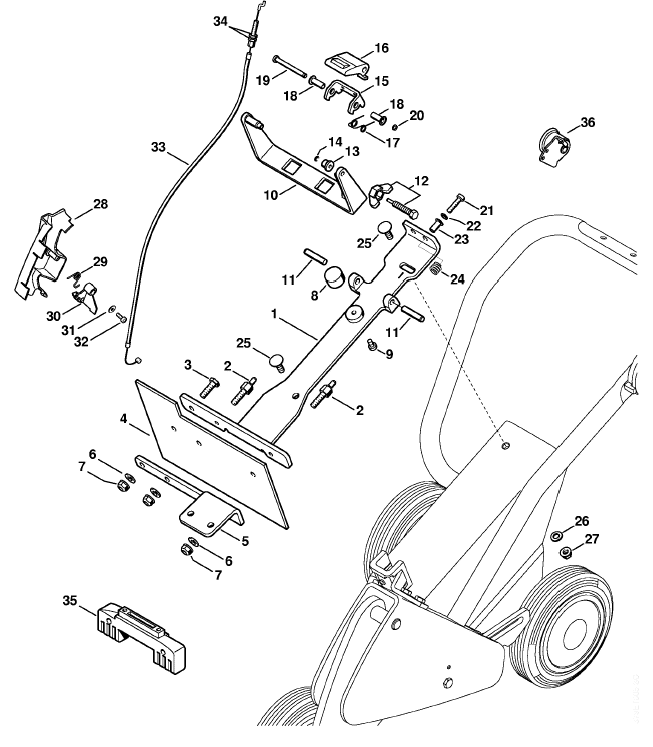

Stihl FW 20 Cut Quik Cart (FW 20) Parts Diagram, Frame

#	Part	Price
1	4224 790 2100 Stihl FRAME		Stihl FRAME £677.69 P/N: 4224 790 2100, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
2	4224 791 7201 Stihl Sleeve	£5.28	Stihl Sleeve £5.28 P/N: 4224 791 7201, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	9008 313 2510 Stihl Hexagonal head screw	£2.76	Stihl Hexagonal head screw £2.76 P/N: 9008 313 2510, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	9380 620 2580 Stihl Roll pin ISO8752-5x14	£0.46	Stihl Roll pin ISO8752-5x14 £0.46 P/N: 9380 620 2580, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	4224 790 2301 Stihl GUIDE TUBE		Stihl GUIDE TUBE £179.30 P/N: 4224 790 2301, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
6	9571 930 0207 Stihl Star knob DIN6336-KT-63-M10-K	£17.94	Stihl Star knob DIN6336-KT-63-M10-K £17.94 P/N: 9571 930 0207, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	4224 790 4100 Stihl Shakle	£36.46	Stihl Shakle £36.46 P/N: 4224 790 4100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	4224 791 9300 Stihl Rubber insert	£9.77	Stihl Rubber insert £9.77 P/N: 4224 791 9300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	9008 319 1780 Stihl Screw	£1.03	Stihl Screw £1.03 P/N: 9008 319 1780, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	9291 021 0180 Stihl Washer 8	£0.35	Stihl Washer 8 £0.35 P/N: 9291 021 0180, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	4224 790 0400 Stihl Swivel arm	£88.56	Stihl Swivel arm £88.56 P/N: 4224 790 0400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	9533 003 9076 Stihl Collar plain bearing JSM-1517-12	£5.87	Stihl Collar plain bearing JSM-1517-12 £5.87 P/N: 9533 003 9076, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	4224 711 0902 Stihl Axle	£13.00	Stihl Axle £13.00 P/N: 4224 711 0902, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	9455 621 1520 Stihl Circlips DIN471-15x1	£0.92	Stihl Circlips DIN471-15x1 £0.92 P/N: 9455 621 1520, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	4224 790 5700 Stihl Wheel	£52.68	Stihl Wheel £52.68 P/N: 4224 790 5700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	9503 003 5441 Stihl Grooved ball bearing DIN625-6004-2RS		Stihl Grooved ball bearing DIN625-6004-2RS £15.71 P/N: 9503 003 5441, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
17	4224 704 0300 Stihl Wheel cap	£2.52	Stihl Wheel cap £2.52 P/N: 4224 704 0300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	4224 704 3600 Stihl Cover	£6.44	Stihl Cover £6.44 P/N: 4224 704 3600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	4224 711 0900 Stihl Axle	£18.29	Stihl Axle £18.29 P/N: 4224 711 0900, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	9455 621 2150 Stihl Circlips DIN471-20x1.2	£0.92	Stihl Circlips DIN471-20x1.2 £0.92 P/N: 9455 621 2150, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
21	4201 708 8402 Stihl Hexagon head screw M10x18	£2.65	Stihl Hexagon head screw M10x18 £2.65 P/N: 4201 708 8402, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
22	4224 711 0901 Stihl Axle	£16.32	Stihl Axle £16.32 P/N: 4224 711 0901, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
24	9210 260 1400 Stihl Hexagon nut DIN934-M12-8	£1.27	Stihl Hexagon nut DIN934-M12-8 £1.27 P/N: 9210 260 1400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
25	4224 711 6100 Stihl Toothed rod	£56.23	Stihl Toothed rod £56.23 P/N: 4224 711 6100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
26	4224 790 2700 Stihl Pawl	£46.92	Stihl Pawl £46.92 P/N: 4224 790 2700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
27	9380 620 2240 Stihl Roll pin ISO8752-4x40-St		Stihl Roll pin ISO8752-4x40-St £0.71 P/N: 9380 620 2240, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
28	9380 620 1450 Stihl Roll pin ISO8752-2.5x30-St	£0.70	Stihl Roll pin ISO8752-2.5x30-St £0.70 P/N: 9380 620 1450, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
29	9298 003 2004 Stihl Washer 4	£0.24	Stihl Washer 4 £0.24 P/N: 9298 003 2004, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
30	4224 793 7200 Stihl Sleeve	£15.42	Stihl Sleeve £15.42 P/N: 4224 793 7200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
31	4224 793 2000 Stihl Torsion spring	£1.73	Stihl Torsion spring £1.73 P/N: 4224 793 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
32	4224 793 2001 Stihl Torsion spring	£1.96	Stihl Torsion spring £1.96 P/N: 4224 793 2001, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
33	9007 319 2000 Stihl Hexagonal head screw	£2.41	Stihl Hexagonal head screw £2.41 P/N: 9007 319 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
34	9214 320 1100 Stihl Lock nut ISO7042 M8-10	£0.70	Stihl Lock nut ISO7042 M8-10 £0.70 P/N: 9214 320 1100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
