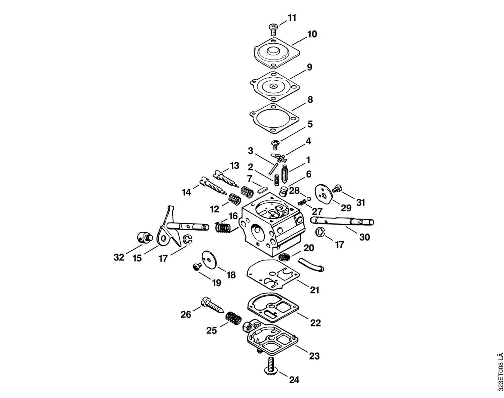

Stihl FS 160 Brushcutter (FS160) Parts Diagram, F-Carburetor C1S#S3D
Look at the diagram and find parts that fit a Stihl FS 160 Brushcutter, or refer to the list below.
All Parts for FS 160 Brushcutter
| # | Part | Price | |
|---|---|---|---|
| 1 |
4116 121 5100 Stihl Inlet needle |
£11.28 |
 Stihl Inlet needle£11.28
P/N: 4116 121 5100, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 2 |
1120 122 3004 Stihl Spring |
£2.41 |
Stihl Spring£2.41
P/N: 1120 122 3004, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 3 |
1120 121 9200 Stihl Spindle |
£1.38 |
Stihl Spindle£1.38
P/N: 1120 121 9200, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 4 |
1120 121 5000 Stihl Inlet control lever |
£3.46 |
Stihl Inlet control lever£3.46
P/N: 1120 121 5000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 5 |
1120 122 6600 Stihl Collar screw |
£4.38 |
Stihl Collar screw£4.38
P/N: 1120 122 6600, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 6 |
4119 121 5400 Stihl Valve jet |
£10.12 |
Stihl Valve jet£10.12
P/N: 4119 121 5400, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 7 |
4119 121 0700 Stihl Cup plug |
£3.79 |
Stihl Cup plug£3.79
P/N: 4119 121 0700, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 8 |
1120 129 0902 Stihl Gasket |
£2.30 |
Stihl Gasket£2.30
P/N: 1120 129 0902, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 9 |
1120 121 4700 Stihl Metering diaphragm |
£15.64 |
Stihl Metering diaphragm£15.64
P/N: 1120 121 4700, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 10 |
1123 121 0801 Stihl End cover |
£17.94 |
Stihl End cover£17.94
P/N: 1123 121 0801, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 11 |
4132 122 6600 Stihl Collar screw |
£4.60 |
Stihl Collar screw£4.60
P/N: 4132 122 6600, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 12 |
1120 122 3005 Stihl Spring |
£2.41 |
Stihl Spring£2.41
P/N: 1120 122 3005, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 13 |
4119 122 6702 Stihl High speed screw |
£11.28 |
Stihl High speed screw£11.28
P/N: 4119 122 6702, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 14 |
4119 122 6802 Stihl Low speed screw |
£11.28 |
Stihl Low speed screw£11.28
P/N: 4119 122 6802, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 15 |
4119 120 7101 Stihl THROTTLE SHAFT WITH LEVER |
Stihl THROTTLE SHAFT WITH LEVER£11.18
P/N: 4119 120 7101, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 16 |
4119 122 3000 Stihl Spring |
£2.41 |
Stihl Spring£2.41
P/N: 4119 122 3000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 17 |
1120 122 9000 Stihl E-clip |
£2.18 |
Stihl E-clip£2.18
P/N: 1120 122 9000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 18 |
1120 121 3301 Stihl Throttle shutter |
£4.60 |
Stihl Throttle shutter£4.60
P/N: 1120 121 3301, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 19 |
1120 122 7400 Stihl Round head screw |
£4.60 |
Stihl Round head screw£4.60
P/N: 1120 122 7400, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 20 |
1120 121 7800 Stihl Strainer |
£3.46 |
Stihl Strainer£3.46
P/N: 1120 121 7800, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 21 |
4119 121 4800 Stihl Pump diaphragm |
£15.64 |
Stihl Pump diaphragm£15.64
P/N: 4119 121 4800, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 22 |
1120 129 0901 Stihl Gasket |
£2.30 |
Stihl Gasket£2.30
P/N: 1120 129 0901, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 23 |
4119 121 0800 Stihl End cover |
£17.94 |
Stihl End cover£17.94
P/N: 4119 121 0800, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 24 |
1120 122 7800 Stihl Oval head screw |
£4.60 |
Stihl Oval head screw£4.60
P/N: 1120 122 7800, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 25 |
1120 122 3003 Stihl Spring |
£2.41 |
Stihl Spring£2.41
P/N: 1120 122 3003, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 26 |
1120 122 6200 Stihl Idle speed screw |
£11.28 |
Stihl Idle speed screw£11.28
P/N: 1120 122 6200, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 27 |
4119 122 3002 Stihl Spring |
£2.41 |
Stihl Spring£2.41
P/N: 4119 122 3002, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 28 |
4119 122 4200 Stihl Ball |
£1.73 |
Stihl Ball£1.73
P/N: 4119 122 4200, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 29 |
4119 121 2901 Stihl Choke shutter |
£4.60 |
Stihl Choke shutter£4.60
P/N: 4119 121 2901, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 30 |
4119 121 3000 Stihl Choke shaft |
£18.74 |
Stihl Choke shaft£18.74
P/N: 4119 121 3000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 31 |
1125 122 7403 Stihl Round head screw |
£4.60 |
Stihl Round head screw£4.60
P/N: 1125 122 7403, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 32 |
4119 121 8900 Stihl Pin |
£8.98 |
Stihl Pin£8.98
P/N: 4119 121 8900, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 150 |
4119 120 0602 Stihl Carburettor C1S-S3H |
£146.04 |
Stihl Carburettor C1S-S3H£146.04
P/N: 4119 120 0602, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 151 |
4119 007 1060 Stihl Set of carburettor parts |
£30.94 |
Stihl Set of carburettor parts£30.94
P/N: 4119 007 1060, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
