Stihl FS 94 RC-E Brushcutter (FS 94 RC-E) Parts Diagram, M GEAR HEAD

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl FS 94 RC-E Brushcutter, or refer to the list below.

All Parts for FS 94 RC-E Brushcutter

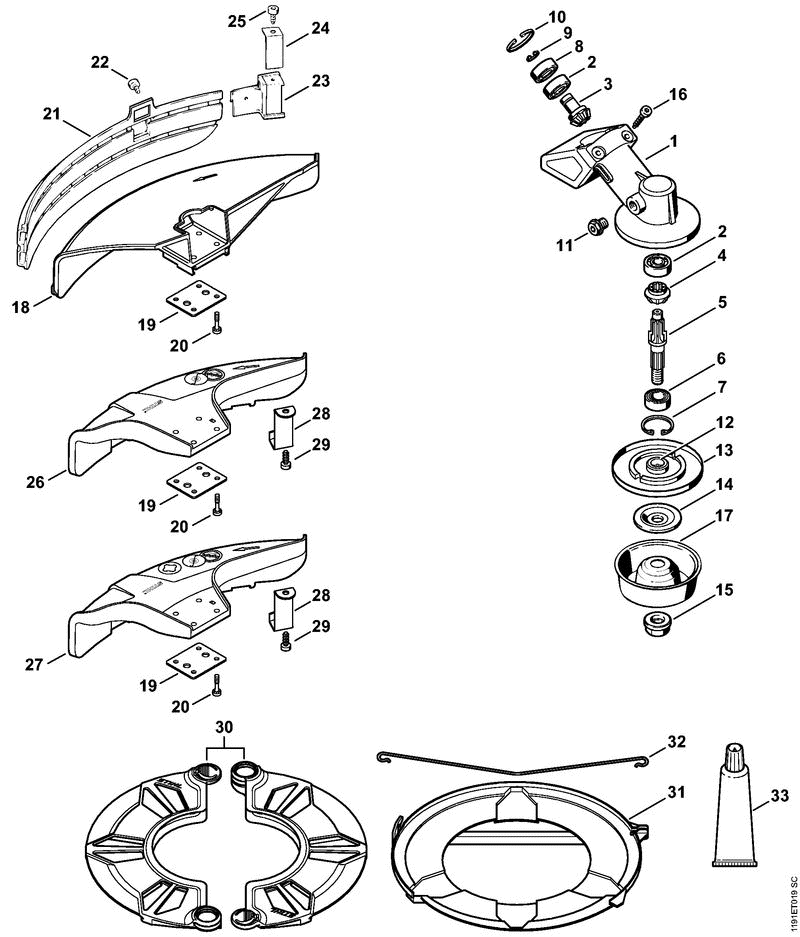

Stihl FS 94 RC-E Brushcutter (FS 94 RC-E) Parts Diagram, M GEAR HEAD

#	Part	Price
	4119 007 1027 Stihl Universal guard kit � 420mm/305mm	£66.13	Stihl Universal guard kit � 420mm/305mm £66.13 P/N: 4119 007 1027, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
Not shown	4137 640 0100 Stihl Gear head	£257.60	Stihl Gear head £257.60 P/N: 4137 640 0100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
Not shown	4130 640 7301 Stihl Set of pinions	£40.82	Stihl Set of pinions £40.82 P/N: 4130 640 7301, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
1	4130 641 0305 Stihl Gear housing	£102.92	Stihl Gear housing £102.92 P/N: 4130 641 0305, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	9503 003 9850 Stihl Grooved ball bearing DIN625-609	£10.46	Stihl Grooved ball bearing DIN625-609 £10.46 P/N: 9503 003 9850, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	4130 642 0601 Stihl Drive shaft	£38.29	Stihl Drive shaft £38.29 P/N: 4130 642 0601, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	9503 003 5190 Stihl Grooved ball bearing 6001-C-2HRS-C3	£13.91	Stihl Grooved ball bearing 6001-C-2HRS-C3 £13.91 P/N: 9503 003 5190, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	9456 621 3100 Stihl Circlips DIN472-28x1.2	£1.27	Stihl Circlips DIN472-28x1.2 £1.27 P/N: 9456 621 3100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	9503 003 9853 Stihl Grooved ball bearing DIN625-609-2Z	£12.53	Stihl Grooved ball bearing DIN625-609-2Z £12.53 P/N: 9503 003 9853, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	9455 621 0750 Stihl Circlips DIN471-9x1	£0.70	Stihl Circlips DIN471-9x1 £0.70 P/N: 9455 621 0750, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	9456 621 2660 Stihl Circlips DIN472-24x1.2	£1.03	Stihl Circlips DIN472-24x1.2 £1.03 P/N: 9456 621 2660, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	4119 713 6500 Stihl Screw plug	£3.22	Stihl Screw plug £3.22 P/N: 4119 713 6500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	4137 710 3800 Stihl Thrust plate	£17.59	Stihl Thrust plate £17.59 P/N: 4137 710 3800, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	4130 713 1600 Stihl Thrust washer	£4.38	Stihl Thrust washer £4.38 P/N: 4130 713 1600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	4126 642 7600 Stihl Collar nut M10x1 left hand thread	£5.28	Stihl Collar nut M10x1 left hand thread £5.28 P/N: 4126 642 7600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	9075 478 4159 Stihl Pan head self-tapping screw IS-D5x24	£0.92	Stihl Pan head self-tapping screw IS-D5x24 £0.92 P/N: 9075 478 4159, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	4126 713 3100 Stihl Rider plate	£10.12	Stihl Rider plate £10.12 P/N: 4126 713 3100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	4119 710 8103 Stihl Deflector	£47.16	Stihl Deflector £47.16 P/N: 4119 710 8103, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	0000 716 3101 Stihl Backing plate	£6.55	Stihl Backing plate £6.55 P/N: 0000 716 3101, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	9022 373 1025 Stihl Spline screw IS-M5x23-12.9	£0.92	Stihl Spline screw IS-M5x23-12.9 £0.92 P/N: 9022 373 1025, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
21	4119 716 3203 Stihl Skirt	£10.01	Stihl Skirt £10.01 P/N: 4119 716 3203, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
22	9074 478 4125 Stihl Pan head self-tapping screw IS-5x14	£0.80	Stihl Pan head self-tapping screw IS-5x14 £0.80 P/N: 9074 478 4125, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
23	4119 710 6000 Stihl Blade	£5.98	Stihl Blade £5.98 P/N: 4119 710 6000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
24	4118 713 4105 Stihl Blade	£2.76	Stihl Blade £2.76 P/N: 4118 713 4105, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
25	9074 478 4125 Stihl Pan head self-tapping screw IS-5x14	£0.80	Stihl Pan head self-tapping screw IS-5x14 £0.80 P/N: 9074 478 4125, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
26	4133 007 1007 Stihl Deflector kit	£36.58	Stihl Deflector kit £36.58 P/N: 4133 007 1007, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
28	4133 713 4110 Stihl Blade	£4.49	Stihl Blade £4.49 P/N: 4133 713 4110, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
29	9074 478 4405 Stihl Pan head self-tapping screw IS-P6x14	£0.92	Stihl Pan head self-tapping screw IS-P6x14 £0.92 P/N: 9074 478 4405, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
30	0000 790 3901 Stihl Transport guard	£30.25	Stihl Transport guard £30.25 P/N: 0000 790 3901, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
31	4119 790 3906 Stihl Transport guard � 260	£30.25	Stihl Transport guard � 260 £30.25 P/N: 4119 790 3906, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
32	4119 792 4305 Stihl Clamping wire	£4.25	Stihl Clamping wire £4.25 P/N: 4119 792 4305, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
33	0781 120 1117 Stihl Heavy duty gear grease 80g	£11.39	Stihl Heavy duty gear grease 80g £11.39 P/N: 0781 120 1117, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
