Stihl FS 94 C-E Brushcutter (FS 94 C-E) Parts Diagram, A CRANKCASE

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl FS 94 C-E Brushcutter, or refer to the list below.

All Parts for FS 94 C-E Brushcutter

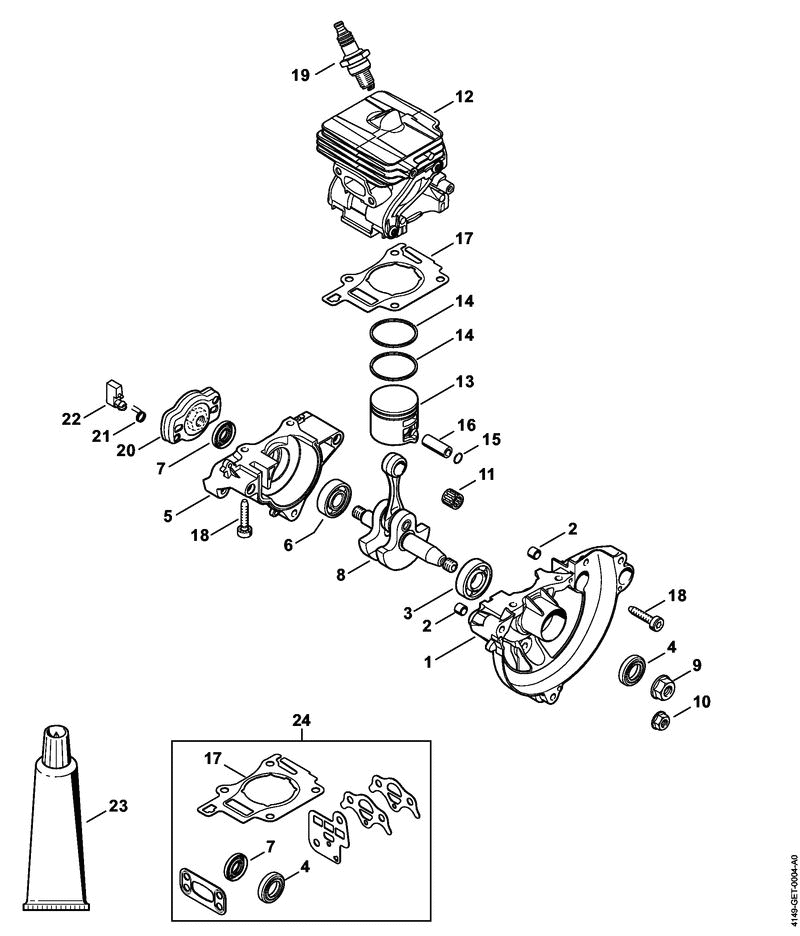

Stihl FS 94 C-E Brushcutter (FS 94 C-E) Parts Diagram, A CRANKCASE

#	Part	Price
1	4149 020 2601 Stihl Crankcase, fan side	£77.04	Stihl Crankcase, fan side £77.04 P/N: 4149 020 2601, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	0000 988 8600 Stihl Sleeve	£1.14	Stihl Sleeve £1.14 P/N: 0000 988 8600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	9503 003 0215 Stihl Grooved ball bearing DIN625-6001	£11.62	Stihl Grooved ball bearing DIN625-6001 £11.62 P/N: 9503 003 0215, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	9640 003 1195 Stihl Oil seal DIN3760-BS12x22x5	£5.41	Stihl Oil seal DIN3760-BS12x22x5 £5.41 P/N: 9640 003 1195, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	4149 020 2903 Stihl Crankcase	£75.90	Stihl Crankcase £75.90 P/N: 4149 020 2903, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	9503 003 0102 Stihl Grooved ball bearing DIN625-6000	£11.62	Stihl Grooved ball bearing DIN625-6000 £11.62 P/N: 9503 003 0102, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	9640 003 0955 Stihl Oil seal DIN3760-BS 10x20x4	£4.49	Stihl Oil seal DIN3760-BS 10x20x4 £4.49 P/N: 9640 003 0955, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	4149 030 0403 Stihl Crankshaft (25.2005)	£178.26	Stihl Crankshaft £178.26 (25.2005) P/N: 4149 030 0403, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	0000 955 0802 Stihl Collar nut	£1.38	Stihl Collar nut £1.38 P/N: 0000 955 0802, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	9220 260 0900 Stihl Hexagon nut DIN6923-M6-8	£0.46	Stihl Hexagon nut DIN6923-M6-8 £0.46 P/N: 9220 260 0900, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	9512 003 1834 Stihl Needle cage 8x11x10	£7.01	Stihl Needle cage 8x11x10 £7.01 P/N: 9512 003 1834, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	4149 020 1204 Stihl Cylinder with piston � 35mm	£81.66	Stihl Cylinder with piston � 35mm £81.66 P/N: 4149 020 1204, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	4149 030 2012 Stihl Piston � 35 mm	£44.51	Stihl Piston � 35 mm £44.51 P/N: 4149 030 2012, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	4149 034 3005 Stihl Piston ring � 35x1,2 mm	£5.41	Stihl Piston ring � 35x1,2 mm £5.41 P/N: 4149 034 3005, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	9463 650 0805 Stihl Snap ring 8x0.7	£0.70	Stihl Snap ring 8x0.7 £0.70 P/N: 9463 650 0805, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	4241 034 1500 Stihl Piston pin	£6.66	Stihl Piston pin £6.66 P/N: 4241 034 1500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	4149 029 2301 Stihl Cylinder gasket	£3.22	Stihl Cylinder gasket £3.22 P/N: 4149 029 2301, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	9075 478 4159 Stihl Pan head self-tapping screw IS-D5x24	£0.92	Stihl Pan head self-tapping screw IS-D5x24 £0.92 P/N: 9075 478 4159, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	0000 400 7011 Stihl Spark plug NGK CMR6H	£4.03	Stihl Spark plug NGK CMR6H £4.03 P/N: 0000 400 7011, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	4140 190 2010 Stihl Carrier	£11.74	Stihl Carrier £11.74 P/N: 4140 190 2010, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
21	0000 998 0612 Stihl Torsion spring	£1.14	Stihl Torsion spring £1.14 P/N: 0000 998 0612, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
22	4133 195 7201 Stihl Pawl	£2.30	Stihl Pawl £2.30 P/N: 4133 195 7201, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
23	0783 830 2000 Stihl Tube of sealant HT red 70ml		Stihl Tube of sealant HT red 70ml £18.52 P/N: 0783 830 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
24	4149 007 1600 Stihl Set of gaskets	£14.15	Stihl Set of gaskets £14.15 P/N: 4149 007 1600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
