Stihl FS 90 Brushcutter (FS90-Z) Parts Diagram, Muffler, Air filter

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl FS 90 Brushcutter, or refer to the list below.

All Parts for FS 90 Brushcutter

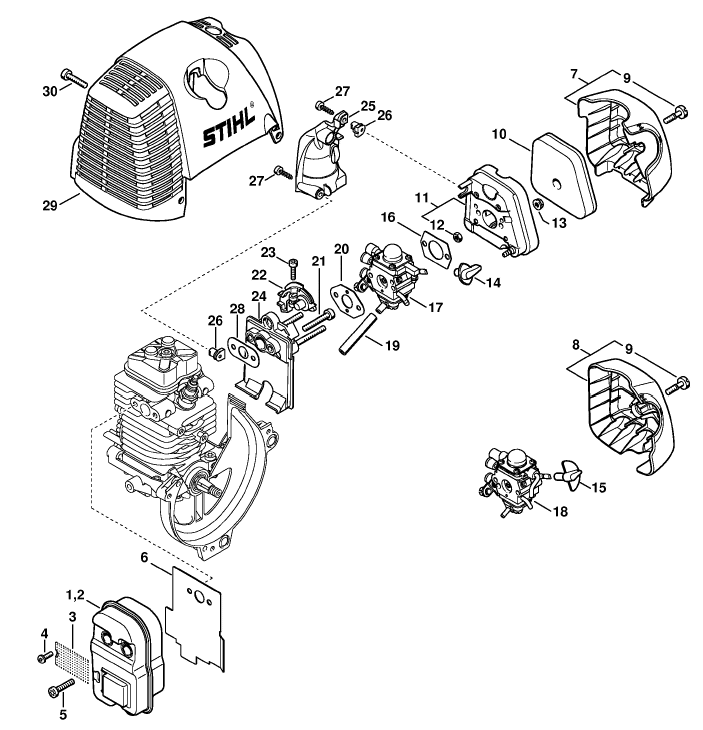

Stihl FS 90 Brushcutter (FS90-Z) Parts Diagram, Muffler, Air filter

#	Part	Price
2	4180 140 0602 Stihl Muffler	£28.74	Stihl Muffler £28.74 P/N: 4180 140 0602, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	4180 141 9001 Stihl Screen	£3.00	Stihl Screen £3.00 P/N: 4180 141 9001, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	9039 448 0656 Stihl Self-tapping screw M4x9.6	£0.80	Stihl Self-tapping screw M4x9.6 £0.80 P/N: 9039 448 0656, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	9075 478 4159 Stihl Pan head self-tapping screw IS-D5x24	£0.92	Stihl Pan head self-tapping screw IS-D5x24 £0.92 P/N: 9075 478 4159, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	4180 149 0600 Stihl Muffler gasket	£5.98	Stihl Muffler gasket £5.98 P/N: 4180 149 0600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	4180 140 1006 Stihl Filter cover	£21.97	Stihl Filter cover £21.97 P/N: 4180 140 1006, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	4180 140 1000 Stihl Filter cover		Stihl Filter cover £20.35 P/N: 4180 140 1000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
10	4180 120 1800 Stihl Filter	£4.25	Stihl Filter £4.25 P/N: 4180 120 1800, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	4180 140 2805 Stihl Filter housing	£17.94	Stihl Filter housing £17.94 P/N: 4180 140 2805, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	9216 261 0700 Stihl Hexagon nut M5	£0.46	Stihl Hexagon nut M5 £0.46 P/N: 9216 261 0700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	4180 182 9502 Stihl Choke knob	£3.56	Stihl Choke knob £3.56 P/N: 4180 182 9502, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	4180 182 9500 Stihl Choke knob	£4.03	Stihl Choke knob £4.03 P/N: 4180 182 9500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	4114 149 1205 Stihl Gasket	£1.27	Stihl Gasket £1.27 P/N: 4114 149 1205, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	4180 120 0611 Stihl Carburettor C1Q-S174A	£133.40	Stihl Carburettor C1Q-S174A £133.40 P/N: 4180 120 0611, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	4180 120 0604 Stihl Carburettor C1Q-S110E	£133.40	Stihl Carburettor C1Q-S110E £133.40 P/N: 4180 120 0604, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	4180 141 8601 Stihl Hose 47.5mm	£3.34	Stihl Hose 47.5mm £3.34 P/N: 4180 141 8601, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	4140 129 0900 Stihl Gasket	£2.30	Stihl Gasket £2.30 P/N: 4140 129 0900, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	9075 478 4167 Stihl Pan head self-tapping screw IS-D5x32	£1.03	Stihl Pan head self-tapping screw IS-D5x32 £1.03 P/N: 9075 478 4167, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
21	4180 182 7601 Stihl Tensioner	£3.79	Stihl Tensioner £3.79 P/N: 4180 182 7601, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
22	9022 313 0680 Stihl Spline screw IS-M4x16	£0.80	Stihl Spline screw IS-M4x16 £0.80 P/N: 9022 313 0680, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
23	4180 120 2303 Stihl Spacer flange	£16.80	Stihl Spacer flange £16.80 P/N: 4180 120 2303, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
24	4180 123 0600 Stihl Cover	£3.68	Stihl Cover £3.68 P/N: 4180 123 0600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
25	9286 929 0030 Stihl Slip-on nut 40x2,5x5	£1.14	Stihl Slip-on nut 40x2,5x5 £1.14 P/N: 9286 929 0030, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
26	9074 478 3025 Stihl Pan head self-tapping screw IS-P4x16	£0.80	Stihl Pan head self-tapping screw IS-P4x16 £0.80 P/N: 9074 478 3025, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
27	4180 129 0900 Stihl Gasket	£2.30	Stihl Gasket £2.30 P/N: 4180 129 0900, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
28	4180 080 1600 Stihl Shroud	£24.60	Stihl Shroud £24.60 P/N: 4180 080 1600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
29	9075 478 4159 Stihl Pan head self-tapping screw IS-D5x24	£0.92	Stihl Pan head self-tapping screw IS-D5x24 £0.92 P/N: 9075 478 4159, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
30	4180 007 1006 Stihl Set of gaskets	£16.21	Stihl Set of gaskets £16.21 P/N: 4180 007 1006, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
