Look at the diagram and find parts that fit a Stihl FS 120 Brushcutter, or refer to the list below.

All Parts for FS 120 Brushcutter

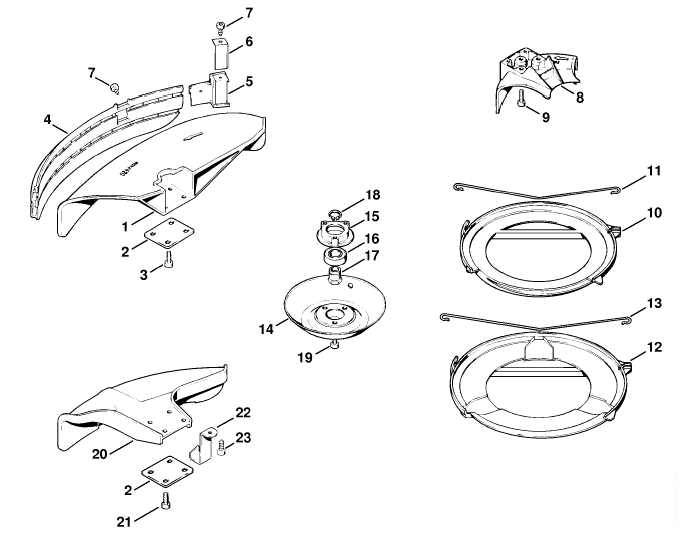

Stihl FS 120 Brushcutter (FS120R) Parts Diagram, Deflector

#	Part	Price
1	4119 007 1013 Stihl Deflector Kit 420mm		Stihl Deflector Kit 420mm £26.92 P/N: 4119 007 1013, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
2	0000 716 3100 Stihl Backing plate	£6.66	Stihl Backing plate £6.66 P/N: 0000 716 3100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	9039 488 0984 Stihl Screw DIN 7500-M5x16	£0.92	Stihl Screw DIN 7500-M5x16 £0.92 P/N: 9039 488 0984, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	4119 716 3203 Stihl Skirt	£10.01	Stihl Skirt £10.01 P/N: 4119 716 3203, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	4119 710 6000 Stihl Blade	£5.98	Stihl Blade £5.98 P/N: 4119 710 6000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	4118 713 4105 Stihl Blade	£2.76	Stihl Blade £2.76 P/N: 4118 713 4105, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	9074 478 4125 Stihl Pan head self-tapping screw IS-5x14	£0.80	Stihl Pan head self-tapping screw IS-5x14 £0.80 P/N: 9074 478 4125, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20a	4133 007 1007 Stihl Deflector kit	£36.58	Stihl Deflector kit £36.58 P/N: 4133 007 1007, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
21	9039 488 0984 Stihl Screw DIN 7500-M5x16	£0.92	Stihl Screw DIN 7500-M5x16 £0.92 P/N: 9039 488 0984, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
22	4133 713 4110 Stihl Blade	£4.49	Stihl Blade £4.49 P/N: 4133 713 4110, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
23	9074 478 4405 Stihl Pan head self-tapping screw IS-P6x14	£0.92	Stihl Pan head self-tapping screw IS-P6x14 £0.92 P/N: 9074 478 4405, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
