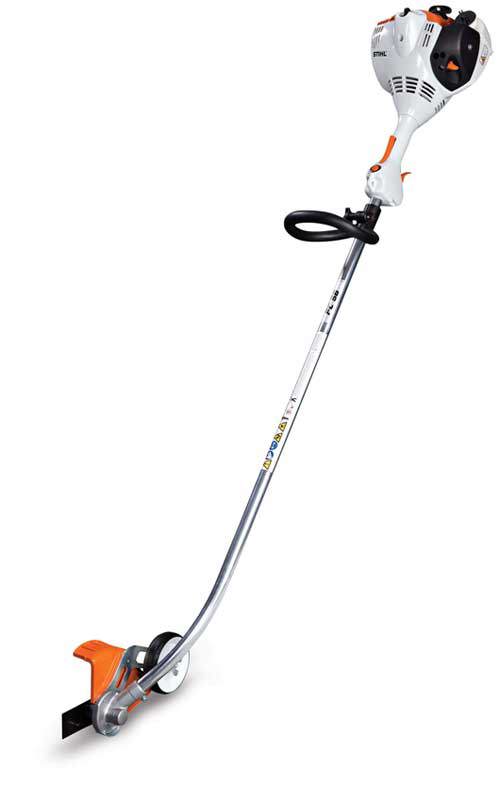

Stihl FC 56 C Edger (FC 56 C) Parts Diagram, Rewind starter

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl FC 56 C Edger, or refer to the list below.

All Parts for FC 56 C Edger

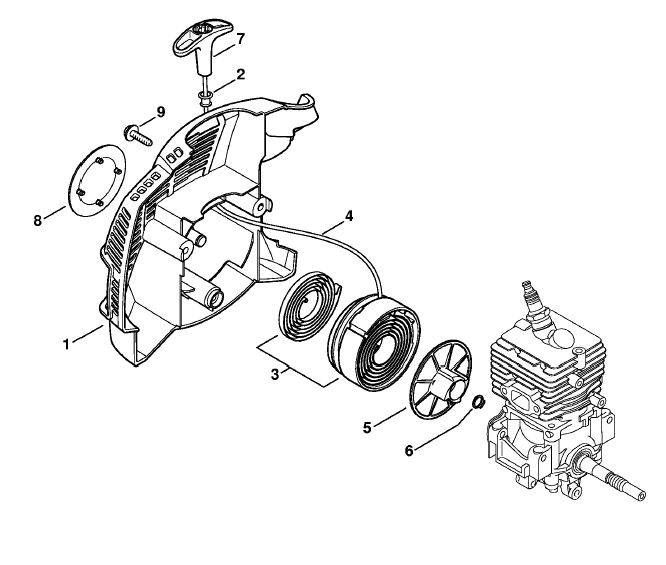

Stihl FC 56 C Edger (FC 56 C) Parts Diagram, Rewind starter

#	Part	Price
1	4144 190 0400 Stihl Starter cover	£39.91	Stihl Starter cover £39.91 P/N: 4144 190 0400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	9416 868 6650 Stihl Hollow rivet 6.5x0.5x8.8	£1.38	Stihl Hollow rivet 6.5x0.5x8.8 £1.38 P/N: 9416 868 6650, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	4144 190 1111 Stihl Rope rotor with rewind spring	£38.40	Stihl Rope rotor with rewind spring £38.40 P/N: 4144 190 1111, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	4137 195 8200 Stihl Starter rope 2.7 x 910mm	£3.34	Stihl Starter rope 2.7 x 910mm £3.34 P/N: 4137 195 8200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	4144 195 2000 Stihl Carrier	£4.25	Stihl Carrier £4.25 P/N: 4144 195 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.

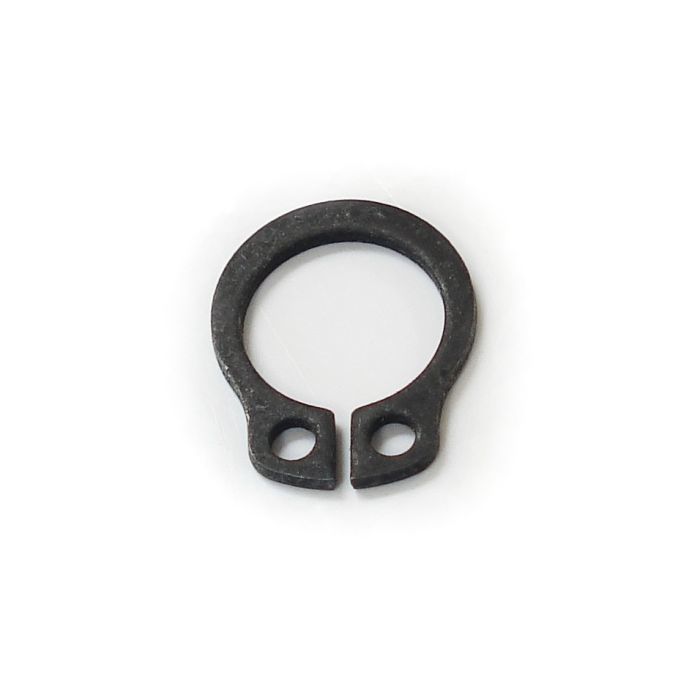

6	9455 621 0750 Stihl Circlips DIN471-9x1	£0.70	Stihl Circlips DIN471-9x1 £0.70 P/N: 9455 621 0750, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	4140 195 3400 Stihl Starter grip	£4.03	Stihl Starter grip £4.03 P/N: 4140 195 3400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	0000 951 1100 Stihl Screw	£1.62	Stihl Screw £1.62 P/N: 0000 951 1100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	4144 190 4013 Stihl Rewind starter	£74.17	Stihl Rewind starter £74.17 P/N: 4144 190 4013, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
