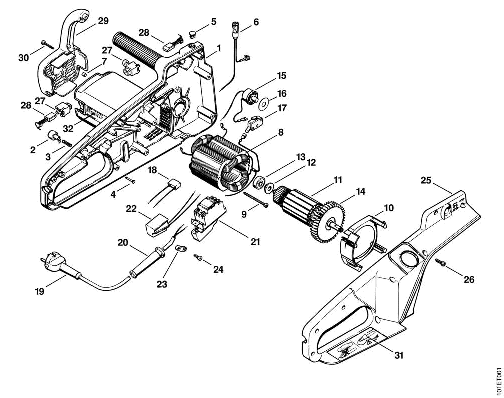

Stihl E 220 Standard Electric Chainsaw (E 220 Standard) Parts Diagram, A-Electric motor E 220
Look at the diagram and find parts that fit a Stihl E 220 Standard Electric Chainsaw, or refer to the list below.
All Parts for E 220 Standard Electric Chainsaw
| # | Part | Price | |
|---|---|---|---|
| 1 |
1207 600 0803 Stihl MOTOR HOUSING |
 Stihl MOTOR HOUSING£115.85
P/N: 1207 600 0803, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 2 |
1207 435 7800 Stihl Safety switch |
£3.11 |
Stihl Safety switch£3.11
P/N: 1207 435 7800, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 4 |
1207 435 2000 Stihl BOLT |
Stihl BOLT£1.08
P/N: 1207 435 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 5 |
1207 431 1800 Stihl PLUG |
Stihl PLUG£1.55
P/N: 1207 431 1800, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 6 |
1207 430 1800 Stihl INDICATOR LAMP |
Stihl INDICATOR LAMP£5.74
P/N: 1207 430 1800, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 8 |
1207 600 0100 Stihl STATOR |
Stihl STATOR£153.53
P/N: 1207 600 0100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 9 |
9074 478 4355 Stihl Pan head self-tapping screw IS-P5x80 |
£1.96 |
Stihl Pan head self-tapping screw IS-P5x80£1.96
P/N: 9074 478 4355, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 10 |
1206 084 1800 Stihl Air guide ring |
Stihl Air guide ring£4.34
P/N: 1206 084 1800, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 11 |
1207 600 1000 Stihl Rotor With Fanwheel 230v |
Stihl Rotor With Fanwheel 230v£133.21
P/N: 1207 600 1000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 12 |
1206 608 1200 Stihl Washer |
£1.14 |
Stihl Washer£1.14
P/N: 1206 608 1200, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 13 |
9503 003 9670 Stihl Grooved ball bearing DIN625-608-2Z |
£12.18 |
Stihl Grooved ball bearing DIN625-608-2Z£12.18
P/N: 9503 003 9670, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 14 |
1206 086 0502 Stihl Fanwheel |
£8.04 |
Stihl Fanwheel£8.04
P/N: 1206 086 0502, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 15 |
1207 435 1200 Stihl Overload cutout 230/240v |
£30.71 |
Stihl Overload cutout 230/240v£30.71
P/N: 1207 435 1200, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 16 |
1206 435 8000 Stihl Thrust washer |
£1.27 |
Stihl Thrust washer£1.27
P/N: 1206 435 8000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 17 |
1206 435 0310 Stihl Quick-action switch |
£6.90 |
Stihl Quick-action switch£6.90
P/N: 1206 435 0310, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 18 |
4804 605 1000 Stihl Capacitor |
£2.02 |
Stihl Capacitor£2.02
P/N: 4804 605 1000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 19 |
1208 440 2001 Stihl Connecting cable 230v |
£26.57 |
Stihl Connecting cable 230v£26.57
P/N: 1208 440 2001, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 20 |
1204 431 2400 Stihl Cable protector |
£3.00 |
Stihl Cable protector£3.00
P/N: 1204 431 2400, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 21 |
1207 435 0301 Stihl SWITCH |
Stihl SWITCH£105.95
P/N: 1207 435 0301, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 22 |
1207 430 1600 Stihl Starting current limiter |
Stihl Starting current limiter£47.57
P/N: 1207 430 1600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 23 |
1204 431 2500 Stihl Cable clamp |
£2.65 |
Stihl Cable clamp£2.65
P/N: 1204 431 2500, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 24 |
9074 478 3025 Stihl Pan head self-tapping screw IS-P4x16 |
£0.80 |
 Stihl Pan head self-tapping screw IS-P4x16£0.80
P/N: 9074 478 3025, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 25 |
1207 791 0601 Stihl HANDLE MOULDING |
Stihl HANDLE MOULDING£32.83
P/N: 1207 791 0601, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
No longer available
|
|
| 26 |
9074 478 3075 Stihl Pan head self-tapping screw IS-P4x19 |
£0.92 |
Stihl Pan head self-tapping screw IS-P4x19£0.92
P/N: 9074 478 3075, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 27 |
1207 600 2602 Stihl Brush holder |
£20.35 |
Stihl Brush holder£20.35
P/N: 1207 600 2602, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 28 |
1207 007 1005 Stihl Set of carbon brushes |
£18.05 |
Stihl Set of carbon brushes£18.05
P/N: 1207 007 1005, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 29 |
1206 791 1506 Stihl Front handle |
£13.34 |
Stihl Front handle£13.34
P/N: 1206 791 1506, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
| 30 |
9074 478 3475 Stihl Pan head selftapping scr IS-P4.5x25-12.9 |
£1.03 |
Stihl Pan head selftapping scr IS-P4.5x25-12.9£1.03
P/N: 9074 478 3475, Genuine OEM spare part. Find other Stihl spares, parts and accessories. |
