Stihl E 180 C Electric Chainsaw (E 180 C) Parts Diagram, C-Handle housing

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl E 180 C Electric Chainsaw, or refer to the list below.

All Parts for E 180 C Electric Chainsaw

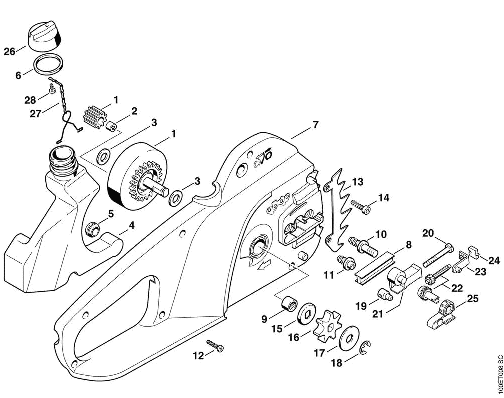

Stihl E 180 C Electric Chainsaw (E 180 C) Parts Diagram, C-Handle housing

#	Part	Price
1	1208 640 7550 Stihl Spur gear	£61.52	Stihl Spur gear £61.52 P/N: 1208 640 7550, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	1206 642 7600 Stihl Slotted nut	£1.14	Stihl Slotted nut £1.14 P/N: 1206 642 7600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	1206 642 7801 Stihl Washer	£1.14	Stihl Washer £1.14 P/N: 1206 642 7801, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	1208 351 0300 Stihl Oil tank	£11.62	Stihl Oil tank £11.62 P/N: 1208 351 0300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	1208 647 9100 Stihl Grommet	£1.84	Stihl Grommet £1.84 P/N: 1208 647 9100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	1208 790 1003 Stihl Handle housing	£50.26	Stihl Handle housing £50.26 P/N: 1208 790 1003, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	1123 021 2800 Stihl Insert	£4.25	Stihl Insert £4.25 P/N: 1123 021 2800, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	9513 003 2280 Stihl Needle cage 10x14x10	£7.60	Stihl Needle cage 10x14x10 £7.60 P/N: 9513 003 2280, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	1123 664 2400 Stihl Collar screw	£3.56	Stihl Collar screw £3.56 P/N: 1123 664 2400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	1208 664 2400 Stihl Collar screw	£3.56	Stihl Collar screw £3.56 P/N: 1208 664 2400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	9074 478 3075 Stihl Pan head self-tapping screw IS-P4x19	£0.92	Stihl Pan head self-tapping screw IS-P4x19 £0.92 P/N: 9074 478 3075, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	1123 664 0501 Stihl Bumper spike	£4.72	Stihl Bumper spike £4.72 P/N: 1123 664 0501, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	9074 478 4135 Stihl Pan head self-tapping screw IS-P5x20	£0.92	Stihl Pan head self-tapping screw IS-P5x20 £0.92 P/N: 9074 478 4135, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	1206 642 1301 Stihl Chain sprocket 3/8'' Picco 7T	£15.64	Stihl Chain sprocket 3/8'' Picco 7T £15.64 P/N: 1206 642 1301, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	9460 624 0801 Stihl E-clip DIN6799-8x1.3	£0.35	Stihl E-clip DIN6799-8x1.3 £0.35 P/N: 9460 624 0801, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
26	1206 640 3600 Stihl Oil filler cap	£8.63	Stihl Oil filler cap £8.63 P/N: 1206 640 3600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
27	1117 350 0905 Stihl Filter cap retainer	£2.30	Stihl Filter cap retainer £2.30 P/N: 1117 350 0905, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
28	9099 021 2360 Stihl Self-tapping screw DIN7971-3.5x9.5	£0.80	Stihl Self-tapping screw DIN7971-3.5x9.5 £0.80 P/N: 9099 021 2360, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
