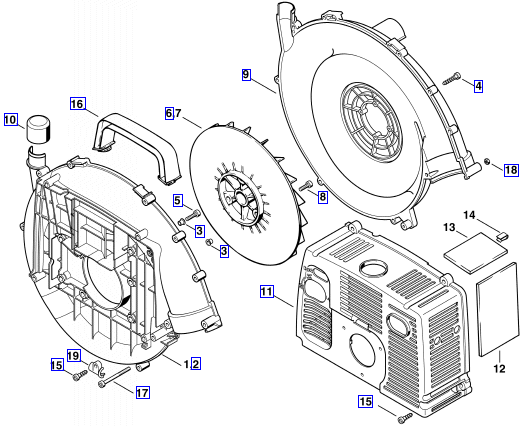

Stihl BR 420 C Backpack Blower (BR 420 C) Parts Diagram, FAN HOUSING

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl BR 420 C Backpack Blower, or refer to the list below.

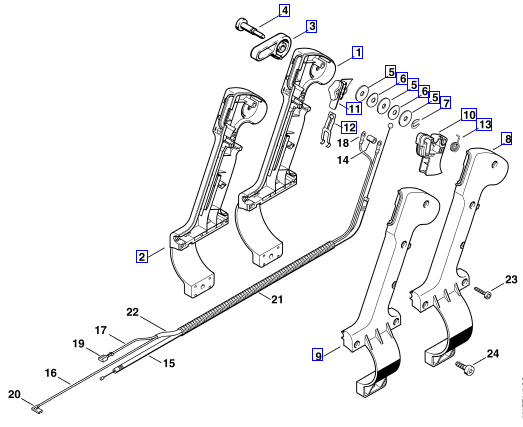

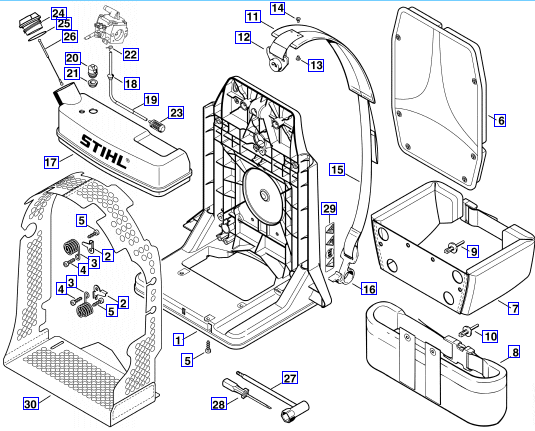

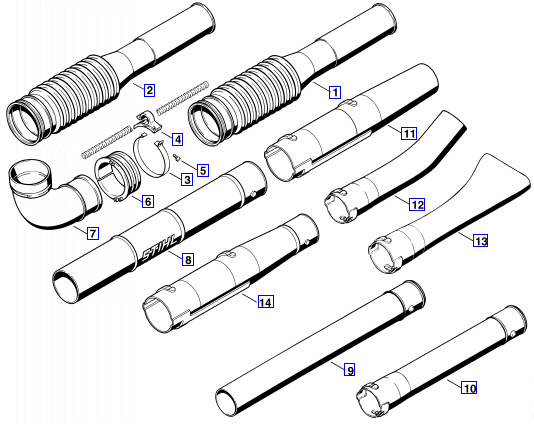

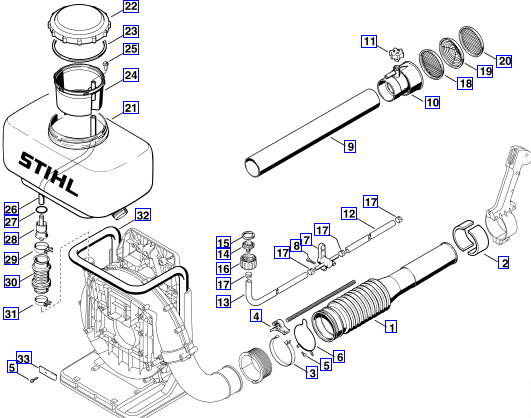

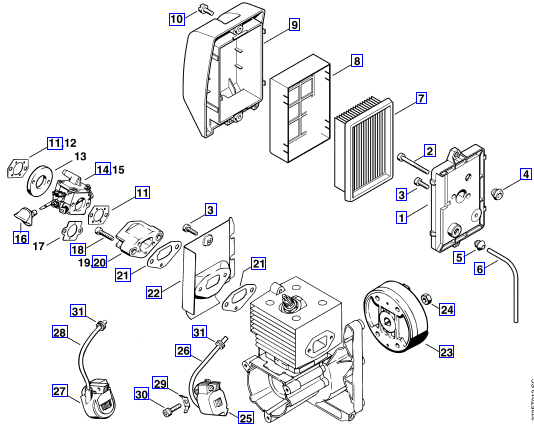

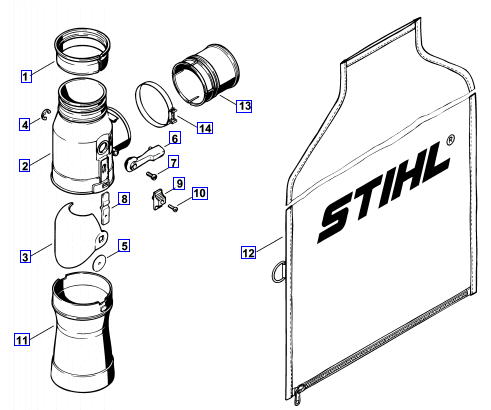

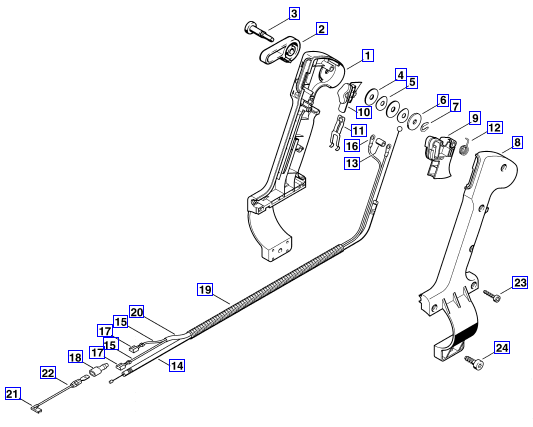

All Parts for BR 420 C Backpack Blower

Stihl BR 420 C Backpack Blower (BR 420 C) Parts Diagram, FAN HOUSING

#	Part	Price
3	9443 825 7130 Stihl Hollow rivet DIN7340-A7.5x1x6.8	£1.49	Stihl Hollow rivet DIN7340-A7.5x1x6.8 £1.49 P/N: 9443 825 7130, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	9074 478 4545 Stihl Pan head self-tapping screw IS-P6x26.5	£1.03	Stihl Pan head self-tapping screw IS-P6x26.5 £1.03 P/N: 9074 478 4545, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	9022 371 1020 Stihl Spline screw IS-M5x20	£0.92	Stihl Spline screw IS-M5x20 £0.92 P/N: 9022 371 1020, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	4203 700 3401 Stihl Fanwheel	£32.88	Stihl Fanwheel £32.88 P/N: 4203 700 3401, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	9039 488 0984 Stihl Screw DIN 7500-M5x16	£0.92	Stihl Screw DIN 7500-M5x16 £0.92 P/N: 9039 488 0984, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	4203 701 0701 Stihl Fan housing, outer	£58.07	Stihl Fan housing, outer £58.07 P/N: 4203 701 0701, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	0000 706 4100 Stihl Cap	£1.38	Stihl Cap £1.38 P/N: 0000 706 4100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	4203 706 2102 Stihl Shroud	£45.78	Stihl Shroud £45.78 P/N: 4203 706 2102, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	9074 478 4435 Stihl Pan head self-tapping screw IS-P6x19	£0.92	Stihl Pan head self-tapping screw IS-P6x19 £0.92 P/N: 9074 478 4435, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	4203 791 0300 Stihl Handle	£11.39	Stihl Handle £11.39 P/N: 4203 791 0300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	9022 313 1120 Stihl Spline screw IS-M5x58	£1.49	Stihl Spline screw IS-M5x58 £1.49 P/N: 9022 313 1120, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
18	9212 421 0700 Stihl Hexagon nut DIN985-M5-A4-70	£0.35	Stihl Hexagon nut DIN985-M5-A4-70 £0.35 P/N: 9212 421 0700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	4203 182 2107 Stihl Support	£2.87	Stihl Support £2.87 P/N: 4203 182 2107, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
