Stihl BG 56 Blower (BG56C-EZ) Parts Diagram, Crankcase

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl BG 56 Blower, or refer to the list below.

All Parts for BG 56 Blower

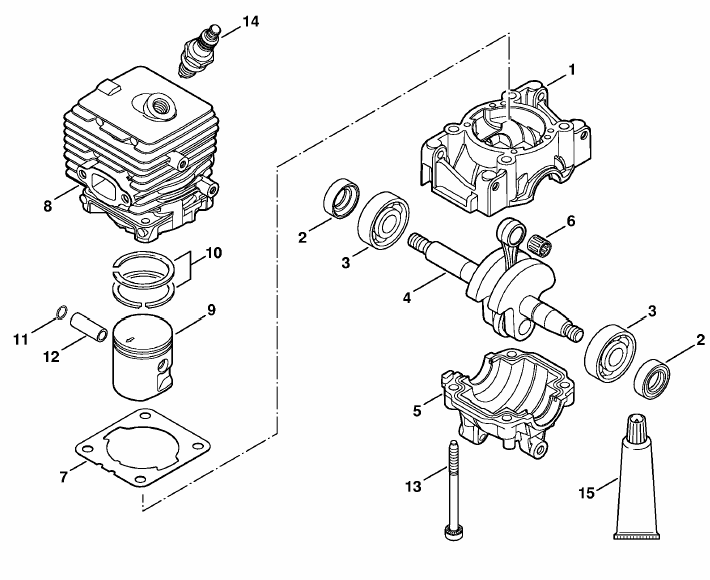

Stihl BG 56 Blower (BG56C-EZ) Parts Diagram, Crankcase

#	Part	Price
1	4241 021 0300 Stihl Crankcase	£82.80	Stihl Crankcase £82.80 P/N: 4241 021 0300, Genuine OEM spare part. Find other Stihl spares, parts and accessories.

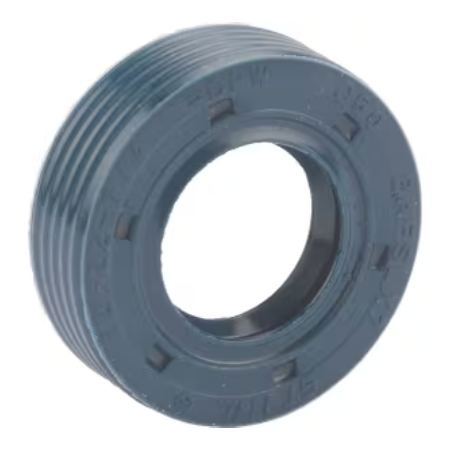

2	9639 003 1230 Stihl Oil seal DIN3760-AS12x22x7	£5.41	Stihl Oil seal DIN3760-AS12x22x7 £5.41 P/N: 9639 003 1230, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	4144 020 2050 Stihl Ball bearing (2 pieces)	£29.78	Stihl Ball bearing (2 pieces) £29.78 P/N: 4144 020 2050, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	4241 030 0401 Stihl Crankshaft	£62.68	Stihl Crankshaft £62.68 P/N: 4241 030 0401, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	4144 021 2500 Stihl Engine pan	£15.88	Stihl Engine pan £15.88 P/N: 4144 021 2500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	9512 003 1834 Stihl Needle cage 8x11x10	£7.01	Stihl Needle cage 8x11x10 £7.01 P/N: 9512 003 1834, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	4144 029 2301 Stihl Cylinder gasket	£3.22	Stihl Cylinder gasket £3.22 P/N: 4144 029 2301, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	4241 020 1202 Stihl Cylinder and piston	£73.03	Stihl Cylinder and piston £73.03 P/N: 4241 020 1202, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	4241 030 2001 Stihl Piston	£39.22	Stihl Piston £39.22 P/N: 4241 030 2001, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	4144 034 3000 Stihl Piston ring 34x1.2mm	£4.94	Stihl Piston ring 34x1.2mm £4.94 P/N: 4144 034 3000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	9463 650 0805 Stihl Snap ring 8x0.7	£0.70	Stihl Snap ring 8x0.7 £0.70 P/N: 9463 650 0805, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	4241 034 1500 Stihl Piston pin	£6.66	Stihl Piston pin £6.66 P/N: 4241 034 1500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	9075 478 4268 Stihl Pan head self-tapping screw IS-D5x60	£1.49	Stihl Pan head self-tapping screw IS-D5x60 £1.49 P/N: 9075 478 4268, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	0000 400 7011 Stihl Spark plug NGK CMR6H	£4.03	Stihl Spark plug NGK CMR6H £4.03 P/N: 0000 400 7011, Genuine OEM spare part. Find other Stihl spares, parts and accessories.

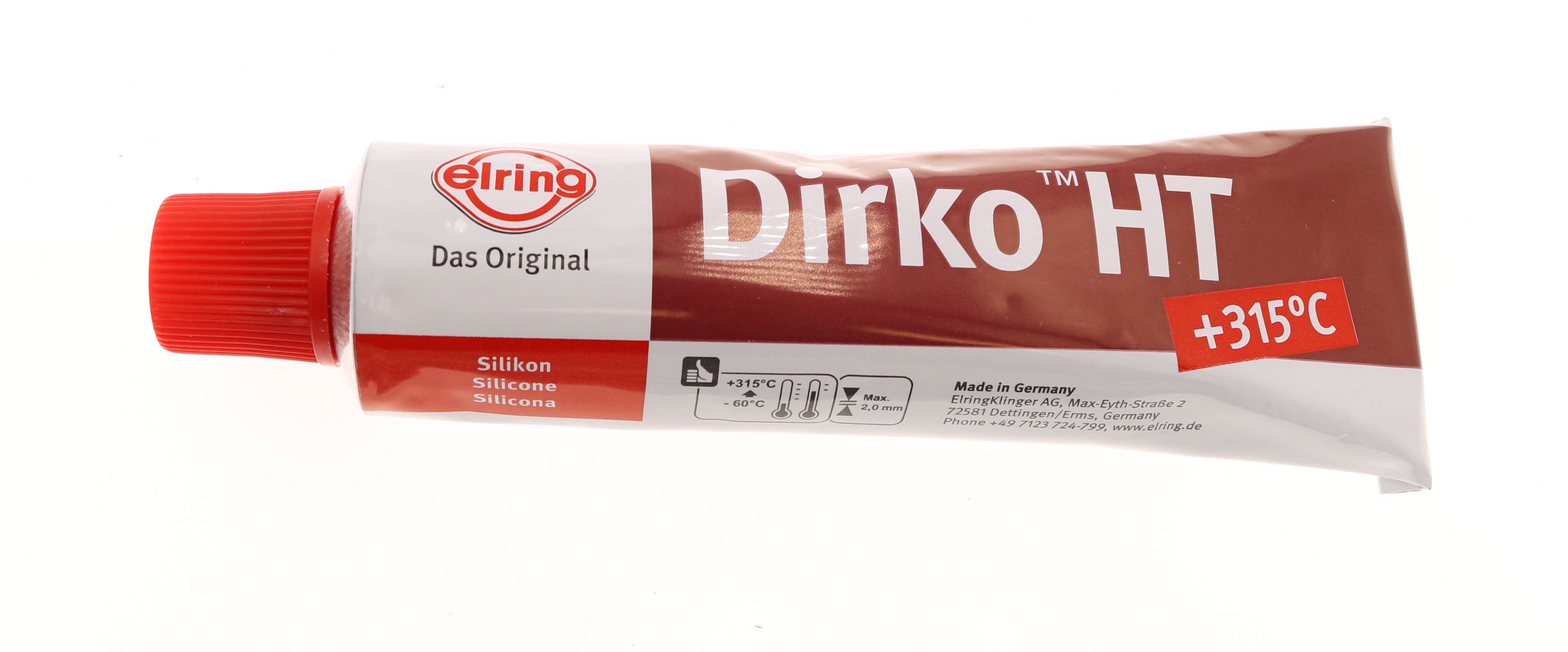

15	0783 830 2000 Stihl Tube of sealant HT red 70ml		Stihl Tube of sealant HT red 70ml £18.52 P/N: 0783 830 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
16	4144 007 1012 Stihl Set of gaskets	£14.38	Stihl Set of gaskets £14.38 P/N: 4144 007 1012, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
