Stihl 032 AV Chainsaw (032AVQ) Parts Diagram, Oil Pump, Clutch Chain Cover

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl 032 AV Chainsaw, or refer to the list below.

All Parts for 032 AV Chainsaw

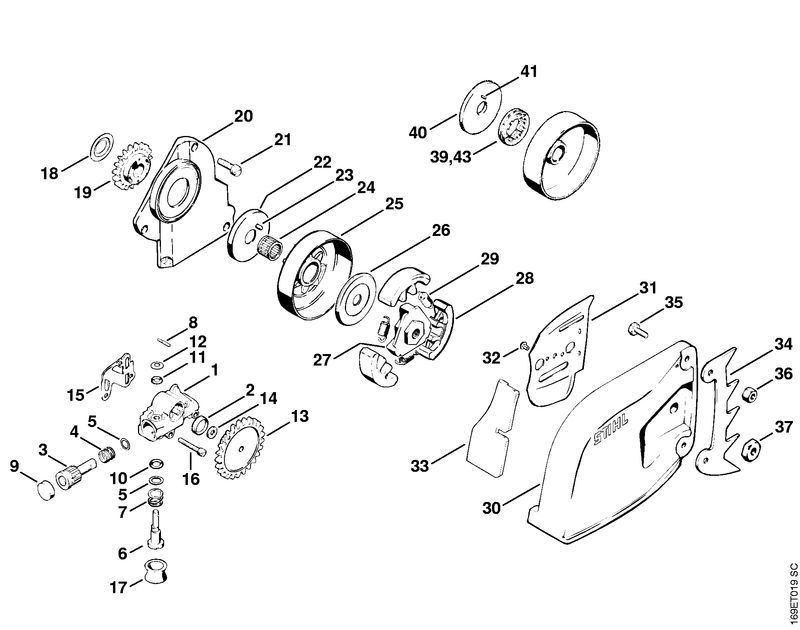

Stihl 032 AV Chainsaw (032AVQ) Parts Diagram, Oil Pump, Clutch Chain Cover

#	Part	Price
	1113 160 2010 Stihl Clutch	£61.52	Stihl Clutch £61.52 P/N: 1113 160 2010, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
1	1117 640 3001 Stihl Pump housing	£35.30	Stihl Pump housing £35.30 P/N: 1117 640 3001, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	9643 950 1160 Stihl Oil seal 12x16x3	£5.41	Stihl Oil seal 12x16x3 £5.41 P/N: 9643 950 1160, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	1117 647 0601 Stihl Pump piston	£26.80	Stihl Pump piston £26.80 P/N: 1117 647 0601, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	0000 997 1010 Stihl Spiral spring	£1.14	Stihl Spiral spring £1.14 P/N: 0000 997 1010, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	0000 958 0701 Stihl Washer	£1.14	Stihl Washer £1.14 P/N: 0000 958 0701, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	1117 647 4801 Stihl Control bolt	£2.65	Stihl Control bolt £2.65 P/N: 1117 647 4801, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	0000 997 1200 Stihl Helical spring	£1.38	Stihl Helical spring £1.38 P/N: 0000 997 1200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	1117 647 9800 Stihl Bolt	£1.03	Stihl Bolt £1.03 P/N: 1117 647 9800, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	0000 988 6220 Stihl Plug	£1.14	Stihl Plug £1.14 P/N: 0000 988 6220, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	9646 945 0490 Stihl O-ring DIN3771-S7x1.5	£0.46	Stihl O-ring DIN3771-S7x1.5 £0.46 P/N: 9646 945 0490, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	9646 945 0230 Stihl O-ring DIN3771-S5x1.25	£0.46	Stihl O-ring DIN3771-S5x1.25 £0.46 P/N: 9646 945 0230, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	9486 648 0100 Stihl Cup spring DIN2093-A10	£0.46	Stihl Cup spring DIN2093-A10 £0.46 P/N: 9486 648 0100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	1113 640 7100 Stihl Wormgear	£13.12	Stihl Wormgear £13.12 P/N: 1113 640 7100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	0000 958 0402 Stihl Washer	£1.14	Stihl Washer £1.14 P/N: 0000 958 0402, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	1117 649 1100 Stihl Gasket	£1.27	Stihl Gasket £1.27 P/N: 1117 649 1100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	9048 319 0740 Stihl Pan head screw DIN84-M4x25-Z4	£0.84	Stihl Pan head screw DIN84-M4x25-Z4 £0.84 P/N: 9048 319 0740, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	0000 989 0401 Stihl Rubber ring	£2.76	Stihl Rubber ring £2.76 P/N: 0000 989 0401, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
21	9048 319 0660 Stihl Pan head screw DIN84-M4x12-Z4	£0.80	Stihl Pan head screw DIN84-M4x12-Z4 £0.80 P/N: 9048 319 0660, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
25	1113 640 2000 Stihl Chain sprocket		Stihl Chain sprocket £19.12 P/N: 1113 640 2000, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
27	1113 162 3205 Stihl Clutch Rotor		Stihl Clutch Rotor £10.93 P/N: 1113 162 3205, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
28	1113 162 0802 Stihl Clutch shoe	£10.24	Stihl Clutch shoe £10.24 P/N: 1113 162 0802, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
29	0000 997 5811 Stihl Tension spring	£1.73	Stihl Tension spring £1.73 P/N: 0000 997 5811, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
32	9441 065 1910 Stihl Round head rivet DIN1476-3x8	£0.35	Stihl Round head rivet DIN1476-3x8 £0.35 P/N: 9441 065 1910, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
34	1110 664 0501 Stihl Spiked bumper	£6.32	Stihl Spiked bumper £6.32 P/N: 1110 664 0501, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
35	9008 345 0960 Stihl Hexagon head screw	£0.80	Stihl Hexagon head screw £0.80 P/N: 9008 345 0960, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
36	9214 320 0700 Stihl Lock nut ISO7042-M5	£0.46	Stihl Lock nut ISO7042-M5 £0.46 P/N: 9214 320 0700, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
37	0000 955 0801 Stihl Nut	£2.18	Stihl Nut £2.18 P/N: 0000 955 0801, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
