Stihl 024 Chainsaw (024SW) Parts Diagram, Crankcase

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Stihl 024 Chainsaw, or refer to the list below.

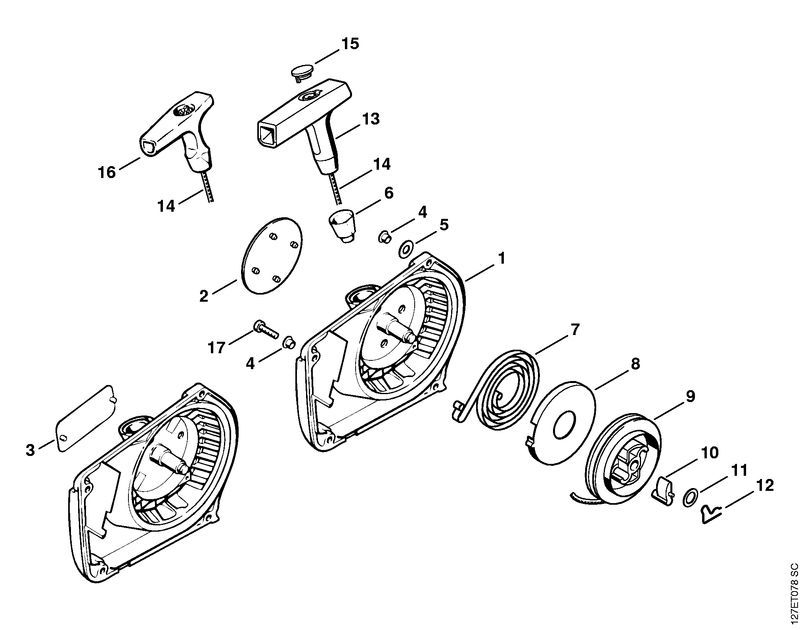

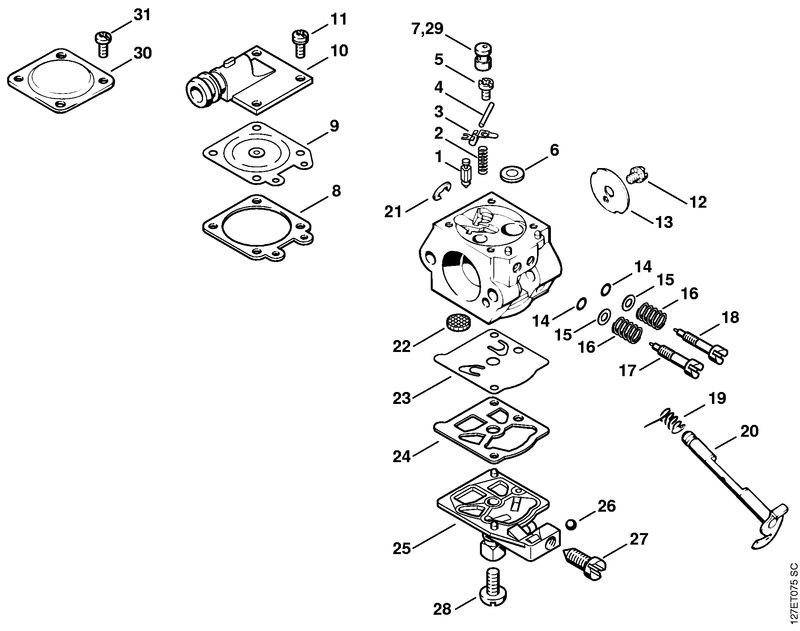

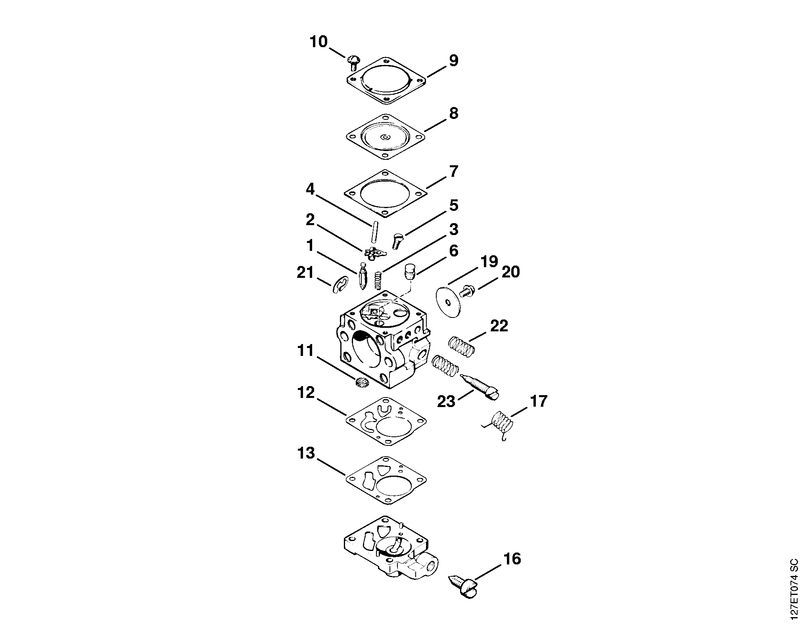

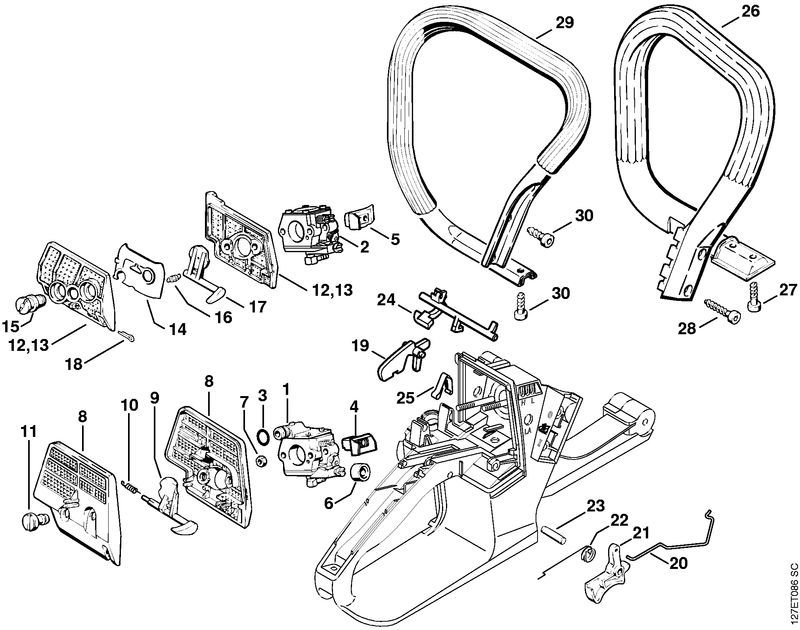

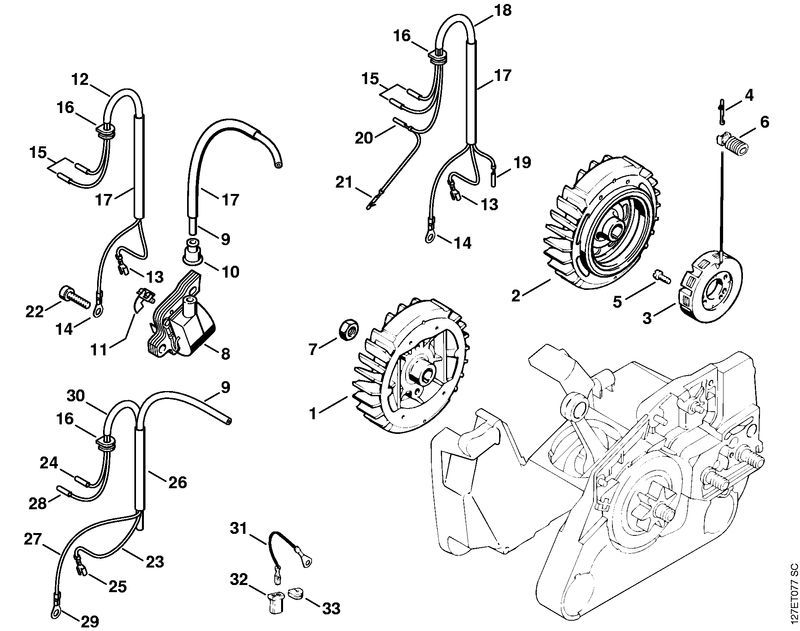

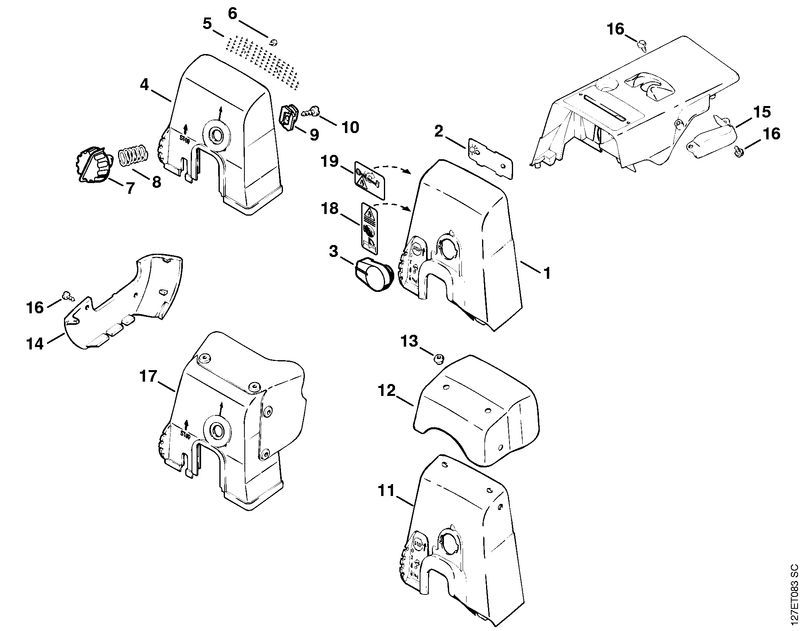

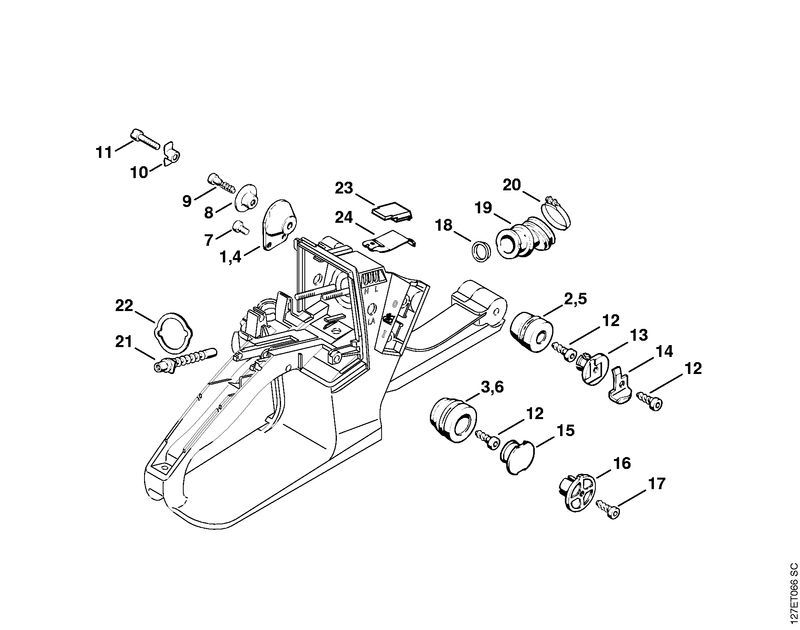

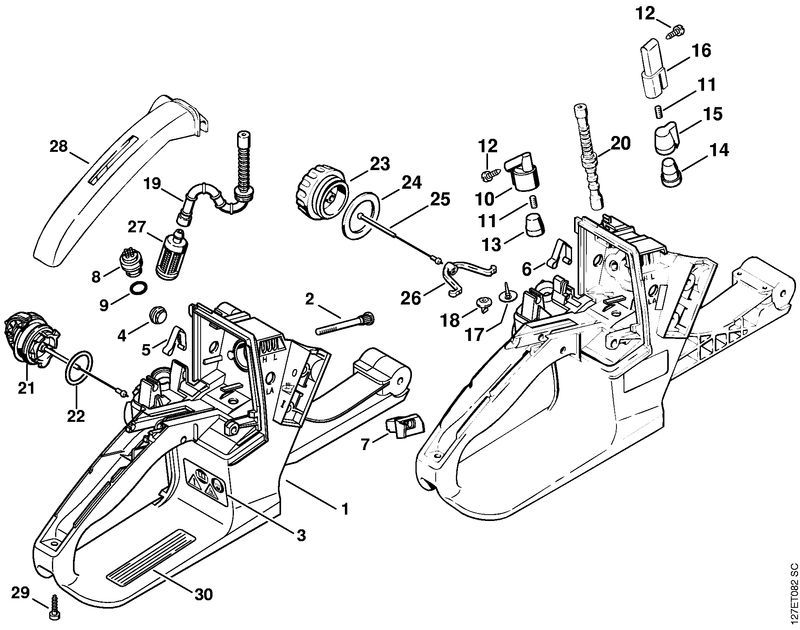

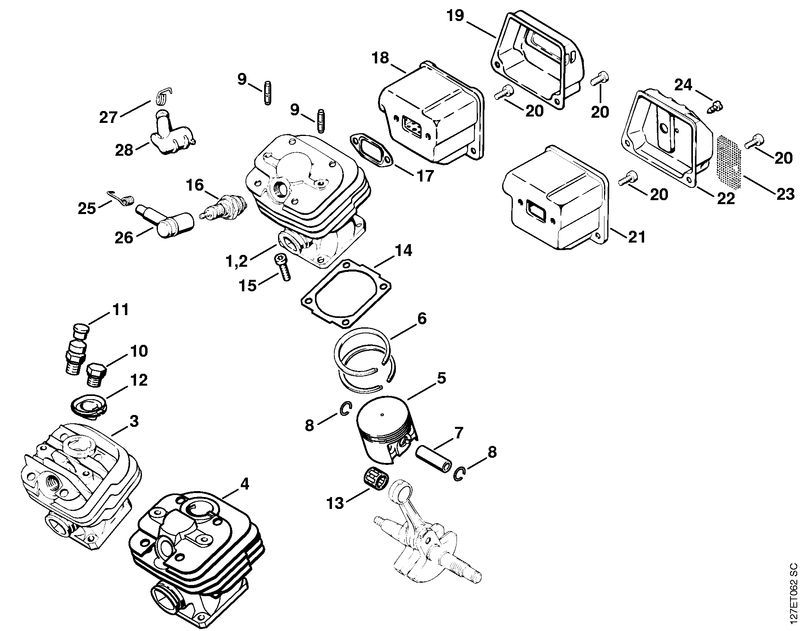

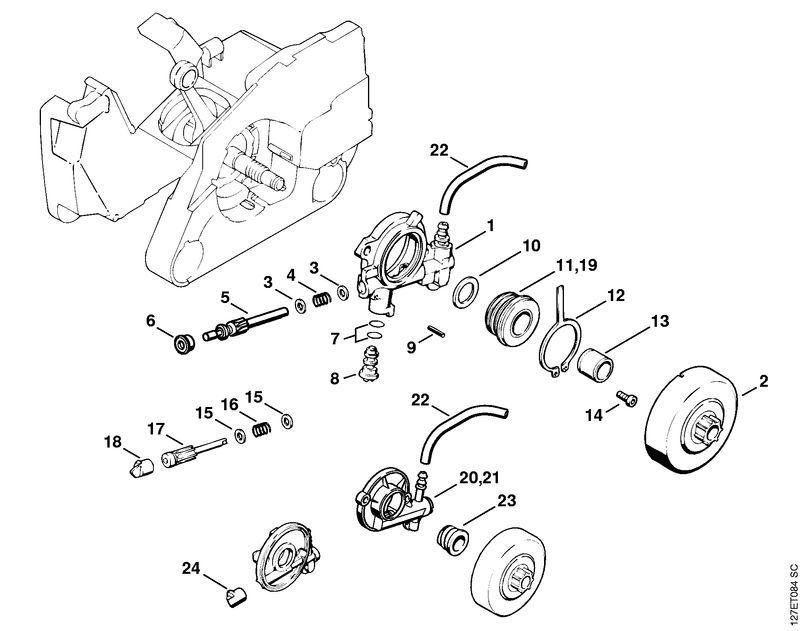

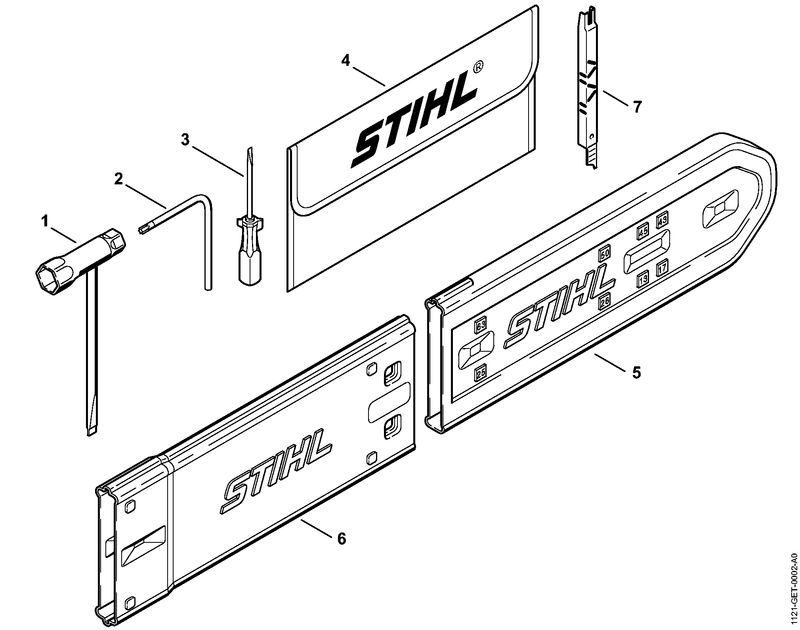

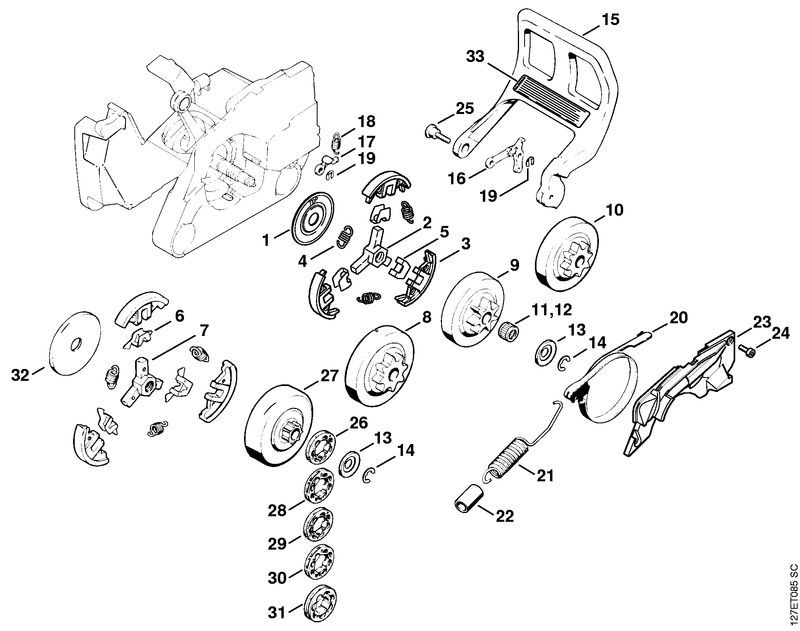

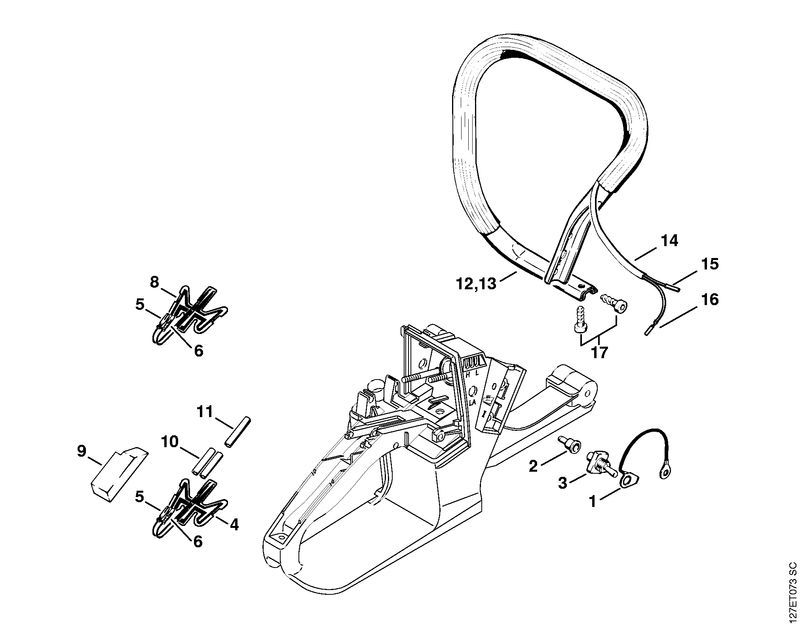

All Parts for 024 Chainsaw

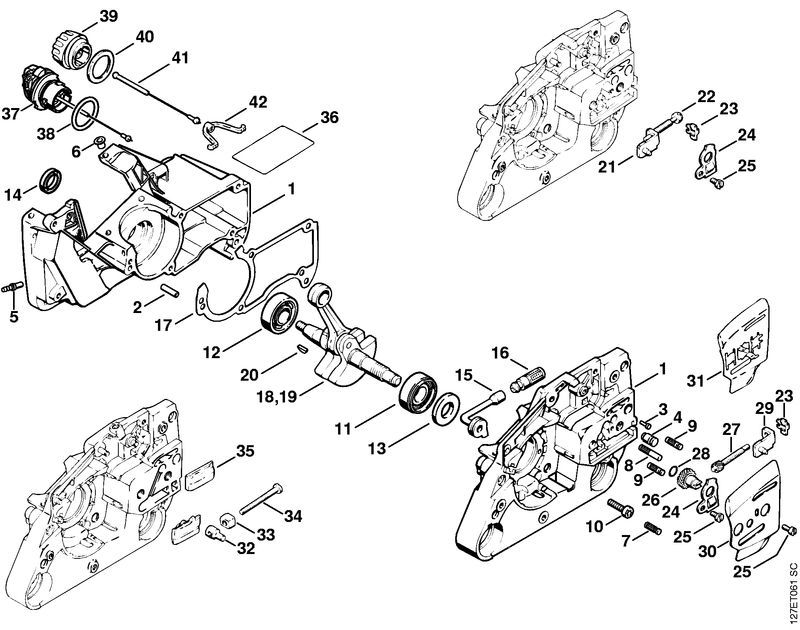

Stihl 024 Chainsaw (024SW) Parts Diagram, Crankcase

#	Part	Price
	1121 007 1050 Stihl Set of gaskets	£13.56	Stihl Set of gaskets £13.56 P/N: 1121 007 1050, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
	1125 007 1021 Stihl Spur gear / chain adjusting screw kit	£12.18	Stihl Spur gear / chain adjusting screw kit £12.18 P/N: 1125 007 1021, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
1	1121 020 2112 Stihl *CRANKCASE		Stihl *CRANKCASE £210.43 P/N: 1121 020 2112, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
1	1121 020 2125 Stihl Crankcase	£195.50	Stihl Crankcase £195.50 P/N: 1121 020 2125, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
2	9371 470 2610 Stihl Cylindrical pin (DIN7) - 5m6x18	£0.70	Stihl Cylindrical pin (DIN7) - 5m6x18 £0.70 P/N: 9371 470 2610, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
3	0000 974 1200 Stihl Notched pin 2,6x8	£0.70	Stihl Notched pin 2,6x8 £0.70 P/N: 0000 974 1200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
4	1128 640 9100 Stihl Valve	£4.60	Stihl Valve £4.60 P/N: 1128 640 9100, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
5	0000 988 5211 Stihl Connector	£1.96	Stihl Connector £1.96 P/N: 0000 988 5211, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
6	9416 868 6531 Stihl Hollow rivet DIN7340-AK6.5x0.5x6.8	£1.38	Stihl Hollow rivet DIN7340-AK6.5x0.5x6.8 £1.38 P/N: 9416 868 6531, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
7	1120 162 5200 Stihl Pin	£1.49	Stihl Pin £1.49 P/N: 1120 162 5200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
8	1121 162 5205 Stihl Bolt	£1.96	Stihl Bolt £1.96 P/N: 1121 162 5205, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
9	1121 162 5200 Stihl Pin	£1.49	Stihl Pin £1.49 P/N: 1121 162 5200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
10	9022 371 1020 Stihl Spline screw IS-M5x20	£0.92	Stihl Spline screw IS-M5x20 £0.92 P/N: 9022 371 1020, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
11	9523 003 4260 Stihl Grooved ball bearing 15x35x13	£17.70	Stihl Grooved ball bearing 15x35x13 £17.70 P/N: 9523 003 4260, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
12	9503 003 0320 Stihl Grooved ball bearing DIN625-16002	£11.96	Stihl Grooved ball bearing DIN625-16002 £11.96 P/N: 9503 003 0320, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
13	9640 003 1600 Stihl Oil seal DIN3760-BS15x29,6x4	£6.79	Stihl Oil seal DIN3760-BS15x29,6x4 £6.79 P/N: 9640 003 1600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
14	9640 003 1190 Stihl Oil seal DIN3760-BS12x20x5	£5.41	Stihl Oil seal DIN3760-BS12x20x5 £5.41 P/N: 9640 003 1190, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
15	1122 647 9400 Stihl Hose	£5.76	Stihl Hose £5.76 P/N: 1122 647 9400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
16	1117 640 3800 Stihl Pickup body	£5.06	Stihl Pickup body £5.06 P/N: 1117 640 3800, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
17	1121 029 0500 Stihl Gasket	£1.49	Stihl Gasket £1.49 P/N: 1121 029 0500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
19	1121 030 0405 Stihl Crankshaft	£262.20	Stihl Crankshaft £262.20 P/N: 1121 030 0405, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
20	1120 036 8500 Stihl Woodruff key 2x3.7	£1.14	Stihl Woodruff key 2x3.7 £1.14 P/N: 1120 036 8500, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
23	1125 664 1400 Stihl Thrust pad	£1.38	Stihl Thrust pad £1.38 P/N: 1125 664 1400, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
24	1122 664 2200 Stihl Cover plate	£1.14	Stihl Cover plate £1.14 P/N: 1122 664 2200, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
25	9041 216 0630 Stihl Pan head screw DIN84-M4x8-8.8	£0.80	Stihl Pan head screw DIN84-M4x8-8.8 £0.80 P/N: 9041 216 0630, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
28	9646 945 0490 Stihl O-ring DIN3771-S7x1.5	£0.46	Stihl O-ring DIN3771-S7x1.5 £0.46 P/N: 9646 945 0490, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
29	1125 640 1900 Stihl Tensioner slide	£3.11	Stihl Tensioner slide £3.11 P/N: 1125 640 1900, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
30	1122 664 1000 Stihl Inner side plate	£4.03	Stihl Inner side plate £4.03 P/N: 1122 664 1000, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
31	1122 664 1001 Stihl Inner side plate	£13.69	Stihl Inner side plate £13.69 P/N: 1122 664 1001, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
36	1124 084 8301 Stihl Reflector Foil		Stihl Reflector Foil £4.79 P/N: 1124 084 8301, Genuine OEM spare part. Find other Stihl spares, parts and accessories. No longer available
37	0000 350 0537 Stihl Oil filler cap	£9.55	Stihl Oil filler cap £9.55 P/N: 0000 350 0537, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
38	9645 948 2470 Stihl O-ring 23x3	£0.70	Stihl O-ring 23x3 £0.70 P/N: 9645 948 2470, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
39	0000 350 0510 Stihl Filler cap	£7.60	Stihl Filler cap £7.60 P/N: 0000 350 0510, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
40	0000 359 1210 Stihl Sealing ring	£1.62	Stihl Sealing ring £1.62 P/N: 0000 359 1210, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
41	0000 350 0900 Stihl Rope	£1.27	Stihl Rope £1.27 P/N: 0000 350 0900, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
42	0000 353 0600 Stihl Hook	£1.14	Stihl Hook £1.14 P/N: 0000 353 0600, Genuine OEM spare part. Find other Stihl spares, parts and accessories.
