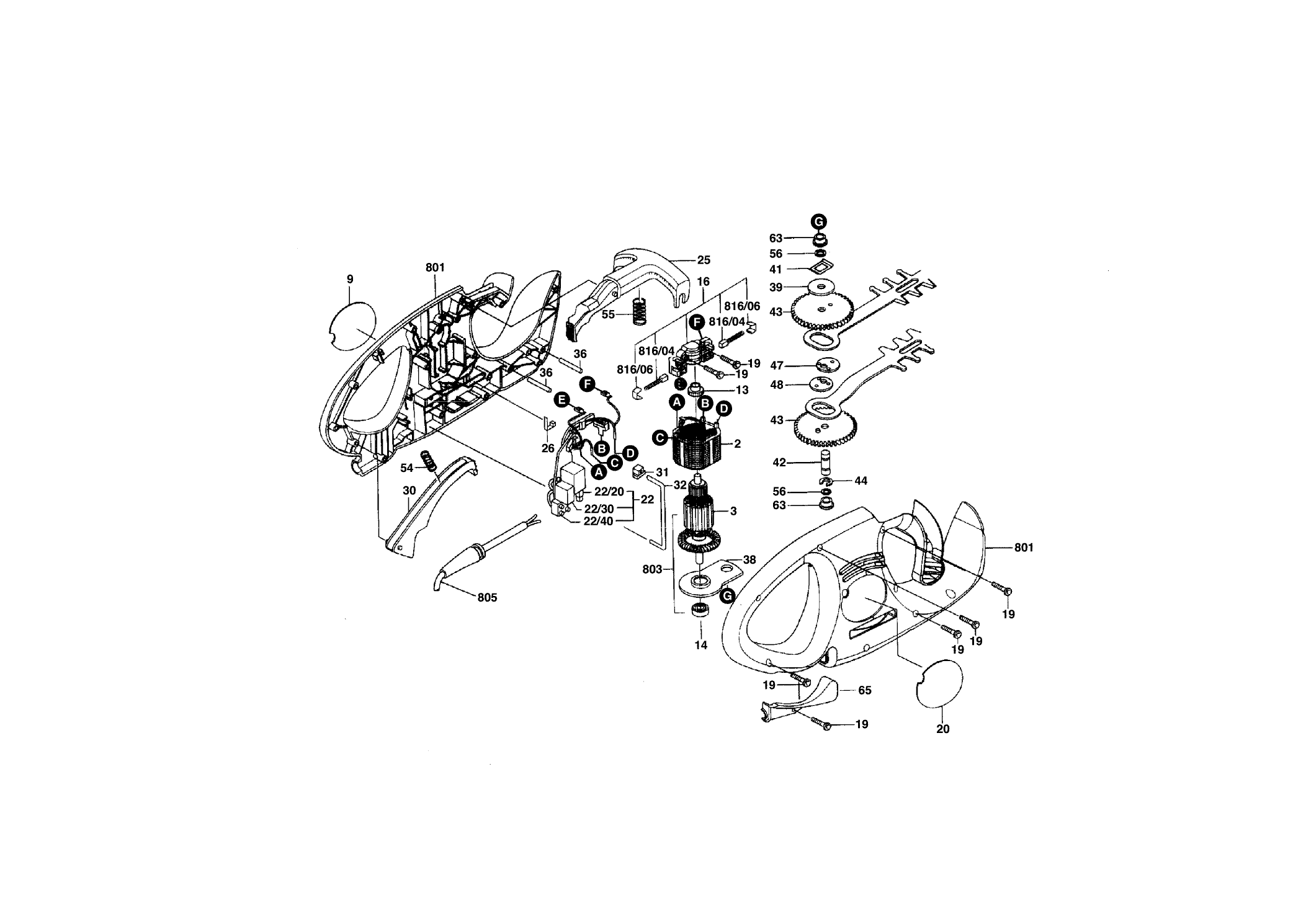

Qualcast Hedgemaster II 370 (F016L80914) Parts Diagram, Page 1
Look at the diagram and find parts that fit a Qualcast Hedgemaster II 370, or refer to the list below.
All Parts for Qualcast Hedgemaster II 370
| # | Part | Price | |
|---|---|---|---|
| 3 |
2604011230 Qualcast Armature |
Qualcast Armature£35.28
P/N: 2604011230, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 9 |
F016L62020 Qualcast Sticker |
Qualcast Sticker£0.64
P/N: F016L62020, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 13 |
2605805004 Qualcast Flanged Bearing |
£6.78 |
Qualcast Flanged Bearing£6.78
P/N: 2605805004, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 14 |
2600905021 Qualcast Groove Ball Bearing |
£7.68 |
Qualcast Groove Ball Bearing£7.68
P/N: 2600905021, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 16 |
2609992620 Qualcast BRUSH PLATE(SD) |
Qualcast BRUSH PLATE(SD)£10.31
P/N: 2609992620, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 19 |
F016L62029 Qualcast Self-cutting Screw |
£0.85 |
Qualcast Self-cutting Screw£0.85
P/N: F016L62029, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 22/40 |
1901091101 Qualcast #N/A |
Qualcast #N/A£5.03
P/N: 1901091101, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 25 |
2605190219 Qualcast #N/A |
Qualcast #N/A£7.42
P/N: 2605190219, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 26 |
2601329051 Qualcast Ratchet Cap |
£1.28 |
Qualcast Ratchet Cap£1.28
P/N: 2601329051, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 30 |
1605190091 Qualcast Switch Segment |
Qualcast Switch Segment
P/N: 1605190091, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 31 |
1606330021 Qualcast Switch Wheel |
£0.85 |
Qualcast Switch Wheel£0.85
P/N: 1606330021, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 36 |
2917570109 Qualcast #N/A |
Qualcast #N/A£0.70
P/N: 2917570109, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 38 |
2605807080 Qualcast #N/A |
Qualcast #N/A£1.60
P/N: 2605807080, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 39 |
2600100083 Qualcast #N/A |
Qualcast #N/A£1.07
P/N: 2600100083, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 41 |
2601310011 Qualcast Spring Nut |
Qualcast Spring Nut£1.07
P/N: 2601310011, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 42 |
2603105054 Qualcast Bearing bolt |
Qualcast Bearing bolt£1.88
P/N: 2603105054, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 43 |
2606316163 Qualcast Cylindrical Gear (FGA) |
Qualcast Cylindrical Gear (FGA)
P/N: 2606316163, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 44 |
2916080910 Qualcast Locking Washer |
£1.69 |
Qualcast Locking Washer£1.69
P/N: 2916080910, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 47 |
2600030010 Qualcast Eccentric Disc |
£1.69 |
Qualcast Eccentric Disc£1.69
P/N: 2600030010, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 48 |
2600030011 Qualcast Eccentric Disc |
£1.69 |
Qualcast Eccentric Disc£1.69
P/N: 2600030011, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 54 |
2604610028 Qualcast Compression Spring |
£1.28 |
Qualcast Compression Spring£1.28
P/N: 2604610028, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 55 |
2604610045 Qualcast Compression Spring |
£1.28 |
Qualcast Compression Spring£1.28
P/N: 2604610045, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 56 |
2600101676 Qualcast Shim |
£0.85 |
Qualcast Shim£0.85
P/N: 2600101676, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 63 |
1900322018 Qualcast Bushing |
£0.85 |
Qualcast Bushing£0.85
P/N: 1900322018, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 753 |
F016L62030 Qualcast Dust Bag |
Qualcast Dust Bag£2.87
P/N: F016L62030, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 801 |
F016102334 Qualcast Housing Set |
£13.68 |
Qualcast Housing Set£13.68
P/N: F016102334, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
| 803 |
F016102255 Qualcast Armature |
Qualcast Armature£18.02
P/N: F016102255, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 805 |
F016102256 Qualcast #N/A |
Qualcast #N/A
P/N: F016102256, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 816/04 |
2607014005 Qualcast Carbon-Brush Set |
Qualcast Carbon-Brush Set£6.65
P/N: 2607014005, Genuine OEM spare part. Find other Qualcast spares, parts and accessories.
No longer available
|
|
| 816/06 |
2601322017 Qualcast Ratchet Cap |
£1.28 |
Qualcast Ratchet Cap£1.28
P/N: 2601322017, Genuine OEM spare part. Find other Qualcast spares, parts and accessories. |
