Mountfield MC 438 (2012) Parts Diagram, Page 1
Look at the diagram and find parts that fit a Mountfield MC 438, or refer to the list below.
All Parts for MC 438
| # | Part | Price | |
|---|---|---|---|
| 1 |
118805100/0 Mountfield Cylinder Assembly |
£56.32 |
Mountfield Cylinder Assembly£56.32
P/N: 118805100/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 2 |
2432040 Mountfield Nut M5 |
£1.33 |
Mountfield Nut M5£1.33
P/N: 2432040, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 3 |
112581500/0 Mountfield Grower Washer M5 Uni 1751 Type A Wz |
£1.55 |
Mountfield Grower Washer M5 Uni 1751 Type A Wz£1.55
P/N: 112581500/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 4 |
2312090 Mountfield Flat Washer D=5 X 10 X 1 |
£1.33 |
Mountfield Flat Washer D=5 X 10 X 1£1.33
P/N: 2312090, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 5 |
123878022/0 Mountfield Torx Screw M5 X 14 |
Mountfield Torx Screw M5 X 14
P/N: 123878022/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 6 |
118800243/0 Mountfield Silencer Cover Plate |
£2.81 |
Mountfield Silencer Cover Plate£2.81
P/N: 118800243/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 7 |
118805103/0 Mountfield Muffler Assembly |
£42.23 |
Mountfield Muffler Assembly£42.23
P/N: 118805103/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 8 |
118550583/0 Mountfield Muffler Gasket |
£1.33 |
Mountfield Muffler Gasket£1.33
P/N: 118550583/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 9 |
118550584/0 Mountfield Muffler Connecting Screw |
£3.52 |
Mountfield Muffler Connecting Screw£3.52
P/N: 118550584/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 10 |
2135030 Mountfield Torx Screw M5 X 20 |
£1.40 |
Mountfield Torx Screw M5 X 20£1.40
P/N: 2135030, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 11 |
3210024 Mountfield Spark Plug Champion Rcj7Y |
£4.12 |
 Mountfield Spark Plug Champion Rcj7Y£4.12
P/N: 3210024, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 12 |
118550585/0 Mountfield Intake Manifold Gasket |
£1.33 |
Mountfield Intake Manifold Gasket£1.33
P/N: 118550585/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 13 |
118550586/0 Mountfield Intake Manifold |
£2.12 |
Mountfield Intake Manifold£2.12
P/N: 118550586/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 14 |
118550587/0 Mountfield Carburettor Gasket |
£1.33 |
Mountfield Carburettor Gasket£1.33
P/N: 118550587/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 15 |
118550588/0 Mountfield Cylinder Sealing Gasket |
£1.33 |
Mountfield Cylinder Sealing Gasket£1.33
P/N: 118550588/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 16 |
118800182/0 Mountfield Piston Ring |
£4.08 |
Mountfield Piston Ring£4.08
P/N: 118800182/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 17 |
118800244/0 Mountfield Piston Pin |
£1.40 |
Mountfield Piston Pin£1.40
P/N: 118800244/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 18 |
118550590/0 Mountfield Piston Pin Circlip |
£1.33 |
Mountfield Piston Pin Circlip£1.33
P/N: 118550590/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 19 |
118805102/0 Mountfield Piston Assembly |
£16.19 |
Mountfield Piston Assembly£16.19
P/N: 118805102/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 20 |
118800246/0 Mountfield Needle Bearing Ring |
£2.40 |
Mountfield Needle Bearing Ring£2.40
P/N: 118800246/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 21 |
118550591/0 Mountfield Needle Bearing 10 X 14 X 11 |
£3.79 |
Mountfield Needle Bearing 10 X 14 X 11£3.79
P/N: 118550591/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 22 |
118800247/0 Mountfield Crankshaft |
£52.08 |
Mountfield Crankshaft£52.08
P/N: 118800247/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 23 |
118800959/0 Mountfield Woodruff Key 3 X 3.5 X 10 |
£1.55 |
Mountfield Woodruff Key 3 X 3.5 X 10£1.55
P/N: 118800959/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 24 |
118800248/0 Mountfield Left Crankcase |
£27.31 |
Mountfield Left Crankcase£27.31
P/N: 118800248/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 25 |
119216038/0 Mountfield Bearing 6201-2RS C3 |
£5.92 |
 Mountfield Bearing 6201-2RS C3£5.92
P/N: 119216038/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 26 |
118800249/0 Mountfield Crankcase Gasket |
£1.55 |
Mountfield Crankcase Gasket£1.55
P/N: 118800249/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 27 |
118800250/0 Mountfield Right Crankcase |
£32.38 |
Mountfield Right Crankcase£32.38
P/N: 118800250/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 29 |
118550592/0 Mountfield Oil Seal 12 X 35 X 5.5 |
£2.26 |
Mountfield Oil Seal 12 X 35 X 5.5£2.26
P/N: 118550592/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 30 |
2135050 Mountfield Torx Screw M5 X 30 |
£1.33 |
Mountfield Torx Screw M5 X 30£1.33
P/N: 2135050, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 31 |
118550593/0 Mountfield Double Screw Bolt |
£1.40 |
Mountfield Double Screw Bolt£1.40
P/N: 118550593/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 32 |
118550594/0 Mountfield Tension Block |
£1.33 |
Mountfield Tension Block£1.33
P/N: 118550594/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 33 |
118550595/0 Mountfield Adjust Screw |
£1.33 |
Mountfield Adjust Screw£1.33
P/N: 118550595/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 34 |
118550596/0 Mountfield Spiked Grip |
£2.95 |
Mountfield Spiked Grip£2.95
P/N: 118550596/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 35 |
2135180 Mountfield Torx Screw M5 X 12 |
£1.40 |
 Mountfield Torx Screw M5 X 12£1.40
P/N: 2135180, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 36 |
118550597/0 Mountfield Chain Guard |
£1.69 |
Mountfield Chain Guard£1.69
P/N: 118550597/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 37 |
118800251/0 Mountfield Chain Catcher Screw |
Mountfield Chain Catcher Screw£1.33
P/N: 118800251/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
No longer available
|
|
| 38 |
118550598/0 Mountfield Bar Plate |
£1.97 |
Mountfield Bar Plate£1.97
P/N: 118550598/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 39 |
123878020/0 Mountfield Torx Screw M4 X 10 |
£1.33 |
Mountfield Torx Screw M4 X 10£1.33
P/N: 123878020/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 40 |
118550599/0 Mountfield Oil Seal 12 X 22 X 7 |
£1.82 |
Mountfield Oil Seal 12 X 22 X 7£1.82
P/N: 118550599/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 41 |
118550600/0 Mountfield Ignition Coil |
£24.92 |
 Mountfield Ignition Coil£24.92
P/N: 118550600/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 42 |
123878021/0 Mountfield Torx Screw M4 X 14 |
Mountfield Torx Screw M4 X 14
P/N: 123878021/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
|
| 43 |
2321050 Mountfield Washer 4 X 10 X 0.5 |
£1.40 |
Mountfield Washer 4 X 10 X 0.5£1.40
P/N: 2321050, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 44 |
118550601/0 Mountfield Earth Cable |
£2.34 |
Mountfield Earth Cable£2.34
P/N: 118550601/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 45 |
123120008/0 Mountfield Flywheel Nut M8X1 |
£1.69 |
Mountfield Flywheel Nut M8X1£1.69
P/N: 123120008/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 46 |
118550602/0 Mountfield Flywheel Assembly-Analog Ignition |
£29.63 |
Mountfield Flywheel Assembly-Analog Ignition£29.63
P/N: 118550602/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 51 |
118550603/0 Mountfield Clutch Assembly |
£18.02 |
 Mountfield Clutch Assembly£18.02
P/N: 118550603/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 55 |
118800252/0 Mountfield Clutch Washer |
£1.69 |
Mountfield Clutch Washer£1.69
P/N: 118800252/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 56 |
118550604/0 Mountfield Clutch Drum |
£18.02 |
 Mountfield Clutch Drum£18.02
P/N: 118550604/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 57 |
118550605/0 Mountfield Needle Bearing 10 X 13 X 13 |
£5.92 |
Mountfield Needle Bearing 10 X 13 X 13£5.92
P/N: 118550605/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 58 |
118550606/0 Mountfield Worm Gear [2 Tooth Pitch 3/8" Mini] |
£2.68 |
![Mountfield Worm Gear [2 Tooth Pitch 3/8" Mini]](/images/parts/33b78887-7038-46f3-8c72-b5b222fe52f6.jpg?width=200&height=200&rmode=pad&bgcolor=white) Mountfield Worm Gear [2 Tooth Pitch 3/8" Mini]£2.68
P/N: 118550606/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 59 |
118800253/0 Mountfield Oil Pump Cap |
£1.55 |
Mountfield Oil Pump Cap£1.55
P/N: 118800253/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 60 |

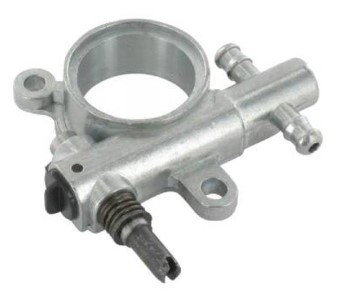

183594508/1 Mountfield Oil Pump Assembly |
£18.16 |
 Mountfield Oil Pump Assembly£18.16
P/N: 183594508/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 61 |
118800254/0 Mountfield Oil Outgoing Tube |
£1.82 |
Mountfield Oil Outgoing Tube£1.82
P/N: 118800254/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 62 |
118550608/0 Mountfield Worm Washer |
£1.69 |
Mountfield Worm Washer£1.69
P/N: 118550608/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 63 |
118800255/0 Mountfield Oil Pickup Tube |
£1.69 |
Mountfield Oil Pickup Tube£1.69
P/N: 118800255/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 65 |
118800256/0 Mountfield Oil Tube Connection |
£1.33 |
Mountfield Oil Tube Connection£1.33
P/N: 118800256/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 66 |
118550609/0 Mountfield Oil Filter Assembly |
£8.38 |
Mountfield Oil Filter Assembly£8.38
P/N: 118550609/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 70 |
8724090 Mountfield Diaphragm Gasket Set |
£18.86 |
Mountfield Diaphragm Gasket Set£18.86
P/N: 8724090, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 71 |
118800210/0 Mountfield Carburettor |
£82.84 |
Mountfield Carburettor£82.84
P/N: 118800210/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 72 |
118800211/0 Mountfield Intake Manifold |
£2.81 |
Mountfield Intake Manifold£2.81
P/N: 118800211/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 73 |
118800212/0 Mountfield Carburettor Screw |
£1.33 |
Mountfield Carburettor Screw£1.33
P/N: 118800212/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 74 |
118804231/0 Mountfield Primer Bulb |
£5.92 |
 Mountfield Primer Bulb£5.92
P/N: 118804231/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 75 |
118800204/0 Mountfield Pump Tube |
£3.79 |
Mountfield Pump Tube£3.79
P/N: 118800204/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 76 |
3657050 Mountfield Spark Plug Spring |
£3.94 |
Mountfield Spark Plug Spring£3.94
P/N: 3657050, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
| 77 |
3748880 Mountfield Spark Plug Cap |
£2.03 |
Mountfield Spark Plug Cap£2.03
P/N: 3748880, Genuine OEM spare part. Find other Mountfield spares, parts and accessories. |
