Mountfield 1228M Ride-on (299981133-MOU [2002-2007]) Parts Diagram, Blades Engagement

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Mountfield 1228M Ride-on, or refer to the list below.

All Parts for 1228M Ride-on

Mountfield 1228M Ride-on (299981133-MOU [2002-2007]) Parts Diagram, Blades Engagement

#	Part	Price
2	125394510/0 Mountfield Control Knob [Black]	£4.22	Mountfield Control Knob [Black] £4.22 P/N: 125394510/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
3	384001007/0 Mountfield Blade Engage Control Axle	£14.92	Mountfield Blade Engage Control Axle £14.92 P/N: 384001007/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
4	125430226/0 Mountfield Spring	£2.26	Mountfield Spring £2.26 P/N: 125430226/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
5	112692050/0 Mountfield Hex-Head Screw M8X80 Uni 5737 Acc.8.8	£1.82	Mountfield Hex-Head Screw M8X80 Uni 5737 Acc.8.8 £1.82 P/N: 112692050/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
6	112155000/0 Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz	£1.55	Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz £1.55 P/N: 112155000/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
7	325547049/0 Mountfield Axle Fixing Plate	£3.10	Mountfield Axle Fixing Plate £3.10 P/N: 325547049/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
8	112731601/0 Mountfield Self-Tap Screw 4.8 X 16	£1.97	Mountfield Self-Tap Screw 4.8 X 16 £1.97 P/N: 112731601/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
9	127430571/0 Mountfield Clutch Return Spring	£4.66	Mountfield Clutch Return Spring £4.66 P/N: 127430571/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
10	127487000/0 Mountfield Blade Lever Shoe	£2.95	Mountfield Blade Lever Shoe £2.95 P/N: 127487000/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
11	112791213/1 Mountfield Hex-Head Screw M6 X 18 Uni 5739 8.8	£1.55	Mountfield Hex-Head Screw M6 X 18 Uni 5739 8.8 £1.55 P/N: 112791213/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
12	112154510/0 Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55	Mountfield Low Self-Locking Nut M6 Uni7474 Acc.6S £1.55 P/N: 112154510/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
13	127034078/0 Mountfield Blade Engage Control Rod	£8.74	Mountfield Blade Engage Control Rod £8.74 P/N: 127034078/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
14	122746601/0 Mountfield Articulation CS13 M8 Din71802	£19.14	Mountfield Articulation CS13 M8 Din71802 £19.14 P/N: 122746601/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
15	327772143/0 Mountfield Control Bracket	£7.10	Mountfield Control Bracket £7.10 P/N: 327772143/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
16	127430576/0 Mountfield Spring	£9.85	Mountfield Spring £9.85 P/N: 127430576/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
17	112521350/0 Mountfield Washer M8 8.4 X 16 X 1.6	£1.55	Mountfield Washer M8 8.4 X 16 X 1.6 £1.55 P/N: 112521350/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
18	127510113/0 Mountfield Pin	£8.74	Mountfield Pin £8.74 P/N: 127510113/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
19	112293200/0 Mountfield Hexagon Nut M8 Uni 5588 Acc.6S	£1.55	Mountfield Hexagon Nut M8 Uni 5588 Acc.6S £1.55 P/N: 112293200/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
20	112155000/0 Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz	£1.55	Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz £1.55 P/N: 112155000/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
21	112583500/0 Mountfield Spring Lock Washer M8 Uni 1751 Type A	£1.55	Mountfield Spring Lock Washer M8 Uni 1751 Type A £1.55 P/N: 112583500/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
22	112293200/0 Mountfield Hexagon Nut M8 Uni 5588 Acc.6S	£1.55	Mountfield Hexagon Nut M8 Uni 5588 Acc.6S £1.55 P/N: 112293200/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
23	325670008/1 Mountfield Anti-Friction Washer 10.8 X 19 X 0.8	£1.55	Mountfield Anti-Friction Washer 10.8 X 19 X 0.8 £1.55 P/N: 325670008/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
24	124487997/0 Mountfield Spring Clip D=1.8	£1.55	Mountfield Spring Clip D=1.8 £1.55 P/N: 124487997/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
25	125670006/0 Mountfield Washer	£1.55	Mountfield Washer £1.55 P/N: 125670006/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
31	384317083/0 Mountfield Blade Pulley Lever	£19.30	Mountfield Blade Pulley Lever £19.30 P/N: 384317083/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
32	127047000/0 Mountfield Bush	£5.06	Mountfield Bush £5.06 P/N: 127047000/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
33	112691200/0 Mountfield Hex-Head Screw M8 X 45 Uni 5737 8.8	£1.69	Mountfield Hex-Head Screw M8 X 45 Uni 5737 8.8 £1.69 P/N: 112691200/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
34	112523060/0 Mountfield Washer M8 8.4 X 24 X 2 Uni 6593	£1.55	Mountfield Washer M8 8.4 X 24 X 2 Uni 6593 £1.55 P/N: 112523060/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
35	322672152/0 Mountfield Anti-Friction Washer 8.2 X 30 X 0.8	£1.82	Mountfield Anti-Friction Washer 8.2 X 30 X 0.8 £1.82 P/N: 322672152/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
36	112523070/0 Mountfield Washer M8 8.5 X 32 X 2.5	£1.55	Mountfield Washer M8 8.5 X 32 X 2.5 £1.55 P/N: 112523070/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
37	112155000/0 Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz	£1.55	Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz £1.55 P/N: 112155000/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.

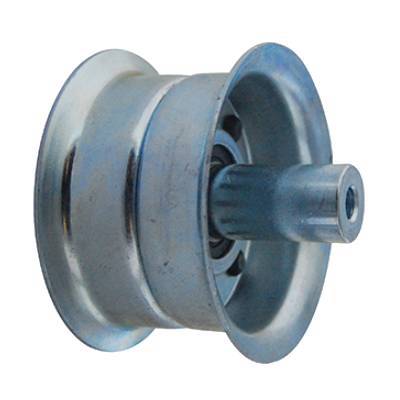

38	127604008/0 Mountfield Mobile Pulley	£93.61	Mountfield Mobile Pulley £93.61 P/N: 127604008/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
39	112691600/0 Mountfield Hex-Head Screw M8X70 Uni 5737 Acc.8.8	£1.82	Mountfield Hex-Head Screw M8X70 Uni 5737 Acc.8.8 £1.82 P/N: 112691600/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
40	112523060/0 Mountfield Washer M8 8.4 X 24 X 2 Uni 6593	£1.55	Mountfield Washer M8 8.4 X 24 X 2 Uni 6593 £1.55 P/N: 112523060/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
41	112293201/0 Mountfield Flanged Hexagon Nut M8	£1.69	Mountfield Flanged Hexagon Nut M8 £1.69 P/N: 112293201/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
42	135061423/0G Mountfield Deck Drive Belt A49 [Gates]	£48.48	Mountfield Deck Drive Belt A49 [Gates] £48.48 P/N: 135061423/0G, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
61	384220501/0 Mountfield Blade Brake	£9.72	Mountfield Blade Brake £9.72 P/N: 384220501/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
62	122041980/0 Mountfield Bush	£1.55	Mountfield Bush £1.55 P/N: 122041980/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
63	322672152/0 Mountfield Anti-Friction Washer 8.2 X 30 X 0.8	£1.82	Mountfield Anti-Friction Washer 8.2 X 30 X 0.8 £1.82 P/N: 322672152/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
64	112793102/0 Mountfield Screw Te M8X20 Uni 5739 Acc.8.8	£1.55	Mountfield Screw Te M8X20 Uni 5739 Acc.8.8 £1.55 P/N: 112793102/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
65	112155010/0 Mountfield Self-Locking Nut M8 A-Lok Acc.6S	£2.12	Mountfield Self-Locking Nut M8 A-Lok Acc.6S £2.12 P/N: 112155010/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
66	127034077/1 Mountfield Blade Brake Control Rod	£13.09	Mountfield Blade Brake Control Rod £13.09 P/N: 127034077/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
68	112293200/0 Mountfield Hexagon Nut M8 Uni 5588 Acc.6S	£1.55	Mountfield Hexagon Nut M8 Uni 5588 Acc.6S £1.55 P/N: 112293200/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
69	112155000/0 Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz	£1.55	Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz £1.55 P/N: 112155000/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
70	325670011/0 Mountfield Anti-Friction Washer 8.2 X 19 X 0.8	£1.55	Mountfield Anti-Friction Washer 8.2 X 19 X 0.8 £1.55 P/N: 325670011/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
71	112155000/0 Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz	£1.55	Mountfield Low Self-Locking Nut M8 Uni7474 6S Wz £1.55 P/N: 112155000/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
72	124487997/0 Mountfield Spring Clip D=1.8	£1.55	Mountfield Spring Clip D=1.8 £1.55 P/N: 124487997/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
