Mountfield MB 33 D (287221003-M16 [2023]) Parts Diagram, Transmission

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Mountfield MB 33 D, or refer to the list below.

All Parts for MB 33 D

Mountfield MB 33 D (287221003-M16 [2023]) Parts Diagram, Transmission

#	Part	Price
1	118804001/0 Mountfield Transmission Support D=26	£43.64	Mountfield Transmission Support D=26 £43.64 P/N: 118804001/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
2	118803960/0 Mountfield Transmission Pipe D=26	£24.22	Mountfield Transmission Pipe D=26 £24.22 P/N: 118803960/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
3	112727796/0 Mountfield Torx Screw M5 X 12 Iso 14583 8.8	£1.55	Mountfield Torx Screw M5 X 12 Iso 14583 8.8 £1.55 P/N: 112727796/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
4	2132180 Mountfield Screw Tcce M6 X 25	£1.33	Mountfield Screw Tcce M6 X 25 £1.33 P/N: 2132180, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
5	112727801/0 Mountfield Screw Tcb Torx M6X20 Acc.8.8 Bz	£1.55	Mountfield Screw Tcb Torx M6X20 Acc.8.8 Bz £1.55 P/N: 112727801/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
7	112760475/0 Mountfield Screw TC M5 X 20	£1.97	Mountfield Screw TC M5 X 20 £1.97 P/N: 112760475/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
8	112291000/0 Mountfield Hexagon Nut M5 M5 Uni 5588 Acc.6S Wz	£1.55	Mountfield Hexagon Nut M5 M5 Uni 5588 Acc.6S Wz £1.55 P/N: 112291000/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
9	118805717/0 Mountfield Bike Handle Support �26-28	£19.67	Mountfield Bike Handle Support �26-28 £19.67 P/N: 118805717/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
10	112727801/0 Mountfield Screw Tcb Torx M6X20 Acc.8.8 Bz	£1.55	Mountfield Screw Tcb Torx M6X20 Acc.8.8 Bz £1.55 P/N: 112727801/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
11	118803210/0 Mountfield Left Handgrip	£16.19	Mountfield Left Handgrip £16.19 P/N: 118803210/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
13	2135120 Mountfield Screw Tx M5 X 40	£1.40	Mountfield Screw Tx M5 X 40 £1.40 P/N: 2135120, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
14	112154330/0 Mountfield Low Self-Locking Nut M5 Uni7474 Acc.6S	£1.55	Mountfield Low Self-Locking Nut M5 Uni7474 Acc.6S £1.55 P/N: 112154330/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
15	118804042/0 Mountfield Transmission Shaft	£12.53	Mountfield Transmission Shaft £12.53 P/N: 118804042/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
16	118801184/0 Mountfield Gear Case Assembly	£64.75	Mountfield Gear Case Assembly £64.75 P/N: 118801184/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
17	118804054/0 Mountfield Plastic Protection Guard	£2.40	Mountfield Plastic Protection Guard £2.40 P/N: 118804054/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.

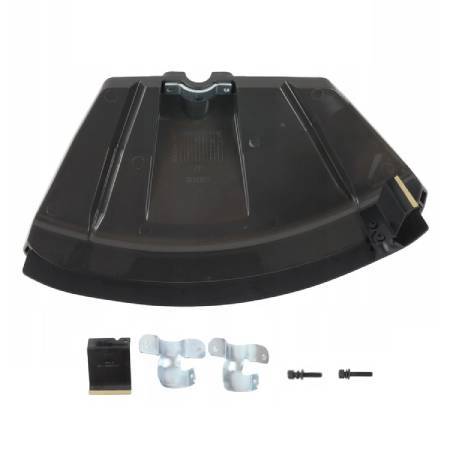

18	118803954/1 Mountfield Safety Cover Assembly	£27.31	Mountfield Safety Cover Assembly £27.31 P/N: 118803954/1, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
19	2132180 Mountfield Screw Tcce M6 X 25	£1.33	Mountfield Screw Tcce M6 X 25 £1.33 P/N: 2132180, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
20	1911-9262-01 Mountfield 3 Tooth Blade	£9.56	Mountfield 3 Tooth Blade £9.56 P/N: 1911-9262-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
22	1911-9227-01 Mountfield Nylon Head [M10-Female LH-Thread] 130mm	£20.21	Mountfield Nylon Head [M10-Female LH-Thread] 130mm £20.21 P/N: 1911-9227-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
23	1911-9259-01 Mountfield Double Harness	£58.54	Mountfield Double Harness £58.54 P/N: 1911-9259-01, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
24	118804066/0 Mountfield Throttle Line Clamp	£1.14	Mountfield Throttle Line Clamp £1.14 P/N: 118804066/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
25	118804037/0 Mountfield Clutch Drum	£14.08	Mountfield Clutch Drum £14.08 P/N: 118804037/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
26	118801182/0 Mountfield Harness Support Set	£1.55	Mountfield Harness Support Set £1.55 P/N: 118801182/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
27	118805717/0 Mountfield Bike Handle Support �26-28	£19.67	Mountfield Bike Handle Support �26-28 £19.67 P/N: 118805717/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
28	118805717/0 Mountfield Bike Handle Support �26-28	£19.67	Mountfield Bike Handle Support �26-28 £19.67 P/N: 118805717/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
29	118805717/0 Mountfield Bike Handle Support �26-28	£19.67	Mountfield Bike Handle Support �26-28 £19.67 P/N: 118805717/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
30	118803982/0 Mountfield Left Handle - Red	£3.67	Mountfield Left Handle - Red £3.67 P/N: 118803982/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
31	118803983/0 Mountfield Right Handle - Red	£3.67	Mountfield Right Handle - Red £3.67 P/N: 118803983/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
32	118803221/0 Mountfield Throttle Trigger	£1.69	Mountfield Throttle Trigger £1.69 P/N: 118803221/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
33	118803219/0 Mountfield Safety Lever	£1.33	Mountfield Safety Lever £1.33 P/N: 118803219/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
34	118803213/0 Mountfield On/Off Switch	£1.69	Mountfield On/Off Switch £1.69 P/N: 118803213/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
35	118803220/0 Mountfield Safety Spring	£1.55	Mountfield Safety Spring £1.55 P/N: 118803220/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
36	112727810/0 Mountfield Self-Tap Screw 3.5 X 13	£1.55	Mountfield Self-Tap Screw 3.5 X 13 £1.55 P/N: 112727810/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
37	118804955/0 Mountfield Handle Assembly [Yellow]	£22.93	Mountfield Handle Assembly [Yellow] £22.93 P/N: 118804955/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
38	118803217/0 Mountfield Stop Cable 26Cc	£1.69	Mountfield Stop Cable 26Cc £1.69 P/N: 118803217/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.

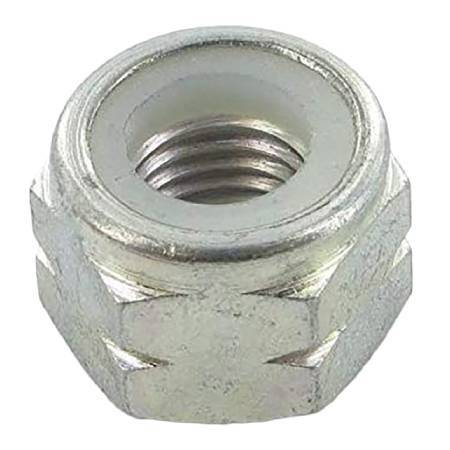

39	2452090 Mountfield Left Self-Locking Nut	£5.35	Mountfield Left Self-Locking Nut £5.35 P/N: 2452090, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.

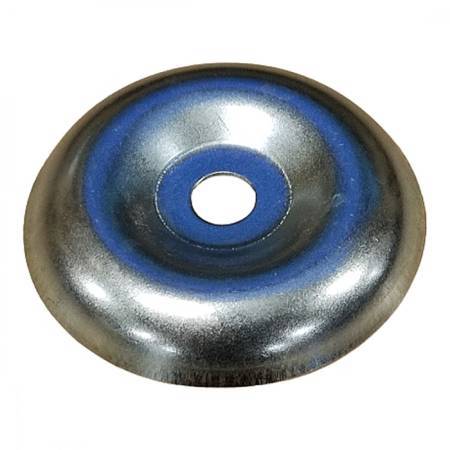

40	118803206/0 Mountfield Gear Case Dust Cover	£3.52	Mountfield Gear Case Dust Cover £3.52 P/N: 118803206/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.

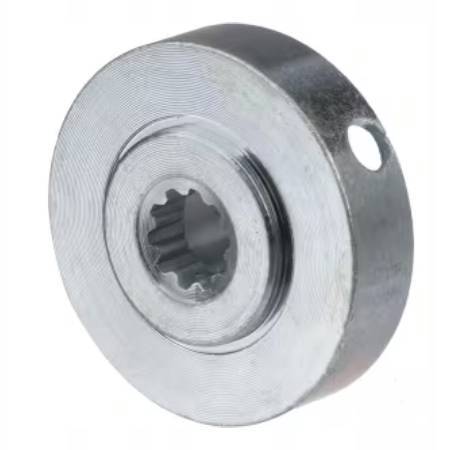

41	118804043/0 Mountfield Upper Ring Nut	£5.21	Mountfield Upper Ring Nut £5.21 P/N: 118804043/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.

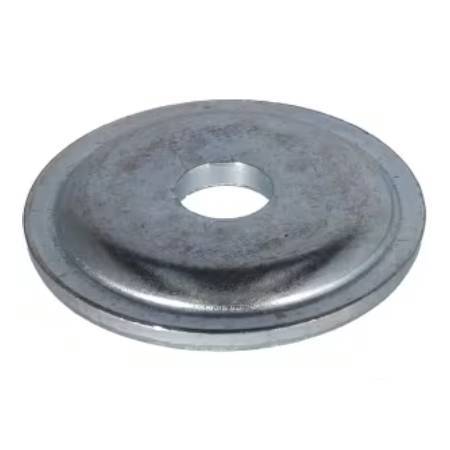

42	118804044/0 Mountfield Lower Ring Nut	£3.79	Mountfield Lower Ring Nut £3.79 P/N: 118804044/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
44	118805441/0 Mountfield Clamp	£2.26	Mountfield Clamp £2.26 P/N: 118805441/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
45	112727815/0 Mountfield Screw 8P X 3/8	£1.40	Mountfield Screw 8P X 3/8 £1.40 P/N: 112727815/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
46	118805442/0 Mountfield Lower Guard	£6.62	Mountfield Lower Guard £6.62 P/N: 118805442/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
47	118804056/0 Mountfield Line Cutter Blade	£1.74	Mountfield Line Cutter Blade £1.74 P/N: 118804056/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
48	6981116 Mountfield Screw Outfit	£1.38	Mountfield Screw Outfit £1.38 P/N: 6981116, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
49	112728903/0 Mountfield Self-Tap Screw 4.8 X 25 Iso 14585-F Wz	£1.40	Mountfield Self-Tap Screw 4.8 X 25 Iso 14585-F Wz £1.40 P/N: 112728903/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
50	118804890/0 Mountfield Line Retainer	£5.35	Mountfield Line Retainer £5.35 P/N: 118804890/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
51	118804889/0 Mountfield Spring	£4.22	Mountfield Spring £4.22 P/N: 118804889/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
52	118804888/0 Mountfield Cover & Knob	£14.35	Mountfield Cover & Knob £14.35 P/N: 118804888/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
55	118805298/0 Mountfield Handle Assembly [Grey] Grey	£21.83	Mountfield Handle Assembly [Grey] £21.83 Grey P/N: 118805298/0, Genuine OEM spare part. Find other Mountfield spares, parts and accessories.
