Countax C Series PGC (1996) Parts Diagram, Page 1

Name: DIY Spare Parts Warehouse & Click & Collect Point
Address: The Barn, Shearstock Estate, Shaftesbury, Dorset, SP7 9PT, GB
Telephone: +441747823039

Look at the diagram and find parts that fit a Countax C Series PGC, or refer to the list below.

All Parts for Countax C Series PGC

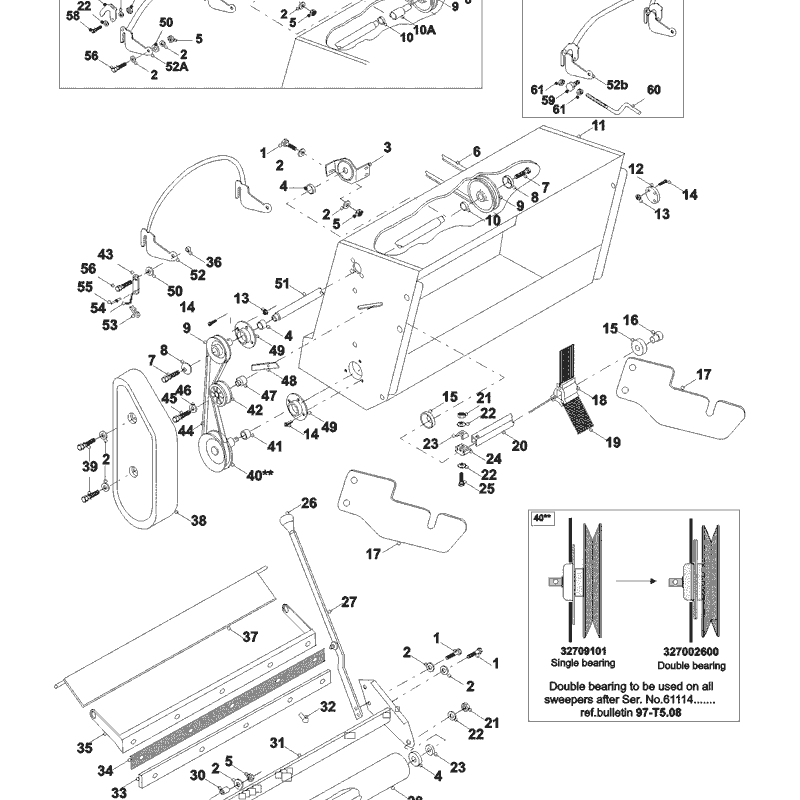

Countax C Series PGC (1996) Parts Diagram, Page 1

#	Part	Price
1	01902300 Countax Shcs M61 X 20 Drilled 306686		Countax Shcs M61 X 20 Drilled 306686 £0.44 P/N: 01902300, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
2	088003700 Countax Washer - M8 X 21 X 1.6		Countax Washer - M8 X 21 X 1.6 P/N: 088003700, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
3	30146900 Countax Bearing Box C-Series		Countax Bearing Box C-Series P/N: 30146900, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
3A	30150400 Countax Sweeper Plate		Countax Sweeper Plate P/N: 30150400, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
4	10811600 Countax Bearing (PTO Housing)	£16.33	Countax Bearing (PTO Housing) £16.33 P/N: 10811600, Genuine OEM spare part. Find other Countax spares, parts and accessories.
5	04827500 Countax Nyloc Nut 5/16 Unf		Countax Nyloc Nut 5/16 Unf P/N: 04827500, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
6	228000300 Countax A50 Belt	£23.46	Countax A50 Belt £23.46 P/N: 228000300, Genuine OEM spare part. Find other Countax spares, parts and accessories.
7	01874500 Countax Bolt 3/8 X 3/4 Ht		Countax Bolt 3/8 X 3/4 Ht £0.62 P/N: 01874500, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
8	08819900 Countax Dome Washer	£14.22	Countax Dome Washer £14.22 P/N: 08819900, Genuine OEM spare part. Find other Countax spares, parts and accessories.
9	32727600 Countax 3" Pulley	£23.45	Countax 3" Pulley £23.45 P/N: 32727600, Genuine OEM spare part. Find other Countax spares, parts and accessories.
10	31306200 Countax PTO End Spacer	£35.32	Countax PTO End Spacer £35.32 P/N: 31306200, Genuine OEM spare part. Find other Countax spares, parts and accessories.
10A	183003900 Countax TR SW Input Pull Ext	£4.31	Countax TR SW Input Pull Ext £4.31 P/N: 183003900, Genuine OEM spare part. Find other Countax spares, parts and accessories.
11	32732700 Countax Sweeper Body C-Serie		Countax Sweeper Body C-Serie P/N: 32732700, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
12	30117500 Countax Sweeper Bearing Cap	£6.96	Countax Sweeper Bearing Cap £6.96 P/N: 30117500, Genuine OEM spare part. Find other Countax spares, parts and accessories.
13	04885900 Countax Nut		Countax Nut P/N: 04885900, Genuine OEM spare part. Find other Countax spares, parts and accessories.
14	02940500 Countax M5 X 16mm Pozi Pan		Countax M5 X 16mm Pozi Pan P/N: 02940500, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
15	32121800 Countax Slinger	£15.79	Countax Slinger £15.79 P/N: 32121800, Genuine OEM spare part. Find other Countax spares, parts and accessories.
16	31323900 Countax Brush Stock Spindle	£36.52	Countax Brush Stock Spindle £36.52 P/N: 31323900, Genuine OEM spare part. Find other Countax spares, parts and accessories.
17	30147000 Countax Bag Ear	£36.88	Countax Bag Ear £36.88 P/N: 30147000, Genuine OEM spare part. Find other Countax spares, parts and accessories.
18	14833000 Countax Bristle Boss	£2.04	Countax Bristle Boss £2.04 P/N: 14833000, Genuine OEM spare part. Find other Countax spares, parts and accessories.
19	14898101 Countax Yellow Non Web	£1.43	Countax Yellow Non Web £1.43 P/N: 14898101, Genuine OEM spare part. Find other Countax spares, parts and accessories.
20	17400200 Countax Brush Stock 200P/M	£31.98	Countax Brush Stock 200P/M £31.98 P/N: 17400200, Genuine OEM spare part. Find other Countax spares, parts and accessories.
21	04891400 Countax Nyloc Nut1/4in Unf		Countax Nyloc Nut1/4in Unf P/N: 04891400, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
22	08874300 Countax 1/4 T4 Hp Washer		Countax 1/4 T4 Hp Washer P/N: 08874300, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
23	14834100 Countax Brush Drive Mould Sm	£4.26	Countax Brush Drive Mould Sm £4.26 P/N: 14834100, Genuine OEM spare part. Find other Countax spares, parts and accessories.
24	14832900 Countax Brush Drive Mold Lrg	£4.27	Countax Brush Drive Mold Lrg £4.27 P/N: 14832900, Genuine OEM spare part. Find other Countax spares, parts and accessories.
25	01832400 Countax Bolt 1/4 X 1 3/4		Countax Bolt 1/4 X 1 3/4 P/N: 01832400, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
26	14804800 Countax Lever Knob	£7.49	Countax Lever Knob £7.49 P/N: 14804800, Genuine OEM spare part. Find other Countax spares, parts and accessories.
27	32729700 Countax Sweeper Lift Assy		Countax Sweeper Lift Assy P/N: 32729700, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
28	32731900 Countax Roller-PGC-C-Series - Roller Tube and Bearings only	£180.23	Countax Roller-PGC-C-Series - Roller Tube and Bearings only £180.23 P/N: 32731900, Genuine OEM spare part. Find other Countax spares, parts and accessories.

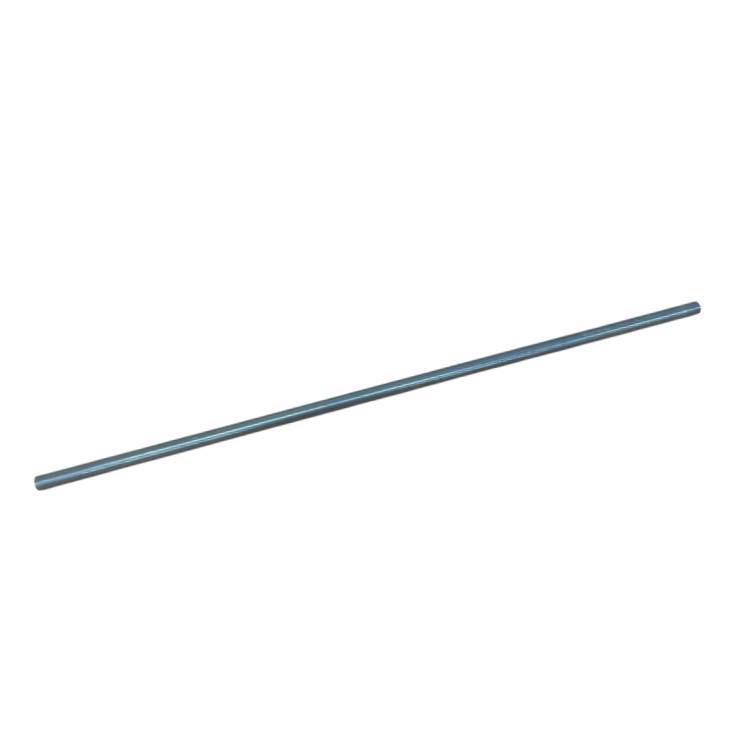

29	183024400 Countax Shaft - Swp Roller	£65.86	Countax Shaft - Swp Roller £65.86 P/N: 183024400, Genuine OEM spare part. Find other Countax spares, parts and accessories.
30	31329200 Countax Roller Plate Bush	£32.06	Countax Roller Plate Bush £32.06 P/N: 31329200, Genuine OEM spare part. Find other Countax spares, parts and accessories.
31	327172400 Countax Roller Carrier Assy	£130.55	Countax Roller Carrier Assy £130.55 P/N: 327172400, Genuine OEM spare part. Find other Countax spares, parts and accessories.
32	12860100 Countax Rivet Pop 4.8 X 16mm	£1.25	Countax Rivet Pop 4.8 X 16mm £1.25 P/N: 12860100, Genuine OEM spare part. Find other Countax spares, parts and accessories.
33	30146800 Countax PGC Scraper Plate		Countax PGC Scraper Plate £13.36 P/N: 30146800, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
34	14937101 Countax Rubber Flap - CS Net	£4.09	Countax Rubber Flap - CS Net £4.09 P/N: 14937101, Genuine OEM spare part. Find other Countax spares, parts and accessories.
35	327172400 Countax Roller Carrier Assy	£130.55	Countax Roller Carrier Assy £130.55 P/N: 327172400, Genuine OEM spare part. Find other Countax spares, parts and accessories.
37	327016500 Countax C Series Flap Plate	£53.63	Countax C Series Flap Plate £53.63 P/N: 327016500, Genuine OEM spare part. Find other Countax spares, parts and accessories.
38	148005400 Countax Belt Guard, C + 20/5	£66.20	Countax Belt Guard, C + 20/5 £66.20 P/N: 148005400, Genuine OEM spare part. Find other Countax spares, parts and accessories.
39	01821200 Countax Bolt 5/16 X 2.3/4		Countax Bolt 5/16 X 2.3/4 P/N: 01821200, Genuine OEM spare part. Find other Countax spares, parts and accessories.
40	32709101 Countax Pulley + Shaft		Countax Pulley + Shaft P/N: 32709101, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
41	10845500 Countax Bearing 6203ZZ	£13.92	Countax Bearing 6203ZZ £13.92 P/N: 10845500, Genuine OEM spare part. Find other Countax spares, parts and accessories.
42	20811500 Countax PTO Jockey Pulley	£23.05	Countax PTO Jockey Pulley £23.05 P/N: 20811500, Genuine OEM spare part. Find other Countax spares, parts and accessories.
44	22832800 Countax Sweeper Belt A36	£23.54	Countax Sweeper Belt A36 £23.54 P/N: 22832800, Genuine OEM spare part. Find other Countax spares, parts and accessories.
45	01820900 Countax Bolt 5/16unf X 2 Zinc/clear Unf	£0.82	Countax Bolt 5/16unf X 2 Zinc/clear Unf £0.82 P/N: 01820900, Genuine OEM spare part. Find other Countax spares, parts and accessories.
46	31351100 Countax Sweeper Jockey Cap	£42.56	Countax Sweeper Jockey Cap £42.56 P/N: 31351100, Genuine OEM spare part. Find other Countax spares, parts and accessories.
47	31350400 Countax Sweeper Jockey Space	£12.94	Countax Sweeper Jockey Space £12.94 P/N: 31350400, Genuine OEM spare part. Find other Countax spares, parts and accessories.
48	30121900 Countax Bearing Shield		Countax Bearing Shield £4.50 P/N: 30121900, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
49	27106601 Countax Bearing Housing 17mm	£28.62	Countax Bearing Housing 17mm £28.62 P/N: 27106601, Genuine OEM spare part. Find other Countax spares, parts and accessories.
50	14850500 Countax Nylon Washer		Countax Nylon Washer P/N: 14850500, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
51	183005700 Countax 98 Idler Shaft	£116.78	Countax 98 Idler Shaft £116.78 P/N: 183005700, Genuine OEM spare part. Find other Countax spares, parts and accessories.
52	32729600 Countax C-Series Locking Lev		Countax C-Series Locking Lev P/N: 32729600, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
52A	32733100 Countax Sweeper Locking Levr	£109.79	Countax Sweeper Locking Levr £109.79 P/N: 32733100, Genuine OEM spare part. Find other Countax spares, parts and accessories.
52B	307177800 Countax PGC Locking Plate	£40.46	Countax PGC Locking Plate £40.46 P/N: 307177800, Genuine OEM spare part. Find other Countax spares, parts and accessories.
56	01820600 Countax Bolt 5/16unf X 1.1/4 Ht Z/p		Countax Bolt 5/16unf X 1.1/4 Ht Z/p P/N: 01820600, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
57	30149800 Countax L/H PGC Lever Lock	£11.04	Countax L/H PGC Lever Lock £11.04 P/N: 30149800, Genuine OEM spare part. Find other Countax spares, parts and accessories.
58	01844700 Countax Bolt 1/4x1in	£0.82	Countax Bolt 1/4x1in £0.82 P/N: 01844700, Genuine OEM spare part. Find other Countax spares, parts and accessories.
59	183003800 Countax Trunnion	£9.50	Countax Trunnion £9.50 P/N: 183003800, Genuine OEM spare part. Find other Countax spares, parts and accessories.
60	313003500 Countax PGC Belt Tension Adjust Rod	£51.24	Countax PGC Belt Tension Adjust Rod £51.24 P/N: 313003500, Genuine OEM spare part. Find other Countax spares, parts and accessories.
61	04938100 Countax 1/4 Unc Nut		Countax 1/4 Unc Nut £0.66 P/N: 04938100, Genuine OEM spare part. Find other Countax spares, parts and accessories. No longer available
