Castel / Twincut / Lawnking CT13.5-90 (2009) Parts Diagram, Cutting Plate
Look at the diagram and find parts that fit a Castel / Twincut / Lawnking CT13.5-90, or refer to the list below.
All Parts for CT13.5-90
| # | Part | Price | |
|---|---|---|---|
| 1 |

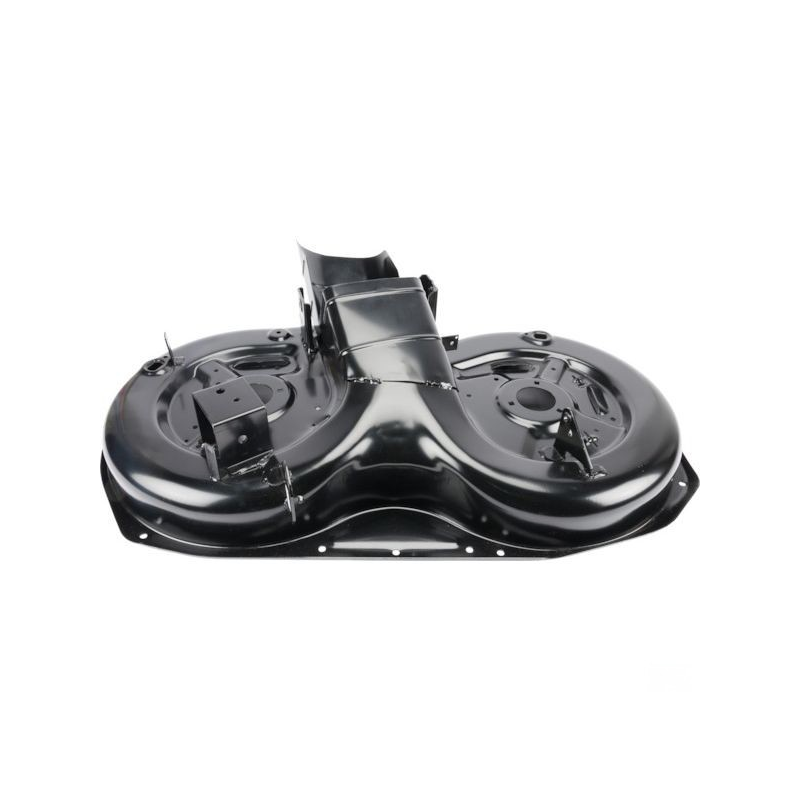

382564075/1 Castel / Twincut / Lawnking Cutter Deck Casing NJ92 [Black] |
£439.62 |
![Castel / Twincut / Lawnking Cutter Deck Casing NJ92 [Black]](/images/parts/98a56ede-0d6c-40ca-afc5-61a9987364bb.png?width=200&height=200&rmode=pad&bgcolor=white) Castel / Twincut / Lawnking Cutter Deck Casing NJ92 [Black]£439.62
P/N: 382564075/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 1 |
382564075/1 Castel / Twincut / Lawnking Cutter Deck Casing NJ92 [Black] |
£439.62 |
Castel / Twincut / Lawnking Cutter Deck Casing NJ92 [Black]£439.62
P/N: 382564075/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 2 |
382207202/1LC Castel / Twincut / Lawnking Main Blade Shaft Assembly |
£90.80 |
 Castel / Twincut / Lawnking Main Blade Shaft Assembly£90.80
P/N: 382207202/1LC, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 3 |
125020834/0 Castel / Twincut / Lawnking Main Blade Shaft |
£30.40 |
 Castel / Twincut / Lawnking Main Blade Shaft£30.40
P/N: 125020834/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 4 |
125207200/0 Castel / Twincut / Lawnking Blade Shaft Support |
£50.68 |
Castel / Twincut / Lawnking Blade Shaft Support£50.68
P/N: 125207200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 5 |
119216047/0 Castel / Twincut / Lawnking Bearing 6204-C-2Hrs |
£15.78 |
 Castel / Twincut / Lawnking Bearing 6204-C-2Hrs£15.78
P/N: 119216047/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 6 |
325160501/1 Castel / Twincut / Lawnking Dust Cover Washer |
£1.55 |
 Castel / Twincut / Lawnking Dust Cover Washer£1.55
P/N: 325160501/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 7 |
112609260/0 Castel / Twincut / Lawnking Circlip For Shaft D=20 Uni 7435 C60 |
£1.82 |
 Castel / Twincut / Lawnking Circlip For Shaft D=20 Uni 7435 C60£1.82
P/N: 112609260/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 8 |
382207203/1LC Castel / Twincut / Lawnking Secondary Blade Shaft Assembly |
£90.80 |
 Castel / Twincut / Lawnking Secondary Blade Shaft Assembly£90.80
P/N: 382207203/1LC, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 9 |
125020835/0 Castel / Twincut / Lawnking Second Blade Shaft |
£30.40 |
Castel / Twincut / Lawnking Second Blade Shaft£30.40
P/N: 125020835/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 10 |
125207200/0 Castel / Twincut / Lawnking Blade Shaft Support |
£50.68 |
Castel / Twincut / Lawnking Blade Shaft Support£50.68
P/N: 125207200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 11 |
119216047/0 Castel / Twincut / Lawnking Bearing 6204-C-2Hrs |
£15.78 |
Castel / Twincut / Lawnking Bearing 6204-C-2Hrs£15.78
P/N: 119216047/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 12 |
325160501/1 Castel / Twincut / Lawnking Dust Cover Washer |
£1.55 |
Castel / Twincut / Lawnking Dust Cover Washer£1.55
P/N: 325160501/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 13 |
112609260/0 Castel / Twincut / Lawnking Circlip For Shaft D=20 Uni 7435 C60 |
£1.82 |
Castel / Twincut / Lawnking Circlip For Shaft D=20 Uni 7435 C60£1.82
P/N: 112609260/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 14 |
112139480/0 Castel / Twincut / Lawnking Key 6 X 6 X 20 Uni6604-A 6.8 |
£1.69 |
 Castel / Twincut / Lawnking Key 6 X 6 X 20 Uni6604-A 6.8£1.69
P/N: 112139480/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 15 |
112818700/0 Castel / Twincut / Lawnking Screw M8 X 25 Uni 5732 8.8 |
£1.55 |
 Castel / Twincut / Lawnking Screw M8 X 25 Uni 5732 8.8£1.55
P/N: 112818700/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 16 |
112154210/0 Castel / Twincut / Lawnking Self-Lock Winged Nut M8 Din 6927 |
£1.69 |
 Castel / Twincut / Lawnking Self-Lock Winged Nut M8 Din 6927£1.69
P/N: 112154210/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 17 |
125601563/0 Castel / Twincut / Lawnking Pulley |
£43.64 |
Castel / Twincut / Lawnking Pulley£43.64
P/N: 125601563/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 18 |
125670007/0 Castel / Twincut / Lawnking Fixing Washer |
£1.97 |
 Castel / Twincut / Lawnking Fixing Washer£1.97
P/N: 125670007/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 19 |
112583500/0 Castel / Twincut / Lawnking Spring Lock Washer M8 Uni 1751 Type A |
£1.55 |
Castel / Twincut / Lawnking Spring Lock Washer M8 Uni 1751 Type A£1.55
P/N: 112583500/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 20 |
112793102/0 Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8 |
£1.55 |
 Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8£1.55
P/N: 112793102/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 21 |
125160007/1 Castel / Twincut / Lawnking Pulley Spacer |
£3.24 |
Castel / Twincut / Lawnking Pulley Spacer£3.24
P/N: 125160007/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 22 |
125670007/0 Castel / Twincut / Lawnking Fixing Washer |
£1.97 |
Castel / Twincut / Lawnking Fixing Washer£1.97
P/N: 125670007/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 23 |
125601555/0 Castel / Twincut / Lawnking Pulley |
£29.28 |
 Castel / Twincut / Lawnking Pulley£29.28
P/N: 125601555/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 24 |
112691115/0 Castel / Twincut / Lawnking Hex-Head Screw M8 X 40 |
£1.55 |
 Castel / Twincut / Lawnking Hex-Head Screw M8 X 40£1.55
P/N: 112691115/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 25 |
112523060/0 Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593 |
£1.55 |
 Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593£1.55
P/N: 112523060/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 26 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.55 |
 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.55
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 27 |
135061508/0LC Castel / Twincut / Lawnking Deck Drive Belt Aa86 |
£63.29 |
 Castel / Twincut / Lawnking Deck Drive Belt Aa86£63.29
P/N: 135061508/0LC, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 31 |
382318141/2 Castel / Twincut / Lawnking Tension Arm |
£36.59 |
Castel / Twincut / Lawnking Tension Arm£36.59
P/N: 382318141/2, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 32 |
112691700/0 Castel / Twincut / Lawnking Hex-Head Screw M8 X 55 Uni 5737 8.8 |
£1.82 |
 Castel / Twincut / Lawnking Hex-Head Screw M8 X 55 Uni 5737 8.8£1.82
P/N: 112691700/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 33 |
112523070/0 Castel / Twincut / Lawnking Washer M8 8.5 X 32 X 2.5 |
£1.55 |
 Castel / Twincut / Lawnking Washer M8 8.5 X 32 X 2.5£1.55
P/N: 112523070/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 34 |
322672152/0 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 30 X 0.8 |
£1.82 |
 Castel / Twincut / Lawnking Anti-Friction Washer 8.2 X 30 X 0.8£1.82
P/N: 322672152/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 35 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.55 |
Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.55
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 36 |
125601564/1 Castel / Twincut / Lawnking Blade Idler Pulley |
£45.04 |
Castel / Twincut / Lawnking Blade Idler Pulley£45.04
P/N: 125601564/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 37 |
119216048/0 Castel / Twincut / Lawnking Bearing 6202 2RS C3 |
£18.31 |
 Castel / Twincut / Lawnking Bearing 6202 2RS C3£18.31
P/N: 119216048/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 38 |
112610800/0 Castel / Twincut / Lawnking Circlip D=35 |
£1.69 |
 Castel / Twincut / Lawnking Circlip D=35£1.69
P/N: 112610800/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 39 |
112609200/0 Castel / Twincut / Lawnking Circlip D=15 |
£1.55 |
 Castel / Twincut / Lawnking Circlip D=15£1.55
P/N: 112609200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 40 |
382004618/0 Castel / Twincut / Lawnking Deck Engage Cable |
£22.81 |
 Castel / Twincut / Lawnking Deck Engage Cable£22.81
P/N: 382004618/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 41 |
382774215/3 Castel / Twincut / Lawnking Clamp Bracket |
£30.97 |
Castel / Twincut / Lawnking Clamp Bracket£30.97
P/N: 382774215/3, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 42 |
112792611/0 Castel / Twincut / Lawnking Screw Te M8 X 16 Uni 5739 Acc.8.8 |
£1.55 |
 Castel / Twincut / Lawnking Screw Te M8 X 16 Uni 5739 Acc.8.8£1.55
P/N: 112792611/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 43 |
112293201/0 Castel / Twincut / Lawnking Flanged Hexagon Nut M8 |
£1.69 |
 Castel / Twincut / Lawnking Flanged Hexagon Nut M8£1.69
P/N: 112293201/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 51 |
112139100/0 Castel / Twincut / Lawnking Woodruff Key 4X6.5 D16 Uni 6606 C40 |
£1.55 |
 Castel / Twincut / Lawnking Woodruff Key 4X6.5 D16 Uni 6606 C40£1.55
P/N: 112139100/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 52 |
125463200/0 Castel / Twincut / Lawnking Blade Boss |
£9.08 |
 Castel / Twincut / Lawnking Blade Boss£9.08
P/N: 125463200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 53 |
182004352/0 Castel / Twincut / Lawnking Right Mulching Blade 92cm |
£19.93 |
Castel / Twincut / Lawnking Right Mulching Blade 92cm£19.93
P/N: 182004352/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 53a |
182004354/0 Castel / Twincut / Lawnking Right Mulching Blade 92cm |
£23.71 |
 Castel / Twincut / Lawnking Right Mulching Blade 92cm£23.71
P/N: 182004354/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 53b |
182004345/1 Castel / Twincut / Lawnking Right Winged Blade 92cm/36" |
£23.29 |
 Castel / Twincut / Lawnking Right Winged Blade 92cm/36"£23.29
P/N: 182004345/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 54 |
181004346/3 Castel / Twincut / Lawnking Blade 46cm |
£14.15 |
 Castel / Twincut / Lawnking Blade 46cm£14.15
P/N: 181004346/3, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 54a |
182004353/0 Castel / Twincut / Lawnking Left Mulching Blade 92cm |
£23.71 |
 Castel / Twincut / Lawnking Left Mulching Blade 92cm£23.71
P/N: 182004353/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 54b |
182004344/1 Castel / Twincut / Lawnking Left Winged Blade 92cm/36" |
£23.29 |
 Castel / Twincut / Lawnking Left Winged Blade 92cm/36"£23.29
P/N: 182004344/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 57 |
122160400/0 Castel / Twincut / Lawnking Spring Washer 50 X 2 X 10.2 |
£1.82 |
 Castel / Twincut / Lawnking Spring Washer 50 X 2 X 10.2£1.82
P/N: 122160400/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 58 |
112523080/0 Castel / Twincut / Lawnking Washer M10 11 X 30 X 2.5 |
£1.55 |
 Castel / Twincut / Lawnking Washer M10 11 X 30 X 2.5£1.55
P/N: 112523080/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 59 |
112735695/1 Castel / Twincut / Lawnking Hex-Head Screw 3/8" X 1 1/2" L/H Thread |
£3.79 |
 Castel / Twincut / Lawnking Hex-Head Screw 3/8" X 1 1/2" L/H Thread£3.79
P/N: 112735695/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 60 |
112735694/0 Castel / Twincut / Lawnking Hex-Head Screw 3/8" X 1 1/2" 24 Unf |
£1.97 |
 Castel / Twincut / Lawnking Hex-Head Screw 3/8" X 1 1/2" 24 Unf£1.97
P/N: 112735694/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 61 |
382000535/0LC Castel / Twincut / Lawnking Equalizer Rod |
£35.20 |
Castel / Twincut / Lawnking Equalizer Rod£35.20
P/N: 382000535/0LC, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 62 |
382000533/0LC Castel / Twincut / Lawnking Equalizer Rod |
£35.20 |
Castel / Twincut / Lawnking Equalizer Rod£35.20
P/N: 382000533/0LC, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 63 |
325670008/1 Castel / Twincut / Lawnking Anti-Friction Washer 10.8 X 19 X 0.8 |
£1.55 |
 Castel / Twincut / Lawnking Anti-Friction Washer 10.8 X 19 X 0.8£1.55
P/N: 325670008/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 64 |
112156602/0 Castel / Twincut / Lawnking Low Self-Locking Nut M10 Uni7474 Acc.6S |
£1.40 |
 Castel / Twincut / Lawnking Low Self-Locking Nut M10 Uni7474 Acc.6S£1.40
P/N: 112156602/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 65 |
325670008/1 Castel / Twincut / Lawnking Anti-Friction Washer 10.8 X 19 X 0.8 |
£1.55 |
Castel / Twincut / Lawnking Anti-Friction Washer 10.8 X 19 X 0.8£1.55
P/N: 325670008/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 66 |
124487998/0 Castel / Twincut / Lawnking R Clip D=2 |
£1.55 |
 Castel / Twincut / Lawnking R Clip D=2£1.55
P/N: 124487998/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
