Castel / Twincut / Lawnking TCX102 (CATCX102) Parts Diagram, Page 12
Look at the diagram and find parts that fit a Castel / Twincut / Lawnking TCX102, or refer to the list below.
All Parts for TCX102
| # | Part | Price | |
|---|---|---|---|
| 1 |
382547003/2 Castel / Twincut / Lawnking Transmission Plate |
£98.54 |
 Castel / Twincut / Lawnking Transmission Plate£98.54
P/N: 382547003/2, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 2 |
112792611/0 Castel / Twincut / Lawnking Screw Te M8 X 16 Uni 5739 Acc.8.8 |
£1.55 |
 Castel / Twincut / Lawnking Screw Te M8 X 16 Uni 5739 Acc.8.8£1.55
P/N: 112792611/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 3 |
112293201/0 Castel / Twincut / Lawnking Flanged Hexagon Nut M8 |
£1.69 |
 Castel / Twincut / Lawnking Flanged Hexagon Nut M8£1.69
P/N: 112293201/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 4 |
382785084/3 Castel / Twincut / Lawnking Pulley Support Plate |
£32.38 |
Castel / Twincut / Lawnking Pulley Support Plate£32.38
P/N: 382785084/3, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 5 |
125601559/1 Castel / Twincut / Lawnking Toothed Pulley |
£40.82 |
 Castel / Twincut / Lawnking Toothed Pulley£40.82
P/N: 125601559/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 6 |
119216048/0 Castel / Twincut / Lawnking Bearing 6202 2RS C3 |
£18.31 |
 Castel / Twincut / Lawnking Bearing 6202 2RS C3£18.31
P/N: 119216048/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 7 |
112610800/0 Castel / Twincut / Lawnking Circlip D=35 |
£1.69 |
 Castel / Twincut / Lawnking Circlip D=35£1.69
P/N: 112610800/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 8 |
112609200/0 Castel / Twincut / Lawnking Circlip D=15 |
£1.55 |
 Castel / Twincut / Lawnking Circlip D=15£1.55
P/N: 112609200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 9 |
325650037/1 Castel / Twincut / Lawnking Reinforcement Plate |
£8.45 |
Castel / Twincut / Lawnking Reinforcement Plate£8.45
P/N: 325650037/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 10 |
112793102/0 Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8 |
£1.55 |
 Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8£1.55
P/N: 112793102/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 11 |
112521350/0 Castel / Twincut / Lawnking Washer M8 8.4 X 16 X 1.6 |
£1.55 |
 Castel / Twincut / Lawnking Washer M8 8.4 X 16 X 1.6£1.55
P/N: 112521350/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 12 |
112583500/0 Castel / Twincut / Lawnking Spring Lock Washer M8 Uni 1751 Type A |
£1.55 |
Castel / Twincut / Lawnking Spring Lock Washer M8 Uni 1751 Type A£1.55
P/N: 112583500/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |

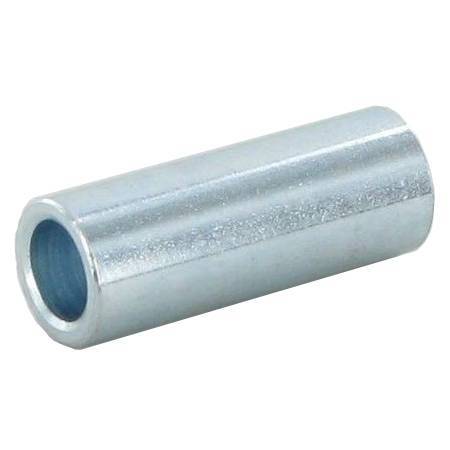

| 13 |
125160003/2 Castel / Twincut / Lawnking Spacer |
£1.82 |
 Castel / Twincut / Lawnking Spacer£1.82
P/N: 125160003/2, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 14 |
125038000/0 Castel / Twincut / Lawnking Bush |
£1.55 |
 Castel / Twincut / Lawnking Bush£1.55
P/N: 125038000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 15 |
112691700/0 Castel / Twincut / Lawnking Hex-Head Screw M8 X 55 Uni 5737 8.8 |
£1.82 |
 Castel / Twincut / Lawnking Hex-Head Screw M8 X 55 Uni 5737 8.8£1.82
P/N: 112691700/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 16 |
112691200/0 Castel / Twincut / Lawnking Hex-Head Screw M8 X 45 Uni 5737 8.8 |
£1.69 |
Castel / Twincut / Lawnking Hex-Head Screw M8 X 45 Uni 5737 8.8£1.69
P/N: 112691200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 17 |
112521350/0 Castel / Twincut / Lawnking Washer M8 8.4 X 16 X 1.6 |
£1.55 |
Castel / Twincut / Lawnking Washer M8 8.4 X 16 X 1.6£1.55
P/N: 112521350/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 18 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.55 |
 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.55
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 19 |
112793900/0 Castel / Twincut / Lawnking Hex-Head Screw M8 X 60 |
£1.55 |
 Castel / Twincut / Lawnking Hex-Head Screw M8 X 60£1.55
P/N: 112793900/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 20 |
112293200/0 Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S |
£1.55 |
 Castel / Twincut / Lawnking Hexagon Nut M8 Uni 5588 Acc.6S£1.55
P/N: 112293200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 21 |
125601560/0 Castel / Twincut / Lawnking Pulley |
£54.90 |
Castel / Twincut / Lawnking Pulley£54.90
P/N: 125601560/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 22 |
112139480/0 Castel / Twincut / Lawnking Key 6 X 6 X 20 Uni6604-A 6.8 |
£1.69 |
 Castel / Twincut / Lawnking Key 6 X 6 X 20 Uni6604-A 6.8£1.69
P/N: 112139480/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 23 |
112793102/0 Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8 |
£1.55 |
Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8£1.55
P/N: 112793102/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 24 |
125670007/0 Castel / Twincut / Lawnking Fixing Washer |
£1.97 |
 Castel / Twincut / Lawnking Fixing Washer£1.97
P/N: 125670007/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 25 |
112583500/0 Castel / Twincut / Lawnking Spring Lock Washer M8 Uni 1751 Type A |
£1.55 |
Castel / Twincut / Lawnking Spring Lock Washer M8 Uni 1751 Type A£1.55
P/N: 112583500/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |

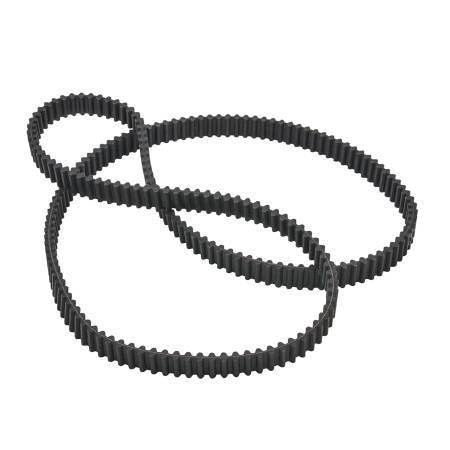

| 26 |
135065605/0LC Castel / Twincut / Lawnking Double Toothed Belt Deck 102cm [Pix] |
£91.58 |
![Castel / Twincut / Lawnking Double Toothed Belt Deck 102cm [Pix]](/images/parts/612d6686-67c5-4437-9c2e-41d7596e61e2.jpg?width=200&height=200&rmode=pad&bgcolor=white) Castel / Twincut / Lawnking Double Toothed Belt Deck 102cm [Pix]£91.58
P/N: 135065605/0LC, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 27 |
112815200/0 Castel / Twincut / Lawnking Screw Ttdq M6X16 Uni 5732 8.8 Wz |
£1.55 |
 Castel / Twincut / Lawnking Screw Ttdq M6X16 Uni 5732 8.8 Wz£1.55
P/N: 112815200/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 28 |
112292102/0 Castel / Twincut / Lawnking Flanged Hexagonal Nut M6 |
£1.69 |
 Castel / Twincut / Lawnking Flanged Hexagonal Nut M6£1.69
P/N: 112292102/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 29 |
125060100/3 Castel / Twincut / Lawnking Belt Case |
£21.67 |
Castel / Twincut / Lawnking Belt Case£21.67
P/N: 125060100/3, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 30 |
112735110/0 Castel / Twincut / Lawnking Flanged Self-Tap Screw 4.8 X 13 |
£1.55 |
 Castel / Twincut / Lawnking Flanged Self-Tap Screw 4.8 X 13£1.55
P/N: 112735110/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 31 |
125601550/0 Castel / Twincut / Lawnking Blade Shaft Pulley |
£43.49 |
 Castel / Twincut / Lawnking Blade Shaft Pulley£43.49
P/N: 125601550/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 32 |
112793102/0 Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8 |
£1.55 |
Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8£1.55
P/N: 112793102/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 33 |
125670007/0 Castel / Twincut / Lawnking Fixing Washer |
£1.97 |
Castel / Twincut / Lawnking Fixing Washer£1.97
P/N: 125670007/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 34 |
112583500/0 Castel / Twincut / Lawnking Spring Lock Washer M8 Uni 1751 Type A |
£1.55 |
Castel / Twincut / Lawnking Spring Lock Washer M8 Uni 1751 Type A£1.55
P/N: 112583500/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 35 |
125160002/1 Castel / Twincut / Lawnking Spacer |
£4.37 |
Castel / Twincut / Lawnking Spacer£4.37
P/N: 125160002/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 36 |
325318115/2 Castel / Twincut / Lawnking Blade Brake Lever |
£24.84 |
Castel / Twincut / Lawnking Blade Brake Lever£24.84
P/N: 325318115/2, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 37 |
125207000/1 Castel / Twincut / Lawnking Brake Pad |
£33.79 |
Castel / Twincut / Lawnking Brake Pad£33.79
P/N: 125207000/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 38 |
12771400/0 Castel / Twincut / Lawnking Screw |
Castel / Twincut / Lawnking Screw
P/N: 12771400/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories.
No longer available
|
|
| 39 |
112154330/0 Castel / Twincut / Lawnking Low Self-Locking Nut M5 Uni7474 Acc.6S |
£1.55 |
 Castel / Twincut / Lawnking Low Self-Locking Nut M5 Uni7474 Acc.6S£1.55
P/N: 112154330/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 40 |
125601555/0 Castel / Twincut / Lawnking Pulley |
£29.28 |
 Castel / Twincut / Lawnking Pulley£29.28
P/N: 125601555/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 41 |
125160007/1 Castel / Twincut / Lawnking Pulley Spacer |
£3.24 |
Castel / Twincut / Lawnking Pulley Spacer£3.24
P/N: 125160007/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 42 |
112818900/0 Castel / Twincut / Lawnking Screw Mvbf M8 X 35 Uni 5732 4.6 |
£1.55 |
 Castel / Twincut / Lawnking Screw Mvbf M8 X 35 Uni 5732 4.6£1.55
P/N: 112818900/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 43 |
112523060/0 Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593 |
£1.55 |
 Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593£1.55
P/N: 112523060/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 44 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.55 |
Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.55
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 45 |
112793102/0 Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8 |
£1.55 |
Castel / Twincut / Lawnking Screw Te M8X20 Uni 5739 Acc.8.8£1.55
P/N: 112793102/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 46 |
112523070/0 Castel / Twincut / Lawnking Washer M8 8.5 X 32 X 2.5 |
£1.55 |
 Castel / Twincut / Lawnking Washer M8 8.5 X 32 X 2.5£1.55
P/N: 112523070/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 47 |
112583500/0 Castel / Twincut / Lawnking Spring Lock Washer M8 Uni 1751 Type A |
£1.55 |
Castel / Twincut / Lawnking Spring Lock Washer M8 Uni 1751 Type A£1.55
P/N: 112583500/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 48 |
135062813/1 Castel / Twincut / Lawnking Deck Drive Belt B55 K |
£39.05 |
 Castel / Twincut / Lawnking Deck Drive Belt B55 K£39.05
P/N: 135062813/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 49 |
125430210/1 Castel / Twincut / Lawnking Brake Spring |
£2.68 |
 Castel / Twincut / Lawnking Brake Spring£2.68
P/N: 125430210/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 61 |
125600049/0 Castel / Twincut / Lawnking Belt Guard |
£13.78 |
Castel / Twincut / Lawnking Belt Guard£13.78
P/N: 125600049/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 62 |
112735402/0 Castel / Twincut / Lawnking Flanged Hex-Head Screw D=6 X 18 |
£1.55 |
 Castel / Twincut / Lawnking Flanged Hex-Head Screw D=6 X 18£1.55
P/N: 112735402/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 64 |
325060113/0 Castel / Twincut / Lawnking Right Belt Guard |
£18.48 |
Castel / Twincut / Lawnking Right Belt Guard£18.48
P/N: 325060113/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 65 |
325060114/0 Castel / Twincut / Lawnking Left Belt Guard |
£18.48 |
Castel / Twincut / Lawnking Left Belt Guard£18.48
P/N: 325060114/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 66 |
112735402/0 Castel / Twincut / Lawnking Flanged Hex-Head Screw D=6 X 18 |
£1.55 |
Castel / Twincut / Lawnking Flanged Hex-Head Screw D=6 X 18£1.55
P/N: 112735402/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 71 |
382774227/0 Castel / Twincut / Lawnking Support |
Castel / Twincut / Lawnking Support
P/N: 382774227/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories.
No longer available
|
|
| 72 |
112792611/0 Castel / Twincut / Lawnking Screw Te M8 X 16 Uni 5739 Acc.8.8 |
£1.55 |
Castel / Twincut / Lawnking Screw Te M8 X 16 Uni 5739 Acc.8.8£1.55
P/N: 112792611/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 73 |
112293201/0 Castel / Twincut / Lawnking Flanged Hexagon Nut M8 |
£1.69 |
Castel / Twincut / Lawnking Flanged Hexagon Nut M8£1.69
P/N: 112293201/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 74 |
322672151/0 Castel / Twincut / Lawnking Anti-Friction Washer 12.2 X 30 X 0.8 |
£1.82 |
Castel / Twincut / Lawnking Anti-Friction Washer 12.2 X 30 X 0.8£1.82
P/N: 322672151/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 75 |
382774229/0 Castel / Twincut / Lawnking Blade Engagement Lever Clamp |
£38.00 |
Castel / Twincut / Lawnking Blade Engagement Lever Clamp£38.00
P/N: 382774229/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 76 |
182318177/1 Castel / Twincut / Lawnking Blade Engage Lever |
£30.83 |
Castel / Twincut / Lawnking Blade Engage Lever£30.83
P/N: 182318177/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 77 |
25430227/0 Castel / Twincut / Lawnking Use 125430227/0 |
Castel / Twincut / Lawnking Use 125430227/0
P/N: 25430227/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories.
No longer available
|
|
| 78 |
112692050/0 Castel / Twincut / Lawnking Hex-Head Screw M8X80 Uni 5737 Acc.8.8 |
£1.82 |
 Castel / Twincut / Lawnking Hex-Head Screw M8X80 Uni 5737 Acc.8.8£1.82
P/N: 112692050/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 79 |
112155000/0 Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz |
£1.55 |
Castel / Twincut / Lawnking Low Self-Locking Nut M8 Uni7474 6S Wz£1.55
P/N: 112155000/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 80 |
322061337/0 Castel / Twincut / Lawnking Blade Fix U-Bolt |
£1.55 |
Castel / Twincut / Lawnking Blade Fix U-Bolt£1.55
P/N: 322061337/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 81 |
112791213/1 Castel / Twincut / Lawnking Hex-Head Screw M6 X 18 Uni 5739 8.8 |
£1.55 |
 Castel / Twincut / Lawnking Hex-Head Screw M6 X 18 Uni 5739 8.8£1.55
P/N: 112791213/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 82 |
112154510/0 Castel / Twincut / Lawnking Low Self-Locking Nut M6 Uni7474 Acc.6S |
£1.55 |
 Castel / Twincut / Lawnking Low Self-Locking Nut M6 Uni7474 Acc.6S£1.55
P/N: 112154510/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 83 |
112523060/0 Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593 |
£1.55 |
Castel / Twincut / Lawnking Washer M8 8.4 X 24 X 2 Uni 6593£1.55
P/N: 112523060/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 84 |
112155010/0 Castel / Twincut / Lawnking Self-Locking Nut M8 A-Lok Acc.6S |
£2.12 |
 Castel / Twincut / Lawnking Self-Locking Nut M8 A-Lok Acc.6S£2.12
P/N: 112155010/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 85 |
182004606/1 Castel / Twincut / Lawnking Blade Engage Cable |
£43.21 |
Castel / Twincut / Lawnking Blade Engage Cable£43.21
P/N: 182004606/1, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 87 |
125394510/0 Castel / Twincut / Lawnking Control Knob [Black] |
£4.22 |
Castel / Twincut / Lawnking Control Knob [Black]£4.22
P/N: 125394510/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
| 88 |
18564514/0 Castel / Twincut / Lawnking Fairlead |
Castel / Twincut / Lawnking Fairlead
P/N: 18564514/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories.
No longer available
|
|
| 91 |
182004608/0 Castel / Twincut / Lawnking Blade Engage Cable |
£23.23 |
 Castel / Twincut / Lawnking Blade Engage Cable£23.23
P/N: 182004608/0, Genuine OEM spare part. Find other Castel / Twincut / Lawnking spares, parts and accessories. |
