ATCO (New From 2012) GT 38M (2T0520247-AT2 [2012-2013]) Parts Diagram, Transmission

Look at the diagram and find parts that fit a ATCO (New From 2012) GT 38M, or refer to the list below.

All Parts for GT 38M
GT 38M
Belt Protections Belt Protections
Body Work Body Work
Brake And Gearbox Controls Brake And Gearbox Controls
Cutting Plate Lifting Cutting Plate Lifting
Cutting Plate with Electromagnetic Clutch Cutting Plate with Electromagnetic Clutch
Electrical Parts Electrical Parts
B&S B&S
Frame Frame
Labels Labels
Optionals On Request Optionals On Request
Seat & Steering Wheel Seat & Steering Wheel
Steering Steering
Transmission Transmission
ATCO (New From 2012) GT 38M (2T0520247-AT2 [2012-2013]) Parts Diagram, Transmission
# Part Price
1 325394532/0
ATCO (New From 2012) Gear Knob 		£5.21
2 382318233/0
ATCO (New From 2012) Drive Gear Lever 		£18.59
3 382774259/1
ATCO (New From 2012) Clamp 		£13.37
4 112692050/0
ATCO (New From 2012) Hex-Head Screw M8X80 Uni 5737 Acc.8.8 		£1.82
5 125430226/0
ATCO (New From 2012) Spring 		£2.26
6 112155000/0
ATCO (New From 2012) Low Self-Locking Nut M8 Uni7474 6S Wz 		£1.55
7 125510035/0
ATCO (New From 2012) Fulcrum Pin 		£3.67
8 322672151/0
ATCO (New From 2012) Anti-Friction Washer 12.2 X 30 X 0.8 		£1.82
9 112293201/0
ATCO (New From 2012) Flanged Hexagon Nut M8 		£1.69
10 112523060/0
ATCO (New From 2012) Washer M8 8.4 X 24 X 2 Uni 6593 		£1.55
11 112155010/0
ATCO (New From 2012) Self-Locking Nut M8 A-Lok Acc.6S 		£2.12
12 382000567/1
ATCO (New From 2012) Gear Rod Assembly 		£25.80
13 112154210/0
ATCO (New From 2012) Self-Lock Winged Nut M8 Din 6927 		£1.69
14 112521340/0
ATCO (New From 2012) Washer M7 7.4 X 14 X 1.6 		£1.40
15 325318235/0
ATCO (New From 2012) Gear Lever Plate 		£2.53
16 112141418/0
ATCO (New From 2012) SPLit Pin 3 X 20 		£1.55
17 112735520/0
ATCO (New From 2012) Hex-Head Screw 1/4" X 5/8" 		£1.55
18 112540040/0
ATCO (New From 2012) External Toothed Washer M6 		£1.40
19 322680009/0
ATCO (New From 2012) Flat Washer 6.5 X 32 X 4 		£1.82
21 112691600/0
ATCO (New From 2012) Hex-Head Screw M8X70 Uni 5737 Acc.8.8 		£1.82
22 112521350/0
ATCO (New From 2012) Washer M8 8.4 X 16 X 1.6 		£1.55
23 382840101/0
ATCO (New From 2012) Langhu Transmission Gr. With Pulley Assy 		£759.42
24 112155000/0
ATCO (New From 2012) Low Self-Locking Nut M8 Uni7474 6S Wz 		£1.55
25 182601509/0
ATCO (New From 2012) Mobile Pulley 		£76.72
26 112139430/0
ATCO (New From 2012) Key 3/16" X 3/4" 		£1.97
27 112608950/0
ATCO (New From 2012) Circlip D=0.584To D=0.569 		£1.55
28 125270329/0
ATCO (New From 2012) Rear Right Belt Guide 		£4.37
29 112735599/0
ATCO (New From 2012) Self-Tapping Screw M6 X 16 		£1.55
30 125270330/0
ATCO (New From 2012) Rear Left Belt Guide 		£4.37
31 125943009/0
ATCO (New From 2012) Hex-Head Screw M8 X 1.25 		£1.62
32 325785315/0
ATCO (New From 2012) Transaxle Support 		£5.64
34 119410608/1
ATCO (New From 2012) Neutral Switch [Mechanical] 		£61.74
41 125670005/2
ATCO (New From 2012) Spindle Washer 		£4.08
44 112001010/0
ATCO (New From 2012) Circlip Id=0.580" Th=0.050" 		£1.82
45 322110233/0
ATCO (New From 2012) Hub Cap [Black] 		£1.69

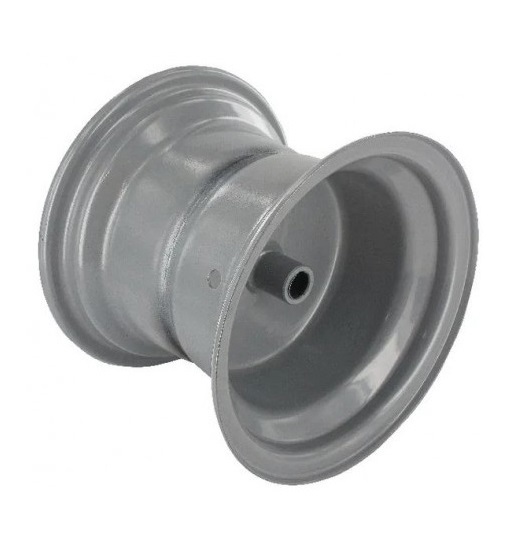

46 182001509/1
ATCO (New From 2012) Rear Wheel Rim 7.5" X 8" Dark Grey 		£82.61
47 125950000/0
ATCO (New From 2012) Pneumatic Valve 		£5.35
