ATCO (New From 2012) QUATTRO 22S 4 in 1 (2017) (2017) Parts Diagram, Deck And Height Adjusting
Look at the diagram and find parts that fit a ATCO (New From 2012) QUATTRO 22S 4 in 1 (2017), or refer to the list below.
All Parts for QUATTRO 22S 4 in 1 (2017)
| # | Part | Price | |
|---|---|---|---|
| 1 |
381302883/1 ATCO (New From 2012) Front Wheels Axle D=200 |
£32.38 |
ATCO (New From 2012) Front Wheels Axle D=200£32.38
P/N: 381302883/1, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 2 |
322785305/1 ATCO (New From 2012) Axle Support |
£2.68 |
ATCO (New From 2012) Axle Support£2.68
P/N: 322785305/1, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 3 |
112728697/0 ATCO (New From 2012) Self-Tapping Screw K50 X 16 Wn1451 |
£1.55 |
 ATCO (New From 2012) Self-Tapping Screw K50 X 16 Wn1451£1.55
P/N: 112728697/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 4 |
322869693/1 ATCO (New From 2012) Height Adjust Rod 200/280 |
£35.20 |
ATCO (New From 2012) Height Adjust Rod 200/280£35.20
P/N: 322869693/1, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 5 |
122519823/0 ATCO (New From 2012) Wheel Control Rod Pin |
£2.26 |
 ATCO (New From 2012) Wheel Control Rod Pin£2.26
P/N: 122519823/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 6 |
112436050/0 ATCO (New From 2012) Pin Plate D=8 (Eurofix Fx70308Ph) |
£1.82 |
 ATCO (New From 2012) Pin Plate D=8 (Eurofix Fx70308Ph)£1.82
P/N: 112436050/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 7 |
322778475/0 ATCO (New From 2012) Height Adjust Bracket |
£2.81 |
ATCO (New From 2012) Height Adjust Bracket£2.81
P/N: 322778475/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 8 |
122450480/0 ATCO (New From 2012) Spring |
£2.40 |
ATCO (New From 2012) Spring£2.40
P/N: 122450480/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 9 |
122517873/0 ATCO (New From 2012) Bush |
£2.95 |
ATCO (New From 2012) Bush£2.95
P/N: 122517873/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 10 |
322055330/0 ATCO (New From 2012) Height Adjust Cover [Black] |
£10.36 |
ATCO (New From 2012) Height Adjust Cover [Black]£10.36
P/N: 322055330/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 11 |
112815270/0 ATCO (New From 2012) Screw M6 X 25 |
£1.55 |
ATCO (New From 2012) Screw M6 X 25£1.55
P/N: 112815270/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 12 |
112523040/0 ATCO (New From 2012) Washer M6 6.6 X 18 X 1.6 |
£1.55 |
 ATCO (New From 2012) Washer M6 6.6 X 18 X 1.6£1.55
P/N: 112523040/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 13 |
112154510/0 ATCO (New From 2012) Low Self-Locking Nut M6 Uni7474 Acc.6S |
£1.55 |
 ATCO (New From 2012) Low Self-Locking Nut M6 Uni7474 Acc.6S£1.55
P/N: 112154510/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 14 |
381302887/1 ATCO (New From 2012) Rear Wheels Axle D=280 |
£23.92 |
ATCO (New From 2012) Rear Wheels Axle D=280£23.92
P/N: 381302887/1, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 15 |
322545152/0 ATCO (New From 2012) Axle Bracket |
£1.55 |
ATCO (New From 2012) Axle Bracket£1.55
P/N: 322545152/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 16 |
112728697/0 ATCO (New From 2012) Self-Tapping Screw K50 X 16 Wn1451 |
£1.55 |
ATCO (New From 2012) Self-Tapping Screw K50 X 16 Wn1451£1.55
P/N: 112728697/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 17 |
122446192/0 ATCO (New From 2012) Spring |
£2.12 |
ATCO (New From 2012) Spring£2.12
P/N: 122446192/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 18 |
122534131/0 ATCO (New From 2012) Pin |
£1.55 |
ATCO (New From 2012) Pin£1.55
P/N: 122534131/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 19 |
322322859/0 ATCO (New From 2012) Rear Height Adjust Lever Znw D280 NT |
ATCO (New From 2012) Rear Height Adjust Lever Znw D280 NT
P/N: 322322859/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
|
| 20 |
322394506/0 ATCO (New From 2012) Height Adjust Knob |
£1.69 |
ATCO (New From 2012) Height Adjust Knob£1.69
P/N: 322394506/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 21 |
112728904/0 ATCO (New From 2012) Self-Tapping Screw K60 X 22 Wm1451 |
£1.55 |
 ATCO (New From 2012) Self-Tapping Screw K60 X 22 Wm1451£1.55
P/N: 112728904/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 22 |

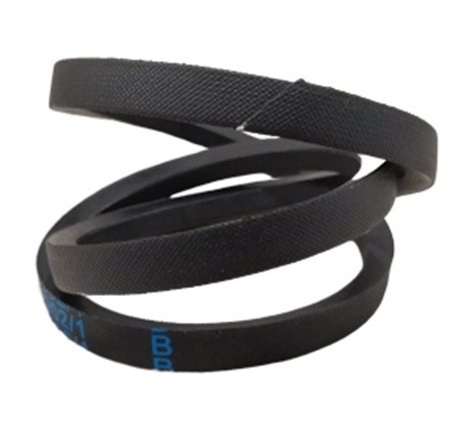

135063902/1 ATCO (New From 2012) Trapezoidal Belt Z 29.5 Lp=772 |
£9.49 |
 ATCO (New From 2012) Trapezoidal Belt Z 29.5 Lp=772£9.49
P/N: 135063902/1, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 23 |
322778473/1 ATCO (New From 2012) Stop Bracket |
£2.12 |
 ATCO (New From 2012) Stop Bracket£2.12
P/N: 322778473/1, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 24 |
122450478/0 ATCO (New From 2012) Spring |
£8.87 |
ATCO (New From 2012) Spring£8.87
P/N: 122450478/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 25 |
181003115/0 ATCO (New From 2012) Gearbox |
£124.58 |
ATCO (New From 2012) Gearbox£124.58
P/N: 181003115/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 26 |
122753000/0 ATCO (New From 2012) Pin D=5.2 X 25.65 |
£1.55 |
 ATCO (New From 2012) Pin D=5.2 X 25.65£1.55
P/N: 122753000/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 27 |
112608600/0 ATCO (New From 2012) Circlip D=12 Uni 7435 C60 |
£1.55 |
 ATCO (New From 2012) Circlip D=12 Uni 7435 C60£1.55
P/N: 112608600/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 28 |
119216035/0 ATCO (New From 2012) Bearing 6001 2RS (12 X 28 X 8) |
£3.52 |
 ATCO (New From 2012) Bearing 6001 2RS (12 X 28 X 8)£3.52
P/N: 119216035/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 29 |
122570133/0 ATCO (New From 2012) Right Pinion Z12 Gear |
£7.52 |
 ATCO (New From 2012) Right Pinion Z12 Gear£7.52
P/N: 122570133/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 30 |
122570134/0 ATCO (New From 2012) Left Pinion Z12 Gear |
£7.52 |
 ATCO (New From 2012) Left Pinion Z12 Gear£7.52
P/N: 122570134/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 31 |
112728697/0 ATCO (New From 2012) Self-Tapping Screw K50 X 16 Wn1451 |
£1.55 |
ATCO (New From 2012) Self-Tapping Screw K50 X 16 Wn1451£1.55
P/N: 112728697/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 32 |
322042063/1 ATCO (New From 2012) Axle Bush |
£2.40 |
 ATCO (New From 2012) Axle Bush£2.40
P/N: 322042063/1, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 33 |
112521371/0 ATCO (New From 2012) Washer M12 13 X 20 X 2 |
£1.55 |
ATCO (New From 2012) Washer M12 13 X 20 X 2£1.55
P/N: 112521371/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 34 |
322600208/0 ATCO (New From 2012) Inner Wheel Cover D=280 Wheel |
£4.37 |
ATCO (New From 2012) Inner Wheel Cover D=280£4.37 Wheel
P/N: 322600208/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 35 |
322600145/0 ATCO (New From 2012) Inner Wheel Cover D=200 Wheel |
£1.69 |
ATCO (New From 2012) Inner Wheel Cover D=200£1.69 Wheel
P/N: 322600145/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 36 |
122601909/0 ATCO (New From 2012) Pulley |
£5.64 |
 ATCO (New From 2012) Pulley£5.64
P/N: 122601909/0, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
| 37 |
381003458/1 ATCO (New From 2012) Height Adjust Lever D=280 |
£10.84 |
ATCO (New From 2012) Height Adjust Lever D=280£10.84
P/N: 381003458/1, Genuine OEM spare part. Find other ATCO (New From 2012) spares, parts and accessories. |
