ATCO (New From 2012) GT 38H TWIN (2T2630447-AT1 [2021]) Parts Diagram, Cutting Plate with Electromagnetic Clutch

Look at the diagram and find parts that fit a ATCO (New From 2012) GT 38H TWIN, or refer to the list below.

All Parts for GT 38H TWIN
GT 38H TWIN
Belt Protection Belt Protection
Body Work Body Work
Brake And Gearbox Controls Brake And Gearbox Controls
Carburetor, Fuel Pump Carburetor, Fuel Pump
MP98 MP98
Cutting Plate Lifting Cutting Plate Lifting
Cutting Plate with Electromagnetic Clutch Cutting Plate with Electromagnetic Clutch
Cylinder Head Cylinder Head
Electrical Parts Electrical Parts
21Hp 21Hp
Engine, Engine Cover Engine, Engine Cover
Fan Cover, Air Cleaner Fan Cover, Air Cleaner
Rear Plate Rear Plate
Frame Frame
Grasscatcher Grasscatcher
Hydrostatic Transmission Hydrostatic Transmission
Ignition Coil, Starter Motor, Flywheel Ignition Coil, Starter Motor, Flywheel
Labels Labels
Oil Filter Oil Filter
Optionals On Request Optionals On Request
Piston, Crankshaft, Crankcase Piston, Crankshaft, Crankcase
Seat & Steering Wheel Seat & Steering Wheel
Steering Steering
1RX1 1RX1
ATCO (New From 2012) GT 38H TWIN (2T2630447-AT1 [2021]) Parts Diagram, Cutting Plate with Electromagnetic Clutch
# Part Price
1 135061509/0LC

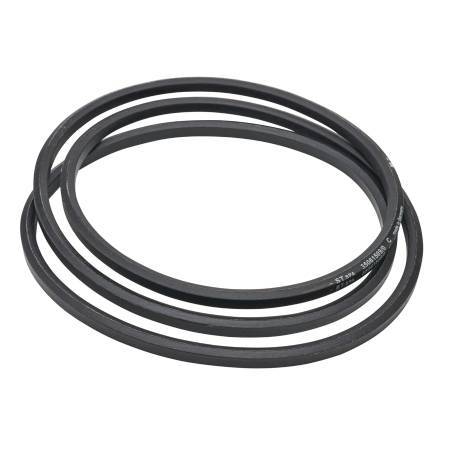

ATCO (New From 2012) Deck Drive Belt Aa96 		£75.46
2 112293201/0
ATCO (New From 2012) Flanged Hexagon Nut M8 		£1.69
3 112524010/0
ATCO (New From 2012) Washer M8 8.4 X 24 X 4 		£1.82
4 112610800/0
ATCO (New From 2012) Circlip D=35 		£1.69
5 119216048/0
ATCO (New From 2012) Bearing 6202 2RS C3 		£18.31
6 125601595/0
ATCO (New From 2012) Blade Idler Pulley 		£35.20
7 125160052/0
ATCO (New From 2012) Pulley Spacer 		£2.95
8 382004618/0
ATCO (New From 2012) Deck Engage Cable 		£22.81
9 125040635/0
ATCO (New From 2012) Bush 		£4.37
10 325318343/0
ATCO (New From 2012) Tension Control Lever 		£13.58
11 125160049/0
ATCO (New From 2012) Spacer 		£7.31
12 325785391/0
ATCO (New From 2012) Support Bracket 		£21.89
13 112818700/0
ATCO (New From 2012) Screw M8 X 25 Uni 5732 8.8 		£1.55
14 112154210/0
ATCO (New From 2012) Self-Lock Winged Nut M8 Din 6927 		£1.69
15 112793102/0
ATCO (New From 2012) Screw Te M8X20 Uni 5739 Acc.8.8 		£1.55
16 112540260/0
ATCO (New From 2012) Inner Toothed Washer M8 		£1.55
17 125670007/0
ATCO (New From 2012) Fixing Washer 		£1.97
18 125601604/0
ATCO (New From 2012) Blade Shaft Pulley 		£52.08
19 112139480/0
ATCO (New From 2012) Key 6 X 6 X 20 Uni6604-A 6.8 		£1.69
20 119216047/0
ATCO (New From 2012) Bearing 6204-C-2Hrs 		£15.78
21 125020804/0
ATCO (New From 2012) Blade Shaft 		£35.20
22 325160501/1
ATCO (New From 2012) Dust Cover Washer 		£1.55
23 112609260/0
ATCO (New From 2012) Circlip For Shaft D=20 Uni 7435 C60 		£1.82
24 382207204/1
ATCO (New From 2012) Blade Shaft Assembly 		£102.06
25 125160110/0
ATCO (New From 2012) Pulley Spacer 		£3.38
26 112691115/0
ATCO (New From 2012) Hex-Head Screw M8 X 40 		£1.55
27 112524010/0
ATCO (New From 2012) Washer M8 8.4 X 24 X 4 		£1.82
28 125601613/1
ATCO (New From 2012) Plastic Pulley Sd/Mp 		£16.99
29 125020805/0
ATCO (New From 2012) Right Blade Shaft 		£35.20
30 382207205/1
ATCO (New From 2012) Blade Shaft Assembly 		£102.06
31 112154210/0
ATCO (New From 2012) Self-Lock Winged Nut M8 Din 6927 		£1.69
32 112818700/0
ATCO (New From 2012) Screw M8 X 25 Uni 5732 8.8 		£1.55
33 112154210/0
ATCO (New From 2012) Self-Lock Winged Nut M8 Din 6927 		£1.69
34 112523060/0
ATCO (New From 2012) Washer M8 8.4 X 24 X 2 Uni 6593 		£1.55
35 325774617/0
ATCO (New From 2012) Blade Shaft Bracket 		£13.66
36 325033086/0
ATCO (New From 2012) Washing Connection 		£1.55
37 119035000/0
ATCO (New From 2012) O Ring 10.77 X 2.62 		£5.06
38 112523060/0
ATCO (New From 2012) Washer M8 8.4 X 24 X 2 Uni 6593 		£1.55
39 112293201/0
ATCO (New From 2012) Flanged Hexagon Nut M8 		£1.69
40 112156602/0
ATCO (New From 2012) Low Self-Locking Nut M10 Uni7474 Acc.6S 		£1.40
41 325670008/1
ATCO (New From 2012) Anti-Friction Washer 10.8 X 19 X 0.8 		£1.55
42 382000565/1
ATCO (New From 2012) Balance Rod 		£20.62
43 112293201/0
ATCO (New From 2012) Flanged Hexagon Nut M8 		£1.69
44 125160072/0
ATCO (New From 2012) Wheel Spacer 		£3.94
45 112692100/0
ATCO (New From 2012) Hex-Head Screw M8 X 105 		£2.81
46 112521350/0
ATCO (New From 2012) Washer M8 8.4 X 16 X 1.6 		£1.55
47 182700006/0
ATCO (New From 2012) Anti-Scalp Wheel D=95mm 		£17.68
48 325160505/0
ATCO (New From 2012) Reinforcement Disc 		£12.82
49 112818700/0
ATCO (New From 2012) Screw M8 X 25 Uni 5732 8.8 		£1.55
50 112139100/0
ATCO (New From 2012) Woodruff Key 4X6.5 D16 Uni 6606 C40 		£1.55
51 1134-9159-01
ATCO (New From 2012) Blade Holder 		£14.95
52 182004362/0
ATCO (New From 2012) Right Winged Blade 98cm
Winged 		£26.27
53 122160400/0
ATCO (New From 2012) Spring Washer 50 X 2 X 10.2 		£1.82
54 112523080/0
ATCO (New From 2012) Washer M10 11 X 30 X 2.5 		£1.55
55 112735695/1
ATCO (New From 2012) Hex-Head Screw 3/8" X 1 1/2" L/H Thread 		£3.79
56 112735694/0
ATCO (New From 2012) Hex-Head Screw 3/8" X 1 1/2" 24 Unf 		£1.97
57 182004346/0
ATCO (New From 2012) Left Mulching Blade 98cm
Mulching 		£22.08
58 325140111/0
ATCO (New From 2012) Rear Deflector Plate 		£6.76
59 112791213/1
ATCO (New From 2012) Hex-Head Screw M6 X 18 Uni 5739 8.8 		£1.55
60 112154510/0
ATCO (New From 2012) Low Self-Locking Nut M6 Uni7474 Acc.6S 		£1.55
61 112523040/0
ATCO (New From 2012) Washer M6 6.6 X 18 X 1.6 		£1.55
62 112793102/0
ATCO (New From 2012) Screw Te M8X20 Uni 5739 Acc.8.8 		£1.55
63 382564118/2
ATCO (New From 2012) Cutter Deck Casing Mp98C H.E. [Black] 		£457.51
64 325785509/0
ATCO (New From 2012) Rear Deflector Plate [Black] 		£10.42
65 118399069/1

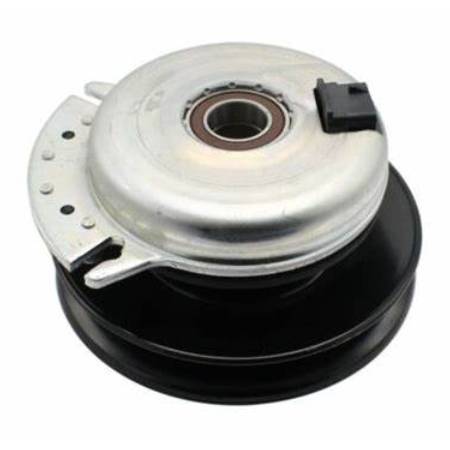

ATCO (New From 2012) Electromagnetic Clutch I-5217-63 		£385.32
66 112543000/0
ATCO (New From 2012) Safety Washer D=7/16 		£1.55
67 112737320/0
ATCO (New From 2012) Threaded Screw 7/16" X 3" 20 Unf 		£4.37
68 125430277/1
ATCO (New From 2012) Tension Spring 		£2.12
69 1134-9226-01
ATCO (New From 2012) Winged Blade 98cm/38" [Stiga Pack] 		£65.99
70 1134-9234-01
ATCO (New From 2012) Mulching Blade 98cm [Stiga Pack] 		£48.48
Help to find your part number
