Oregon Chainsaw Chain Sharpening/Filing Kits Guide
Maintaining a sharp chainsaw chain is essential for safe, efficient cutting, and this Oregon chainsaw sharpening guide shows you exactly how to get professional results with Oregon chainsaw filing kits. In this chainsaw chain sharpening quick reference guide, you’ll be able to select the right sharpening kit and files for your chainsaw chain. Oregon's detailed how‑to video demonstrates how to use each Oregon chainsaw sharpening kit, giving you the correct filing angles and step‑by‑step chain maintenance methods. These easy to follow, practical instructions, ensure accurate chainsaw chain filing every time, keeping your saw performing like new.

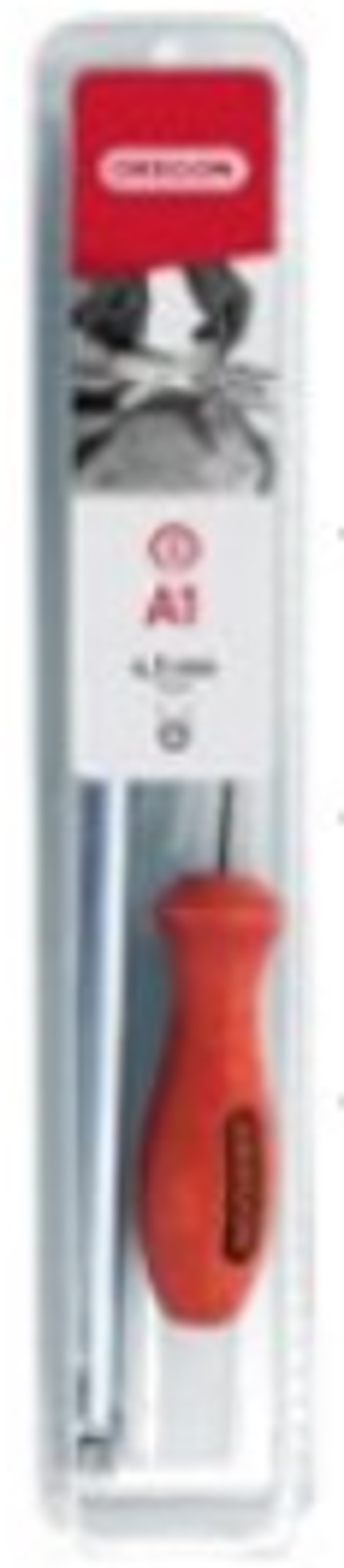

Plastic Packs

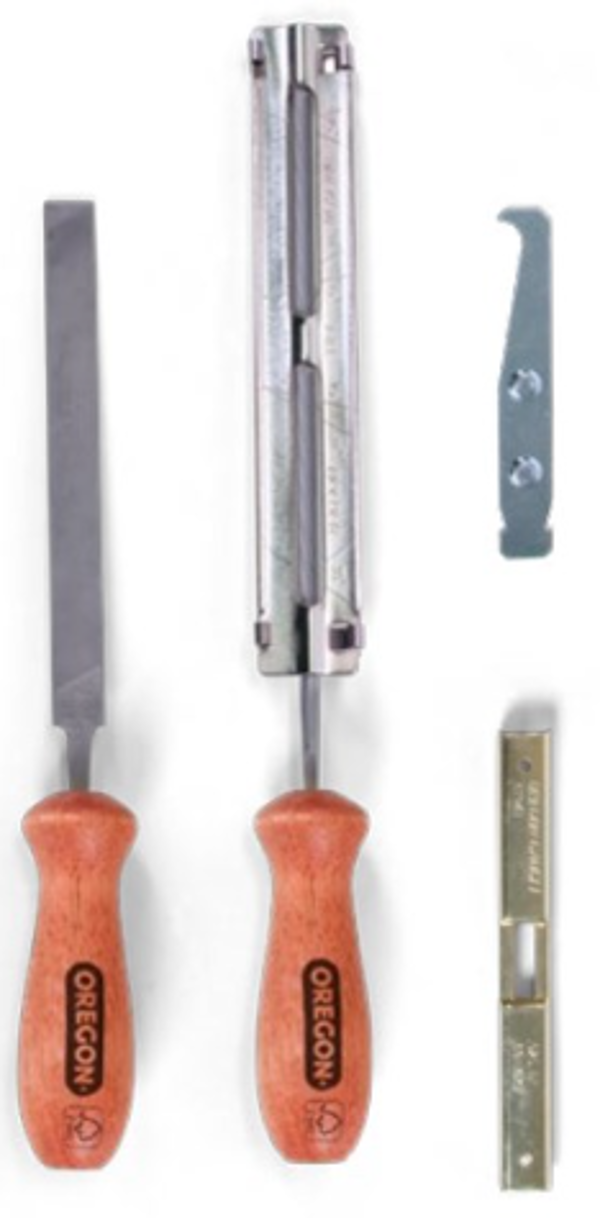

Packs include:
- Fully assembled file guide with file and wooden handle for chain top-plate maintenance

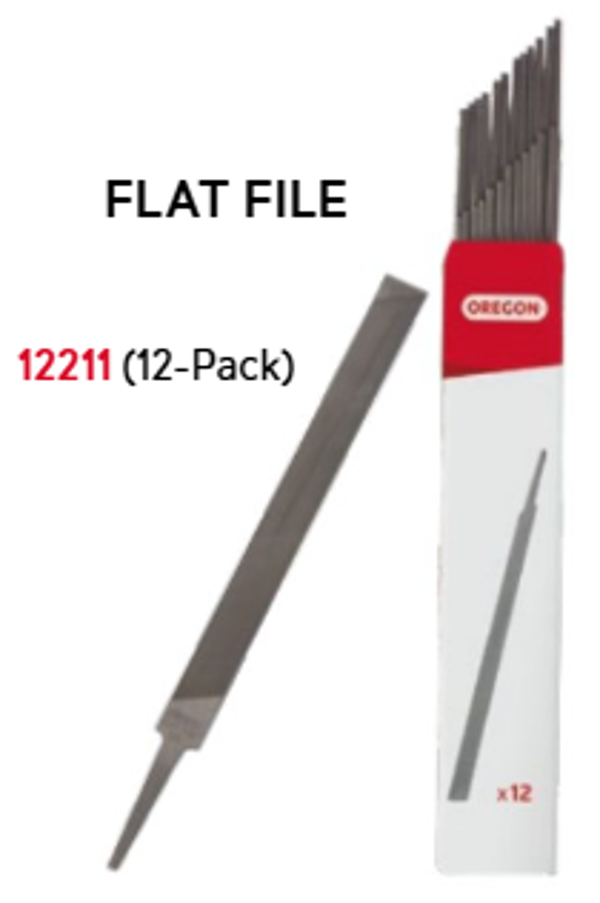

- Assembled wooden handle and flat file and one depth gauge tool for chain depth gauge maintenance
- Bar groove cleaner to clean guide bar groove and oil holes

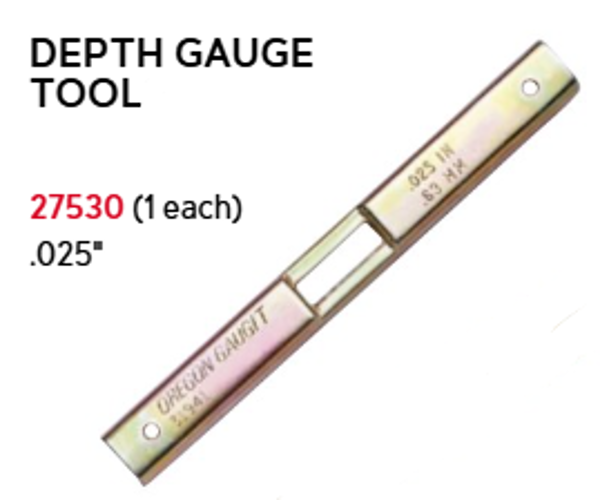

- 0.25" depth gauge tool
|
|
|
|
|
|

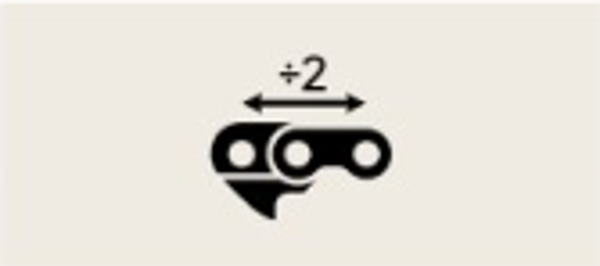

1/4", .325" LowPro, 3/8" LowPro 91 |

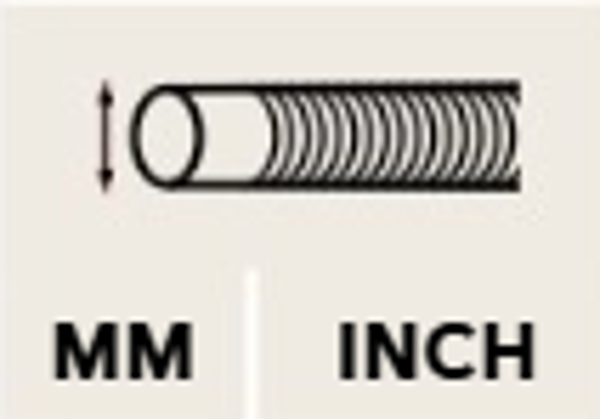

4.0mm 5/32" |
|
3/8" LowPro 90 |
4.5mm 11/64" |
|
.325" |
4.8mm 3/16" |
|
3/8" |
5.5mm 7/32" |
Pouch Kits
Easy-to-carry rolled up pouch - Highly visible red colour - Easy to attach on waistband
Pouch includes:
- Bar, chain and file measuring tool
- User manual
- Fully assembled file guide with file and wooden handle for chain top-plate maintenance
- Assembled wooden handle and flat file and one depth gauge tool for chain depth gauge maintenance
- Bar groove cleaner to clean guide bar groove and oil holes
- 0.25" depth gauge tool
|
|
|
1/4", .325" LowPro, 3/8" LowPro 91 |
4.0mm 5/32" |
|
3/8" LowPro 90 |
4.5mm 11/64" |
|
.325" |
4.8mm 3/16" |
|
3/8" |
5.5mm 7/32" |

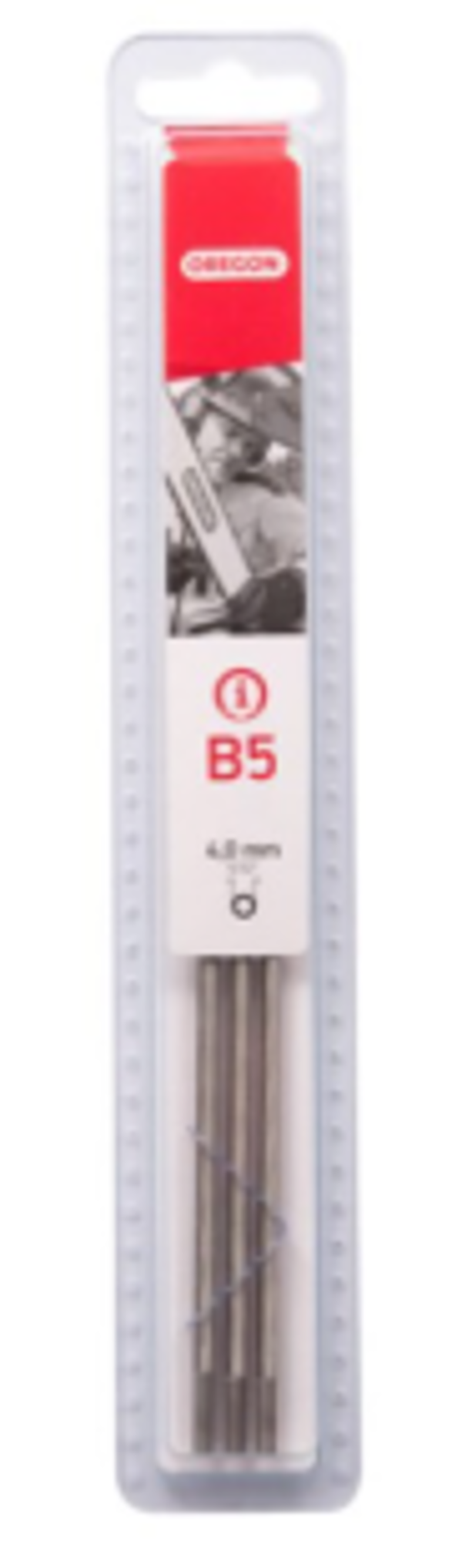

Round Files

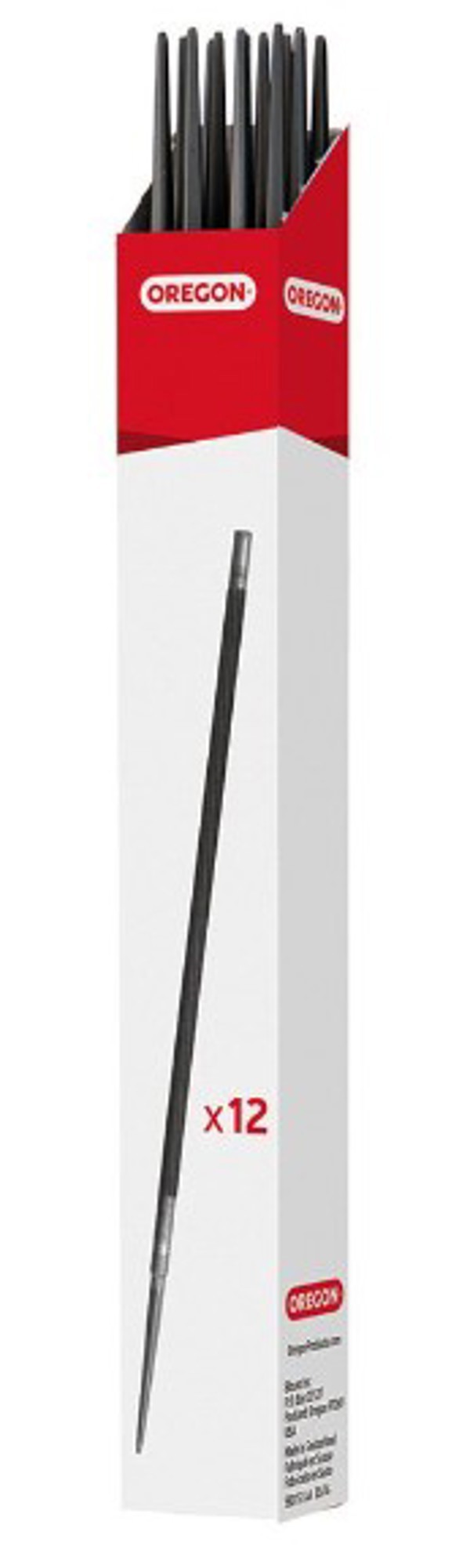

12 Pack |
3 Pack |

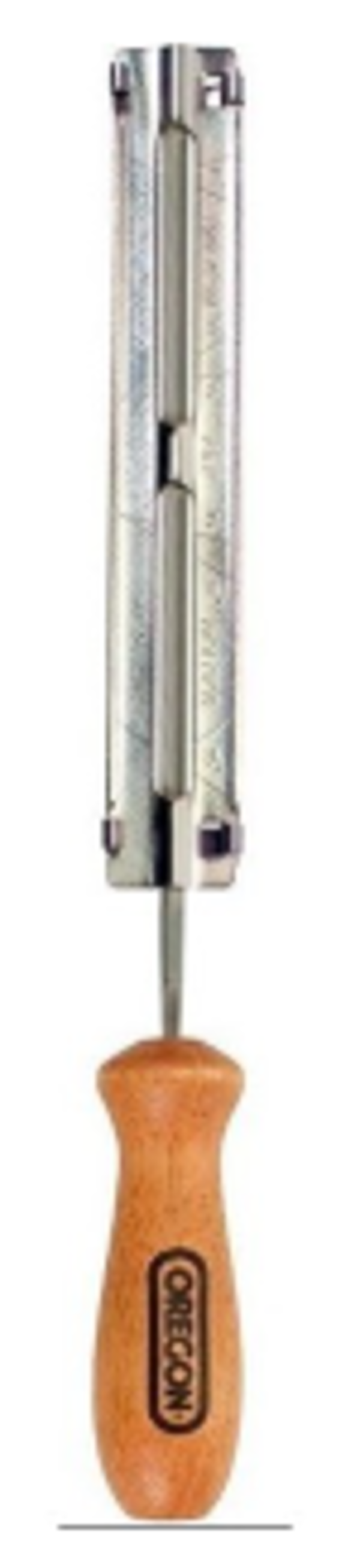

File Holder |
|
|
|
|
|
|
|||
|
|||
|
|||
|
How to use Oregon Universal Sharpening Kits Video
🔧 Signs Your Chainsaw Chain Needs Sharpening
1. The saw produces fine dust instead of wood chips
A sharp chain creates thick, consistent chips.
If you’re seeing powdery dust, the cutters are no longer biting properly.
2. You have to apply pressure to make the saw cut
A sharp chain should pull itself into the wood.
If you’re pushing hard to force the cut, the chain is dull.
3. The chainsaw pulls to one side while cutting
This usually means cutters on one side are sharper or longer than the other — a classic sign of uneven dullness.
4. The cut is slow or the saw feels like it’s bogging down
A sharp chain cuts quickly and smoothly.
If cutting takes noticeably longer, it’s sharpening time.
5. Smoke coming from the cut
Even if the chain is lubricated, a dull chain causes heat and friction, which leads to smoke.
6. The chain chatters or bounces during the cut
This often feels like vibration, snagging, or the saw struggling to settle into the cut.
7. Burn marks on the wood
Darkened or scorched edges indicate friction from a dull chain.
8. The saw won’t stay in the cut line
A sharp chain follows a straight path.
A dull one tends to wander, especially in longer cuts.
9. It’s been a long cutting session without sharpening
Even under normal use, a chain can dull after:
- hitting dirty bark,
- cutting hardwood,
- or contacting soil, metal, nails, or rocks.
