Diagrams for the Viking MR 4082.0 K Rider
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Viking MR 4082.0 K Rider.
Diagrams for this machine
Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Viking MR 4082.0 K Rider
MR 4082.0 K

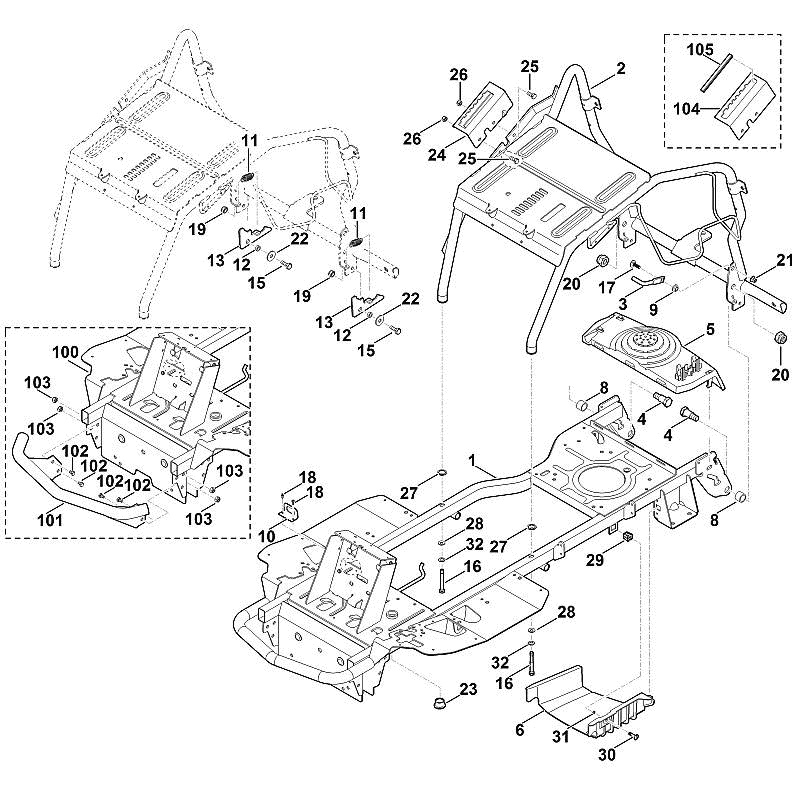

A - Frame

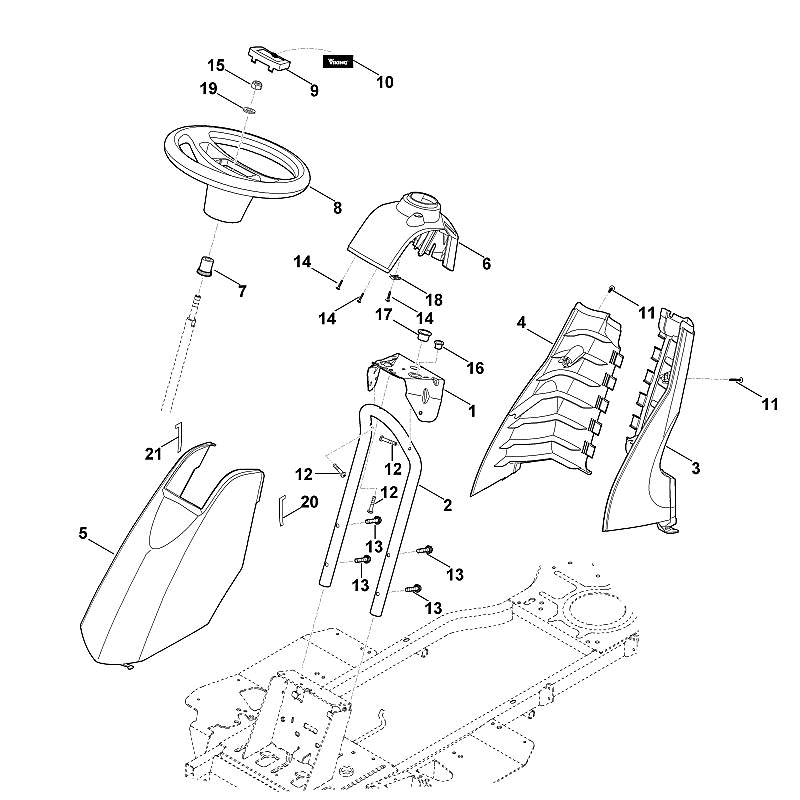

B - Dashboard

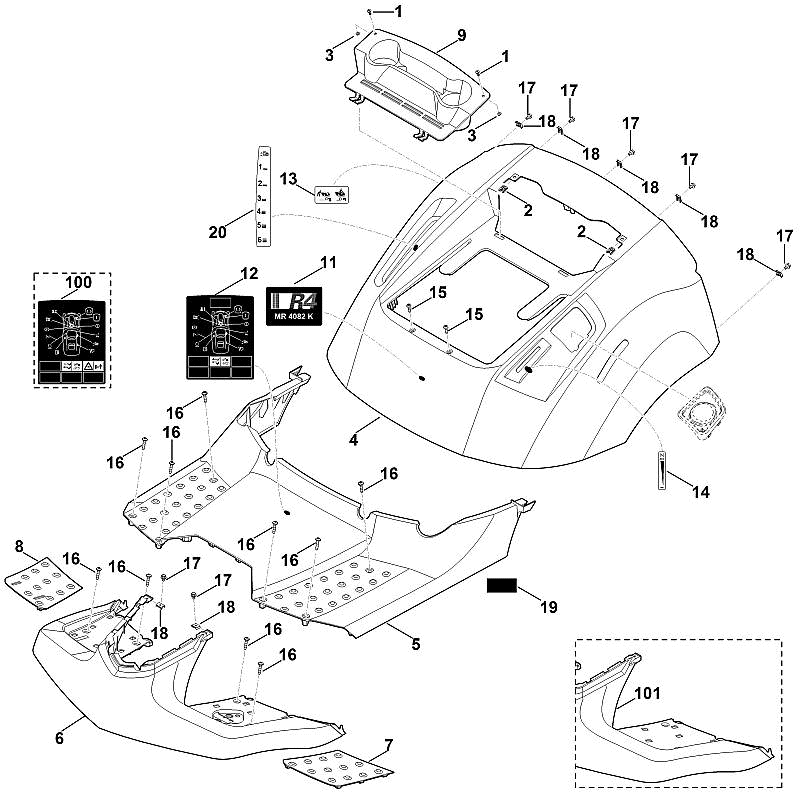

C - Moulding

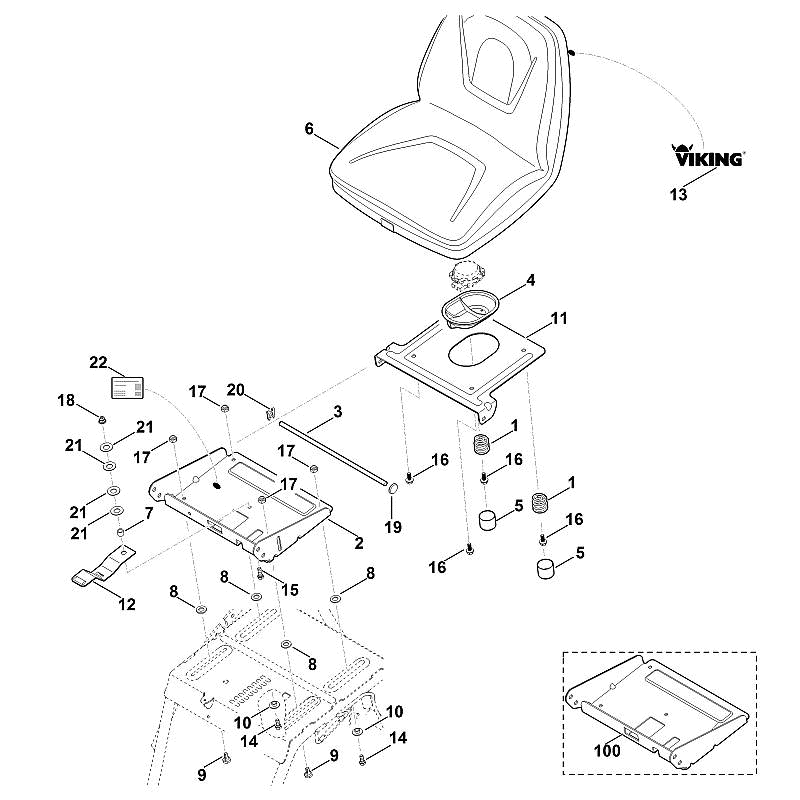

D - Seat

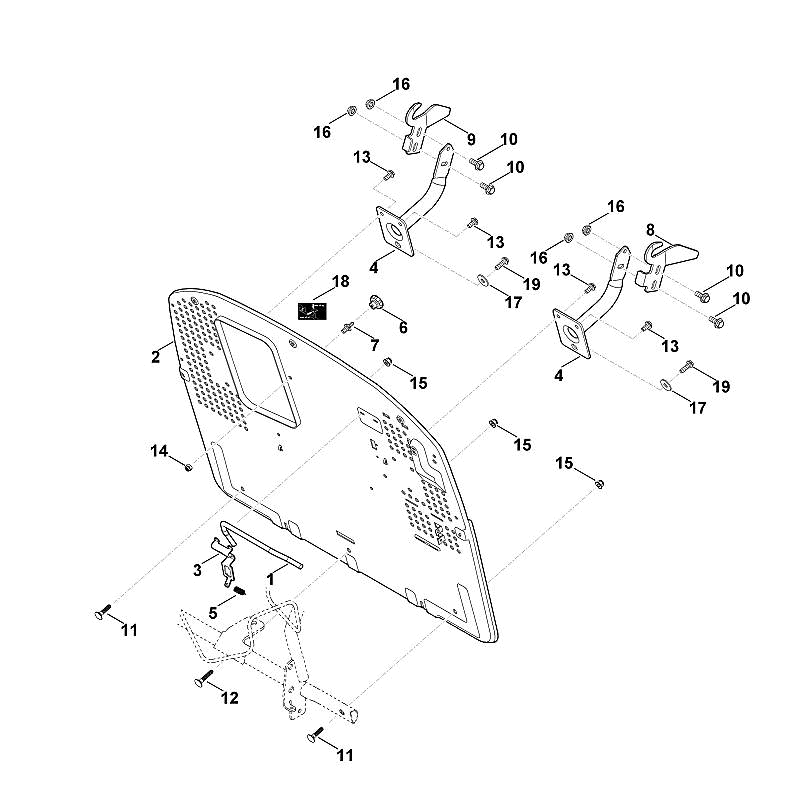

E - Back Panel

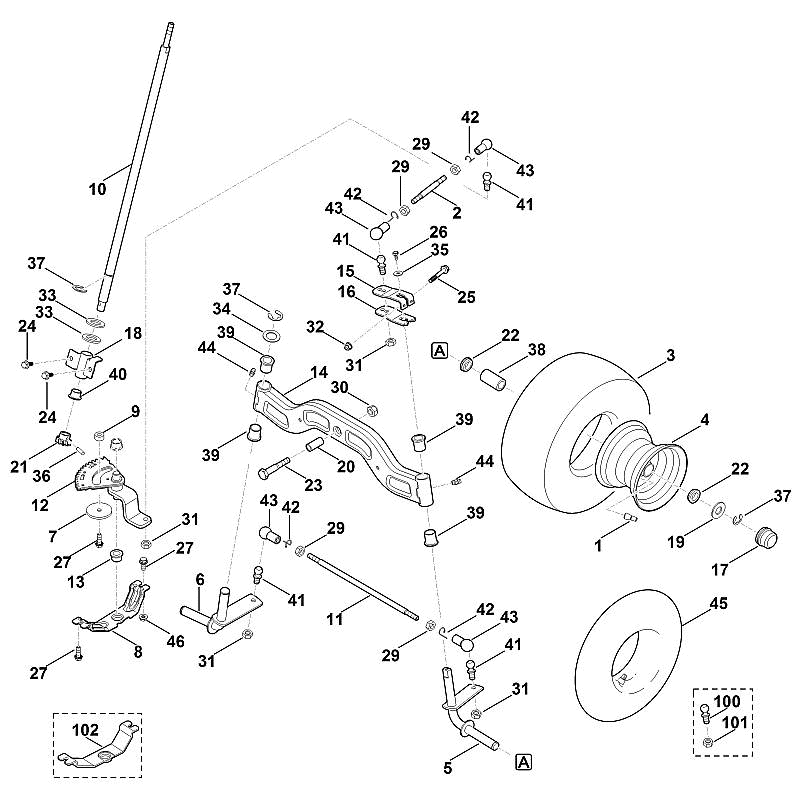

F - Steering

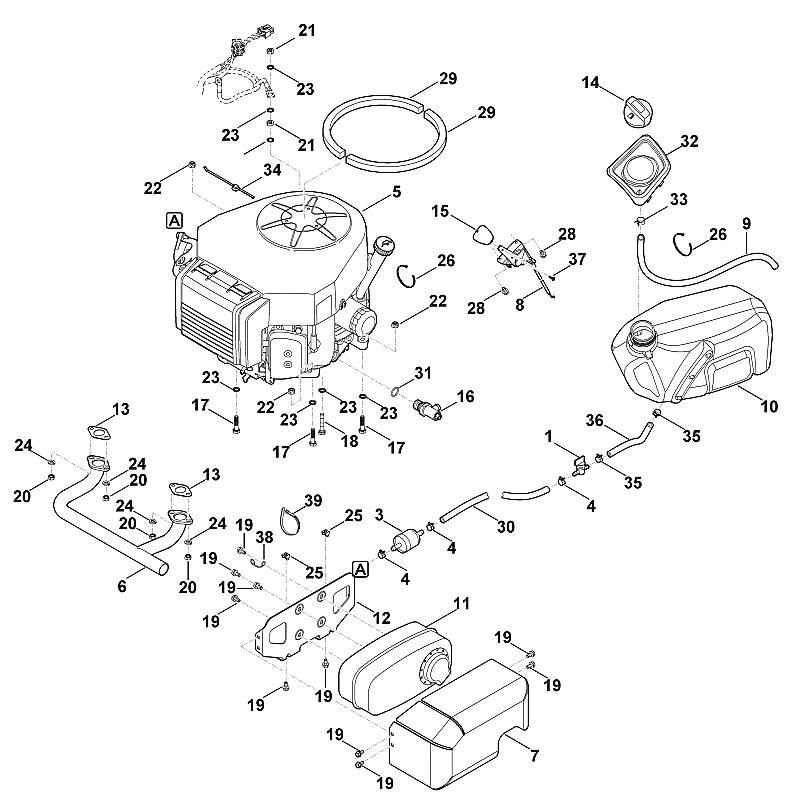

G - Engine, Tank

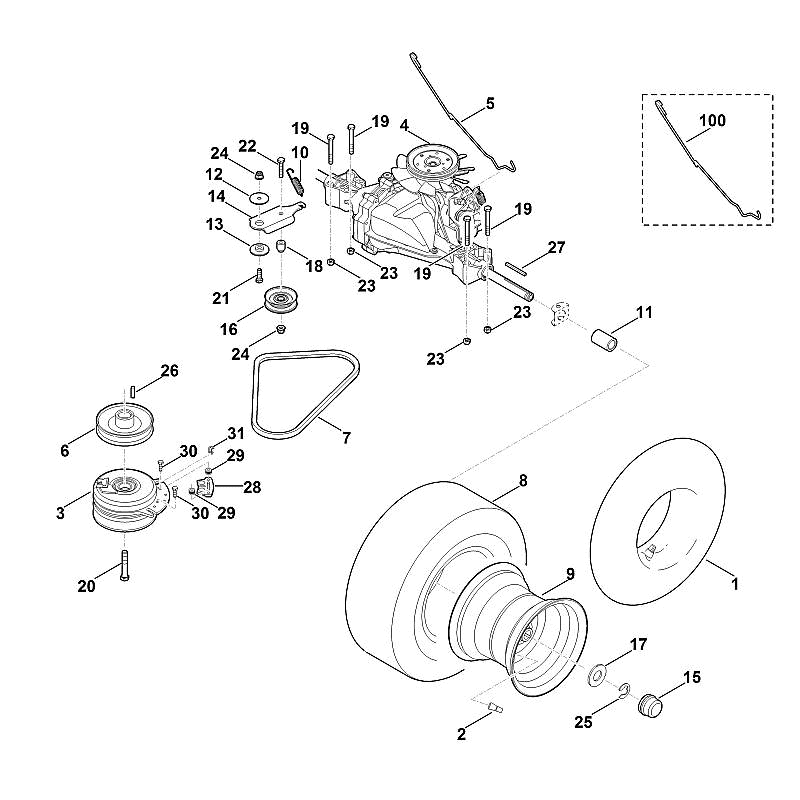

H - Gearbox

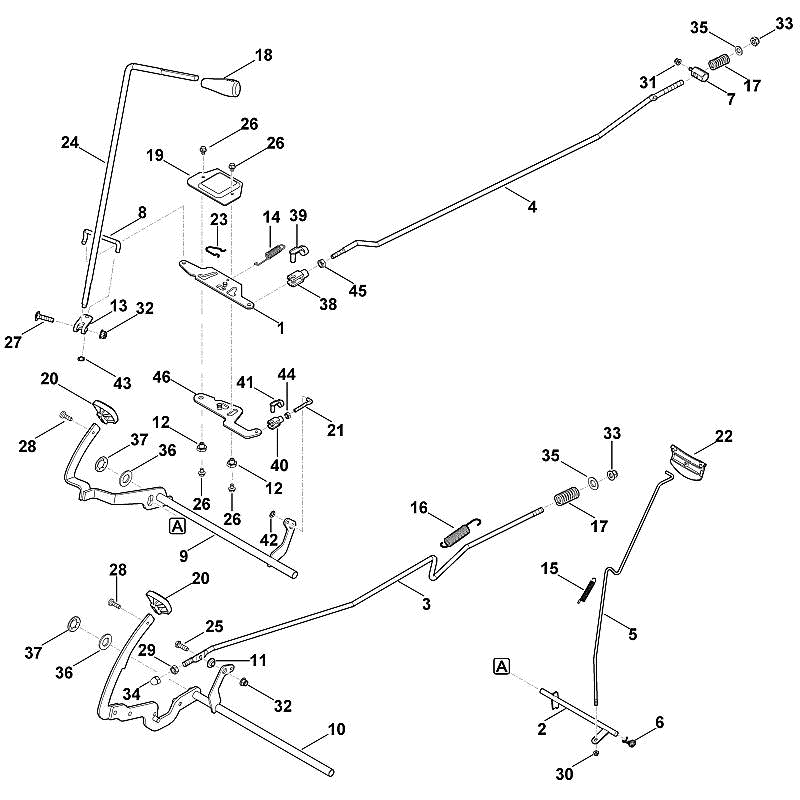

I - Brake

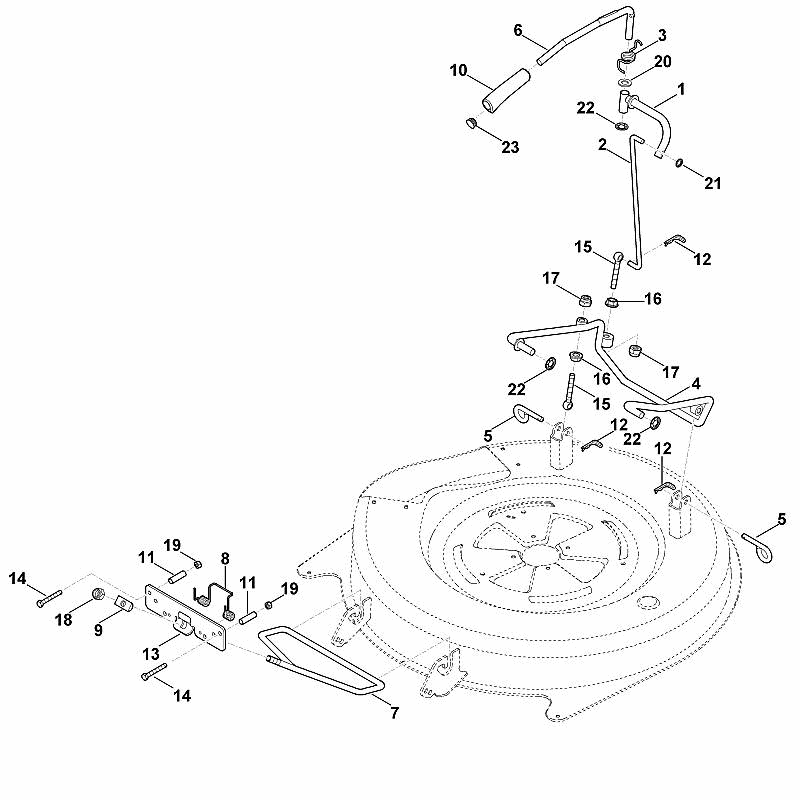

J - Height Adj.

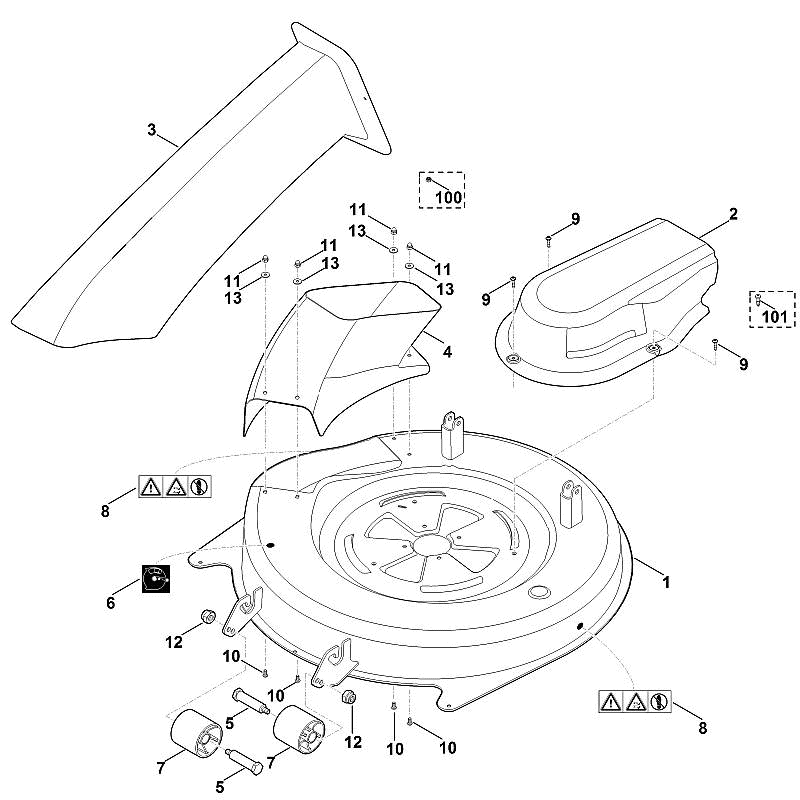

K - Mowing Deck

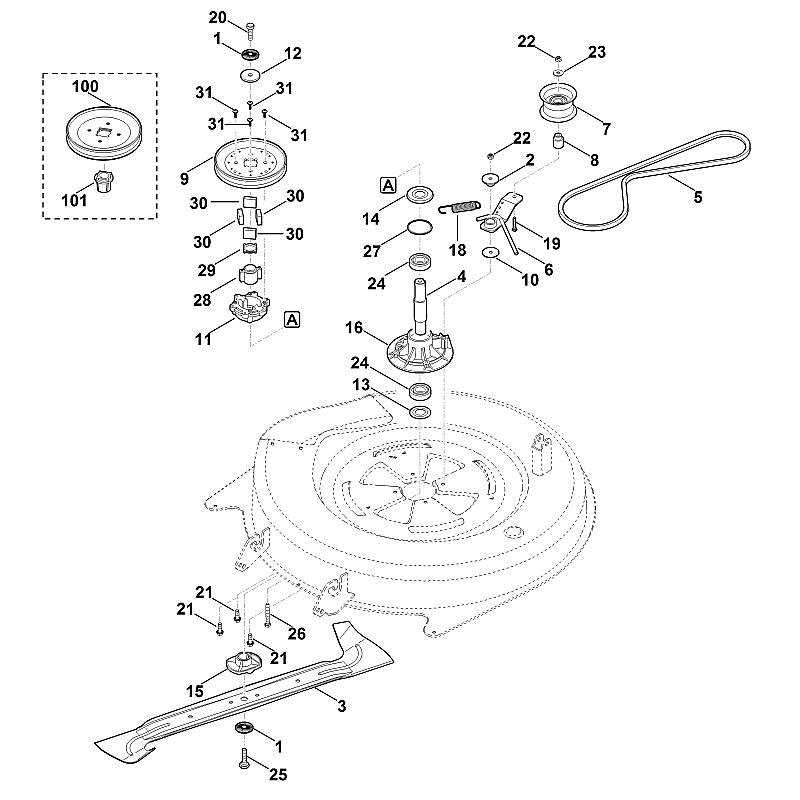

L - Blade Drive

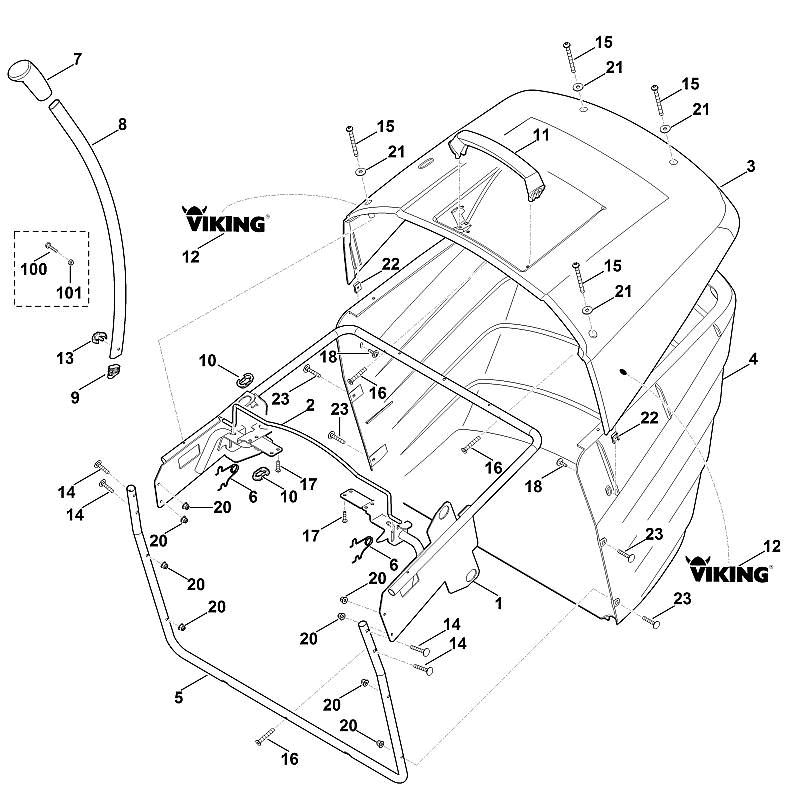

M - Grass Bag

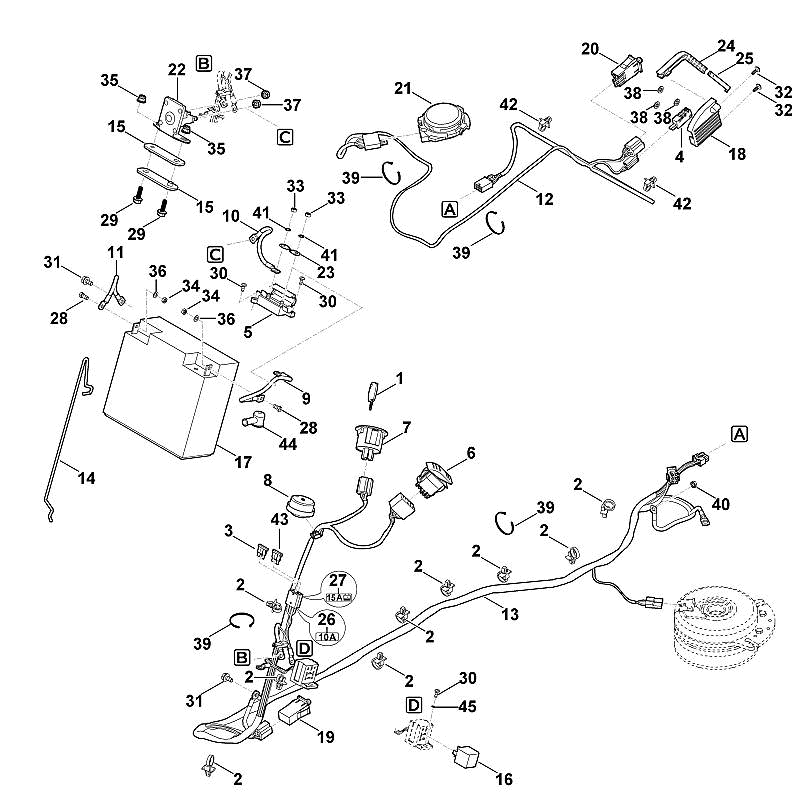

N - Electric Equipment

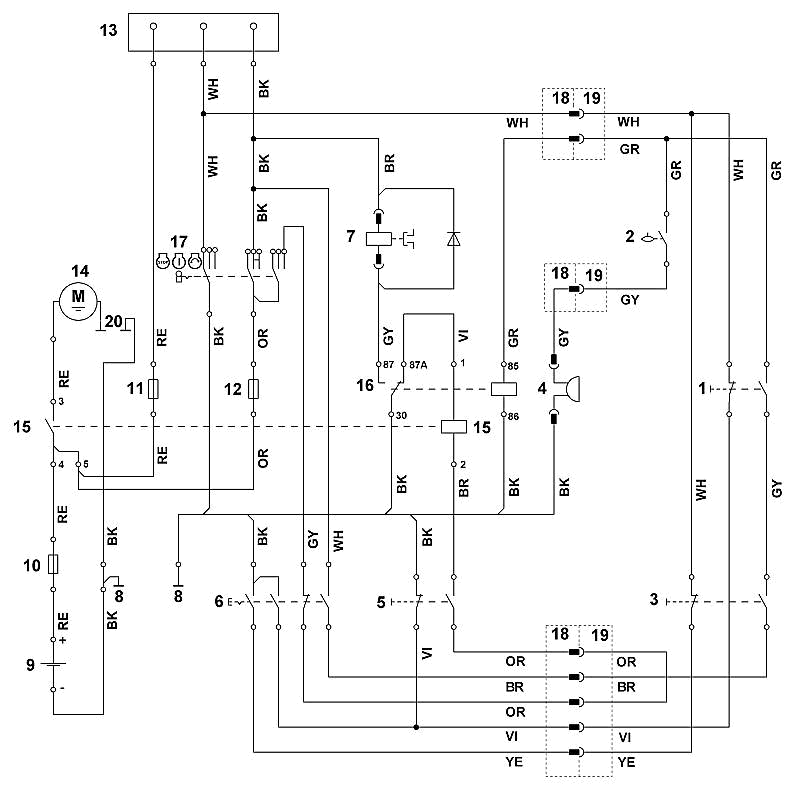

O - Wiring Harness

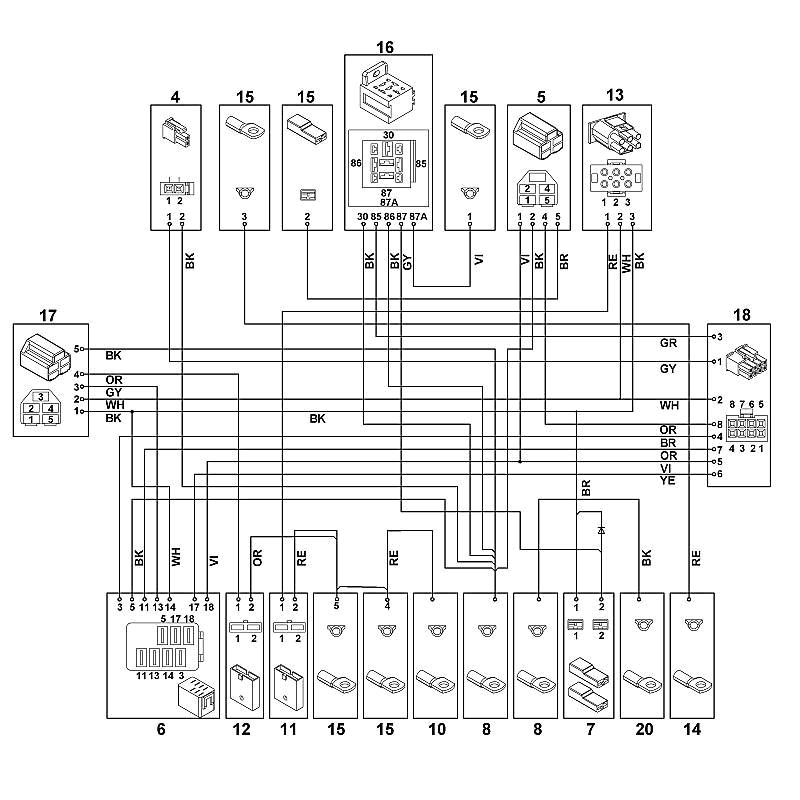

P - Ladder Diagram-1

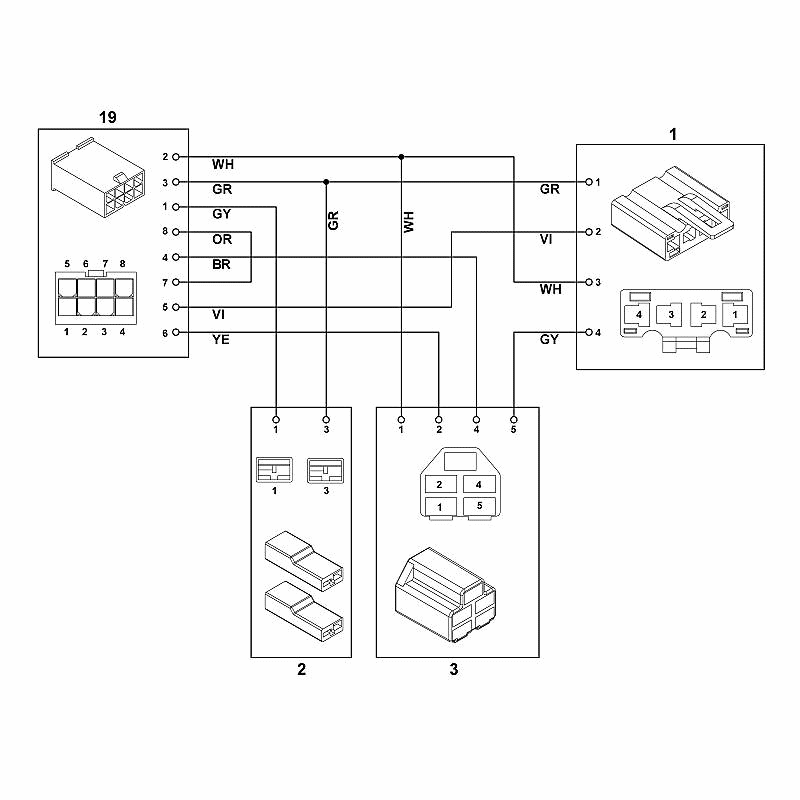

Q - Ladder Diagram-2

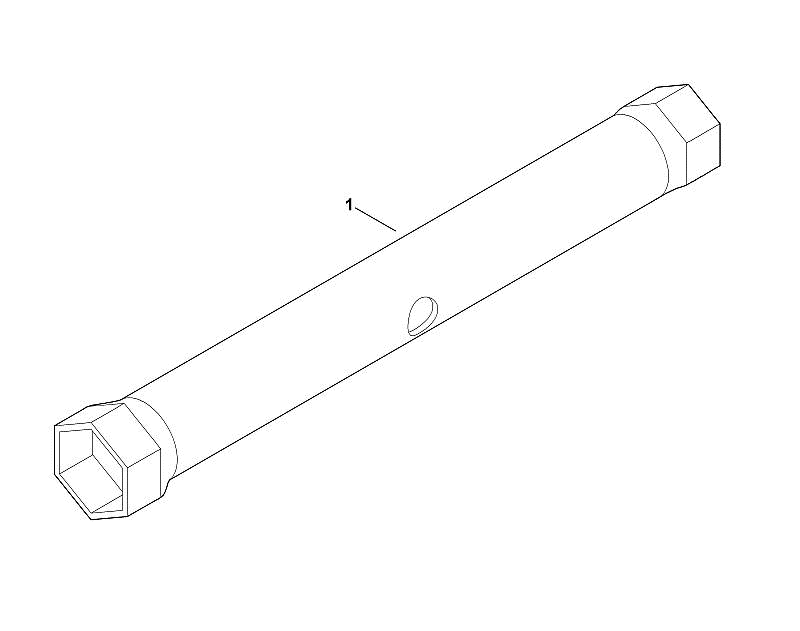

R - Tools

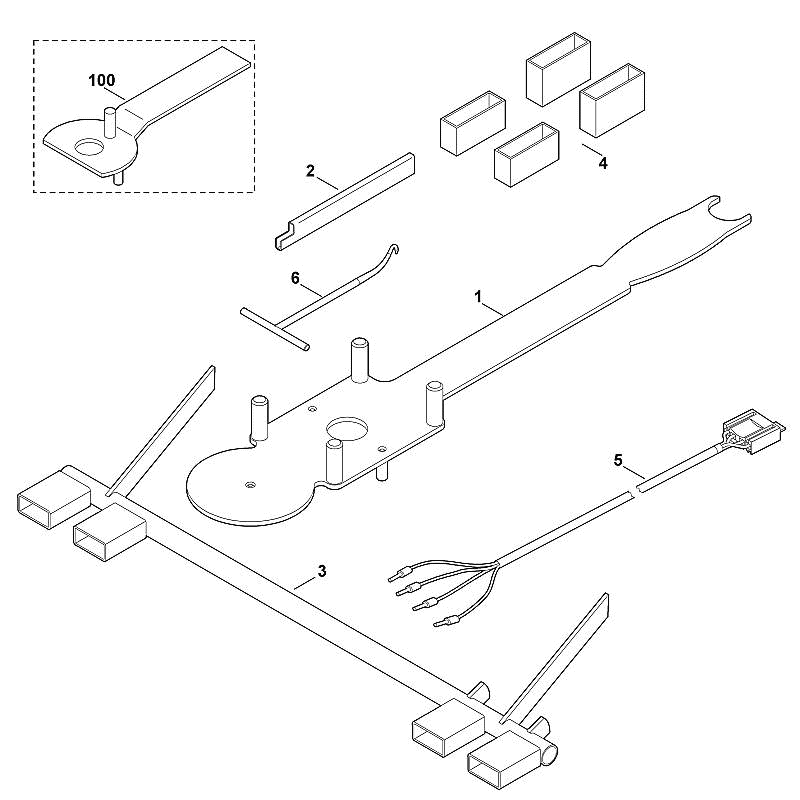

S - Special Tool

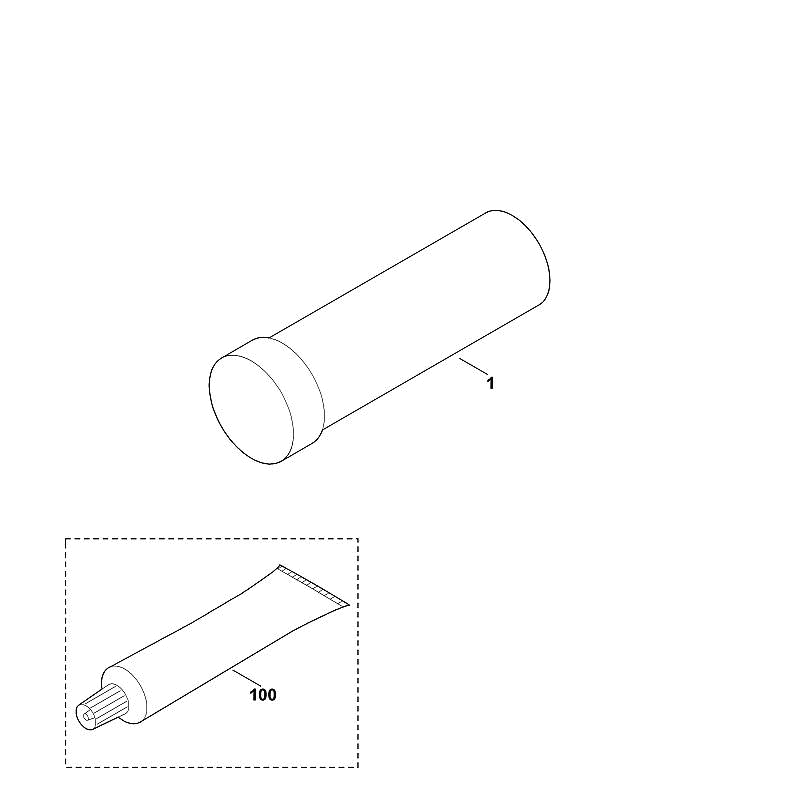

T - Lubricants
