Diagrams for the Stihl SH 86 Blow-Vac
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl SH 86 Blow-Vac .
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl SH 86 Blow-Vac
SH86C-E

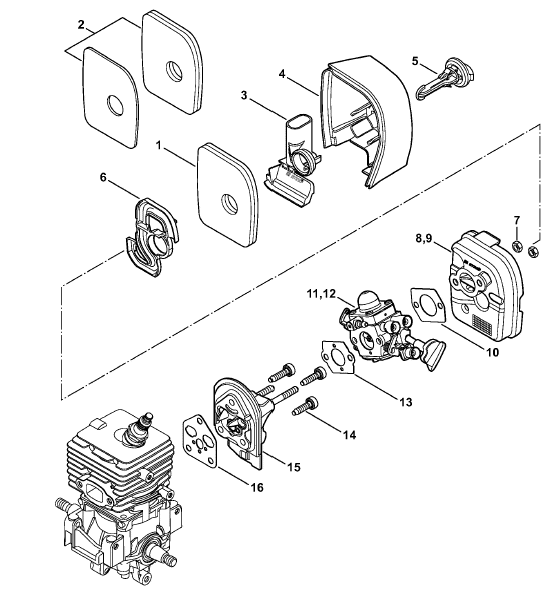

Air filter

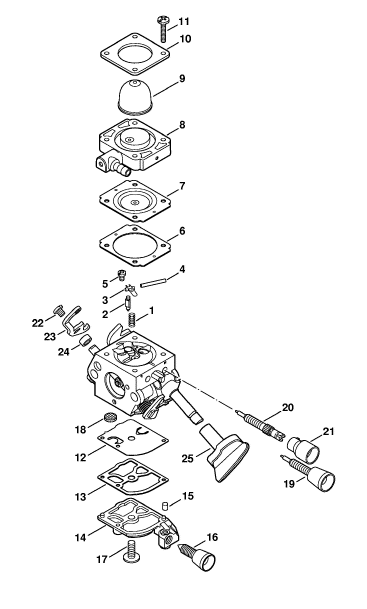

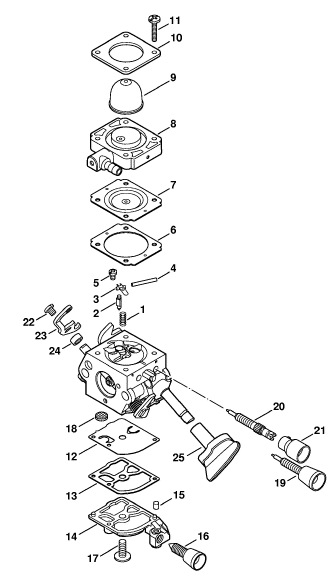

Carburetor C1M-S141E

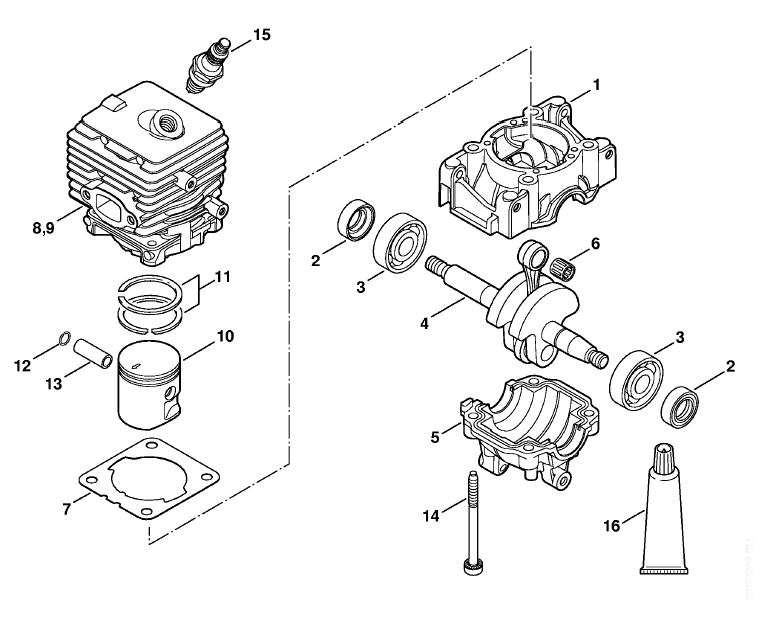

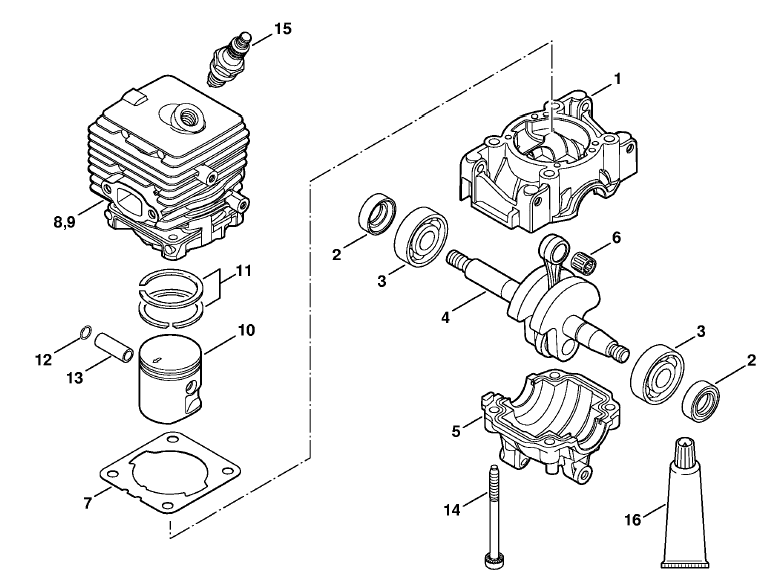

Crankcase

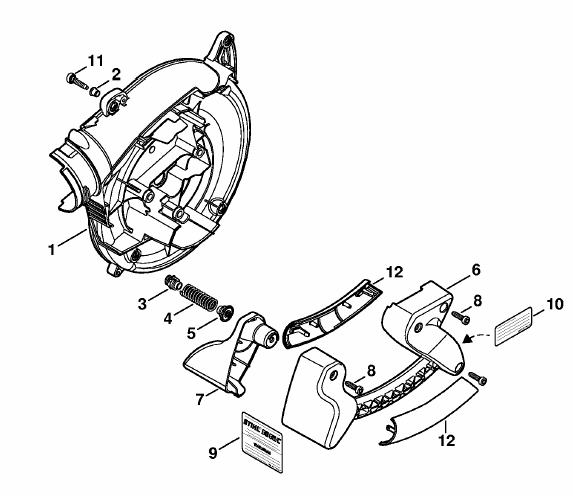

Fan housing inside SH 86

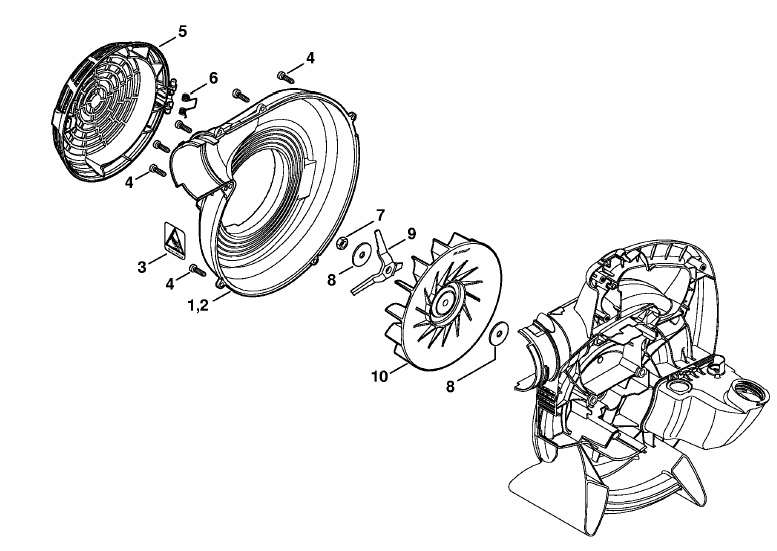

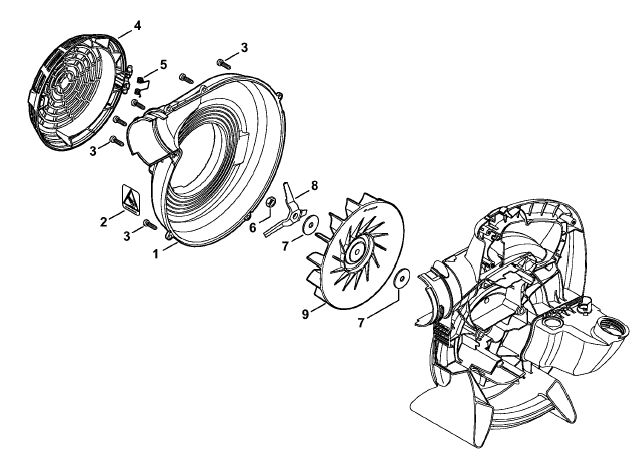

Fan housing outer

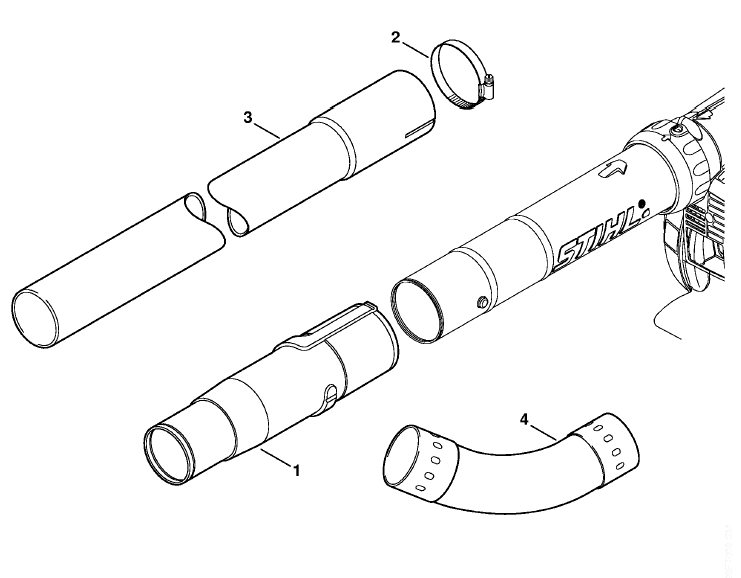

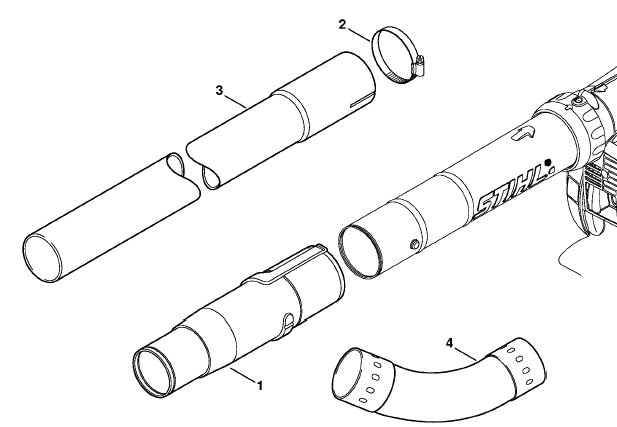

Gutter cleaning

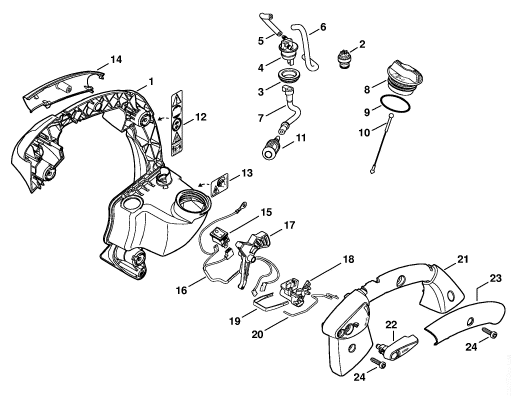

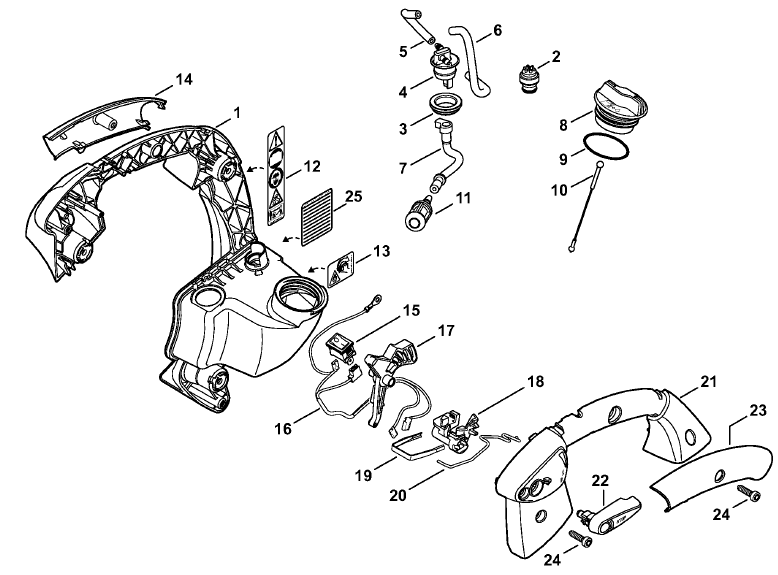

Handle frame SH 86

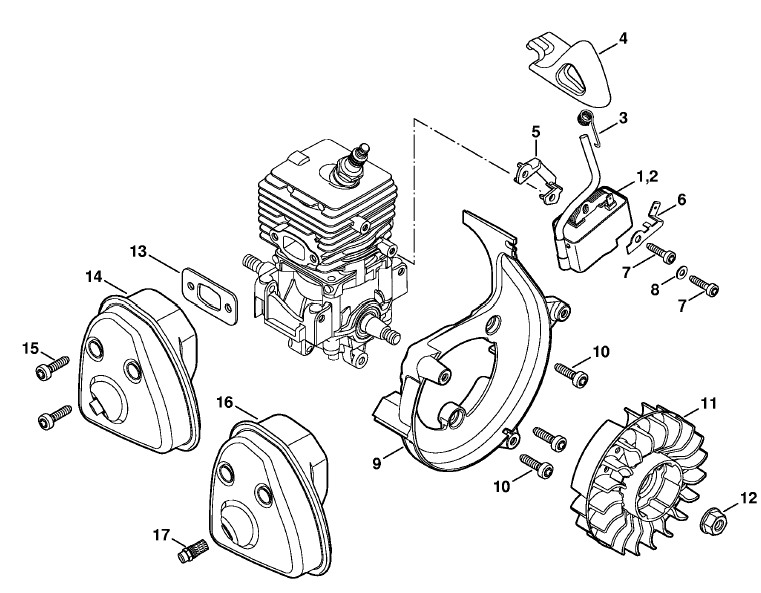

Ignition system

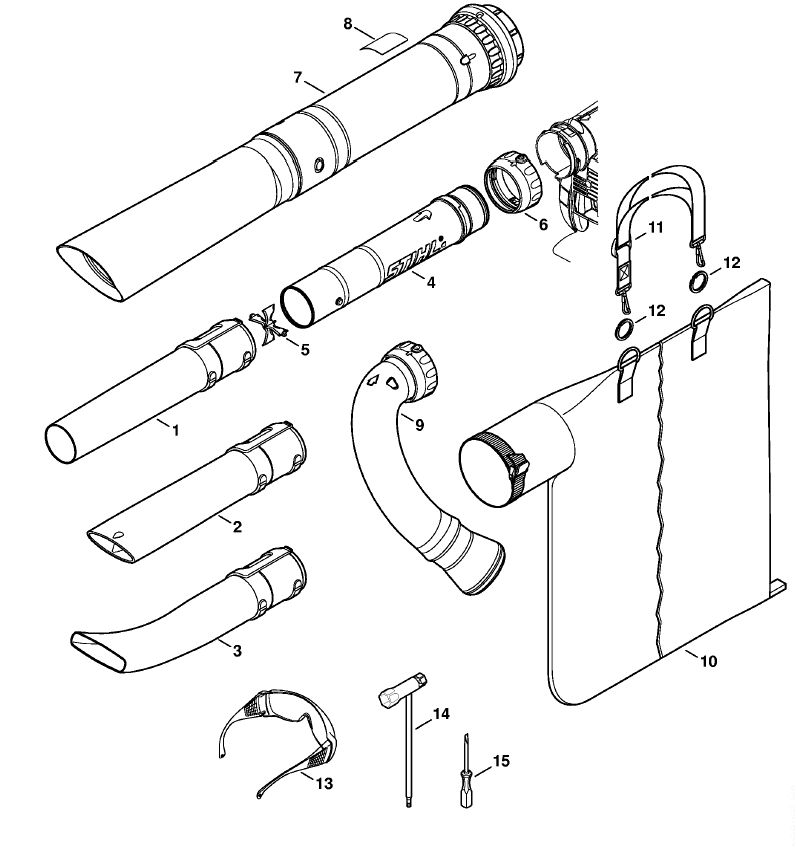

Nozzle

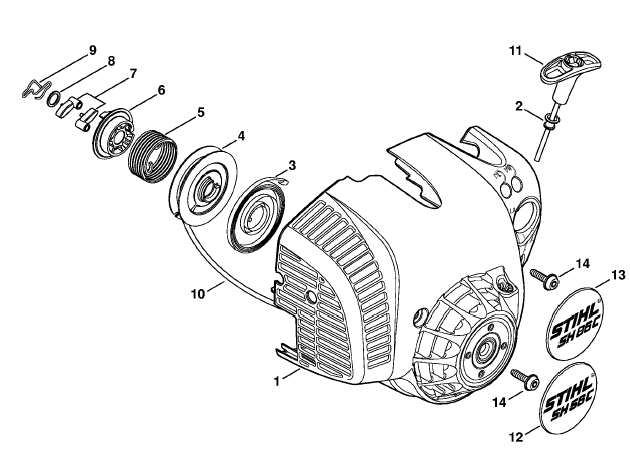

Rewind starter ErgoStart-Easy2Start
SH86-D

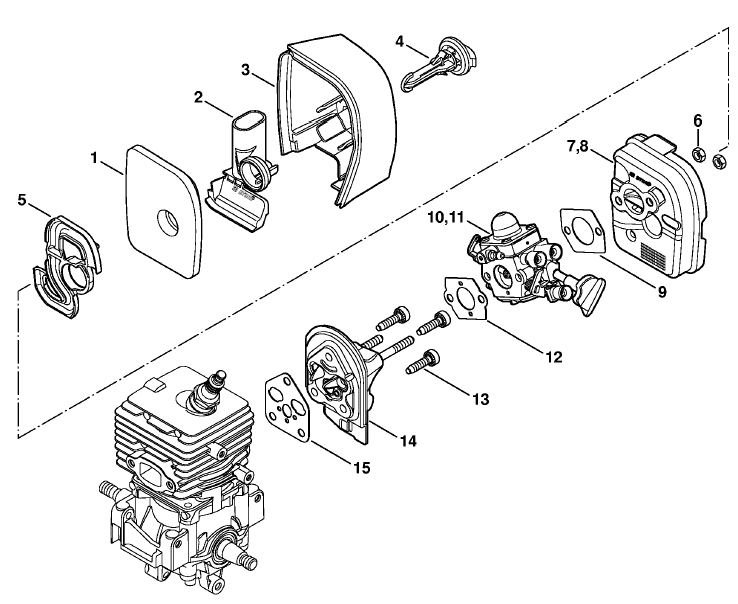

Air filter
Carburetor C1M-S141
Crankcase

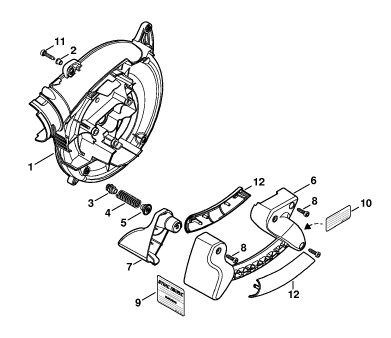

Fan housing inside SH 86
Fan housing outer
Gutter cleaning
Handle frame SH 86

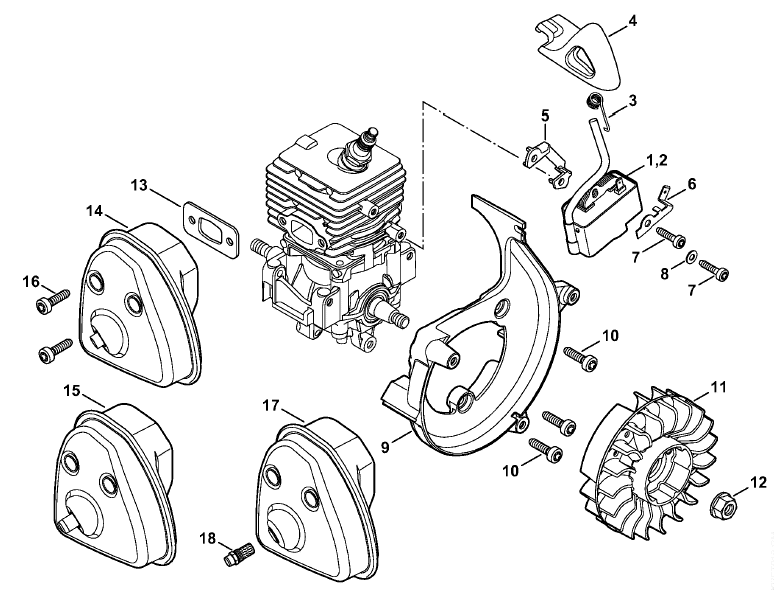

Ignition system

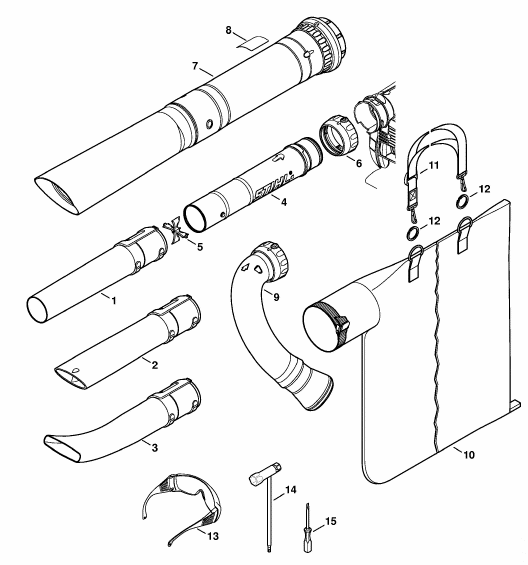

Nozzle

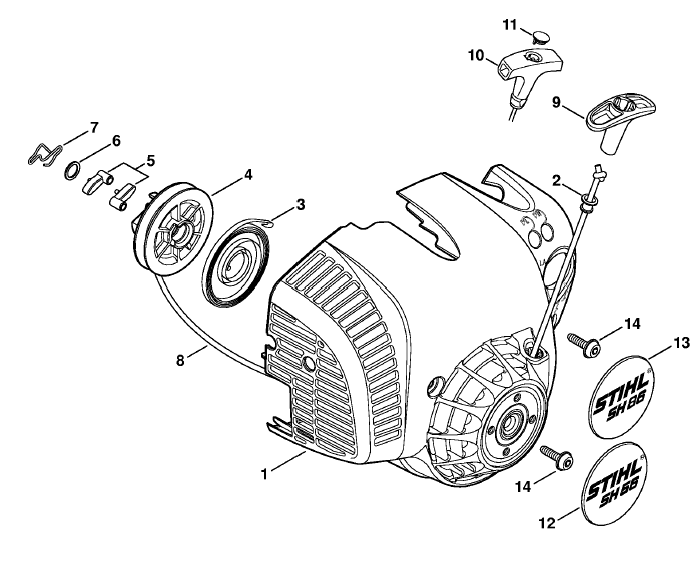

Rewind starter
SH86C-EZ
Air filter
Carburetor C1M-S141
Crankcase
Fan housing inside SH 86
Fan housing outer
Gutter cleaning
Handle frame SH 86
Ignition system
Nozzle
Rewind Starter ErgoStart-Easy2Start
