Diagrams for the Stihl MS 650 Chainsaw
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl MS 650 Chainsaw.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl MS 650 Chainsaw
MS650

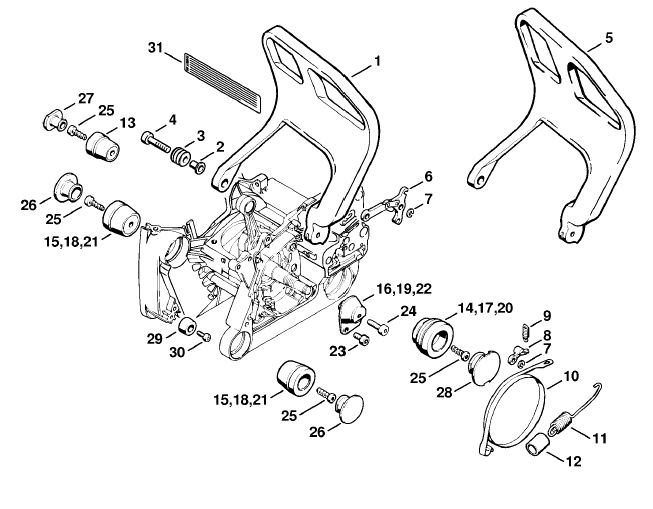

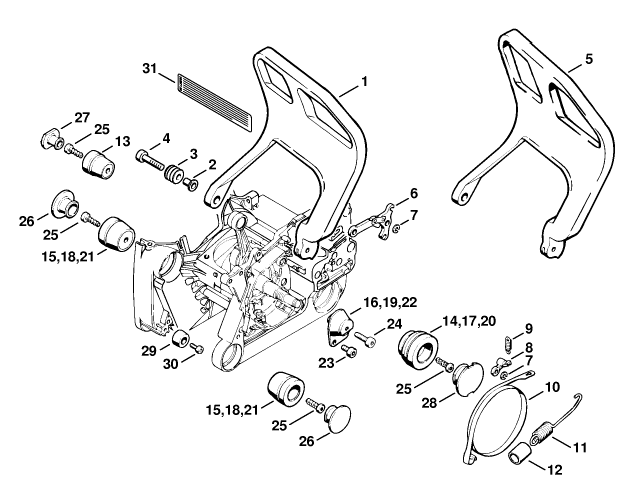

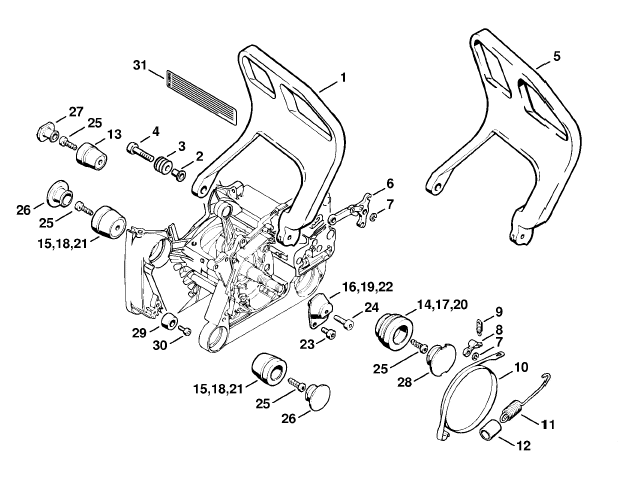

AV system

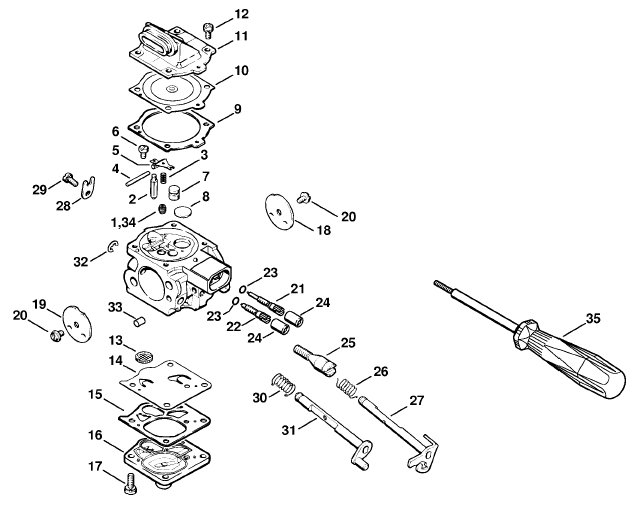

Carburetor WJ69A

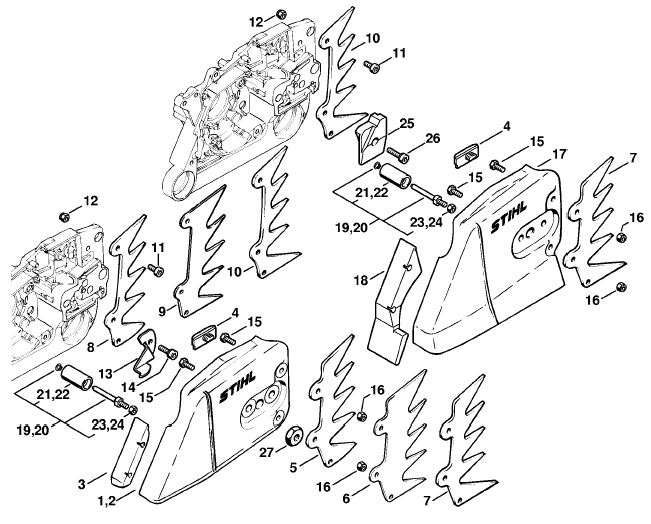

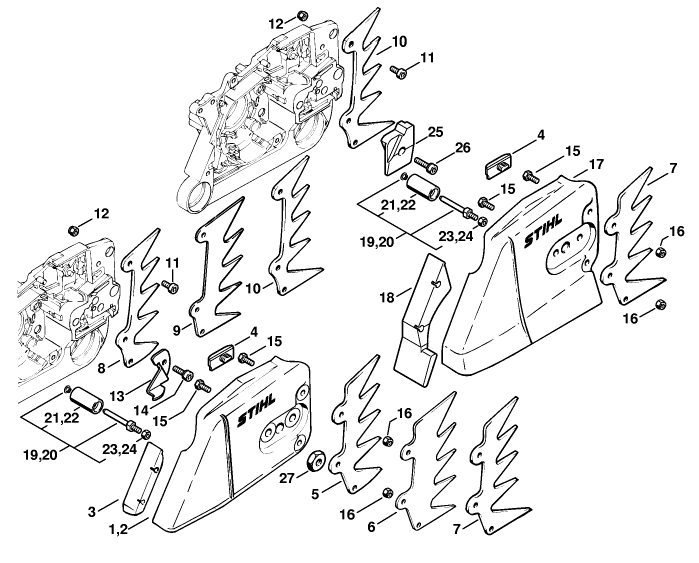

Chain sprocket cover

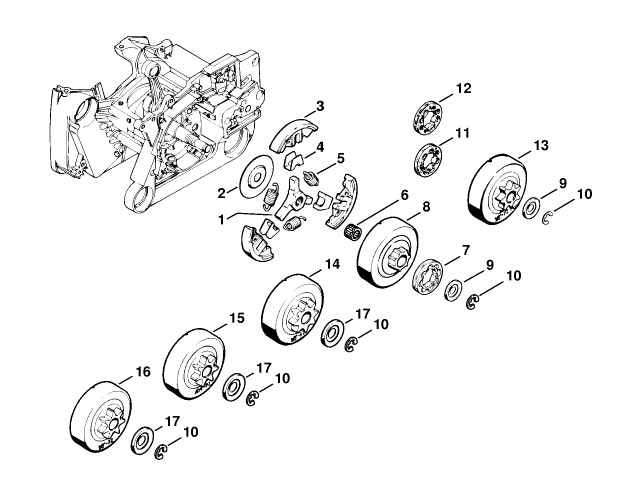

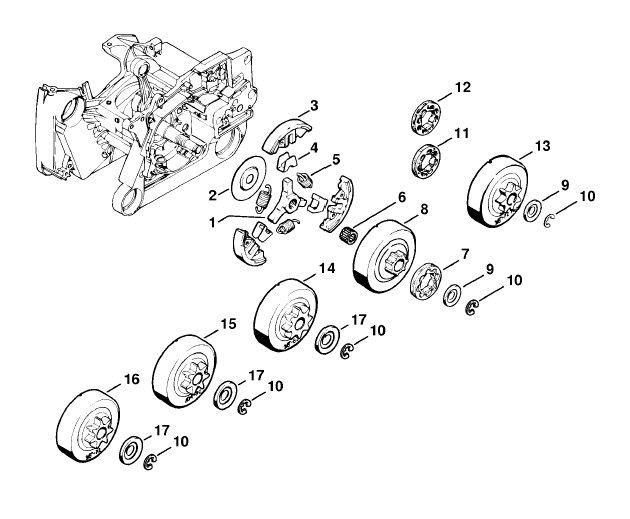

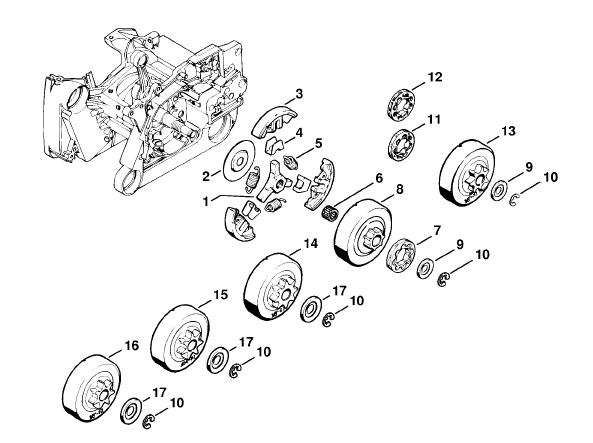

Clutch

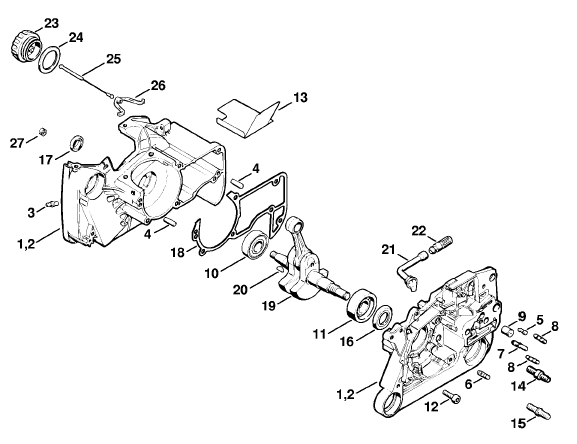

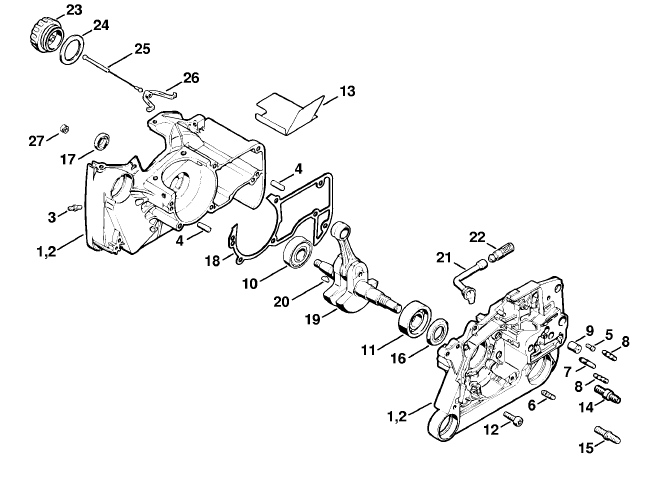

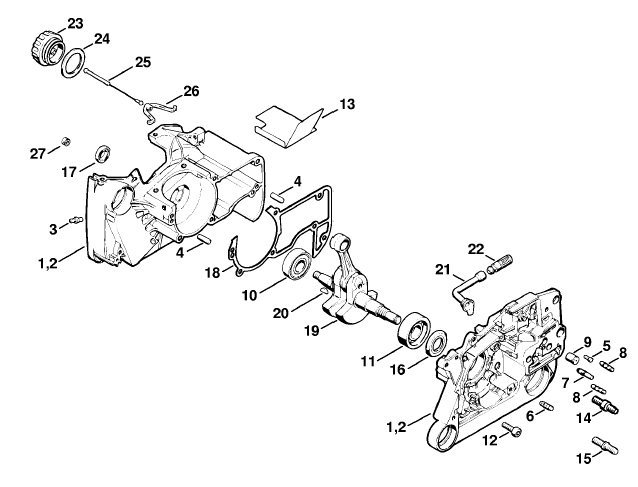

Crankcase

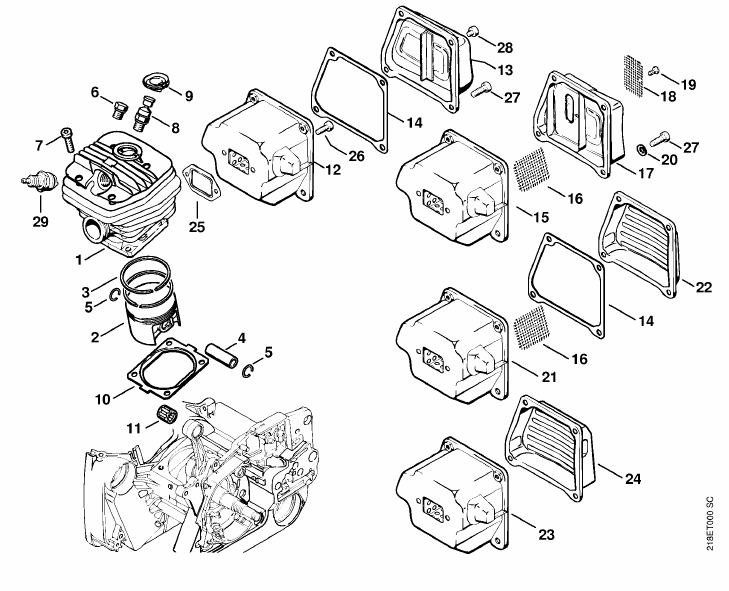

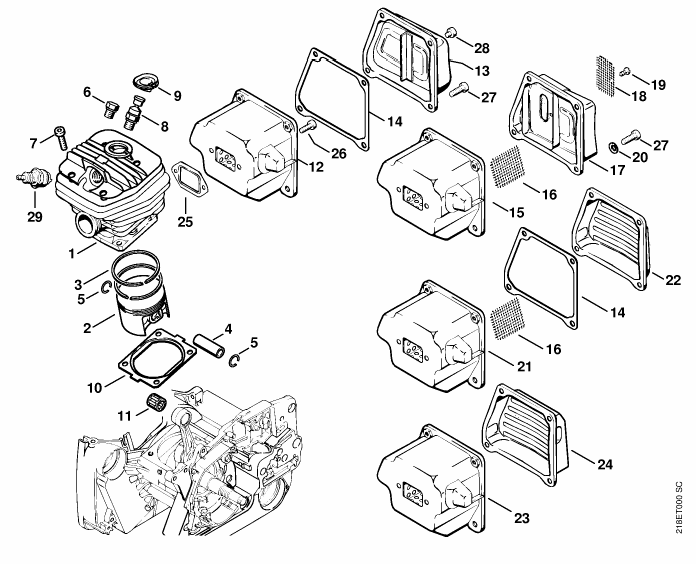

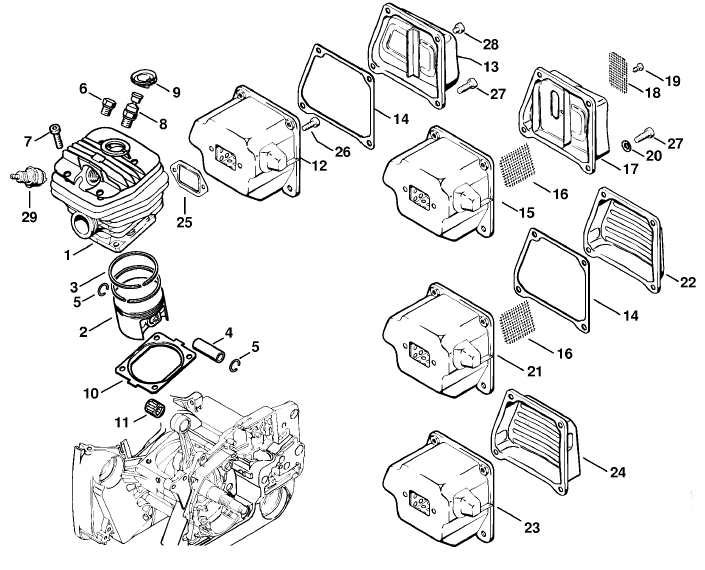

Cylinder

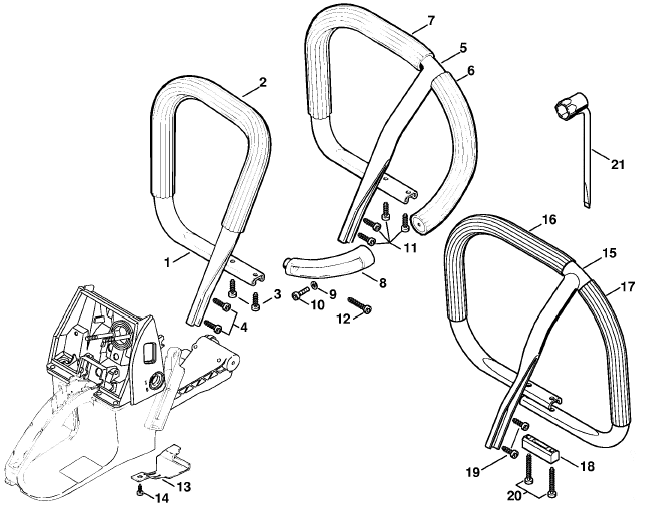

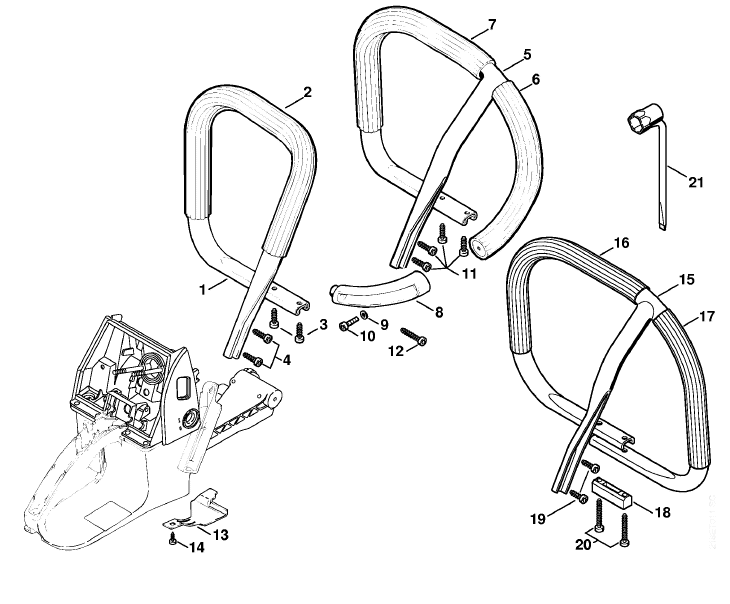

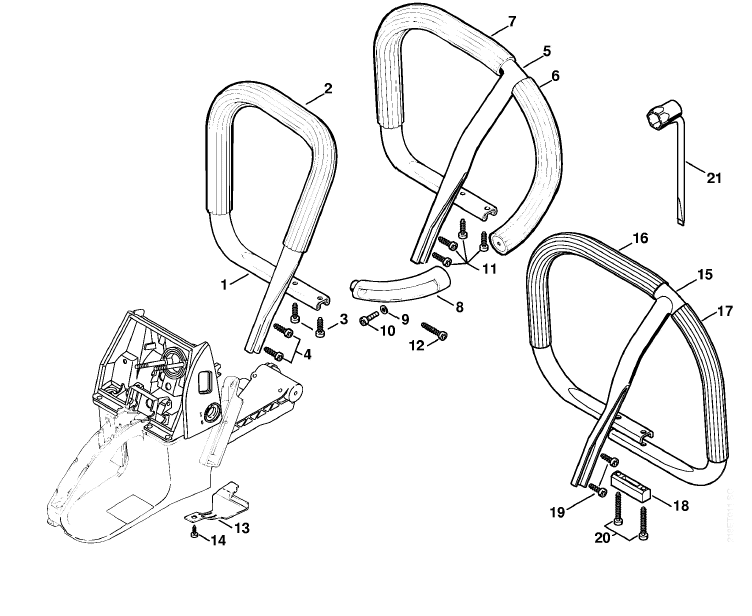

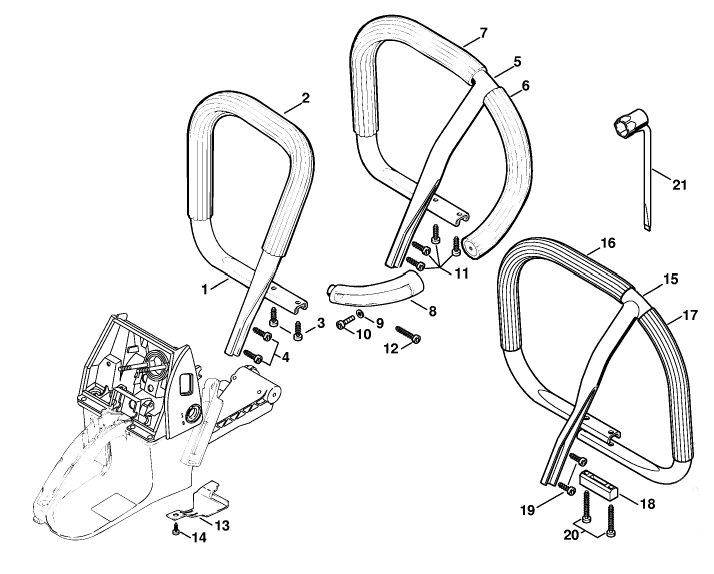

Handlebar

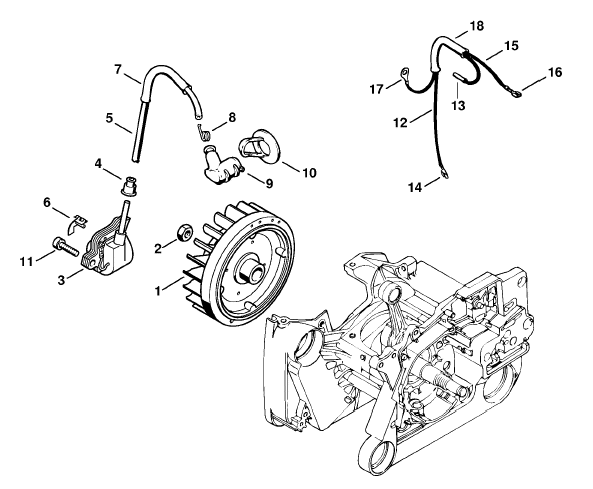

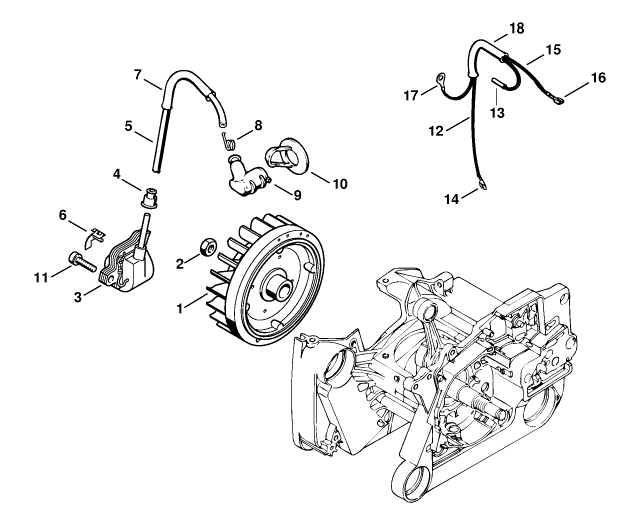

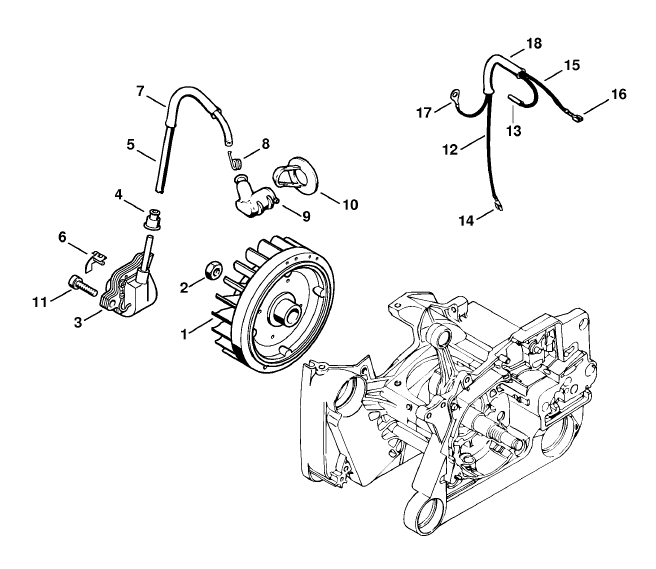

Ignition system

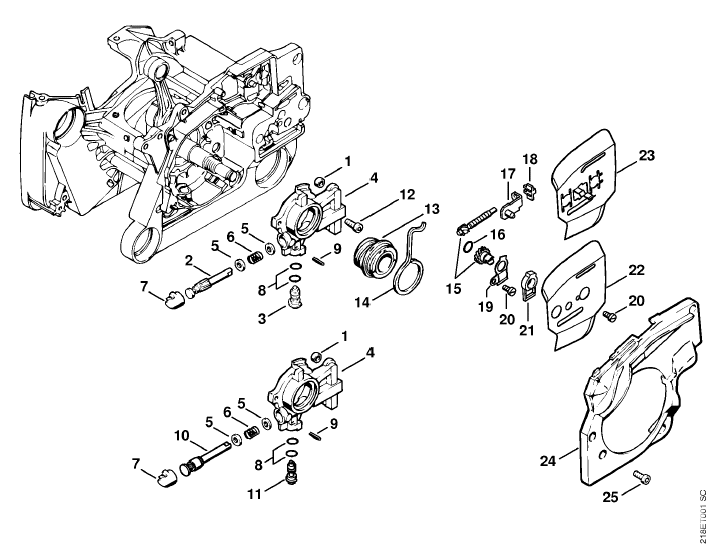

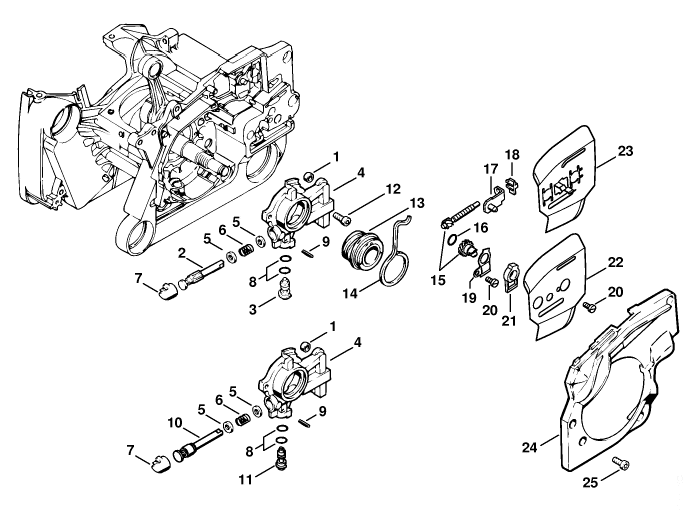

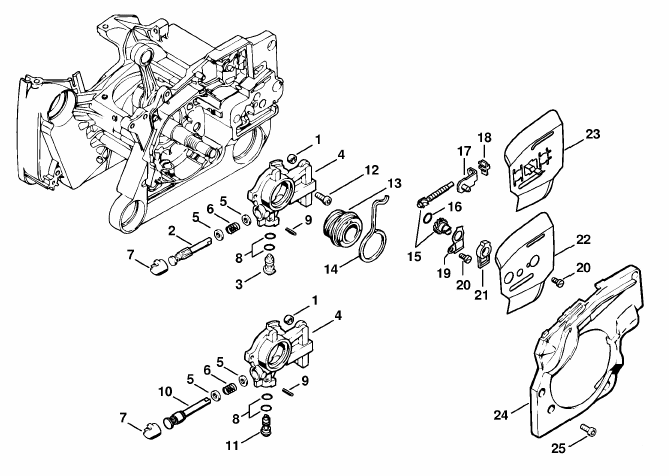

Oil pump

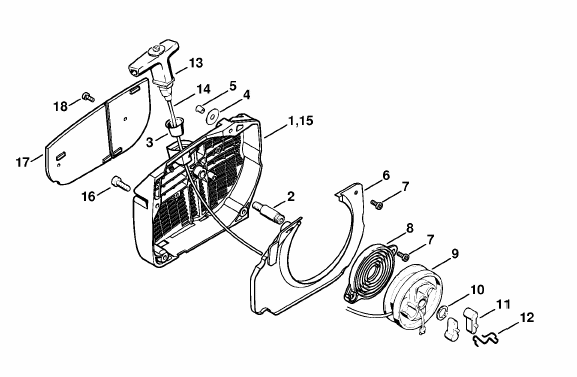

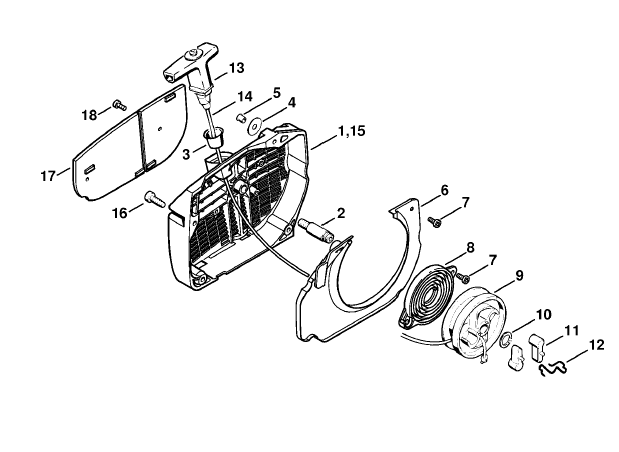

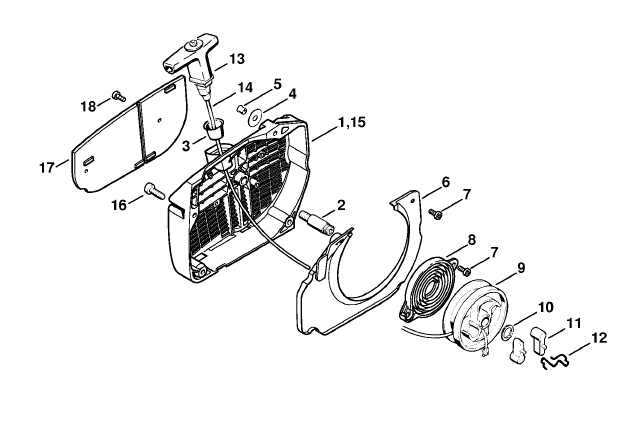

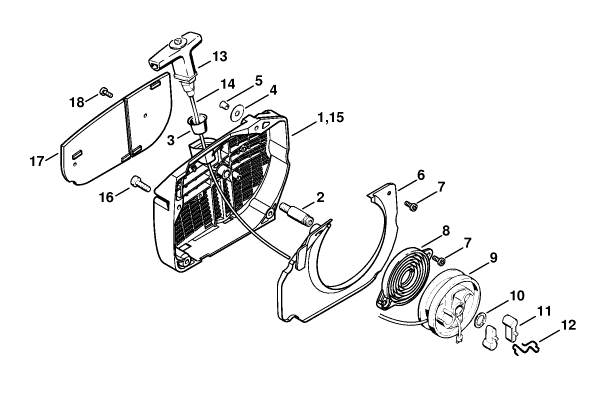

Rewind starter

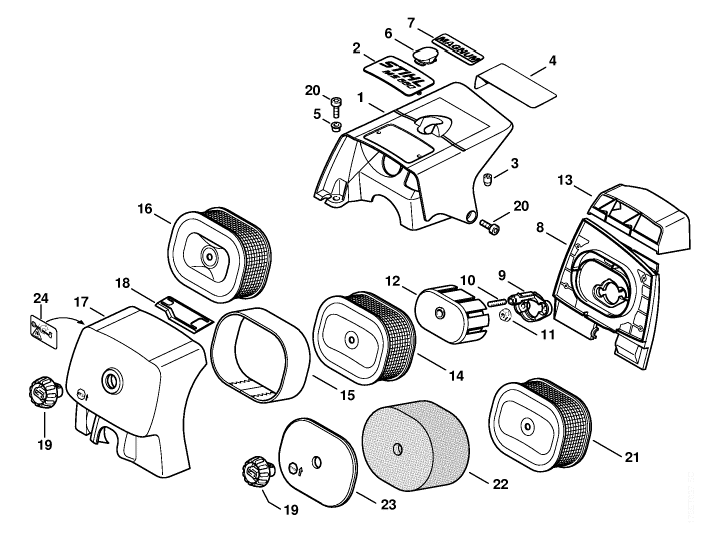

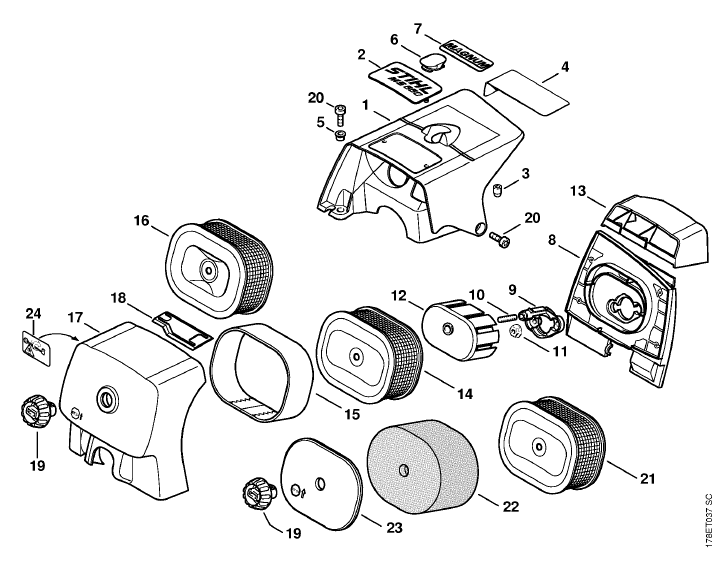

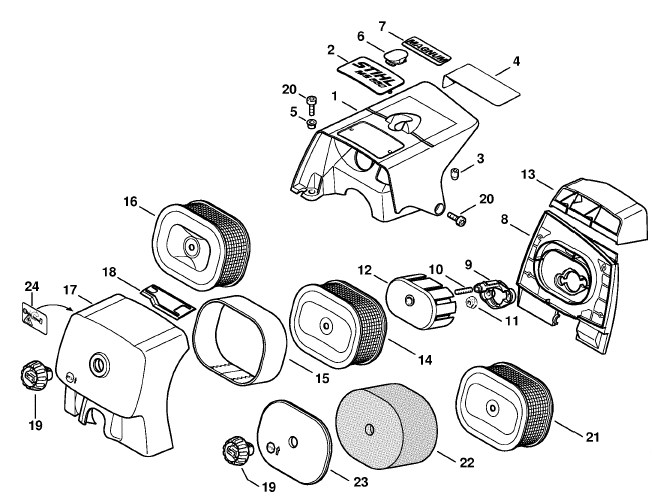

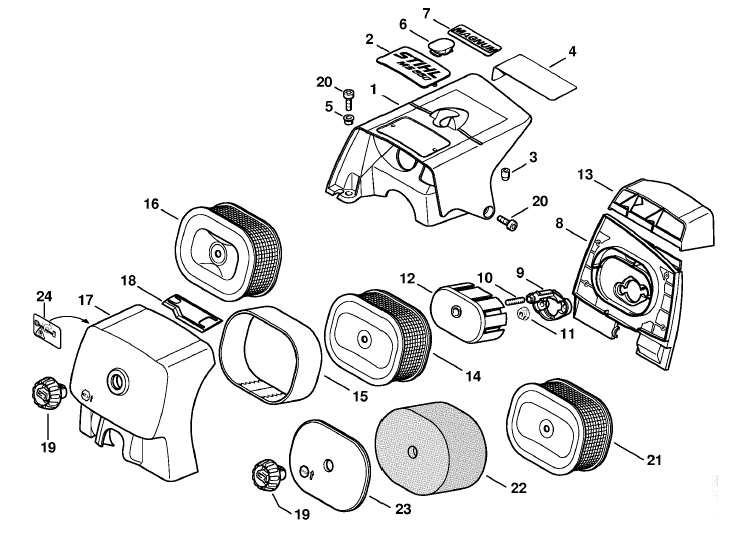

Shroud

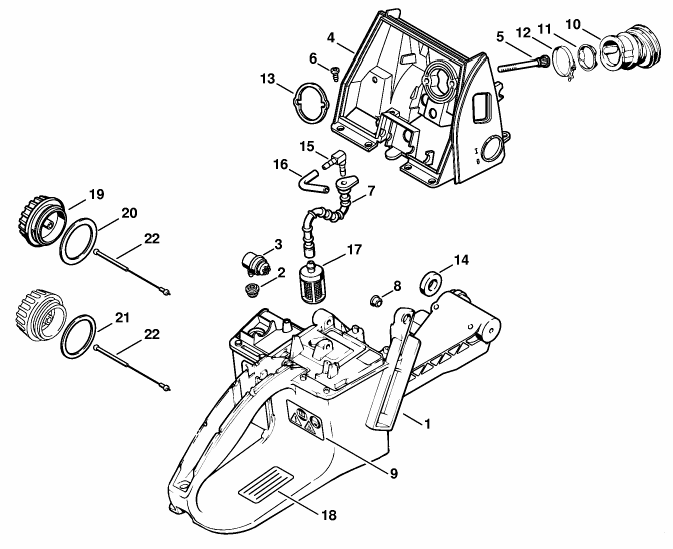

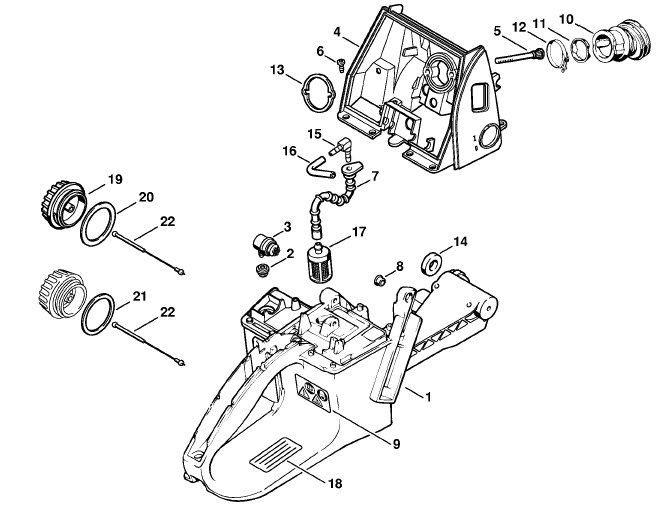

Tank housing

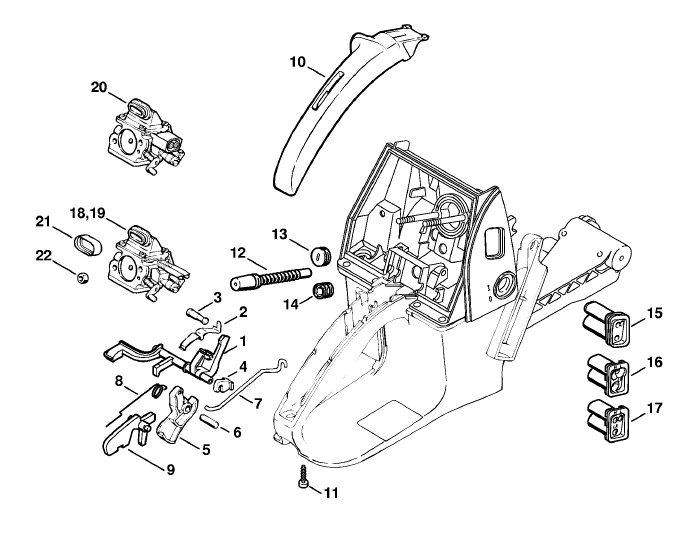

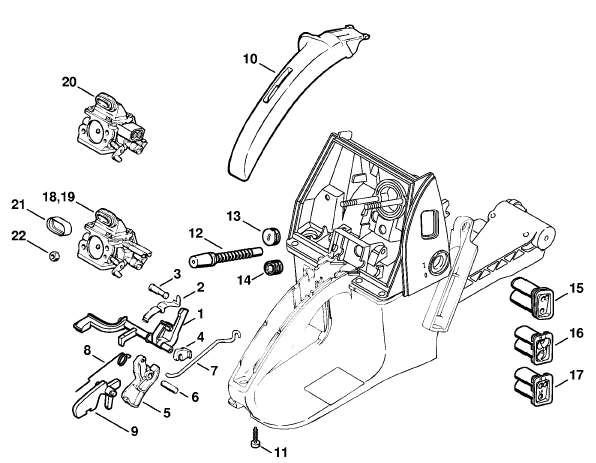

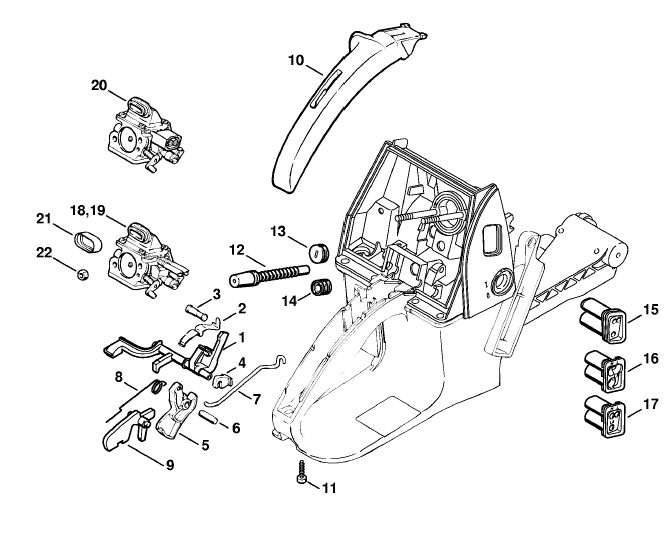

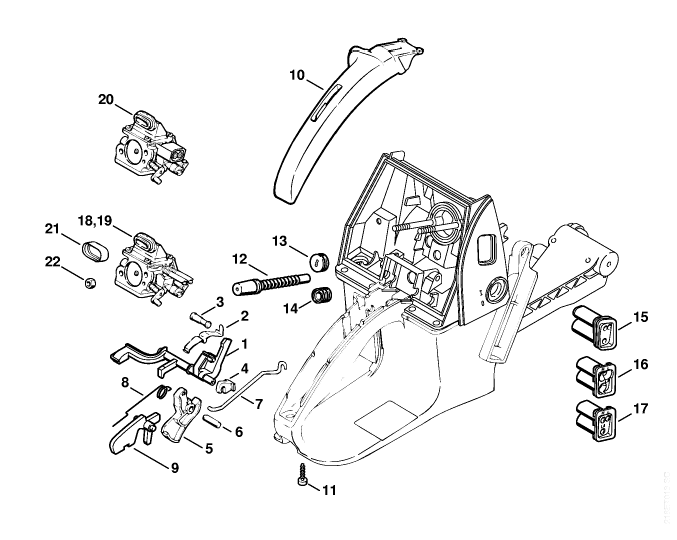

Throttle control

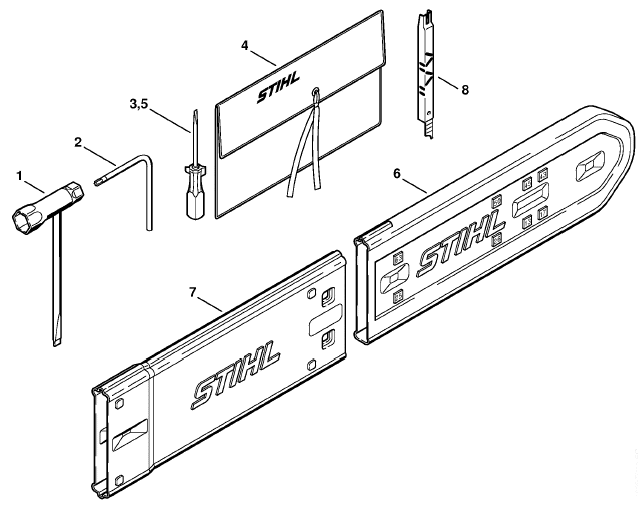

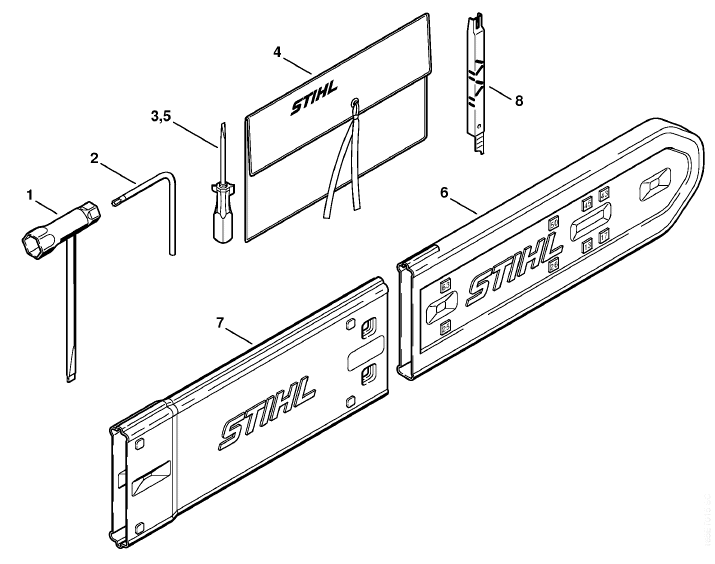

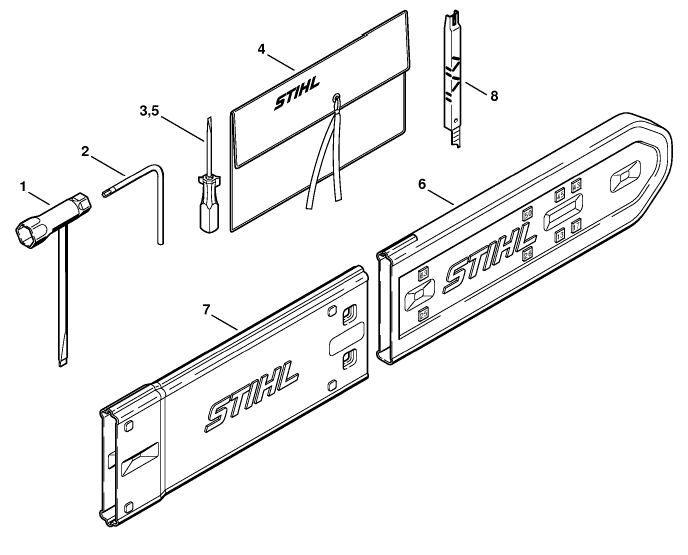

Tools
MS650 Magnum

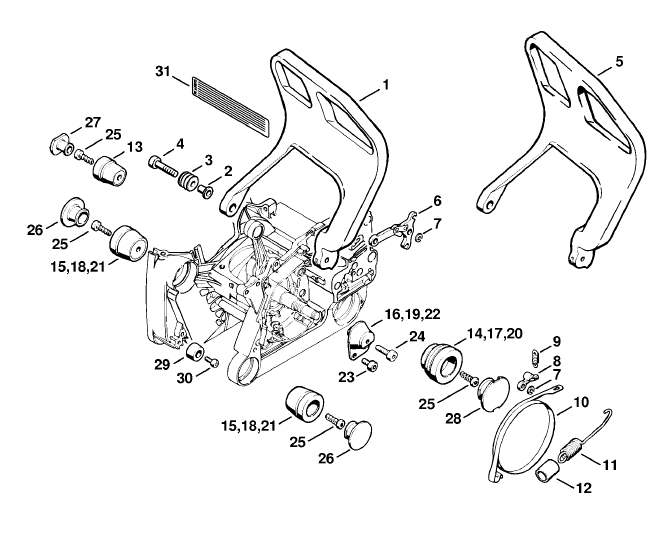

AV System

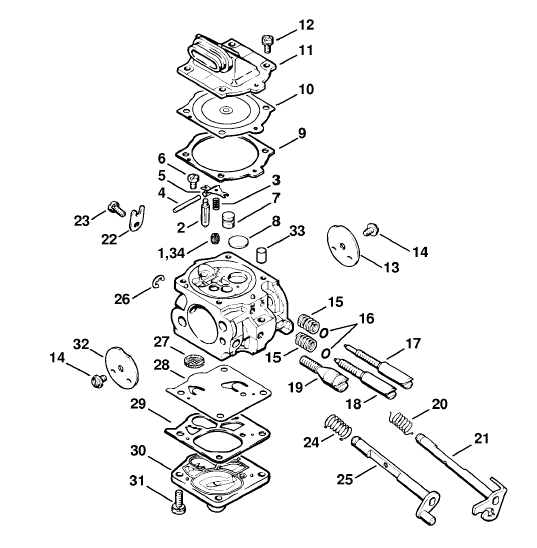

Carburetor Wj-67

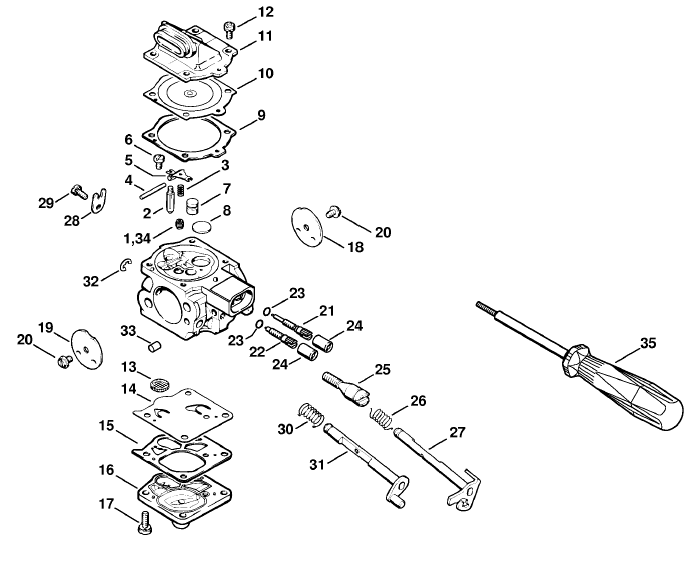

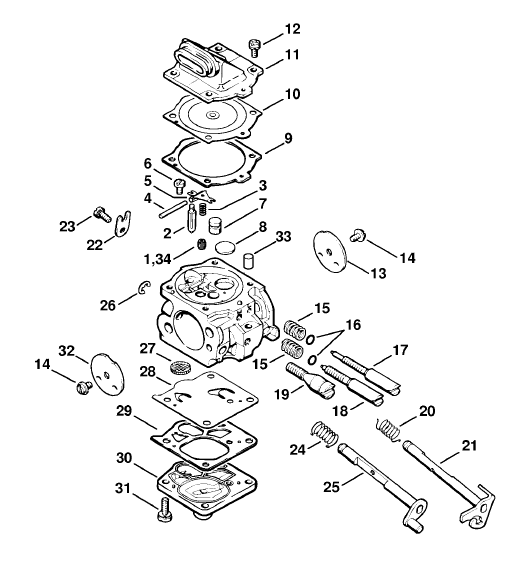

Carburetor WJ-69A

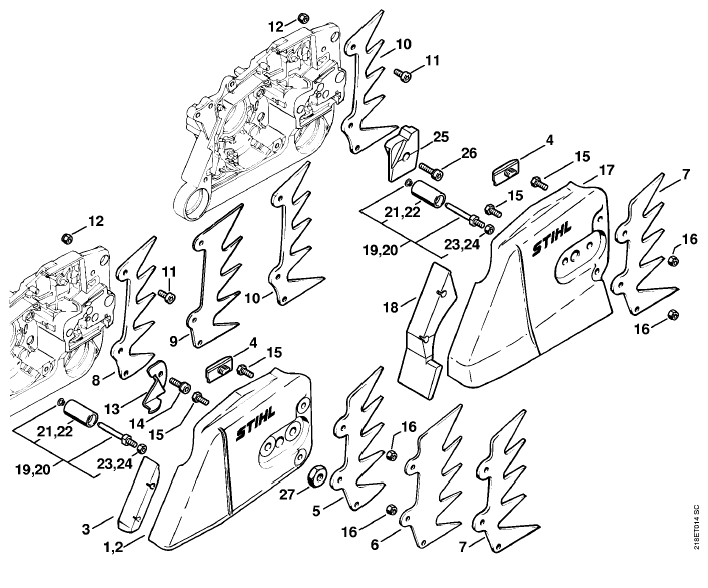

Chain Sprocketr Cover
Clutch

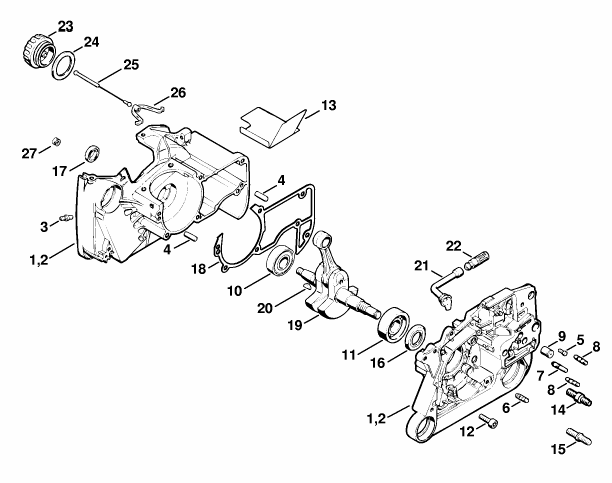

Crankcase

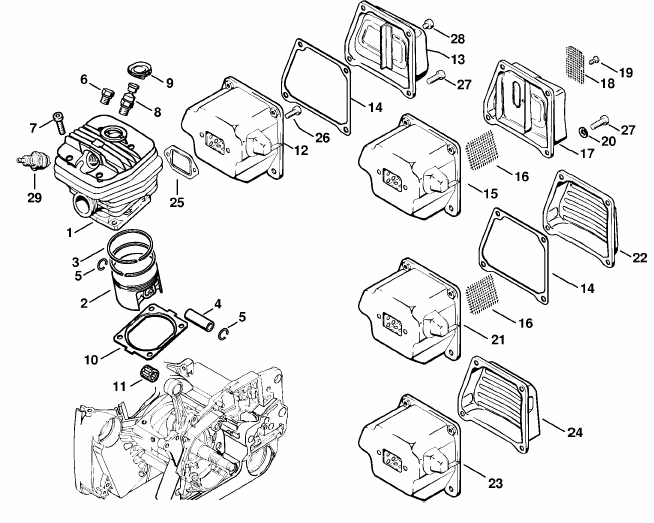

Cylinder
Handlebar
Ignition System

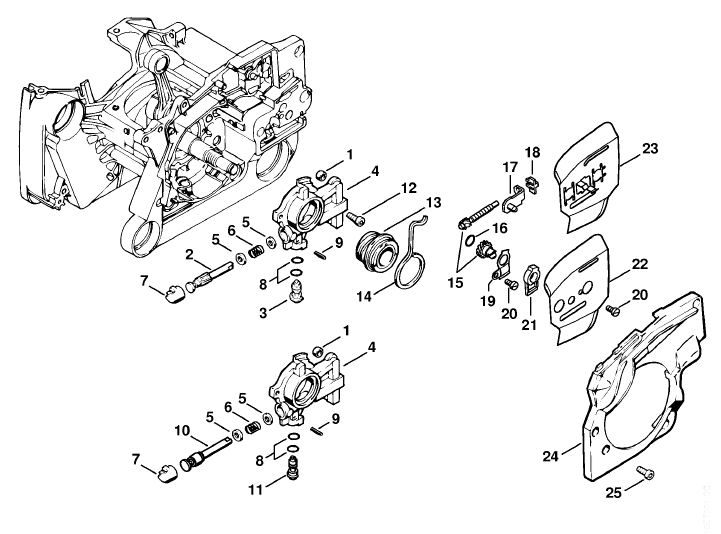

Oil Pump
Rewind Starter
Shroud

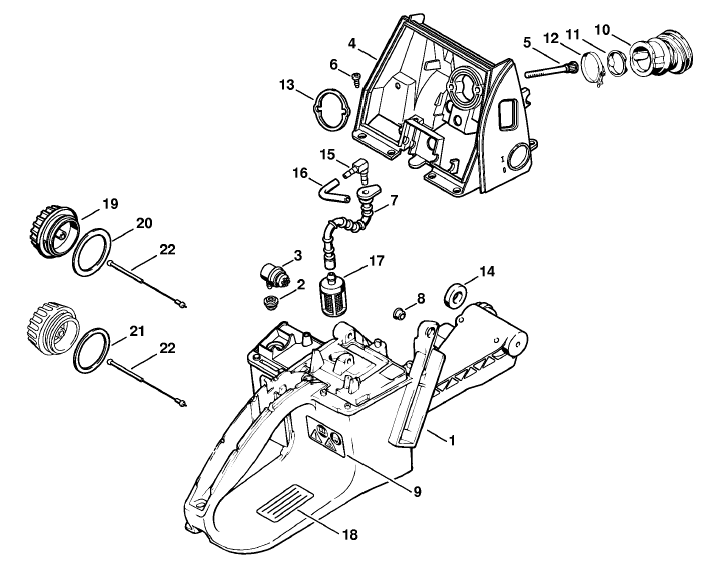

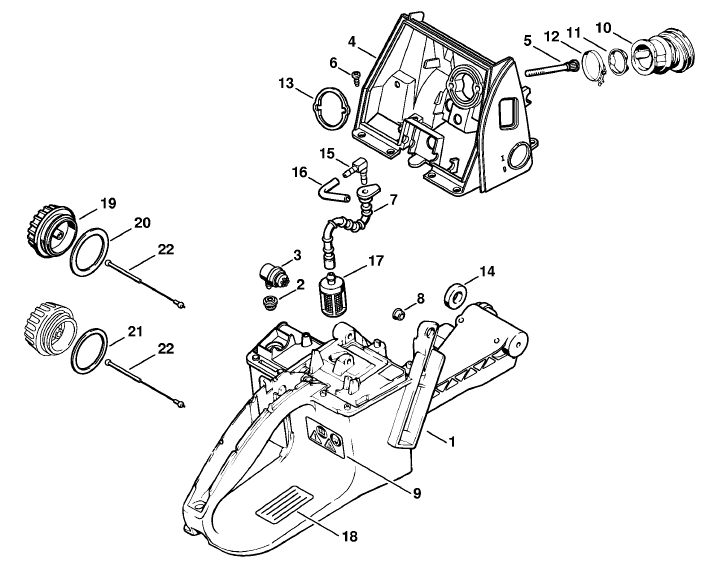

Tank Housing
Throttle Control

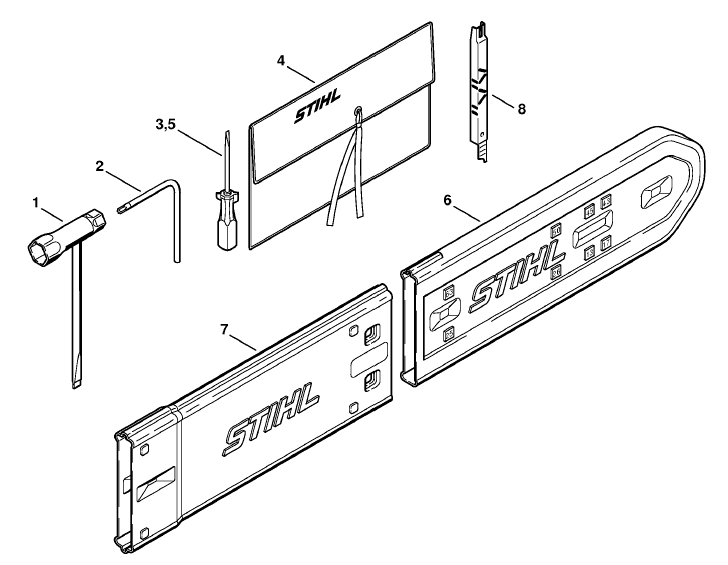

Tools
MS650 Magnum BR
AV System

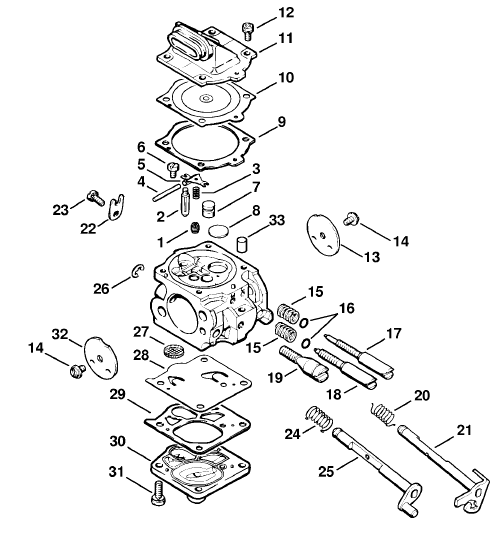

Carburetor WJ76
Carburetor WJ-67
Chain Sprocket Cover

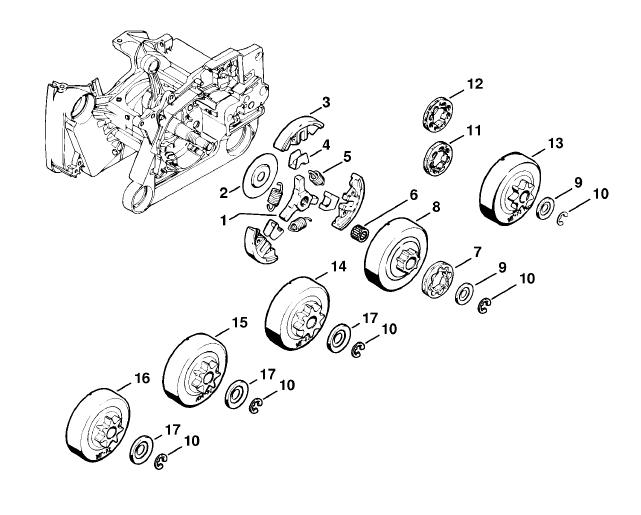

Clutch
Crankcase
Cylinder
Handlebar
Ignition System
Oil Pump
Rewind Starter
Shroud
Tank Housing
Throttle Control
Tools
