Diagrams for the Stihl MS 230 Chainsaw
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl MS 230 Chainsaw.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl MS 230 Chainsaw
MS230

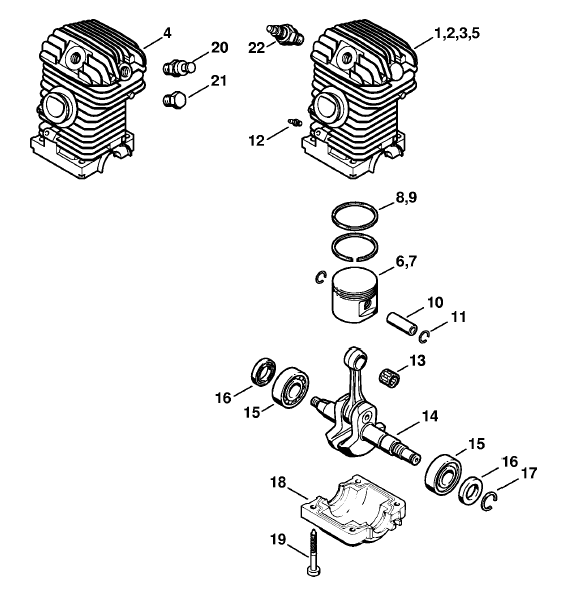

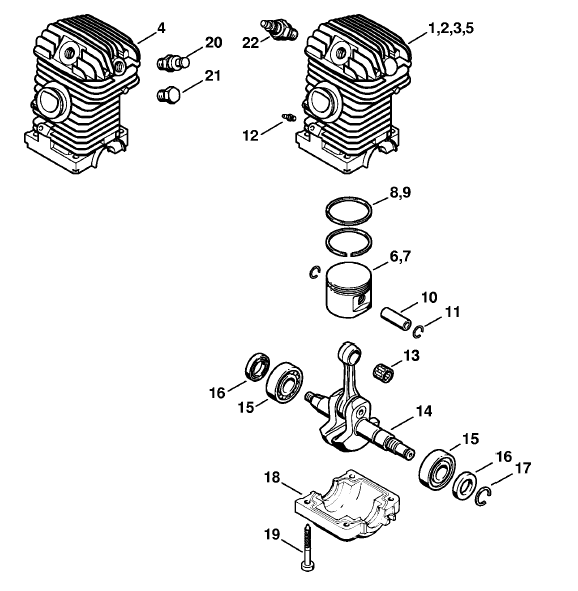

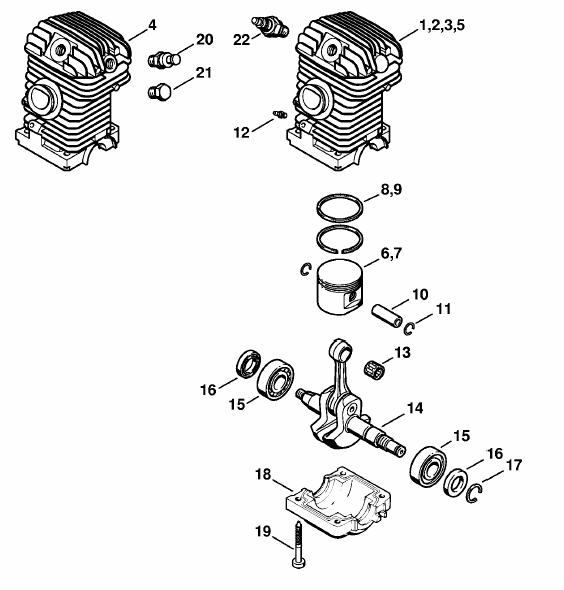

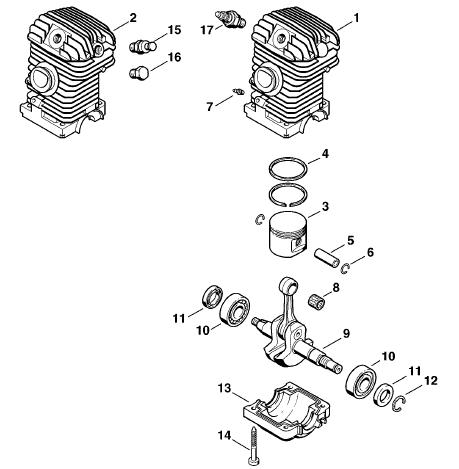

Shortblock MS 230

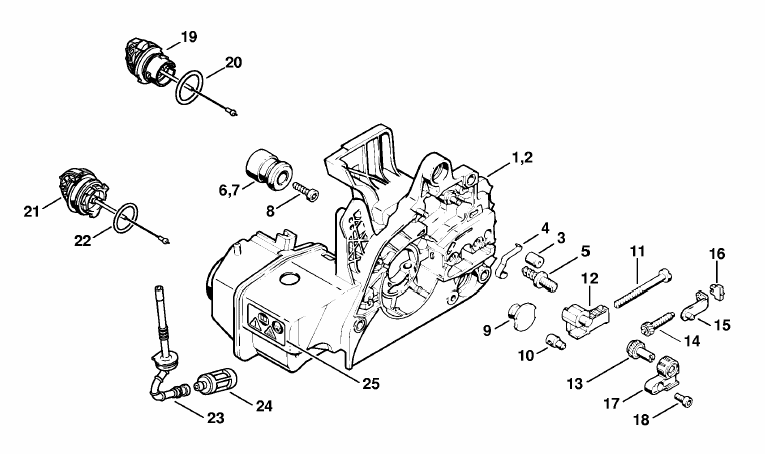

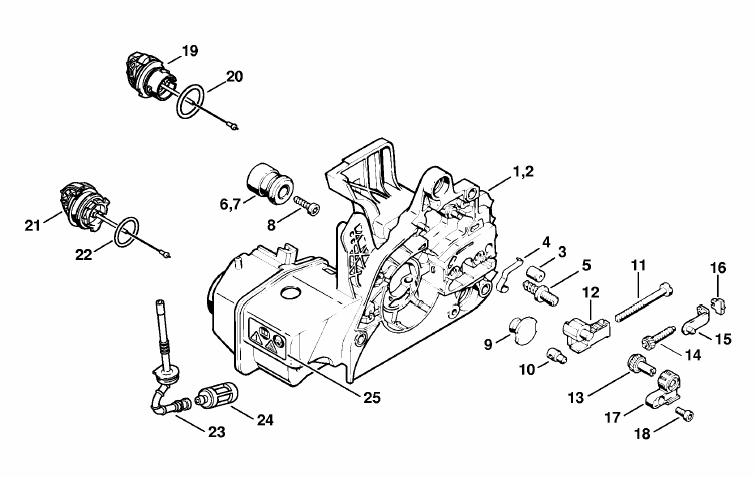

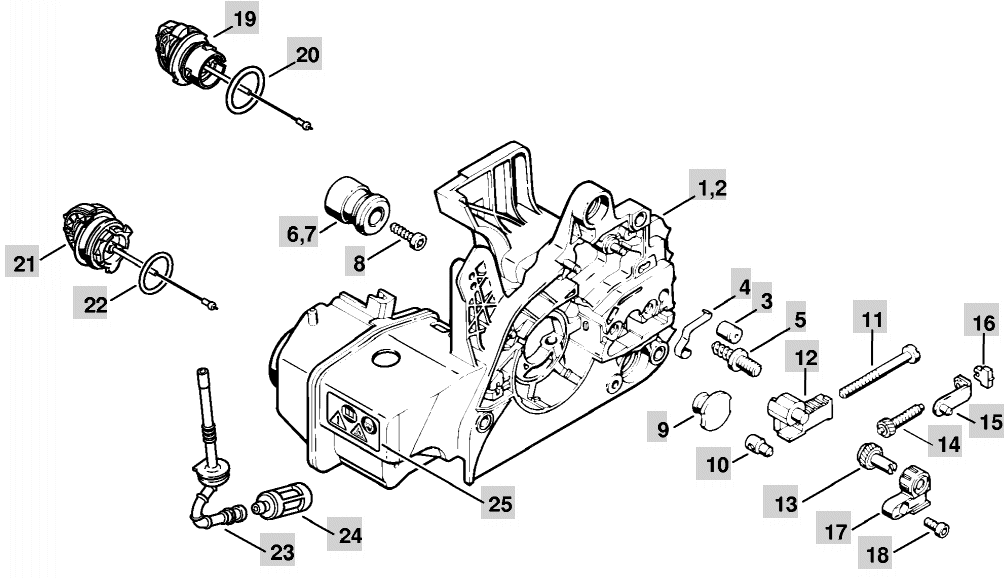

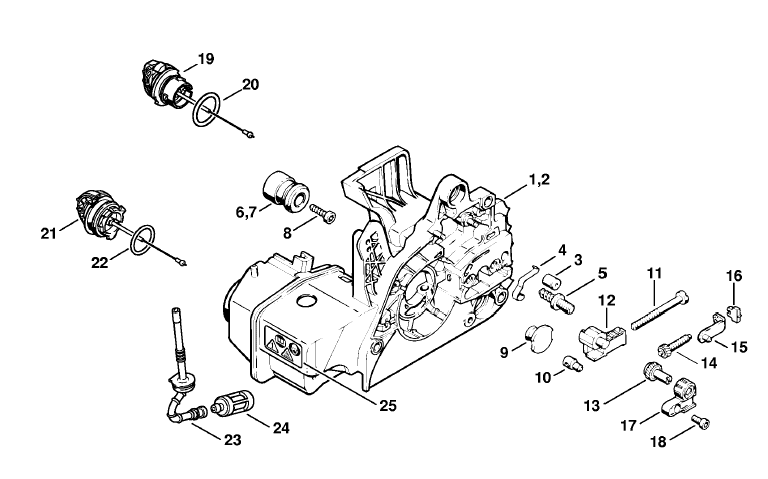

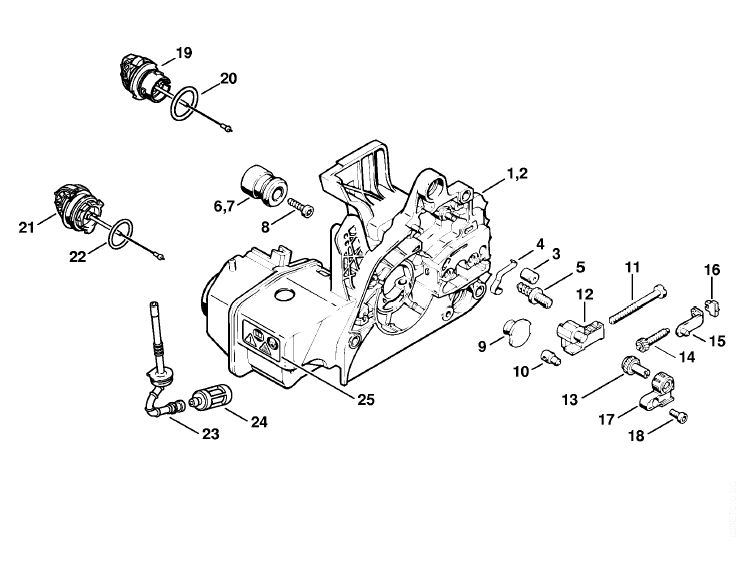

Engine housing

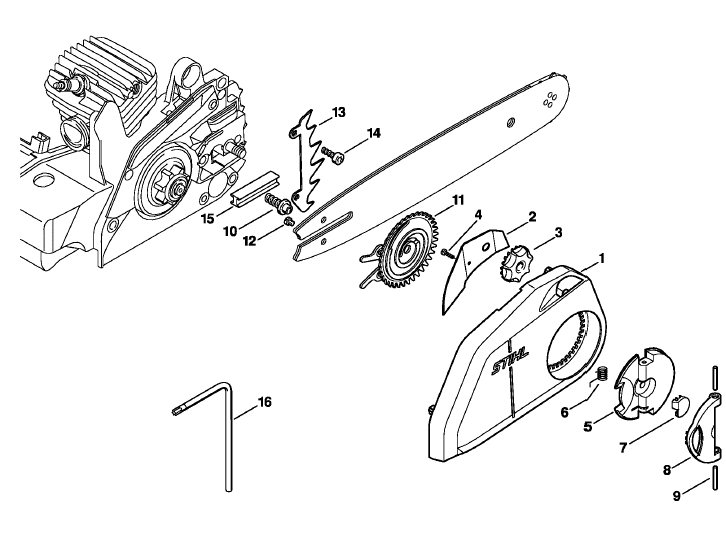

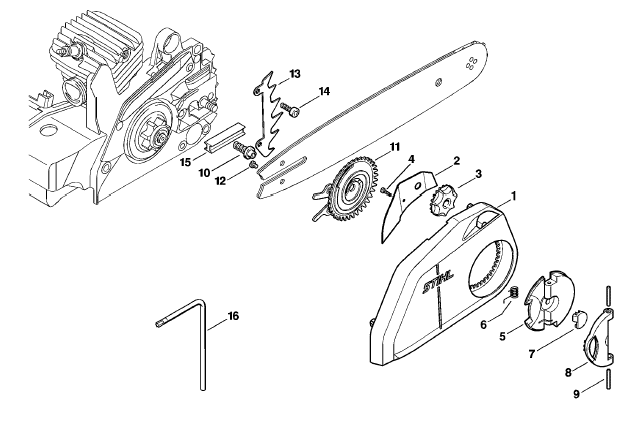

Quick tensioner parts

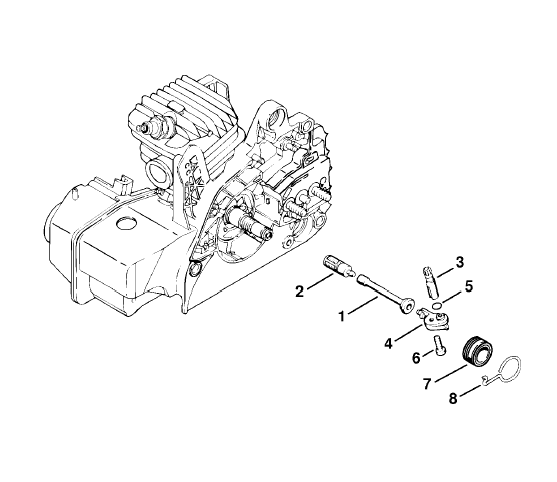

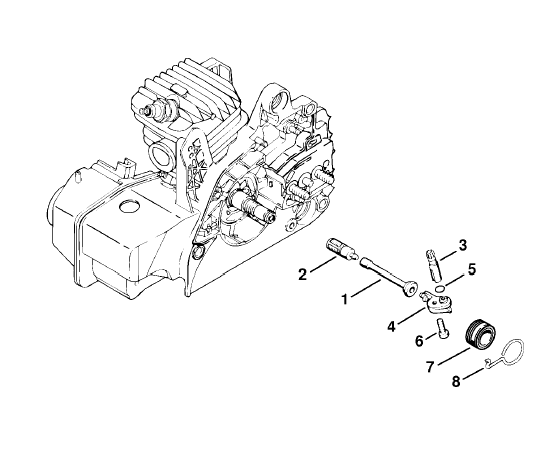

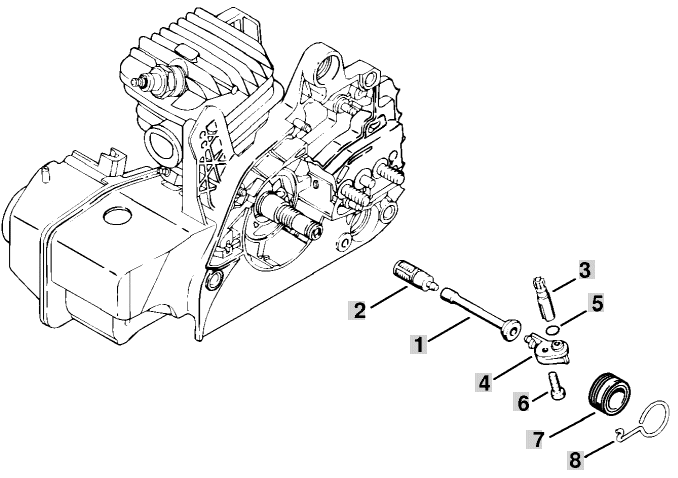

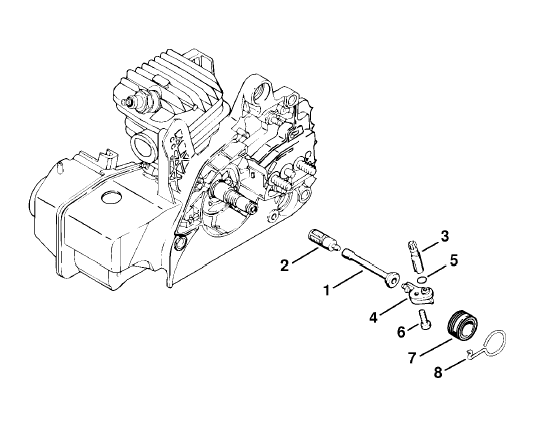

Oil pump

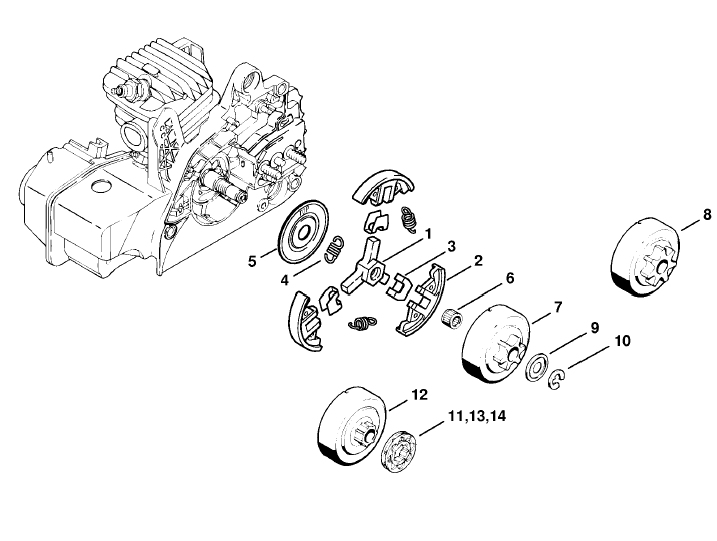

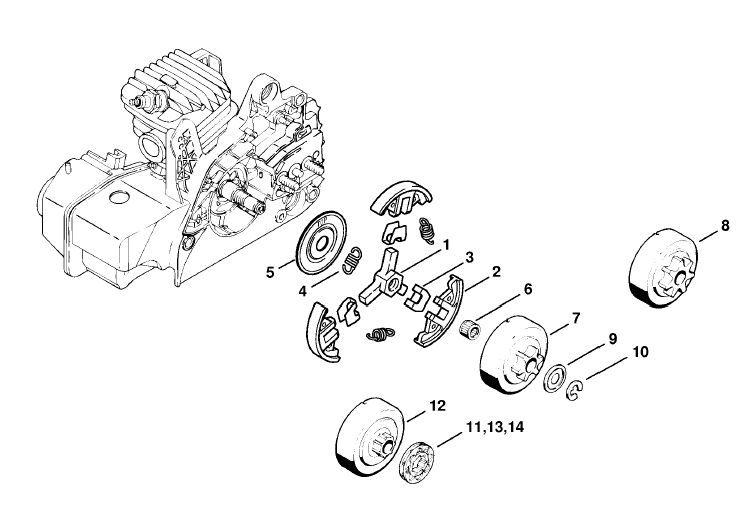

Clutch

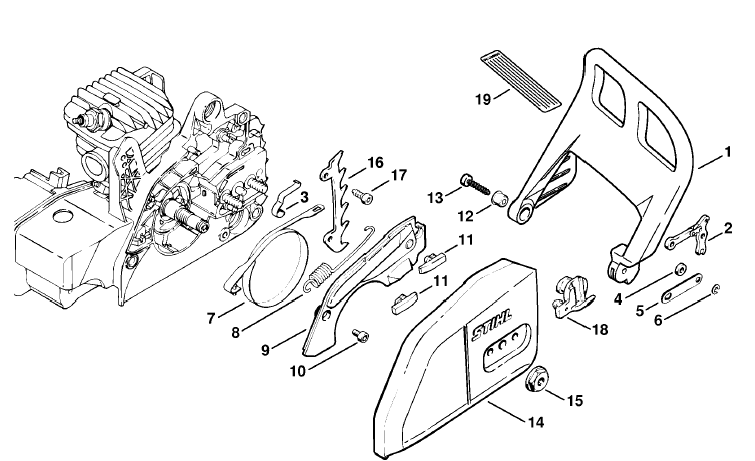

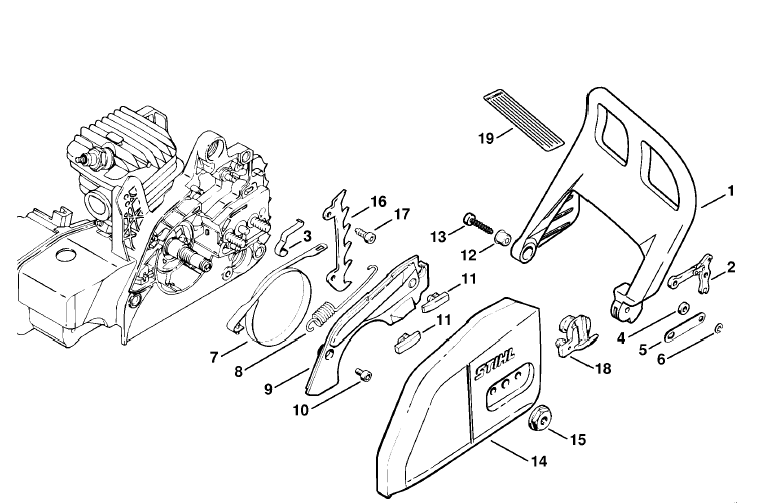

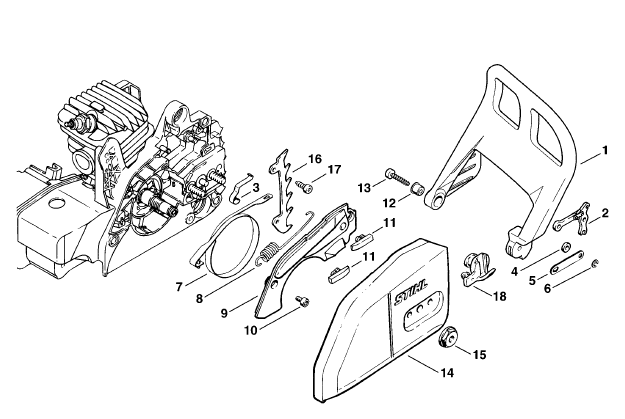

Chain brake

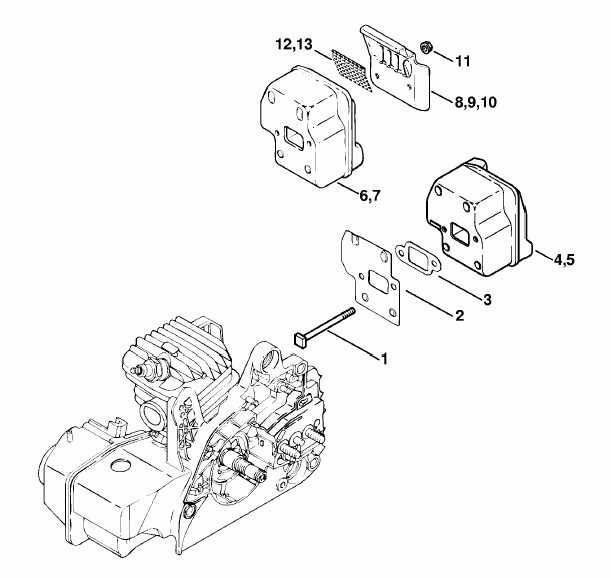

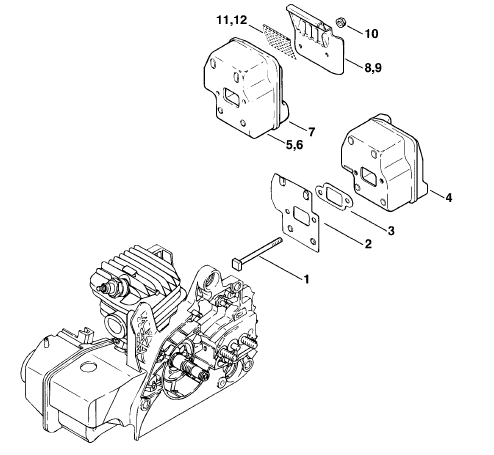

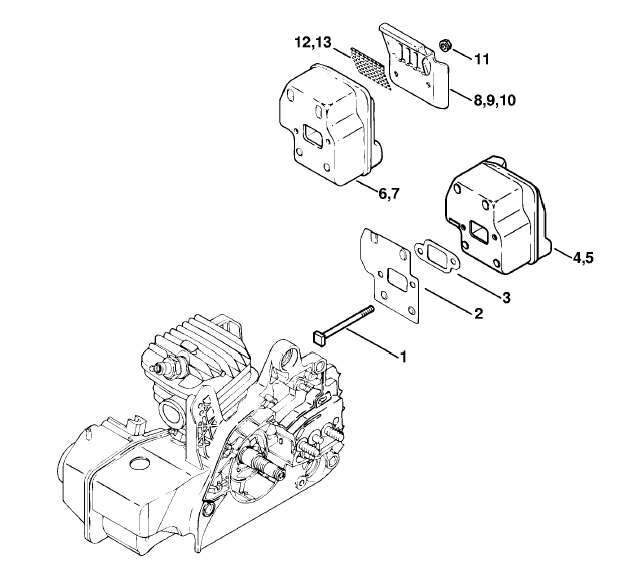

Muffler

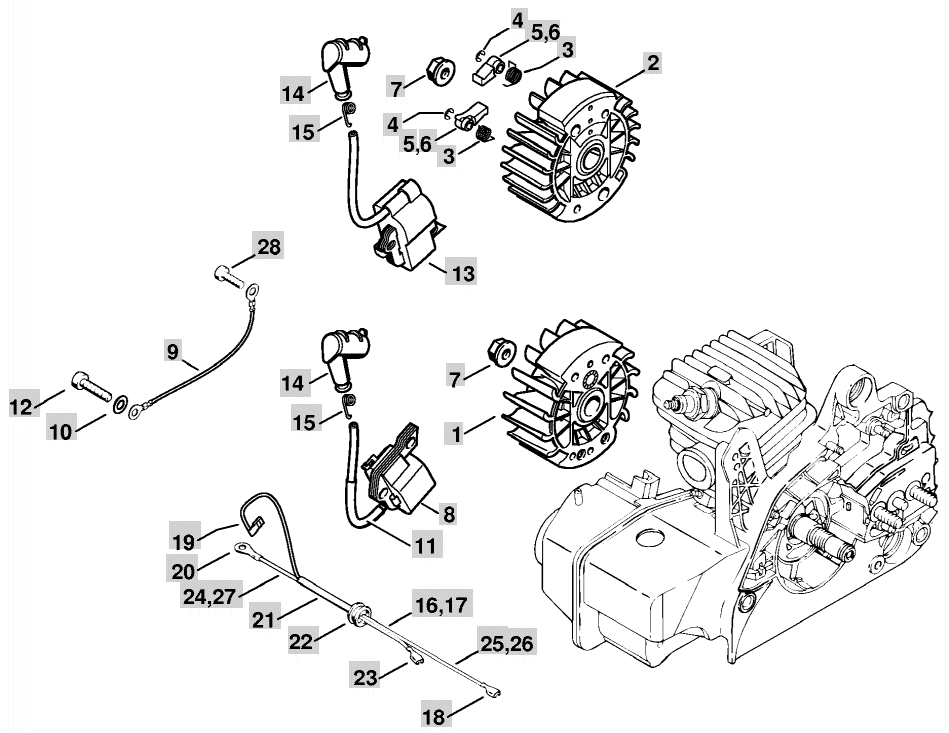

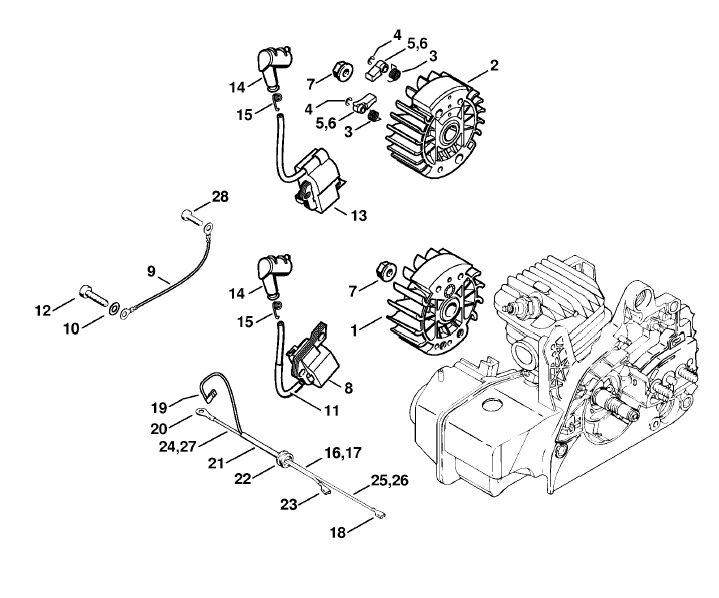

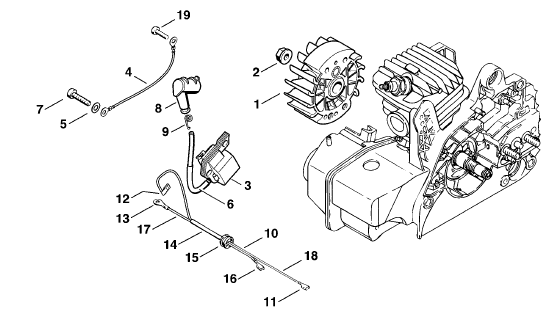

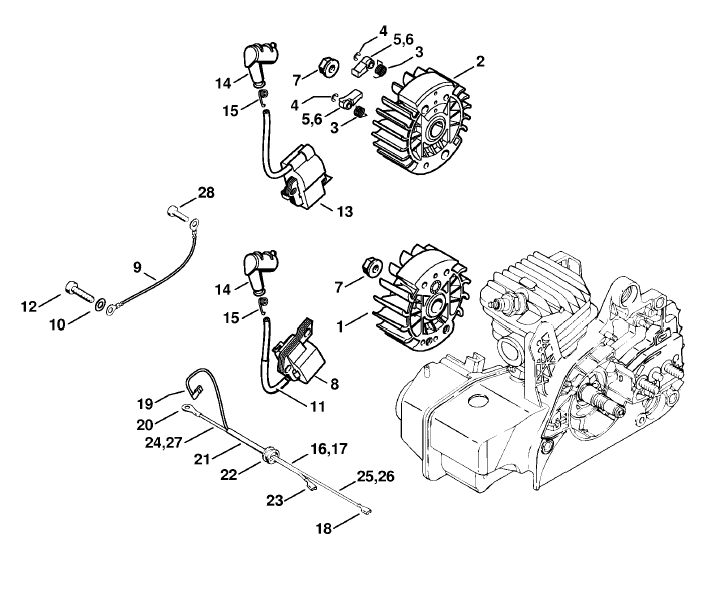

Ignition system

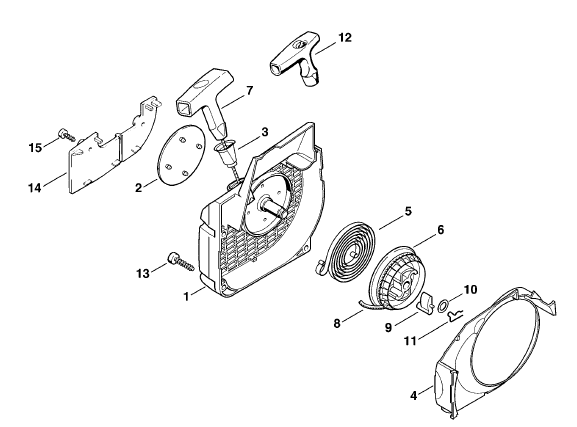

Rewind starter

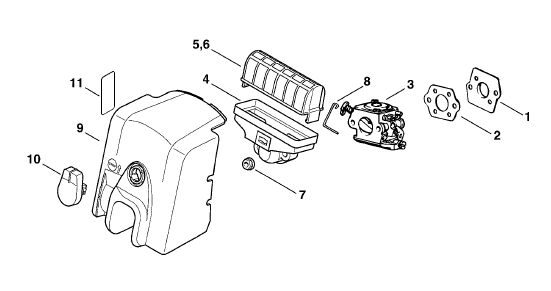

Air filter

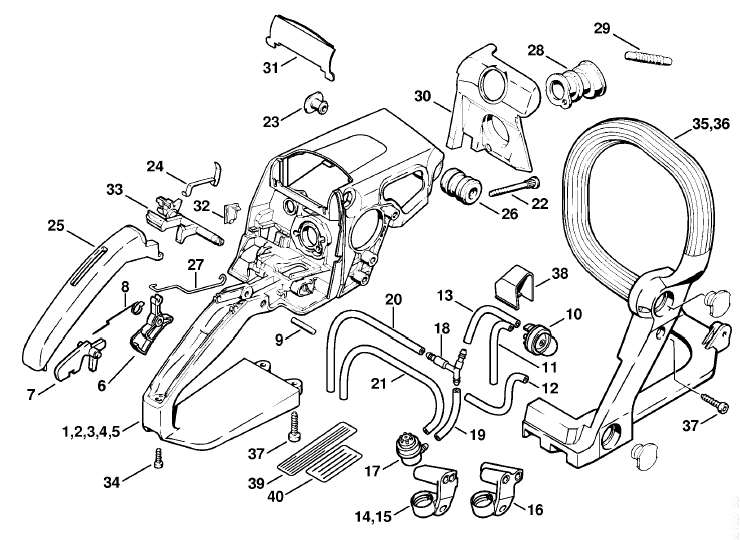

Handle housing

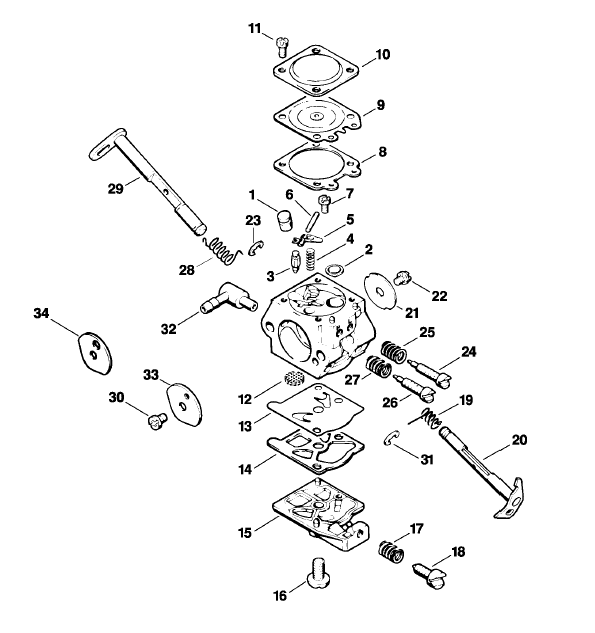

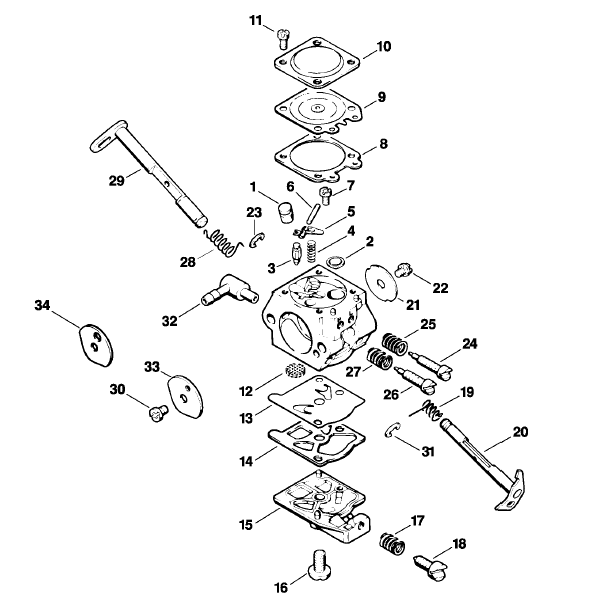

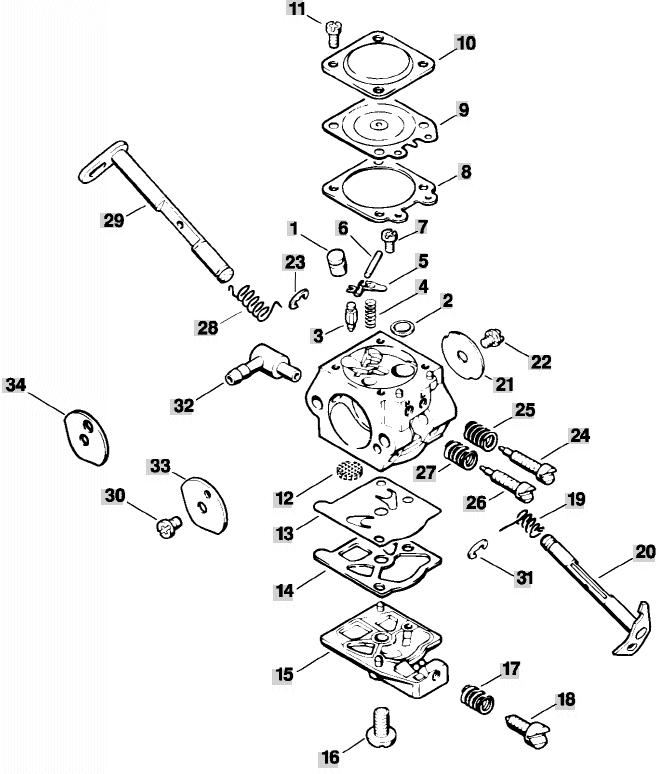

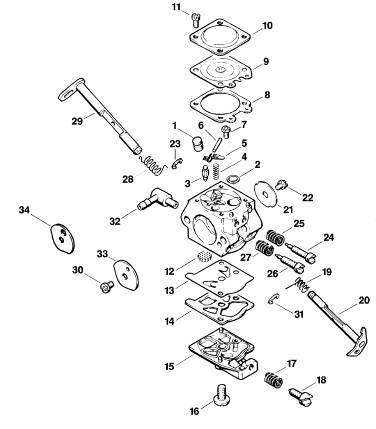

Carburetor WT-215 - WT-286

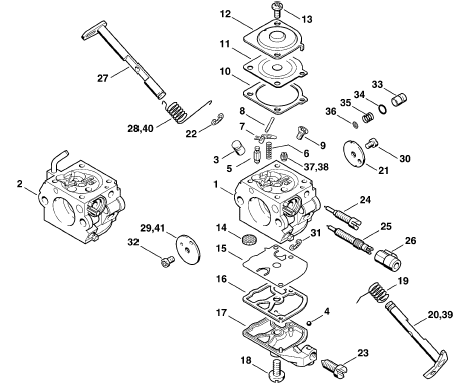

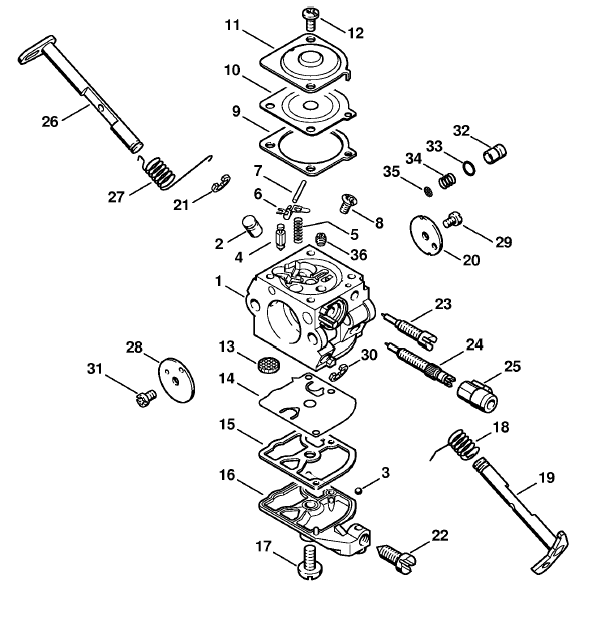

CarbC1Q-S75-C1Q-S76-C1Q-S77 USA

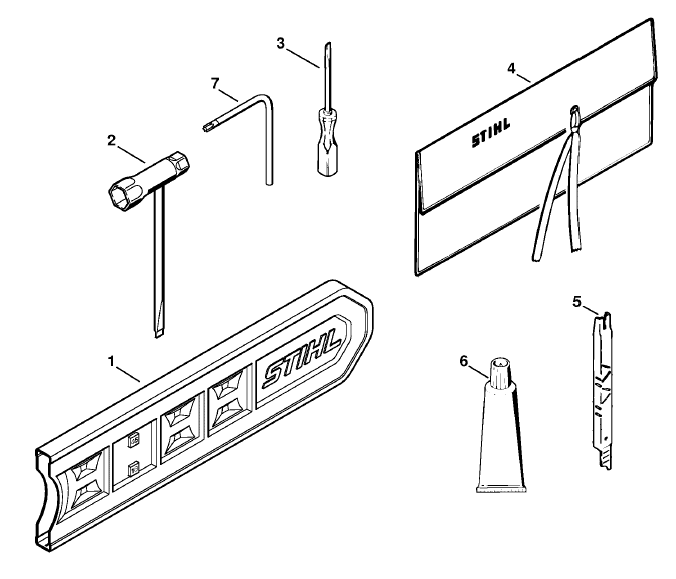

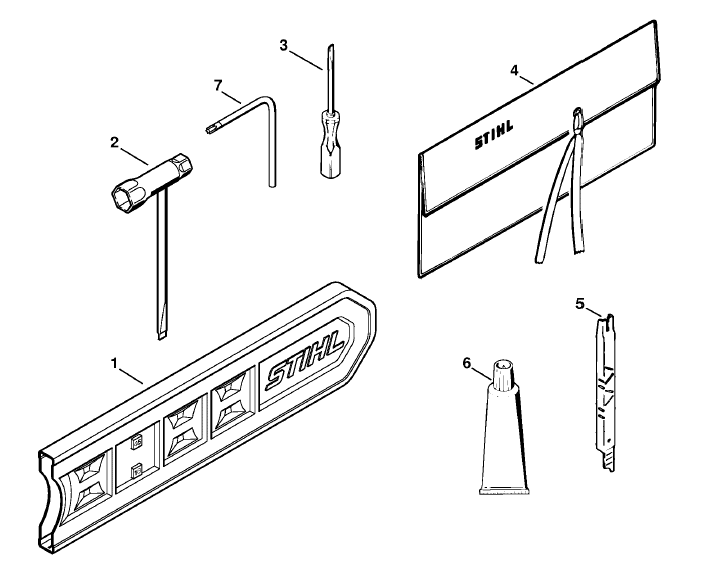

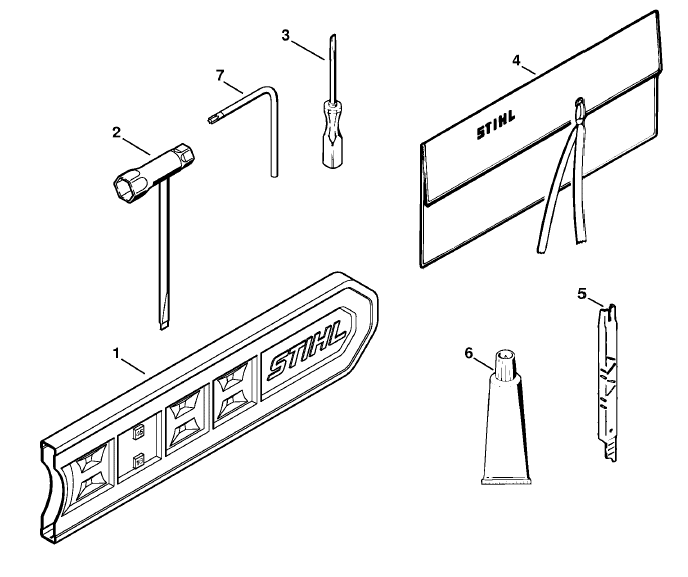

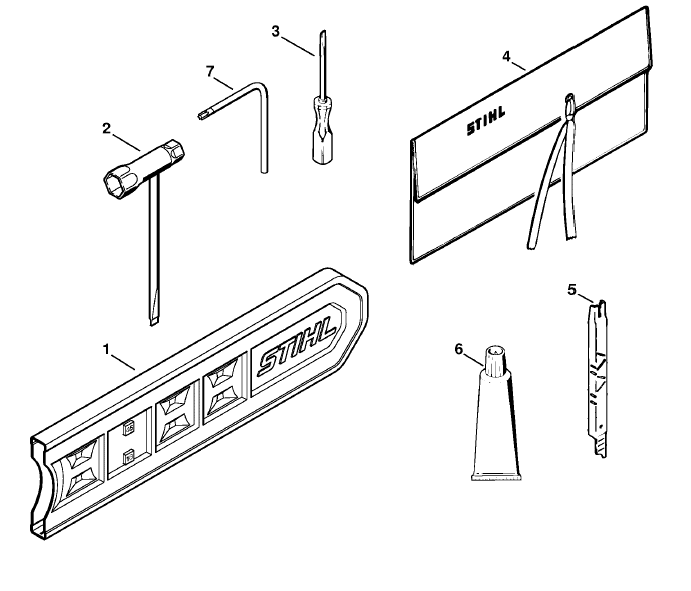

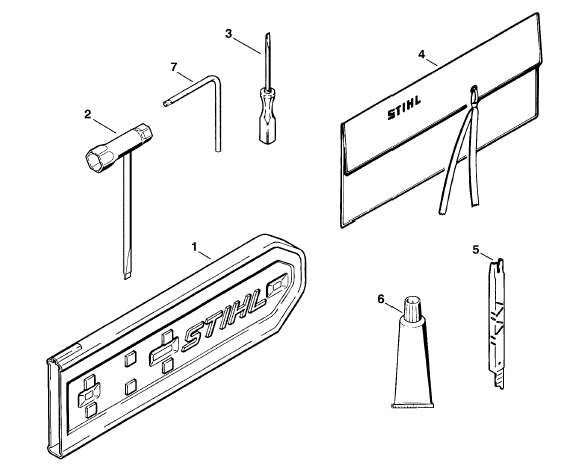

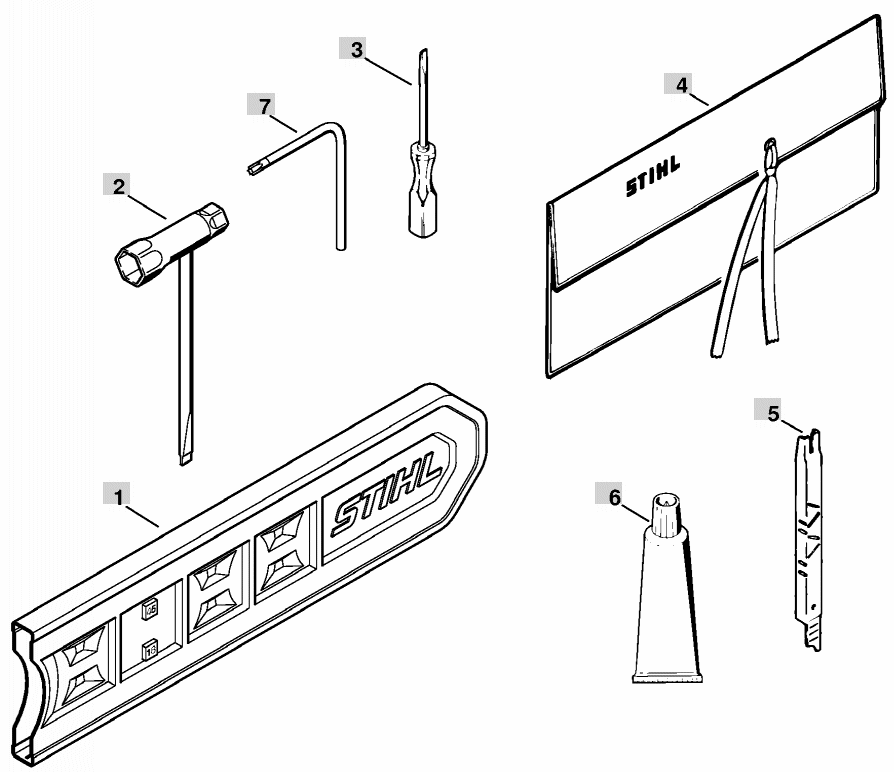

Tools - Extras
MS230C

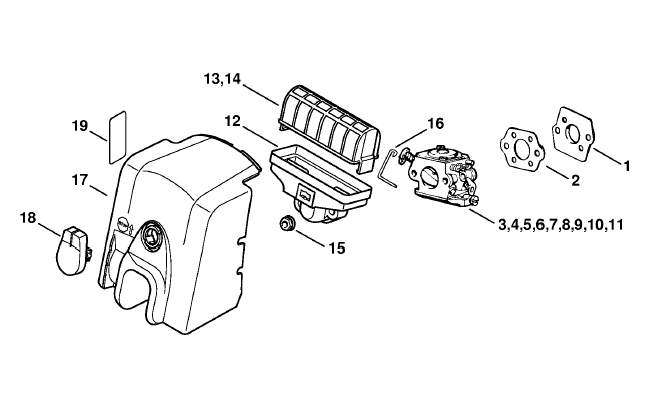

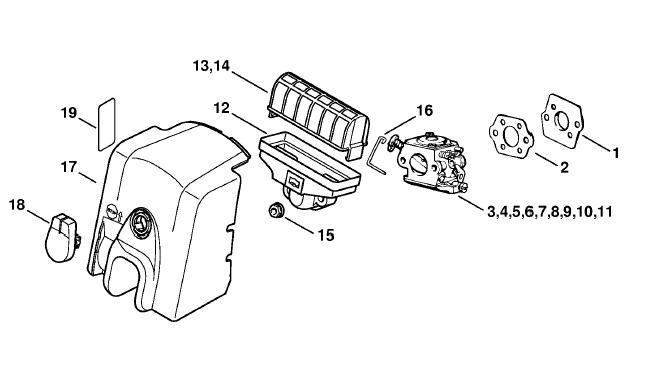

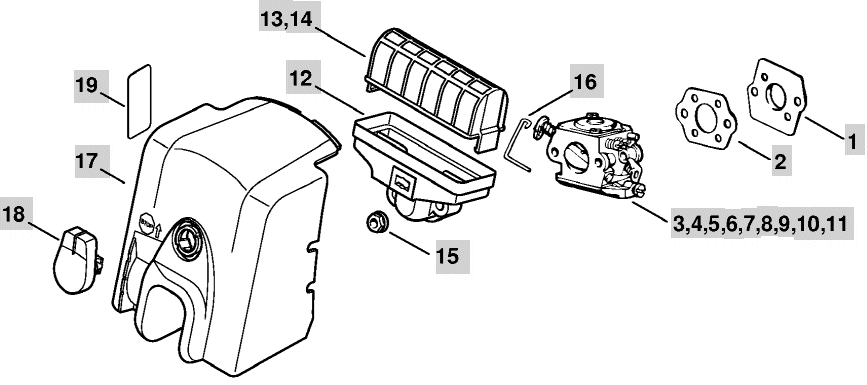

Air Filter

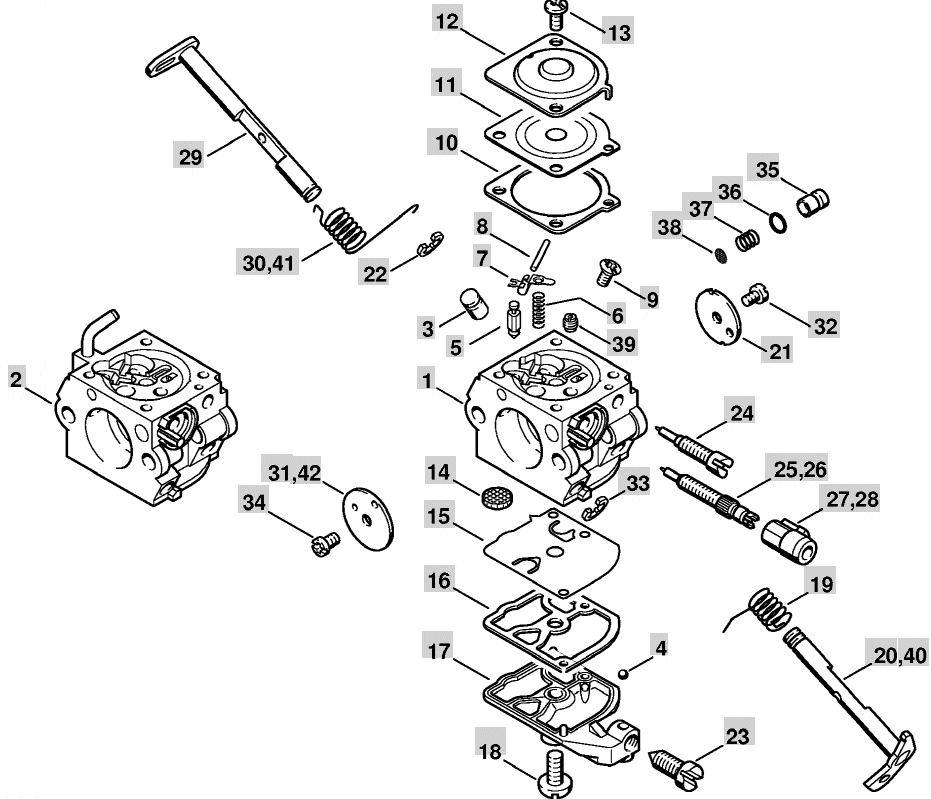

Carburetor C1Q-S84C C1Q-S85C

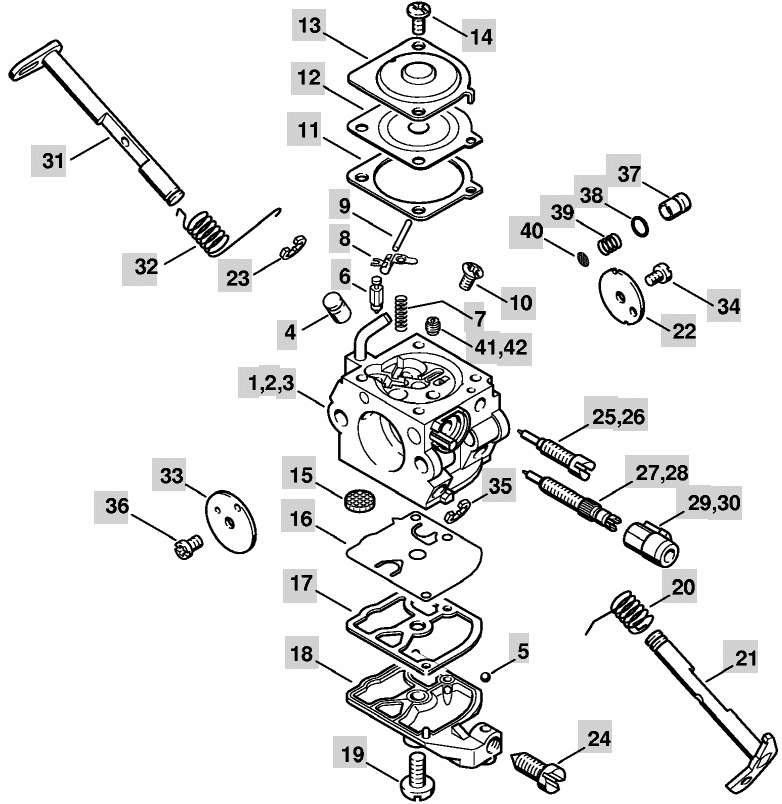

Carburetor C1Q-S91A S107A
Carburetor WT-215 WT286A

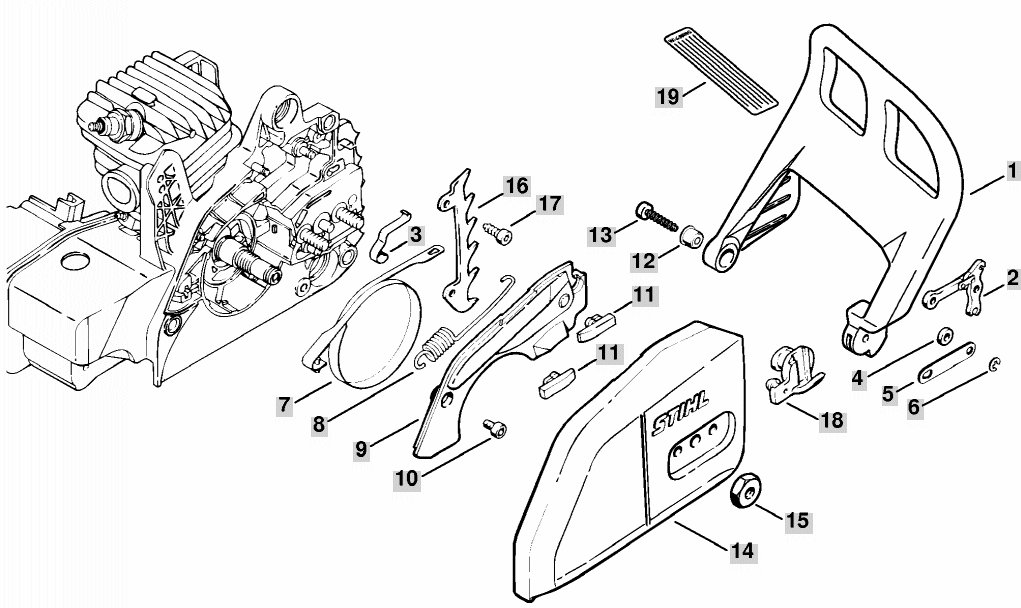

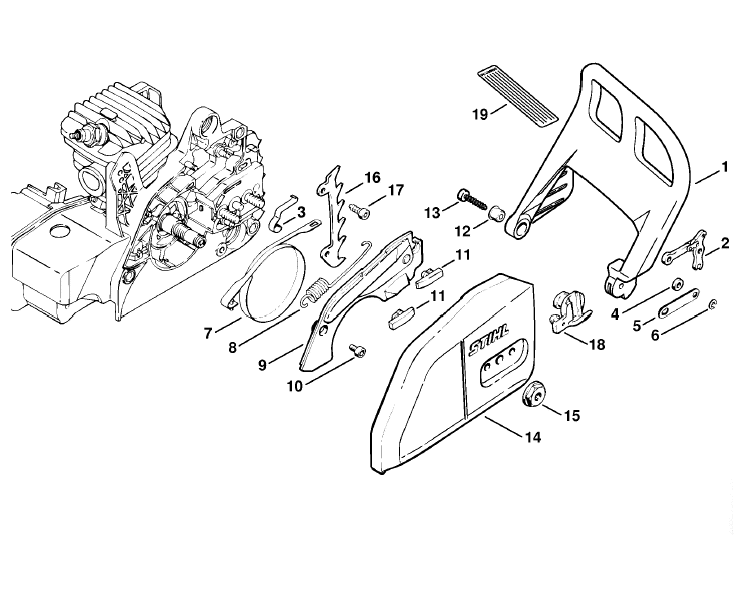

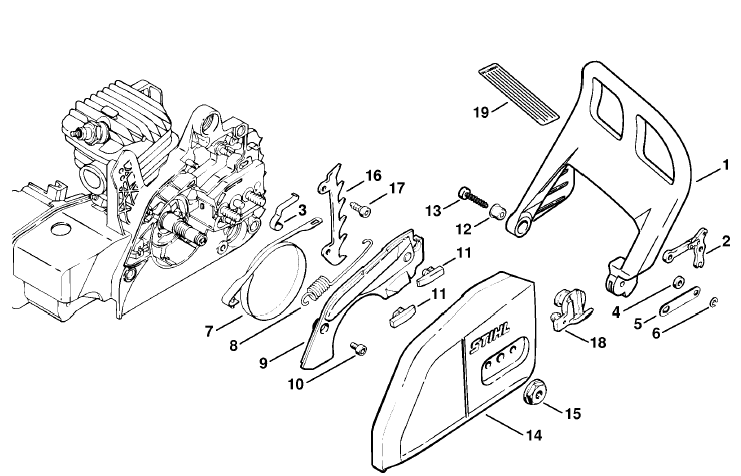

Chain Brake

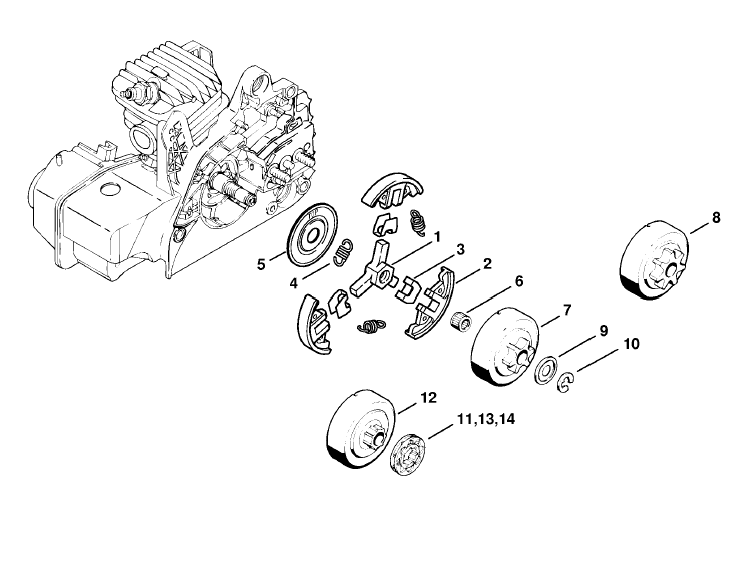

Clutch

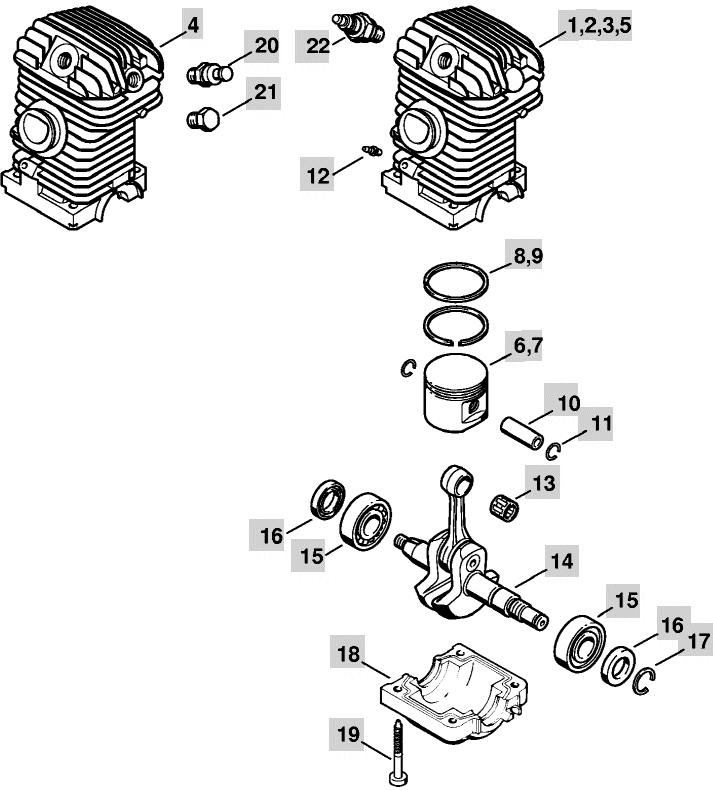

Engine

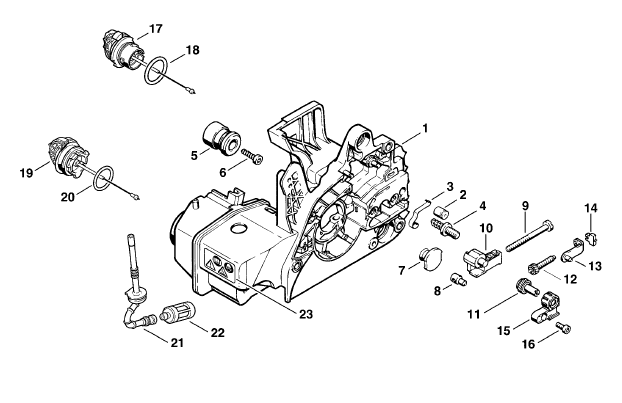

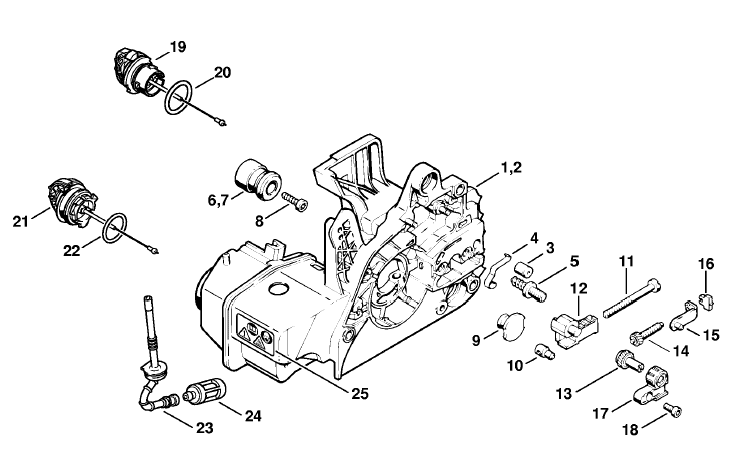

Engine Housing

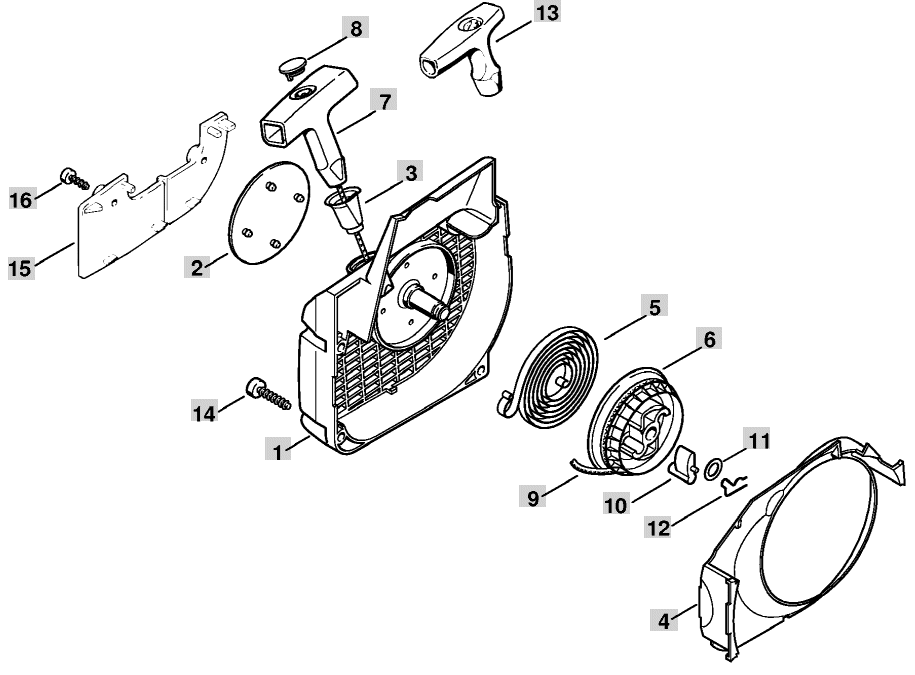

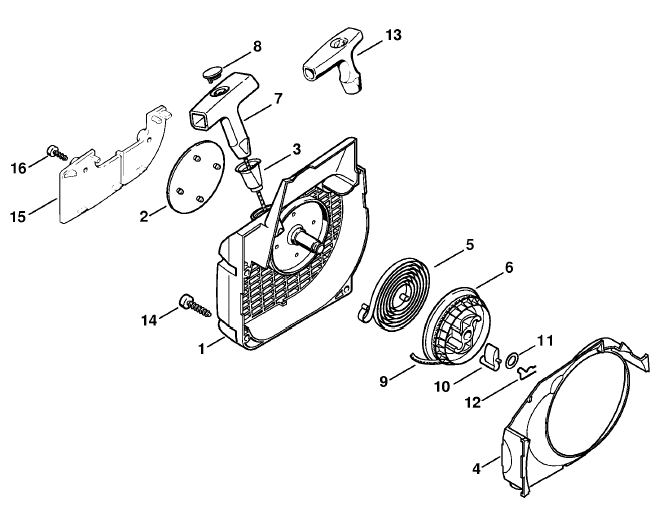

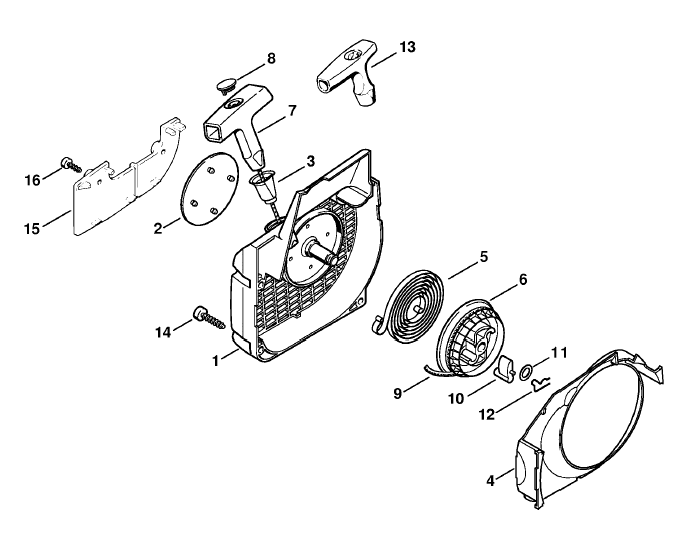

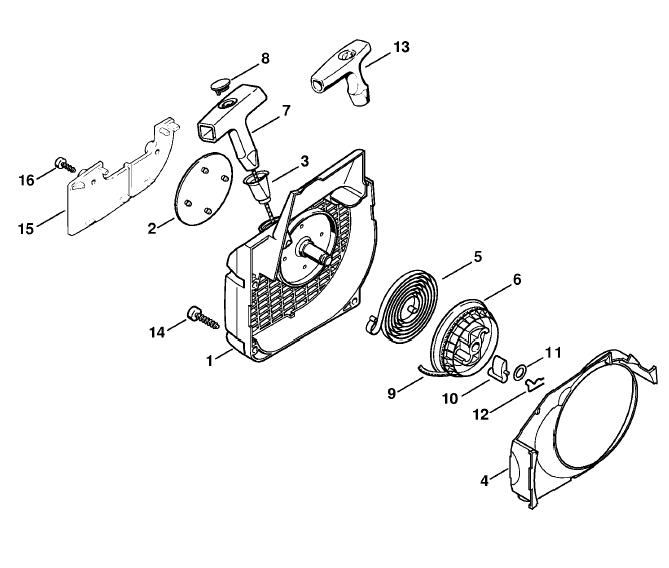

Fan Housing with Rewind Start

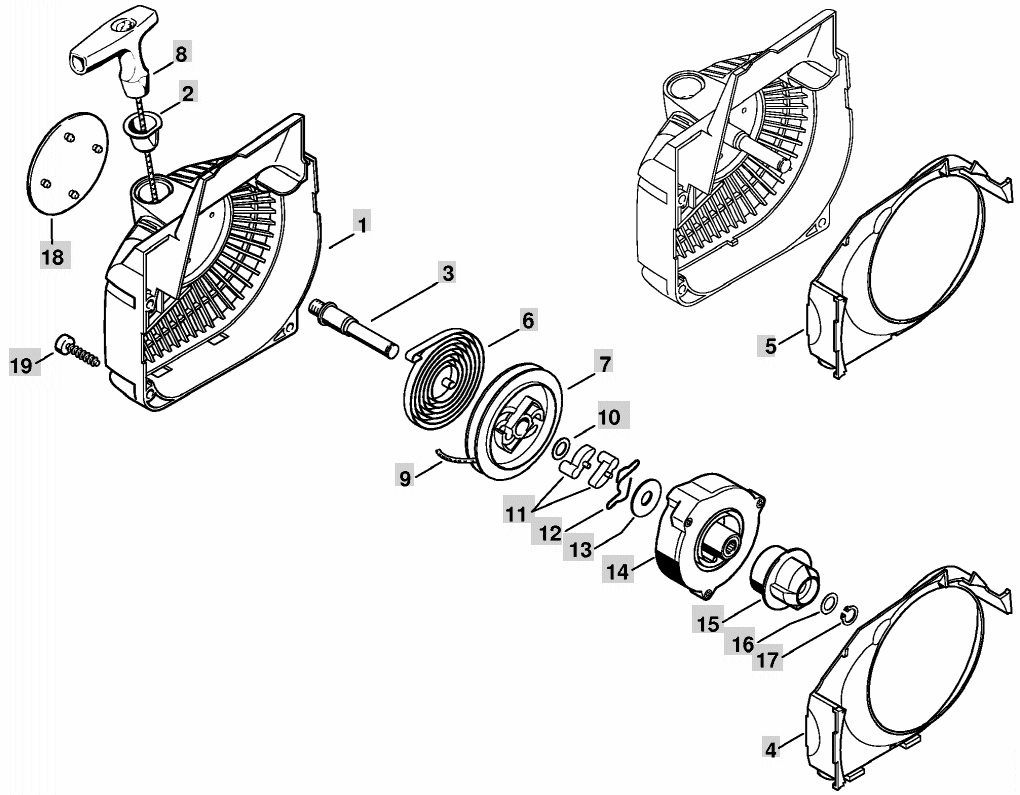

Fan Housing with Rewind Start 2

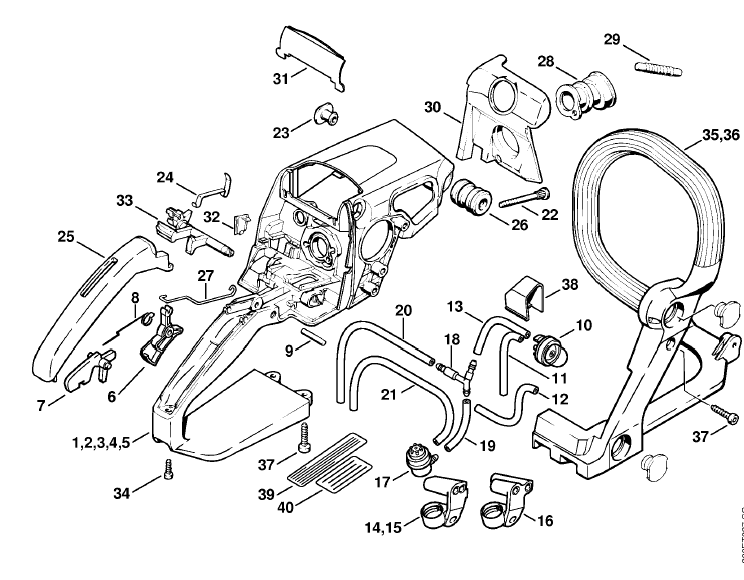

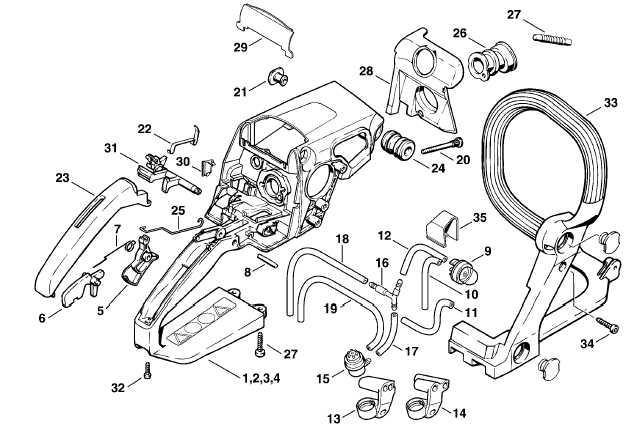

Handle Housing

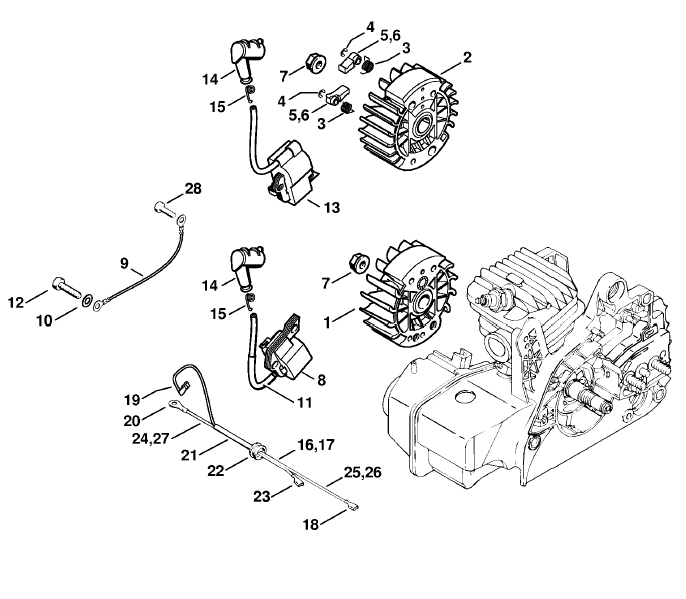

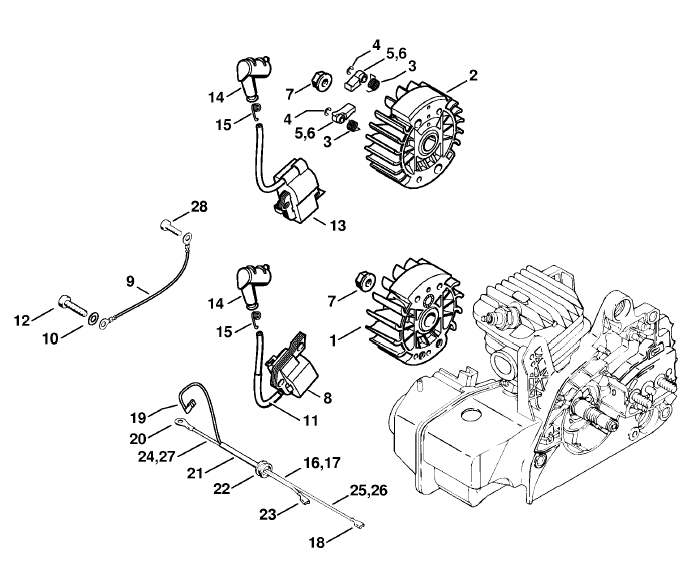

Ignition System

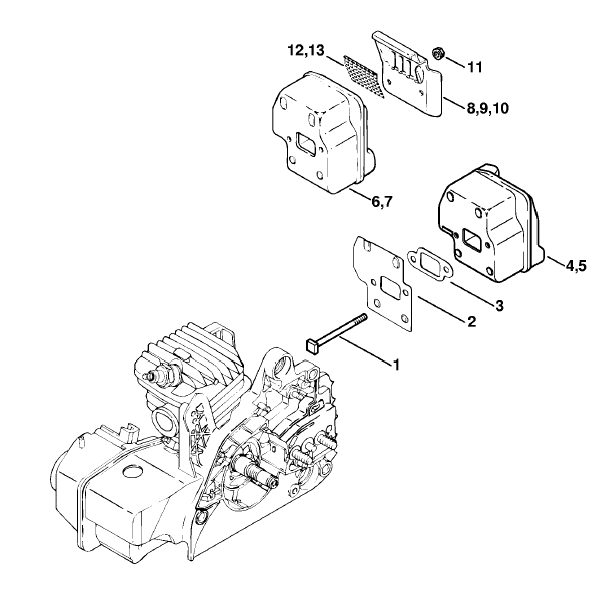

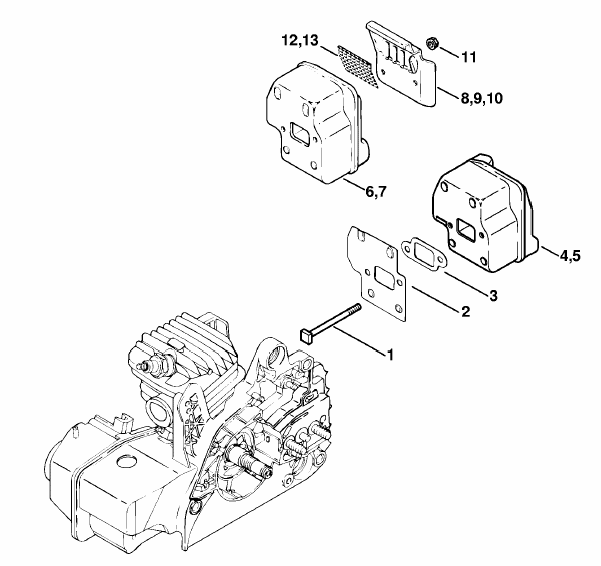

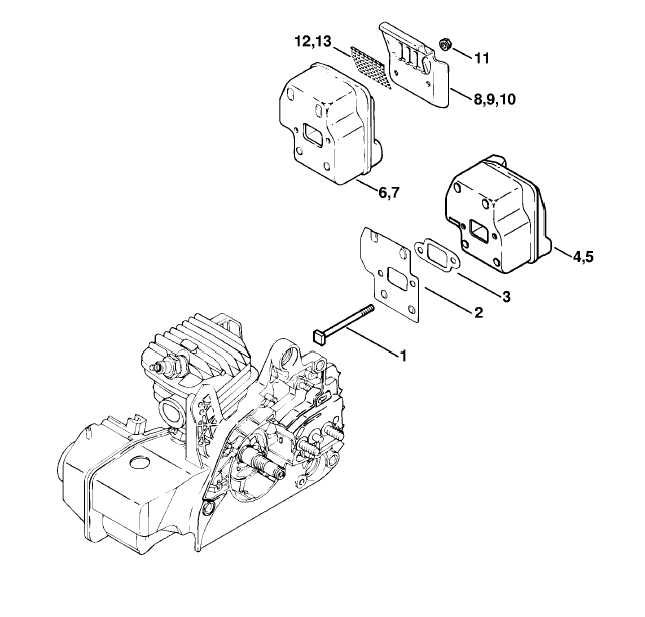

Muffler

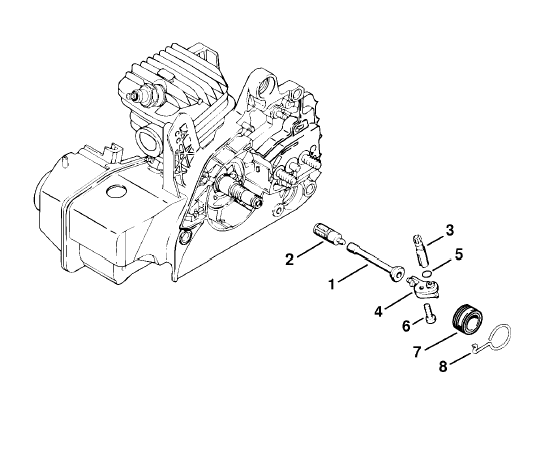

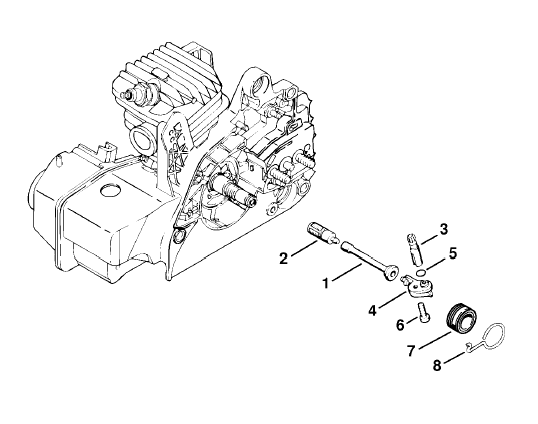

Oil pump

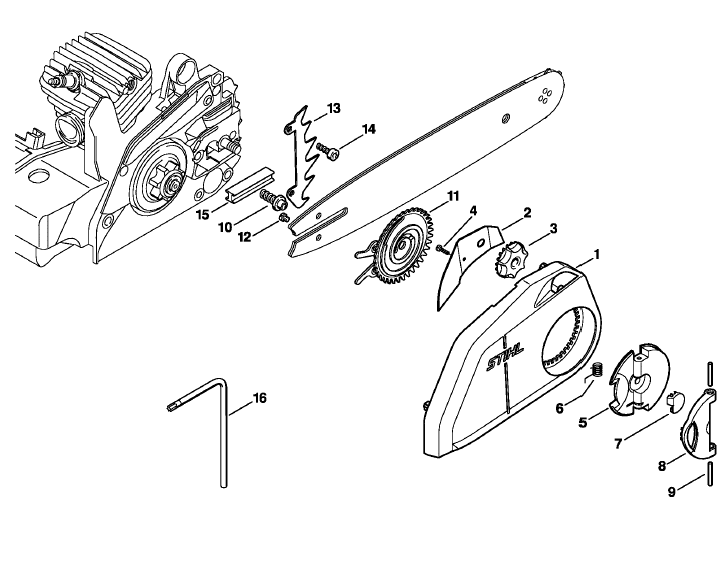

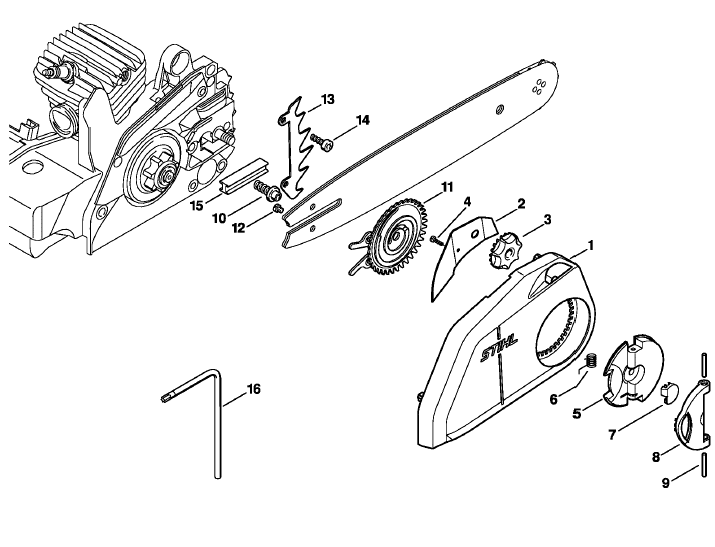

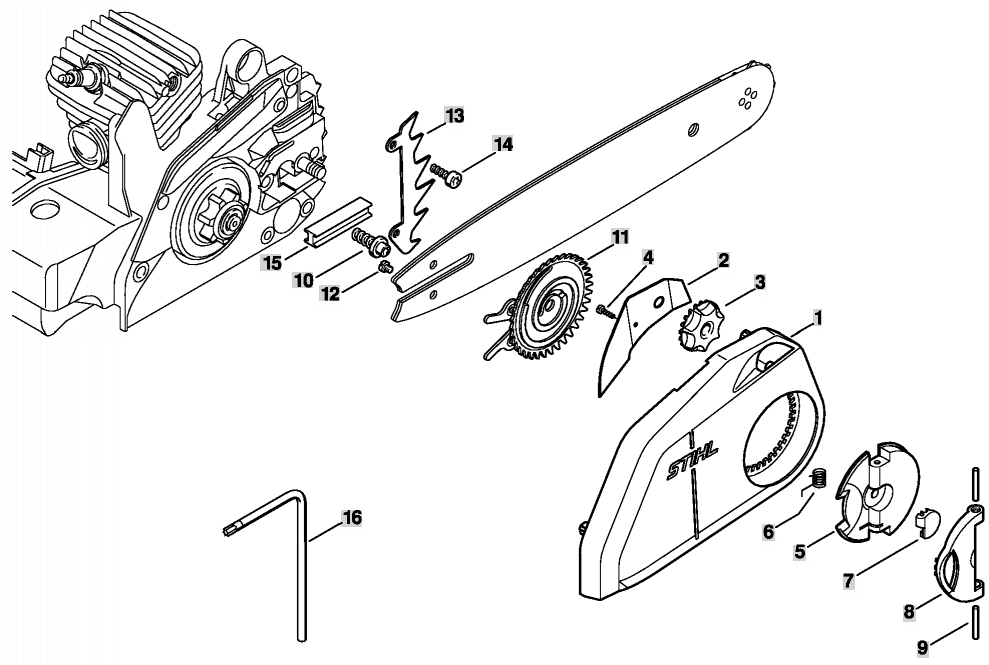

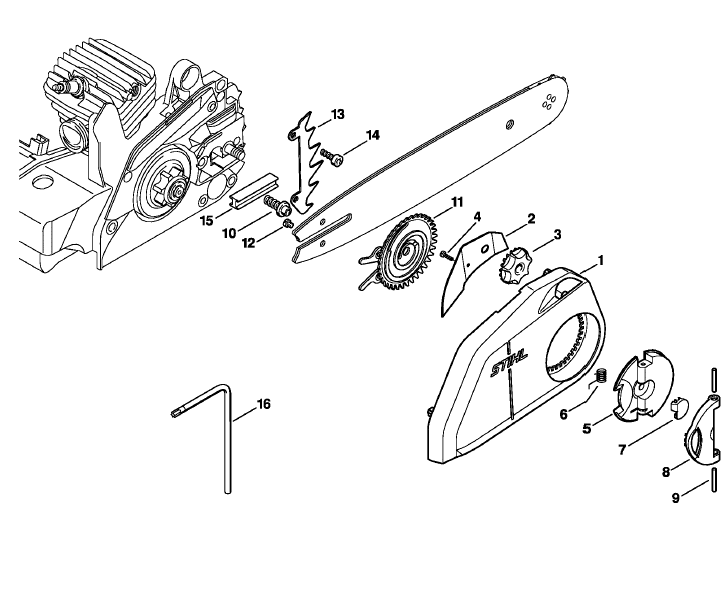

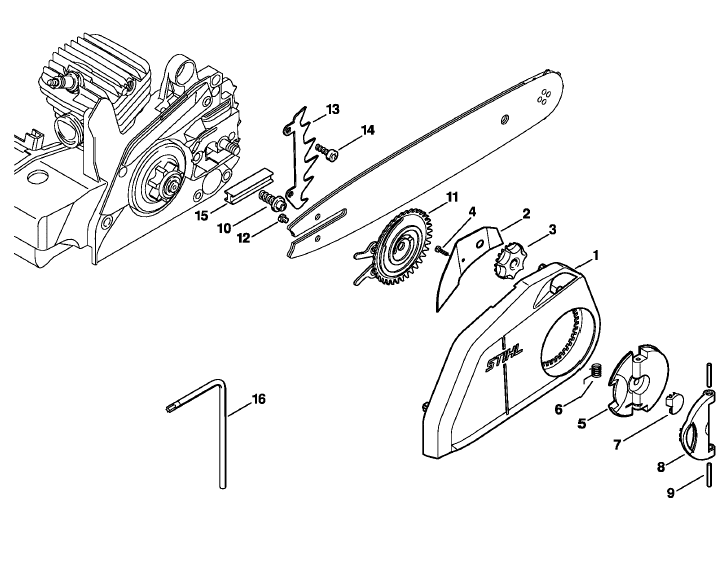

Quick Chain Tensioner
Tools
MS230C-B

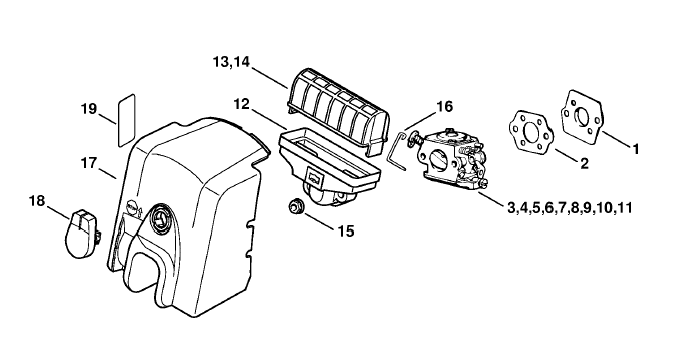

Air Filter

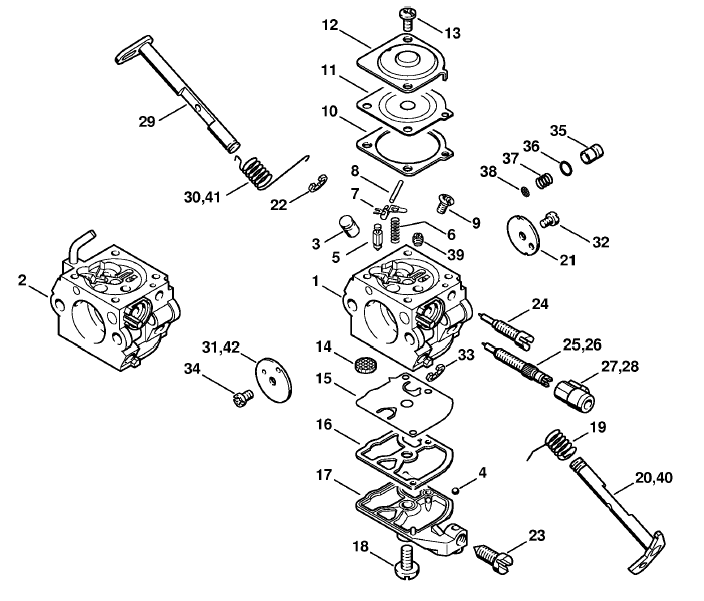

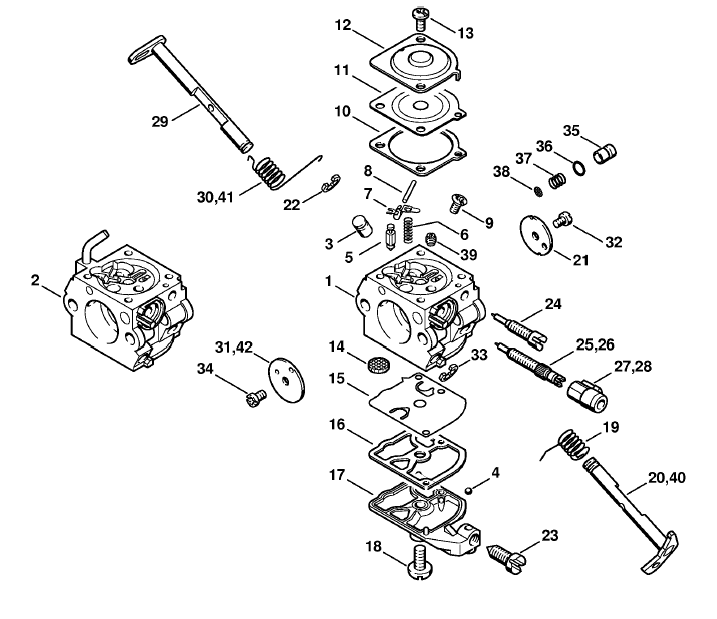

Carburetor C1QS84C
Carburetor WT-215
Chain Brake

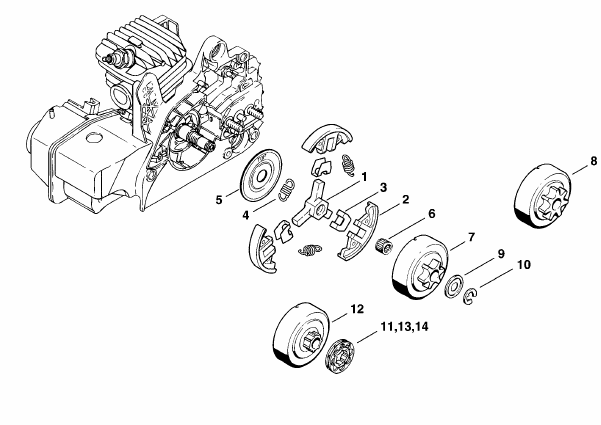

Clutch
Engine Housing
Fan Housing with Rewind Starter

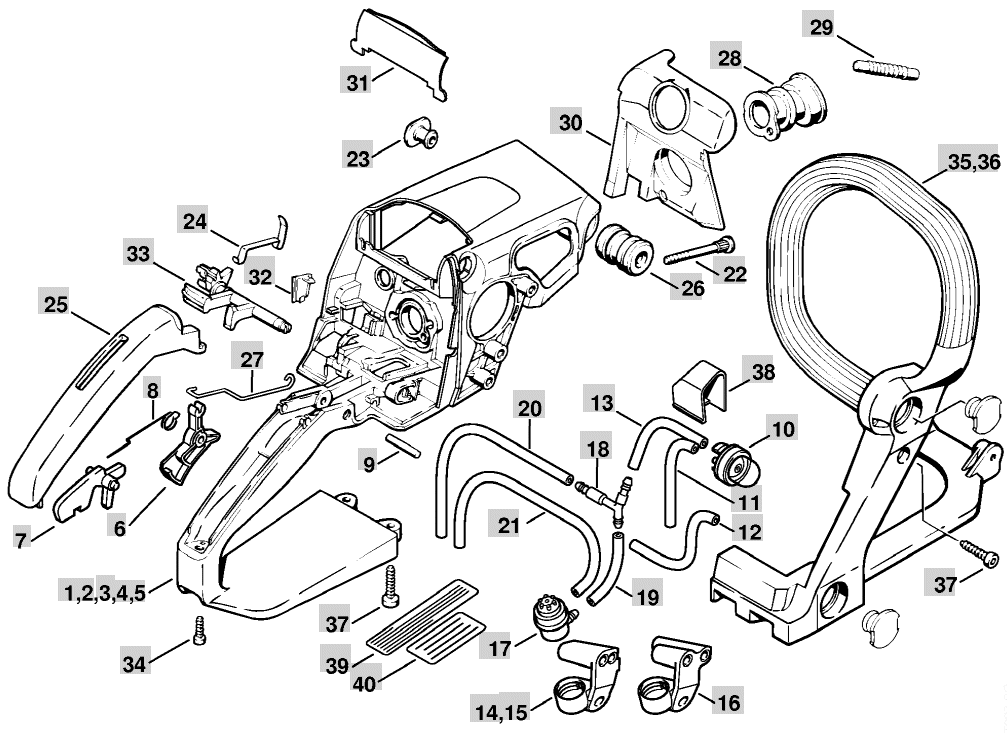

Handle Housing
Ignition System

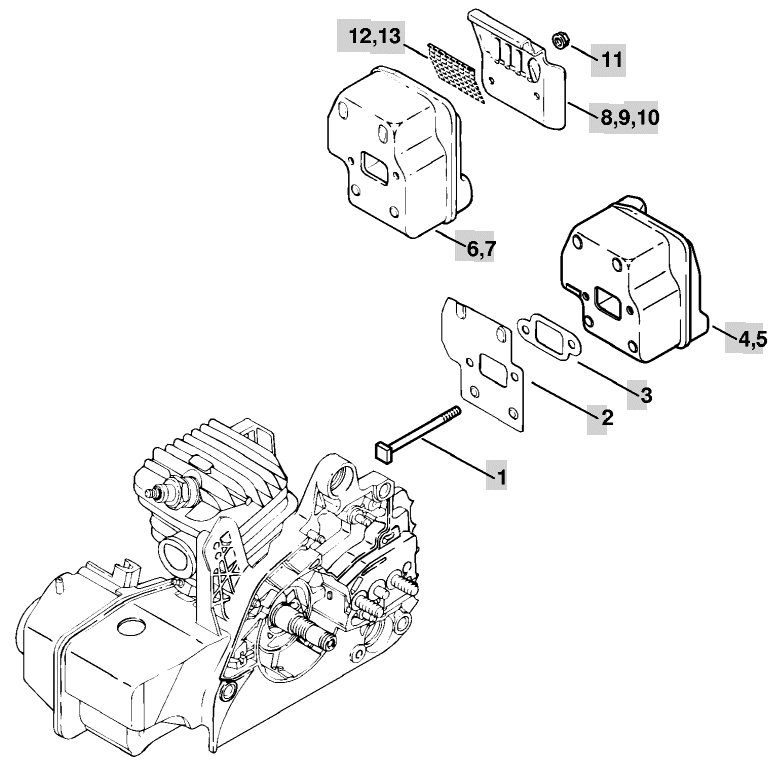

Muffler
Oil Pump
Quick Chain Tensioner

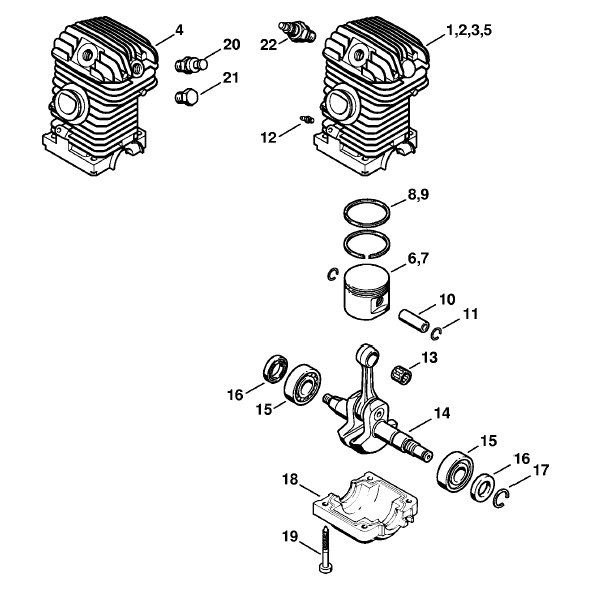

Shortblock
Tools
MS230C-BZ

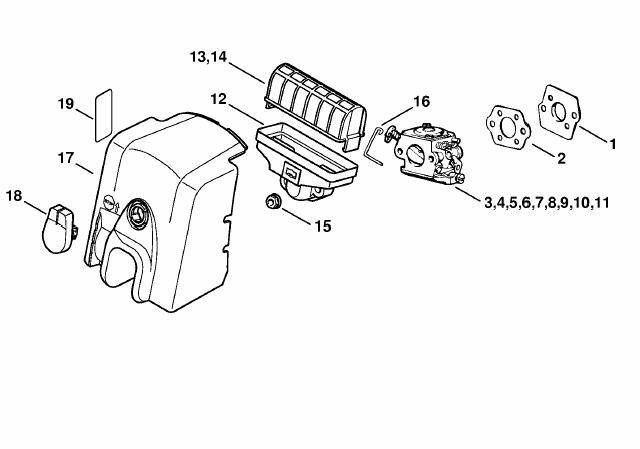

Air Filter
Carburetor C1QS84C
Carburetor WT-215
Chain Brake
Clutch
Engine Housing
Fan Housing With Rewind Starter
Handle Housing
Ignition System
Muffler
Oil Pump
Quick Chain Tensioner
Shortblock

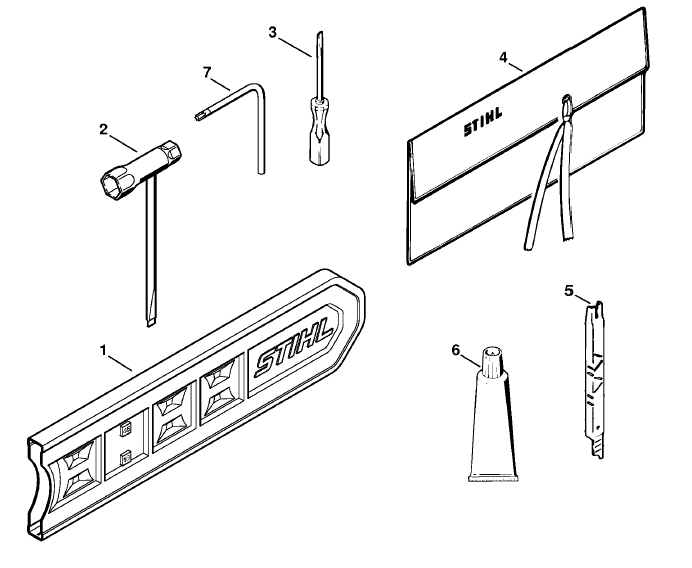

Tools Extras
MS230C-BE

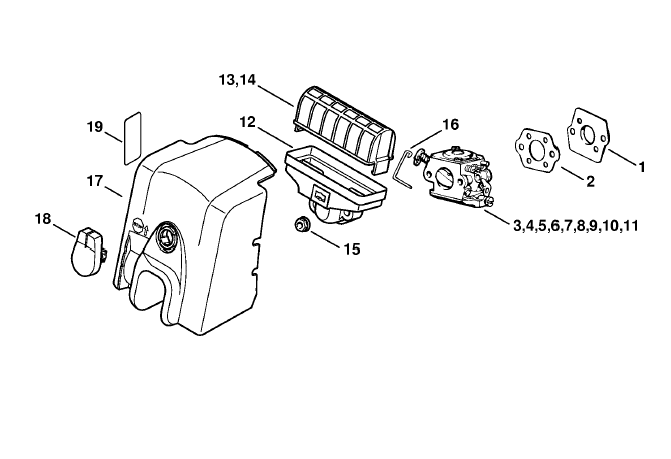

Air Filter

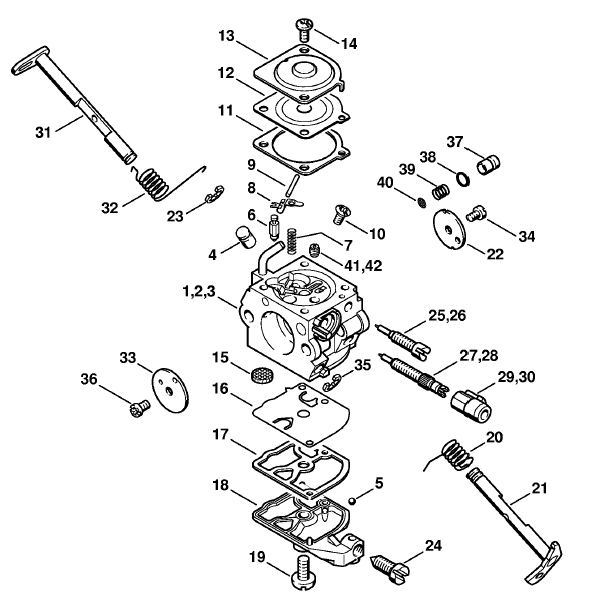

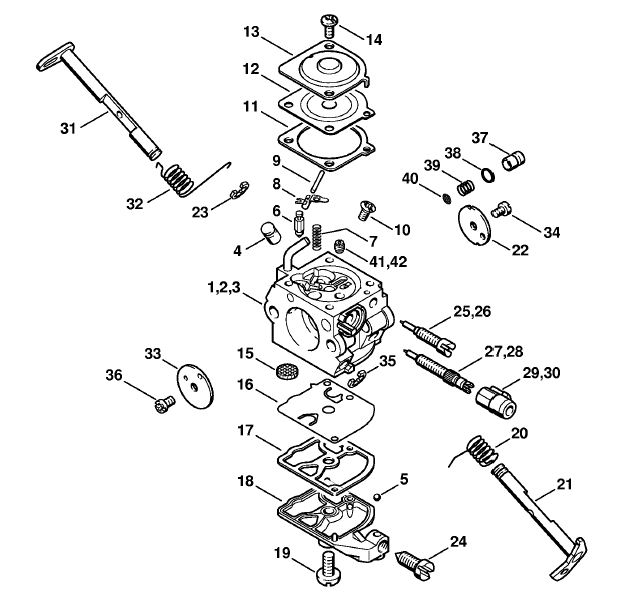

Carburetor C1QS91A

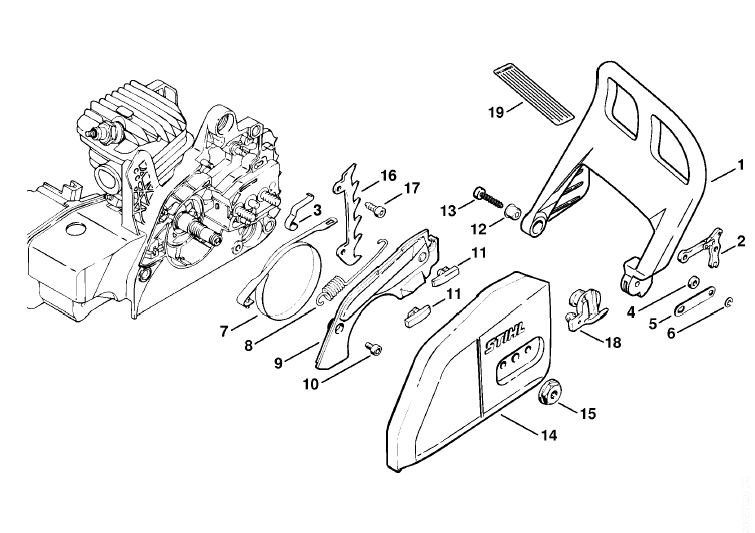

Chain Brake

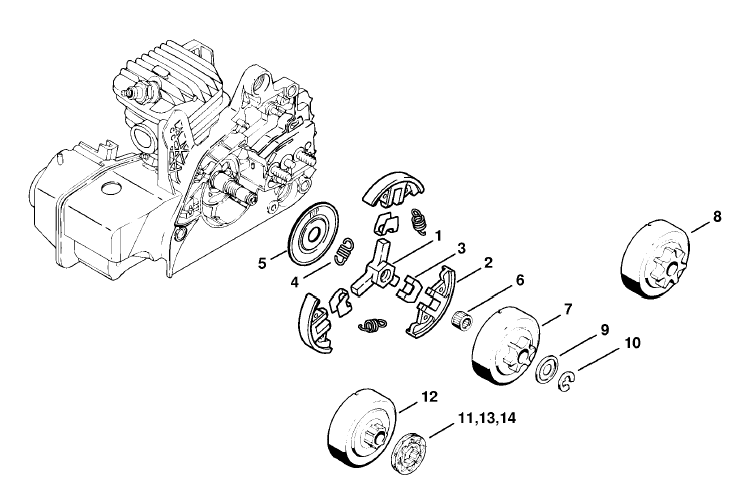

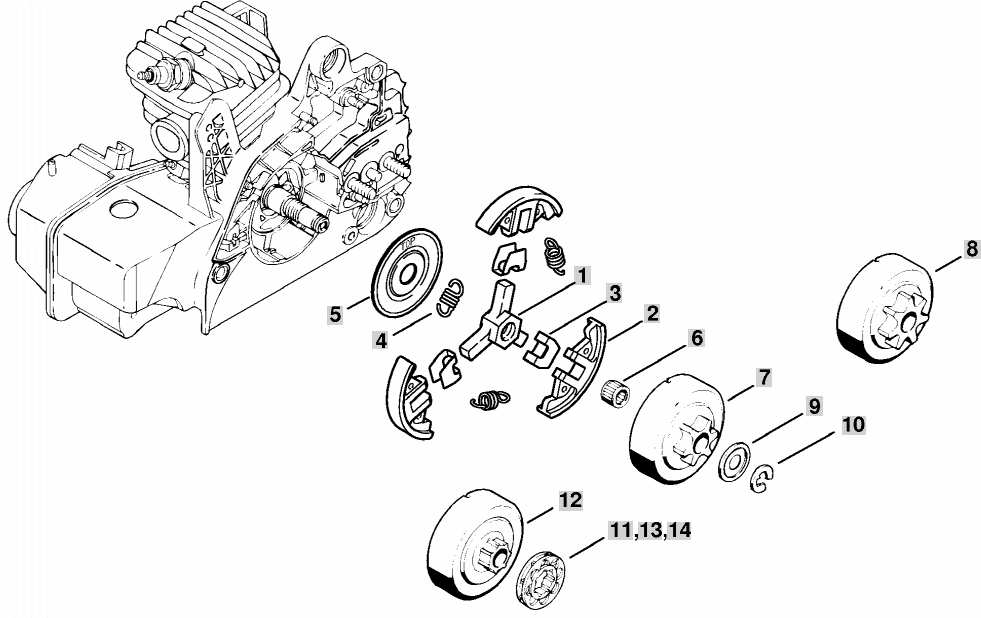

Clutch
Engine Housing
Fan Housing with Rewind Starter
Fan Housing with Rewind Starter B

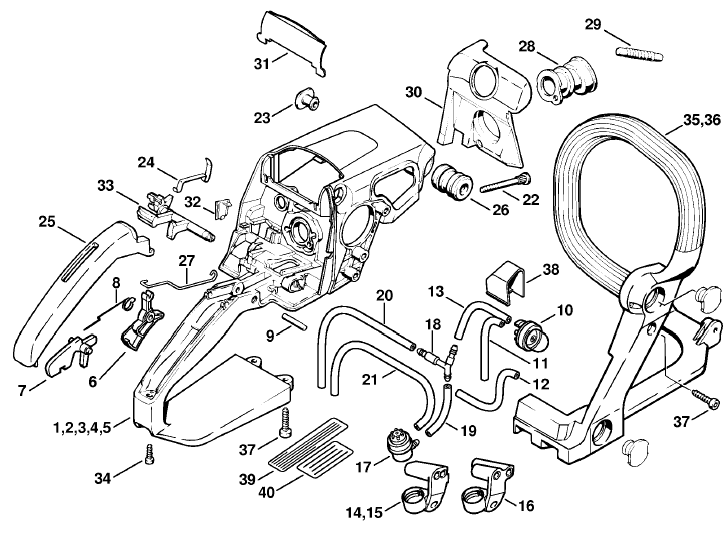

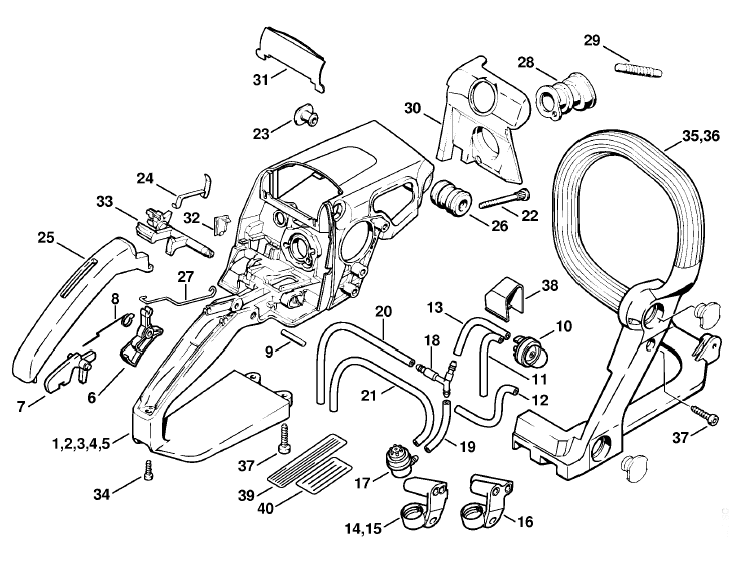

Handle Housing

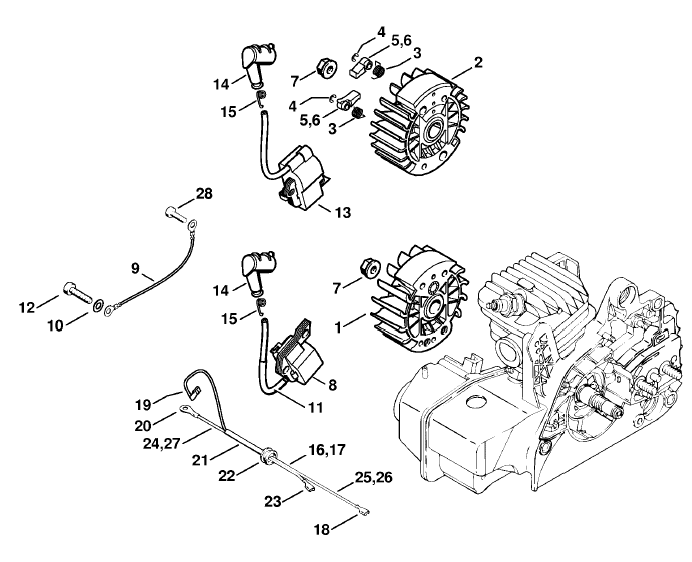

Ignition System
Muffler

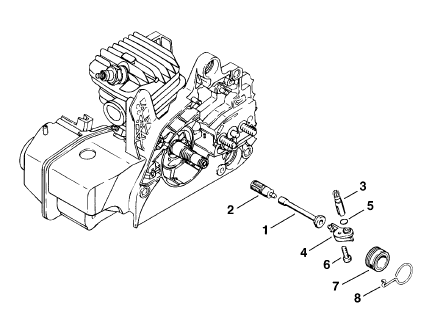

Oil Pump
Quick Chain Tensioner
Shortblock
Tools
MS230C-BEZ
Air Filter
Carburetor C1QS91A
Chain Brake
Clutch
Engine Housing

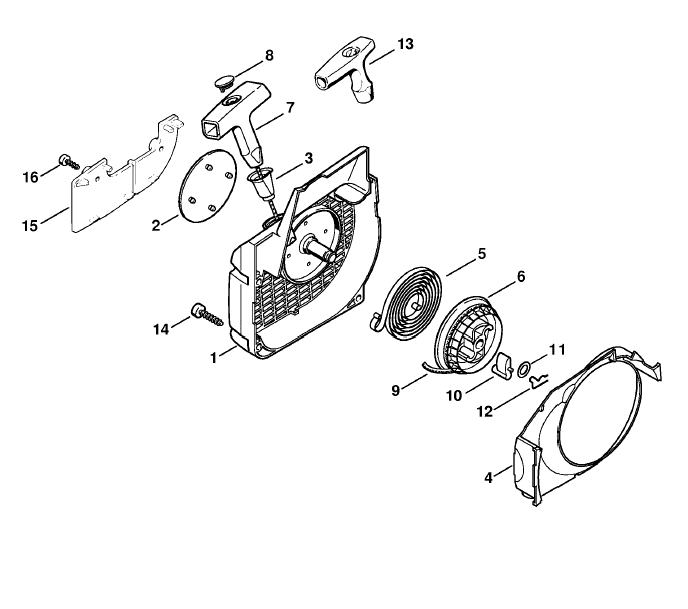

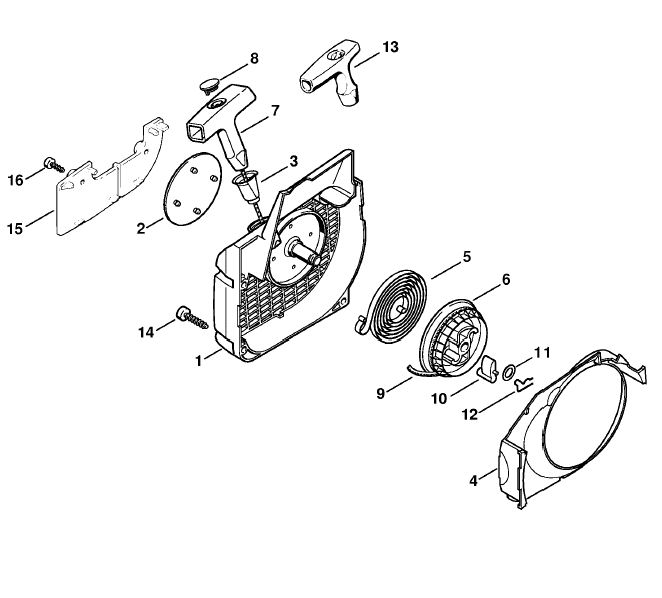

Fan Housing With Rewind Starter A

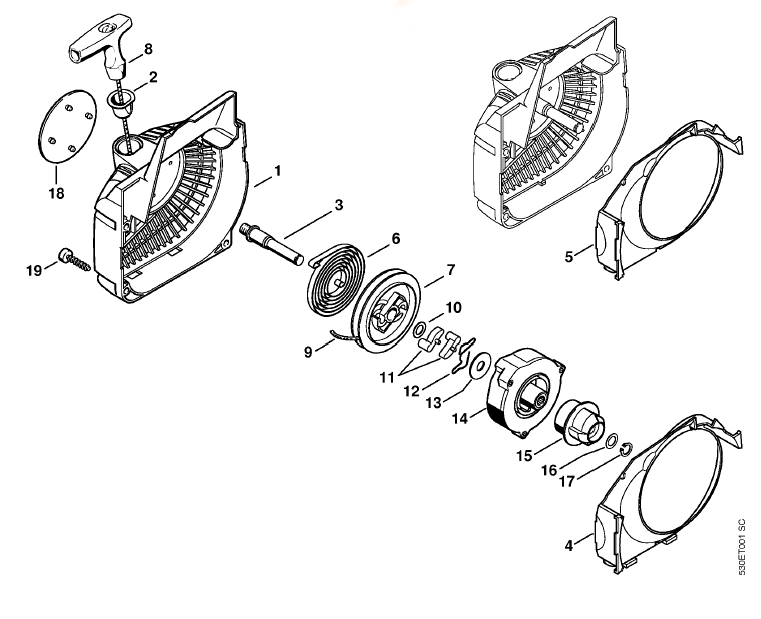

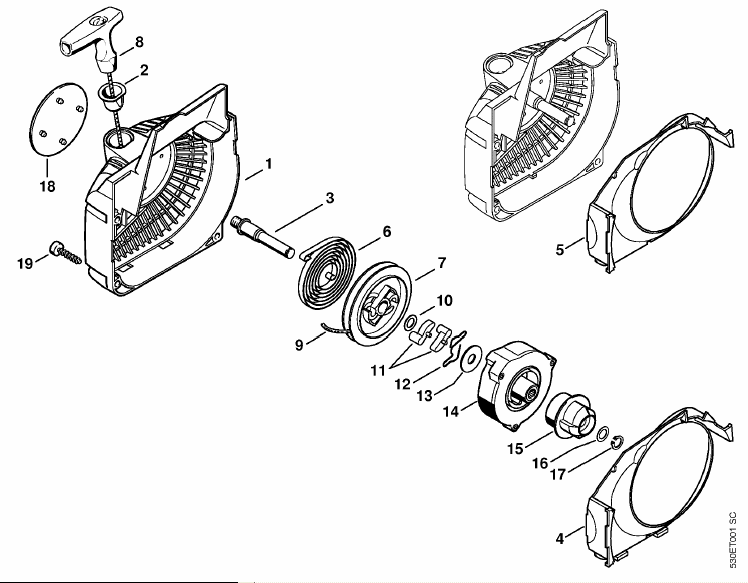

Fan Housing with Rewind Starter B

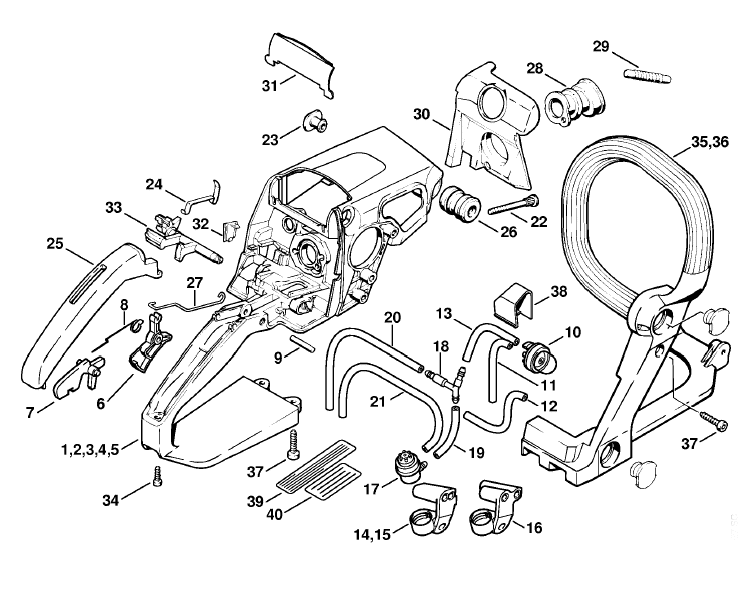

Handle Housing
Ignition System
Muffler
Oil Pump
Quick Chain Tensioner
Shortblock
Tools
