Diagrams for the Stihl MS 171 Chainsaw
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl MS 171 Chainsaw.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl MS 171 Chainsaw
MS171

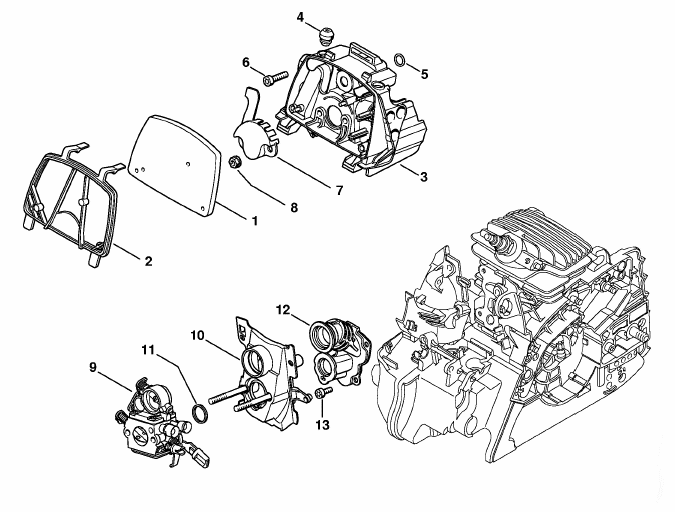

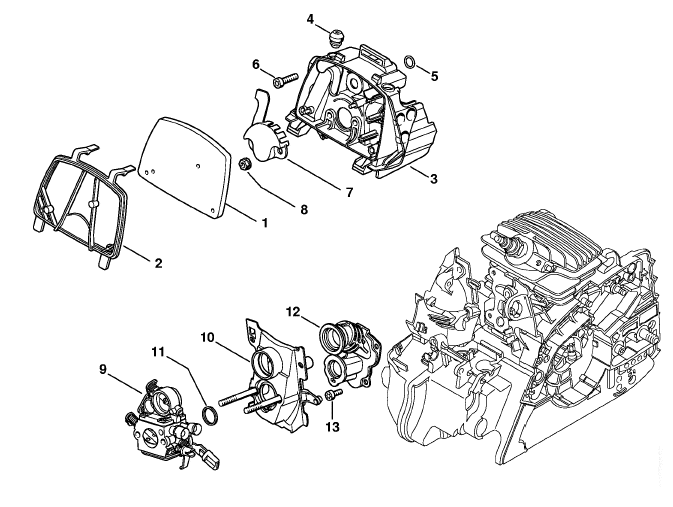

Air Filter

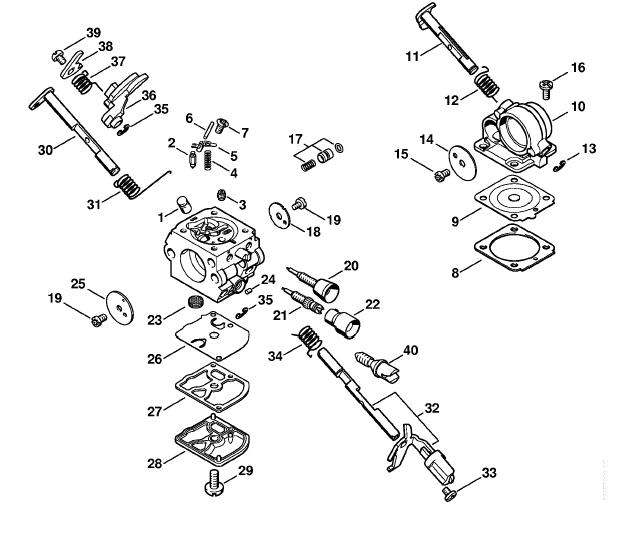

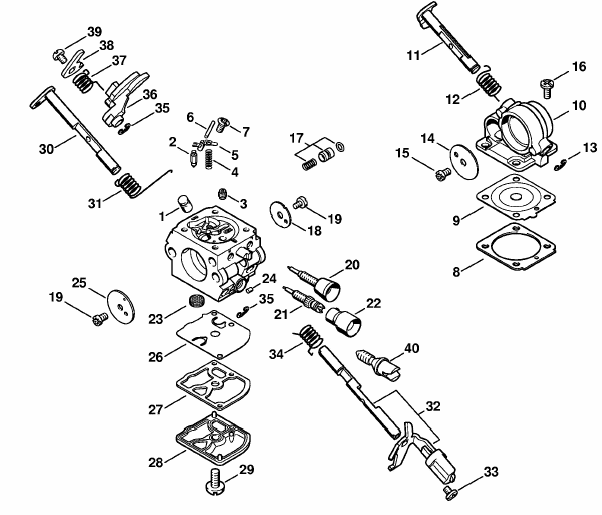

Carburetor C1Q-S123

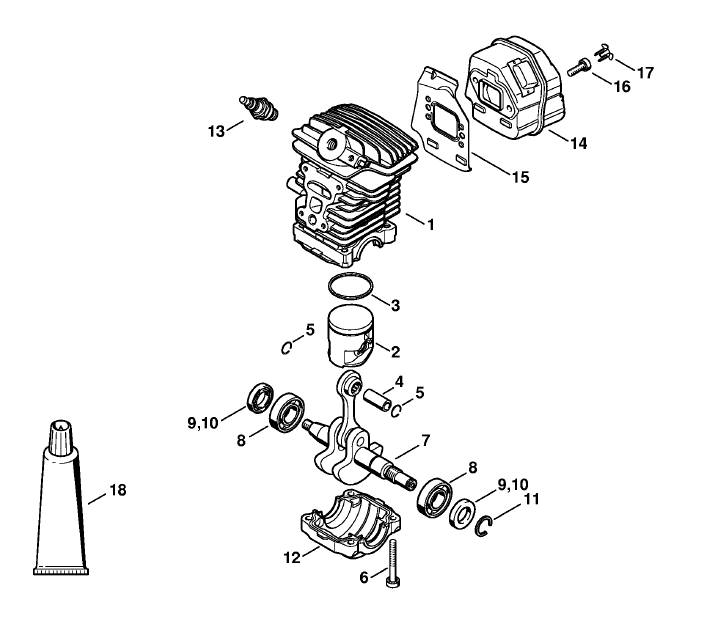

Cylinder

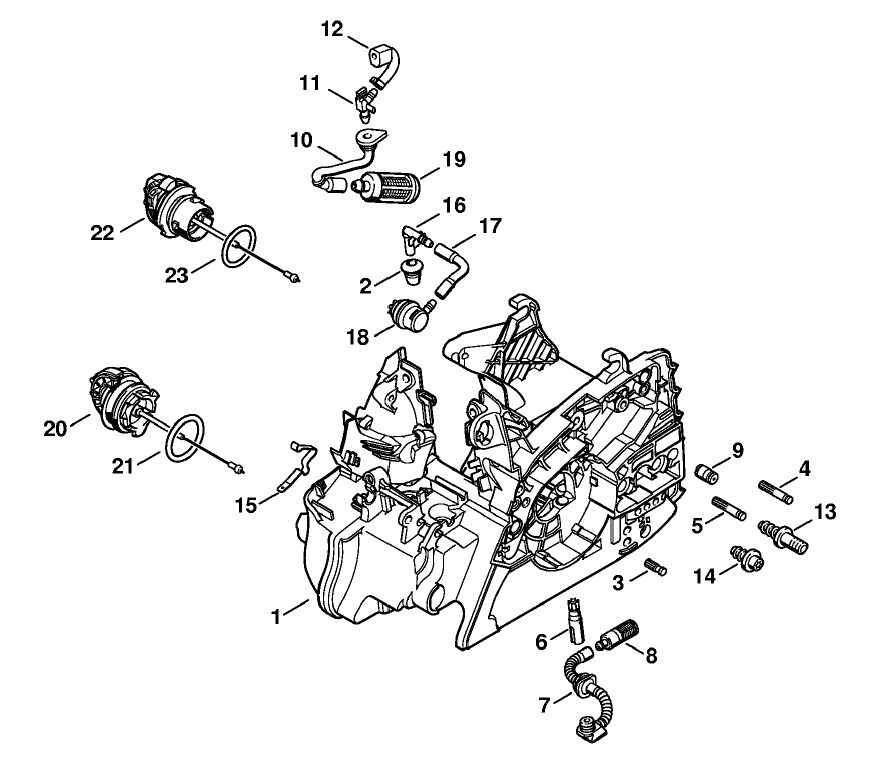

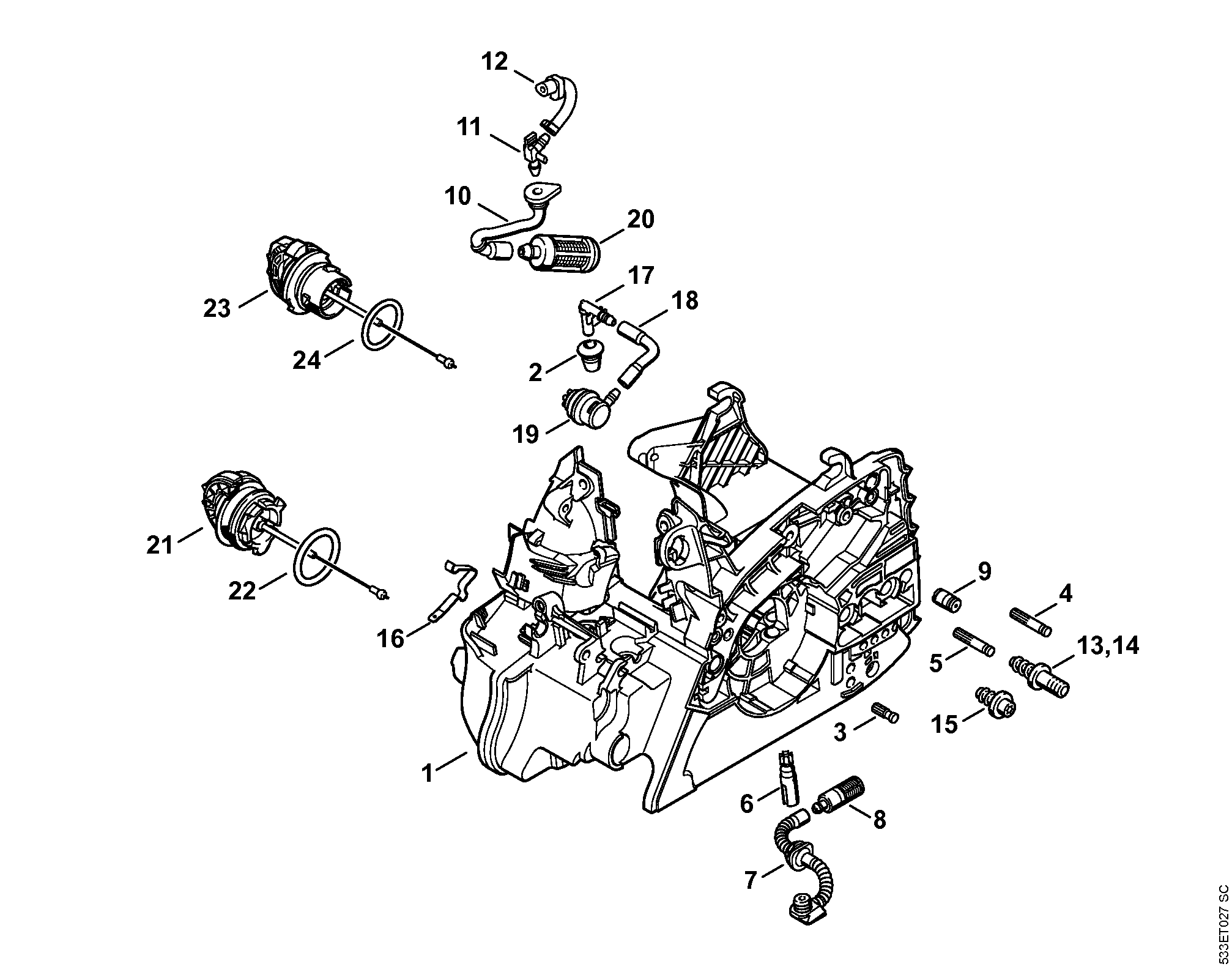

Engine Housing

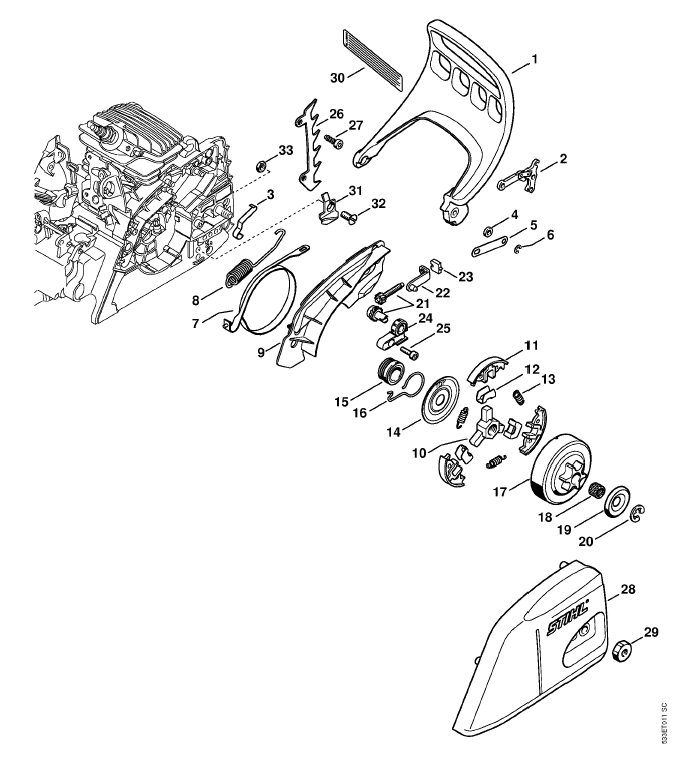

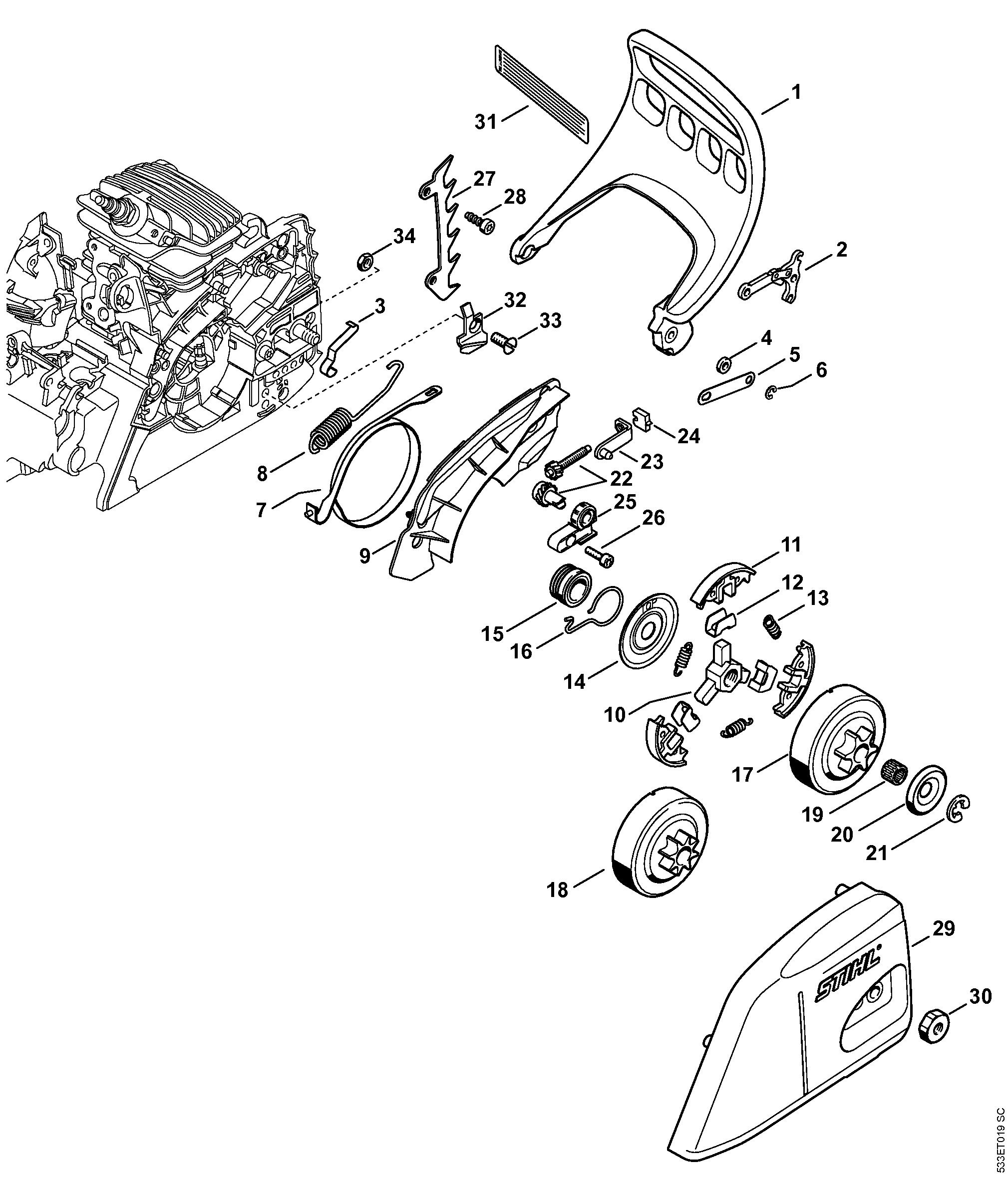

Hand Guard

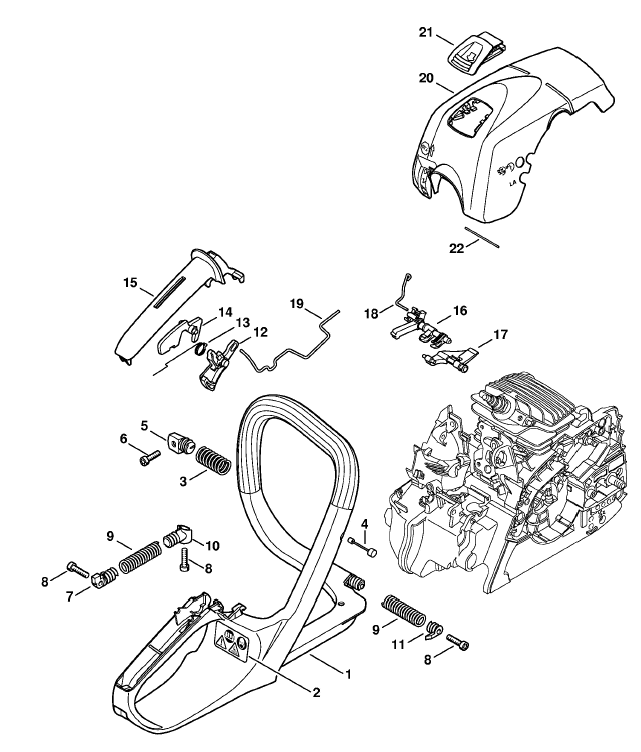

Handle Frame

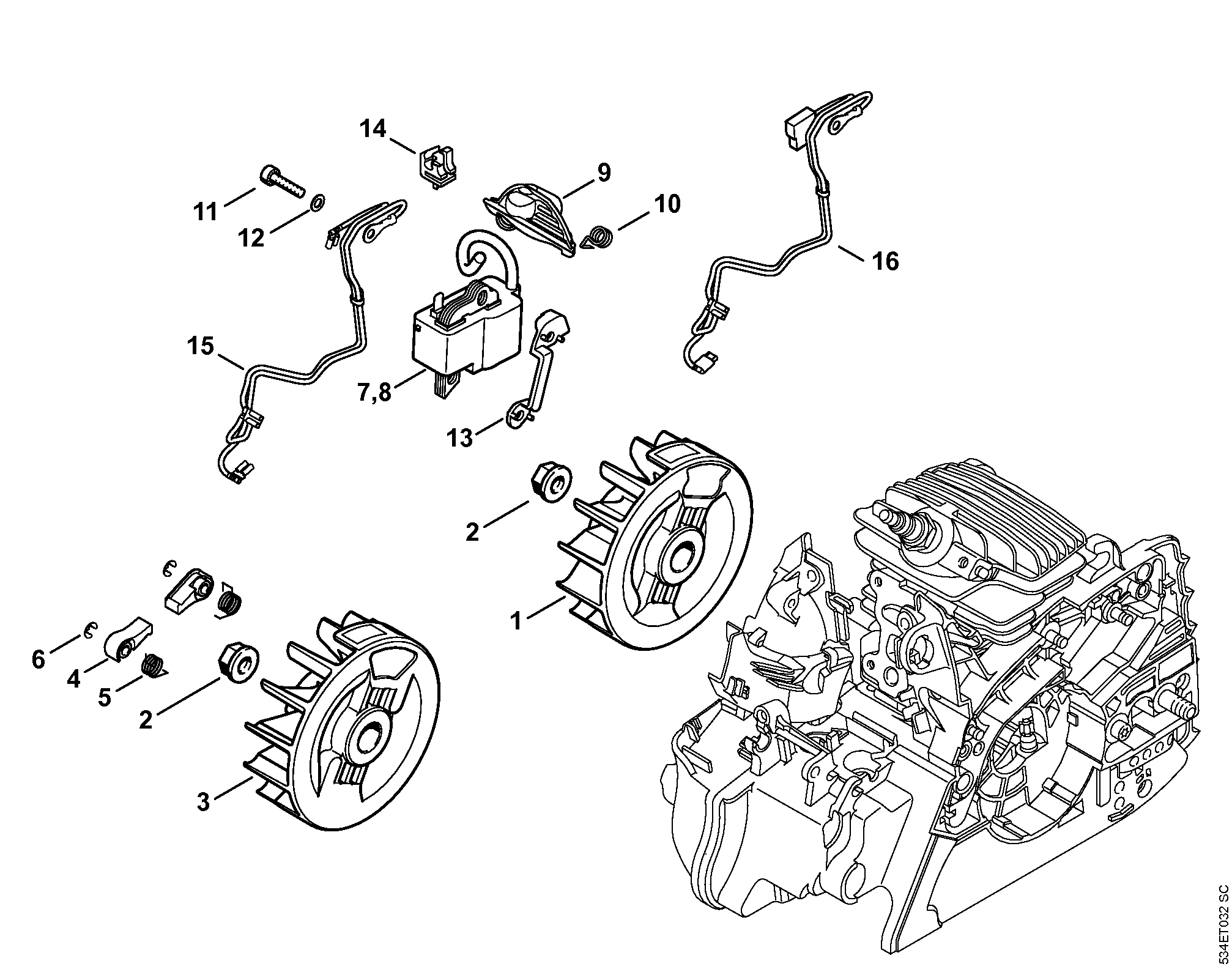

Ignition System

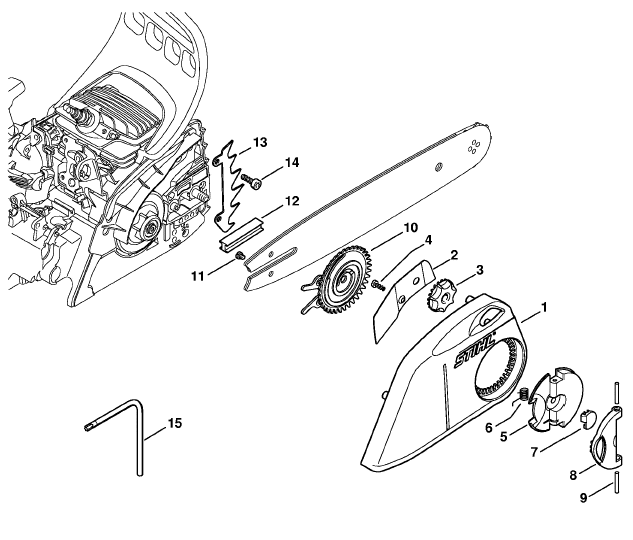

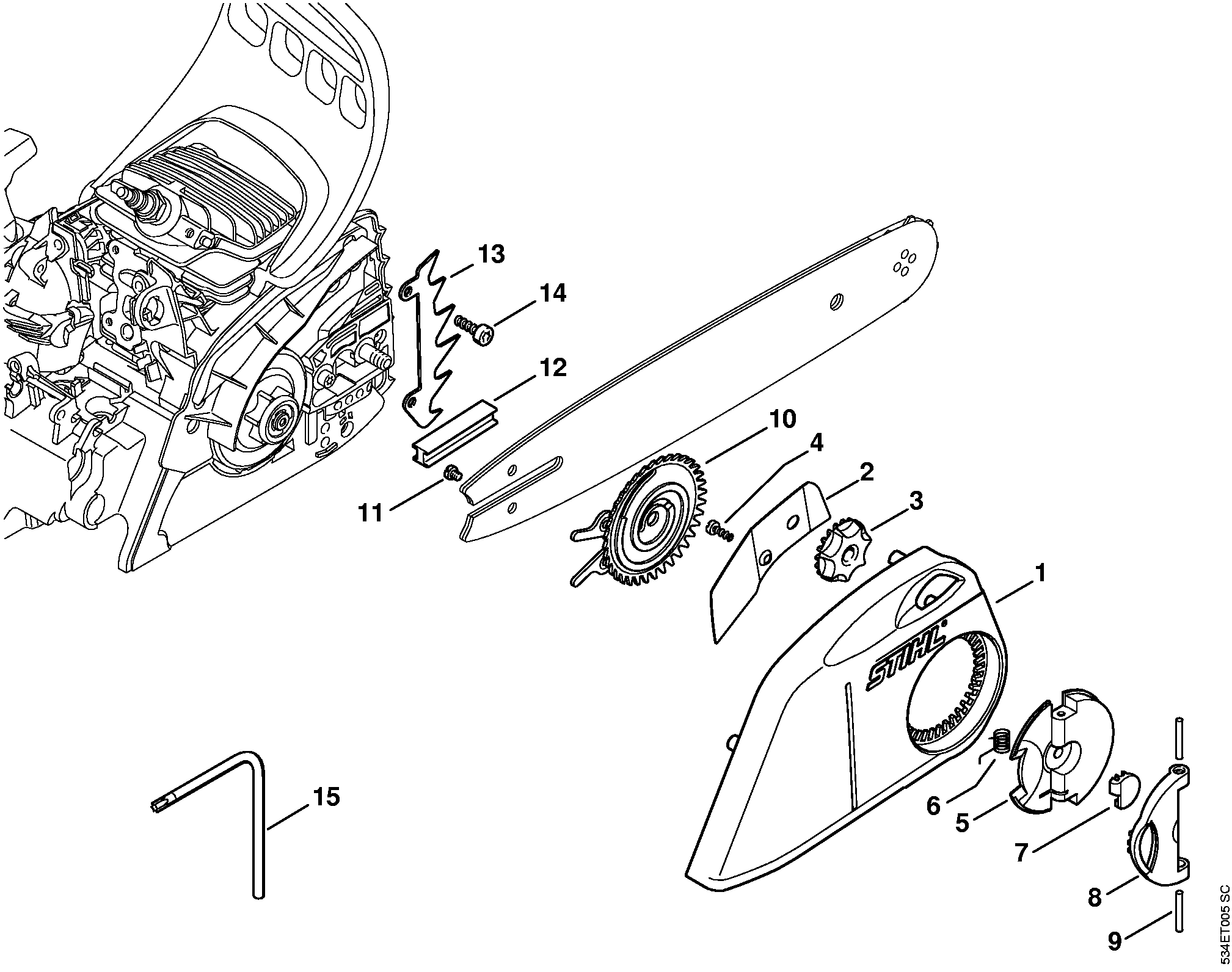

Quick Chain Tensioner

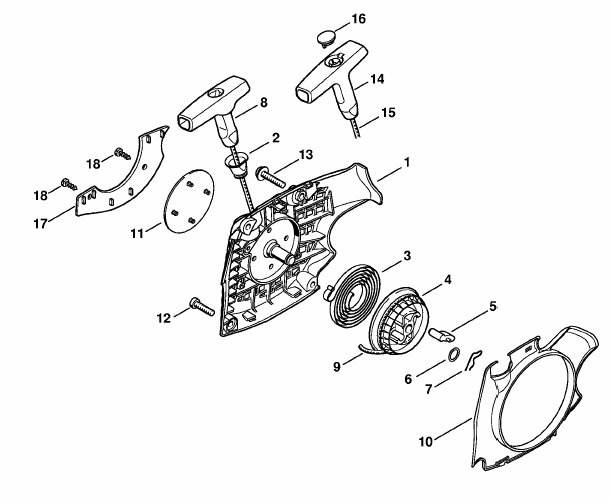

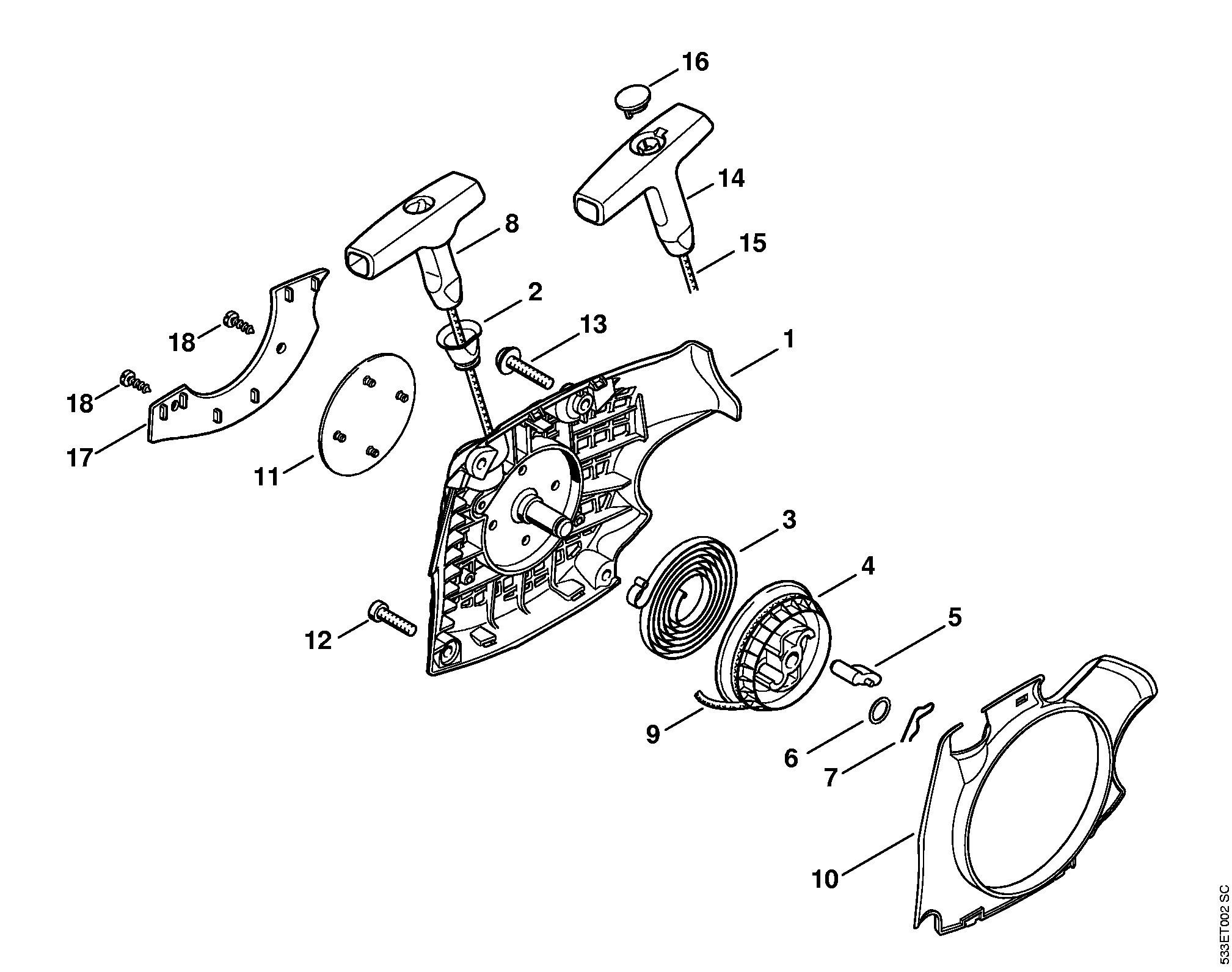

Rewind Starter

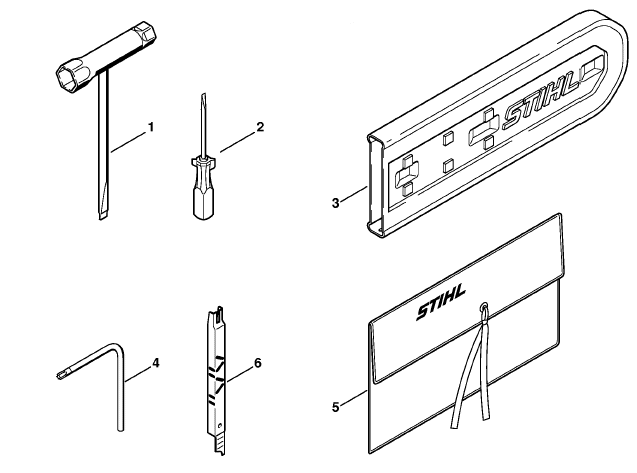

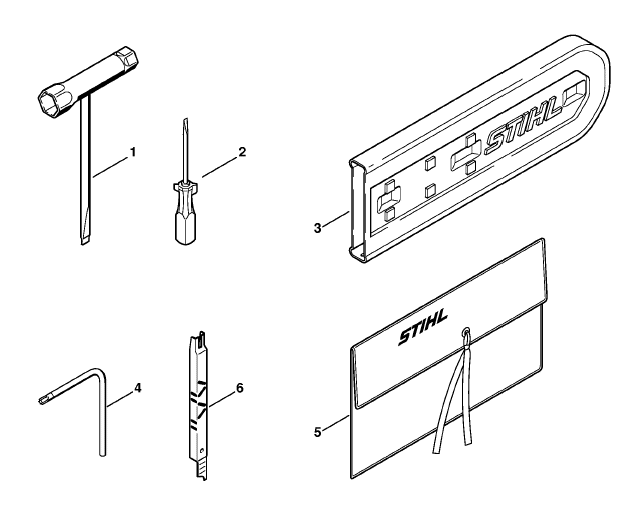

Tools
MS1712Mix

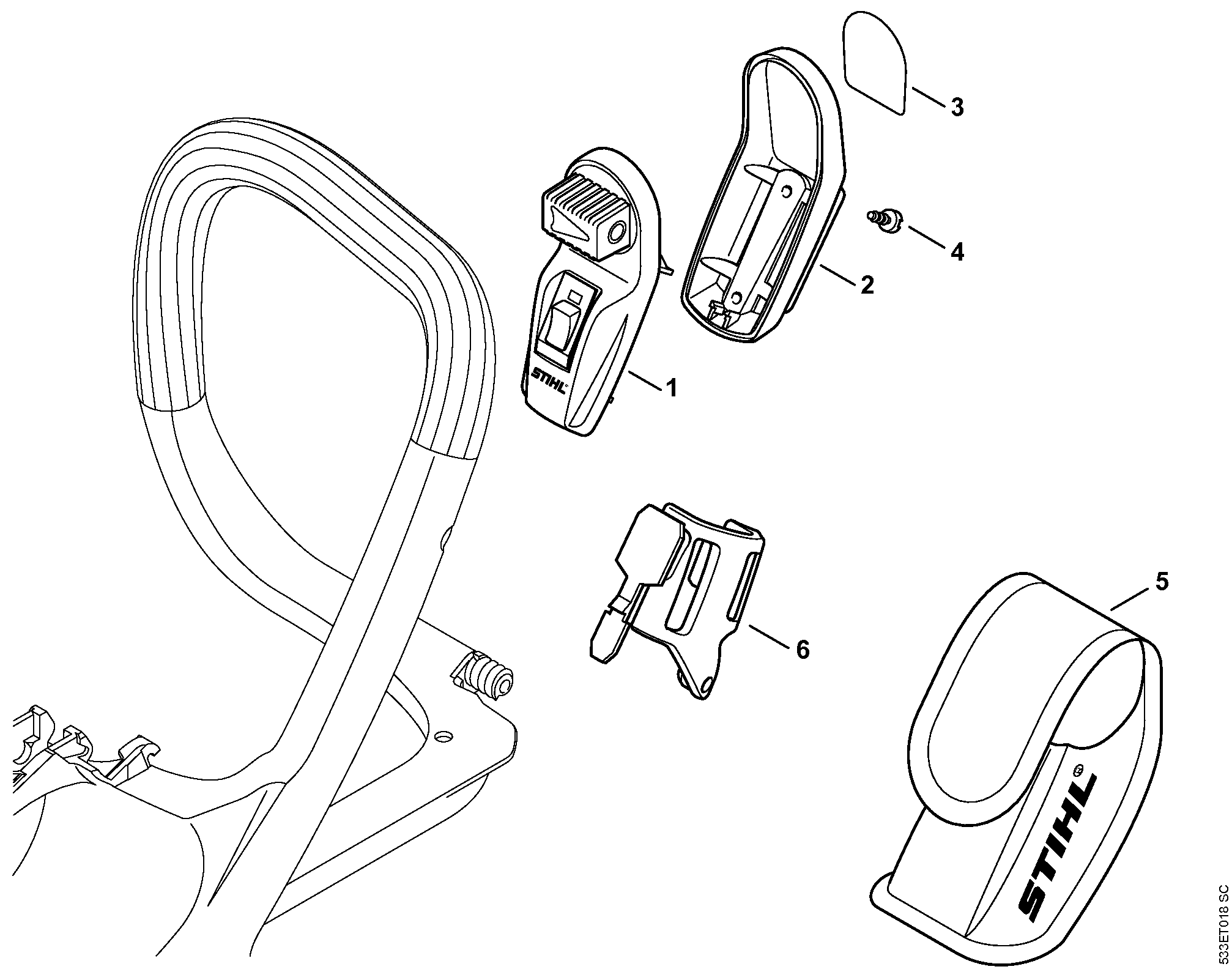

2-in-1 laser

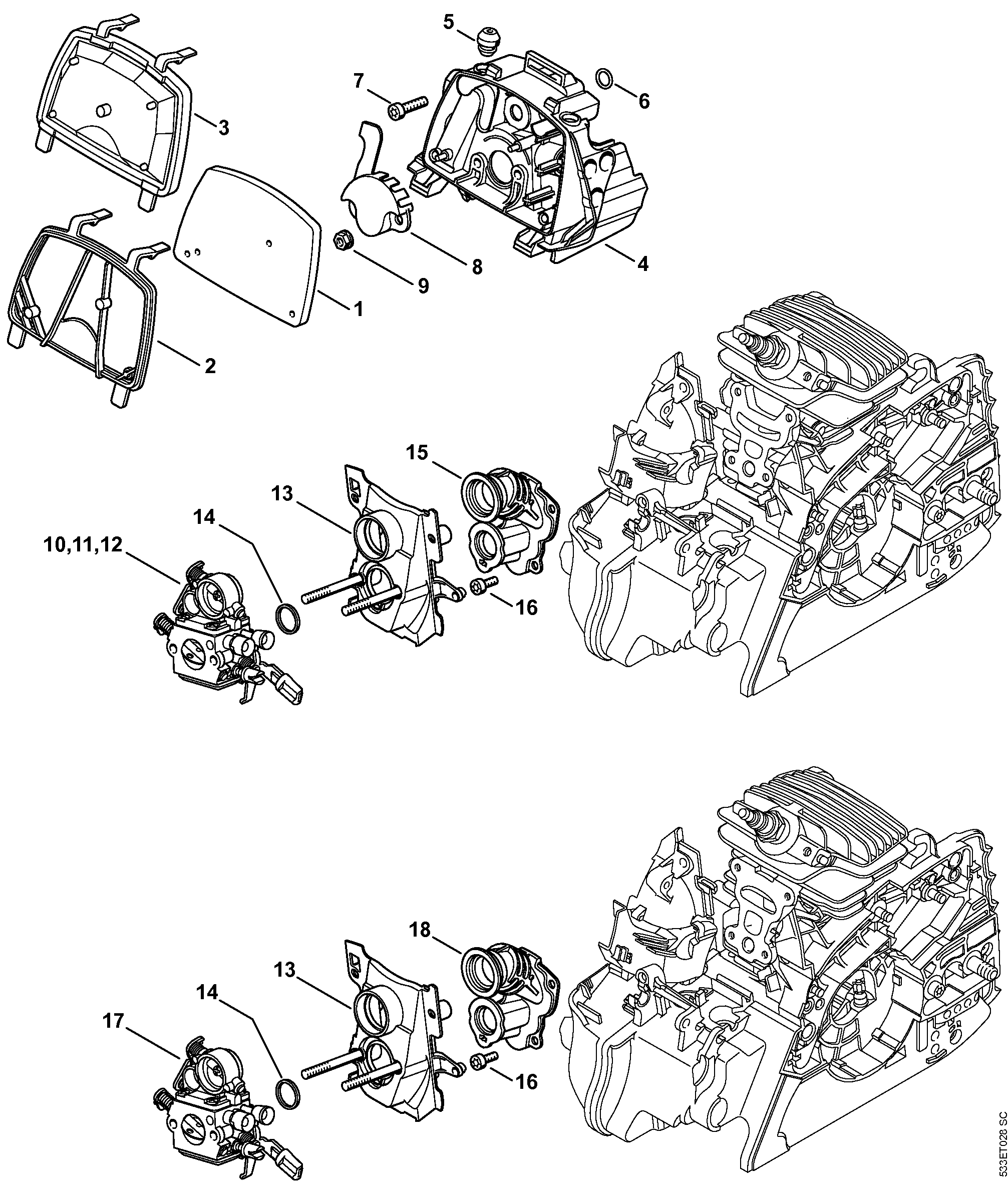

Air filter

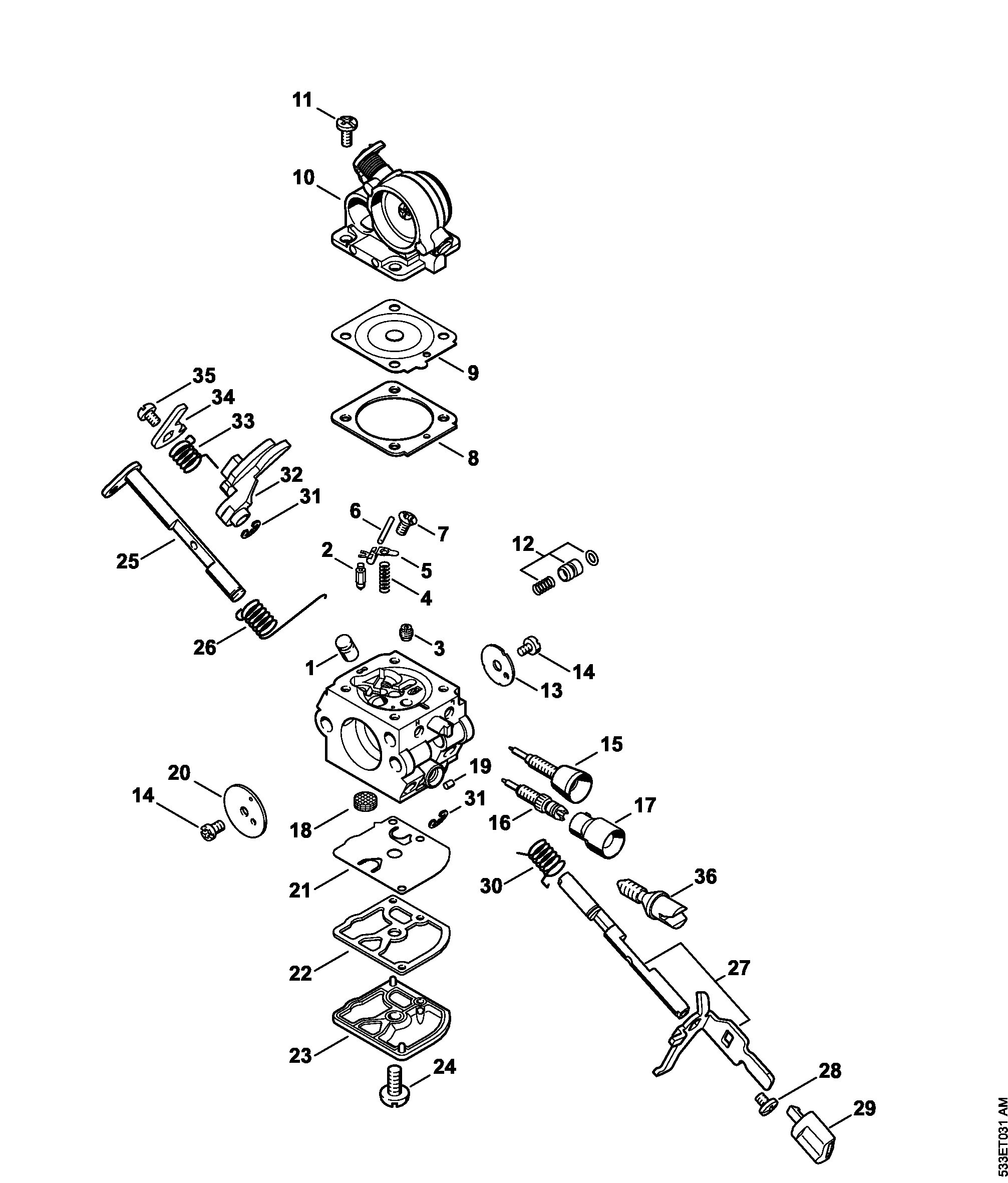

Carburetor C1Q-S123C

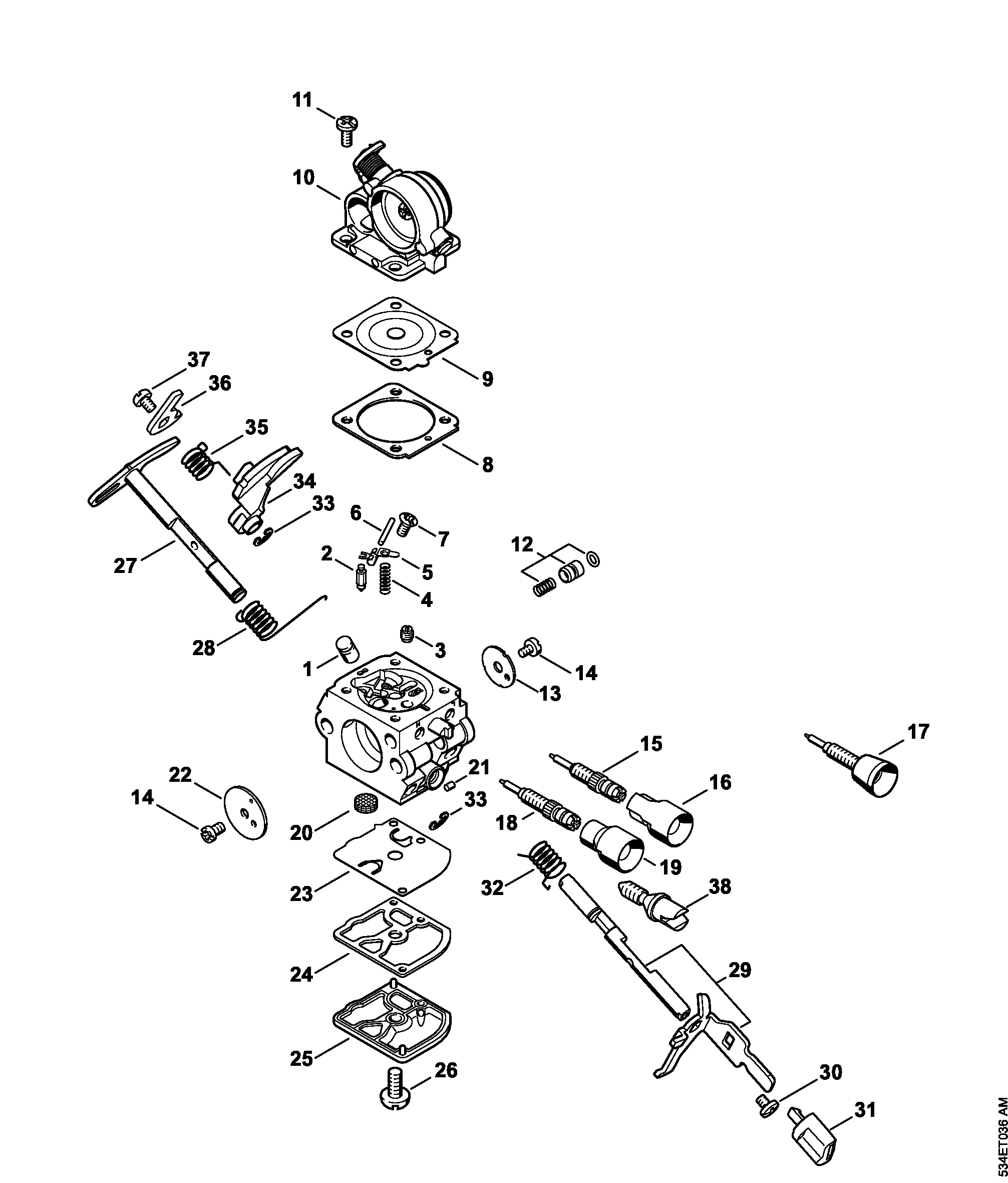

Carburetor C1Q-S238

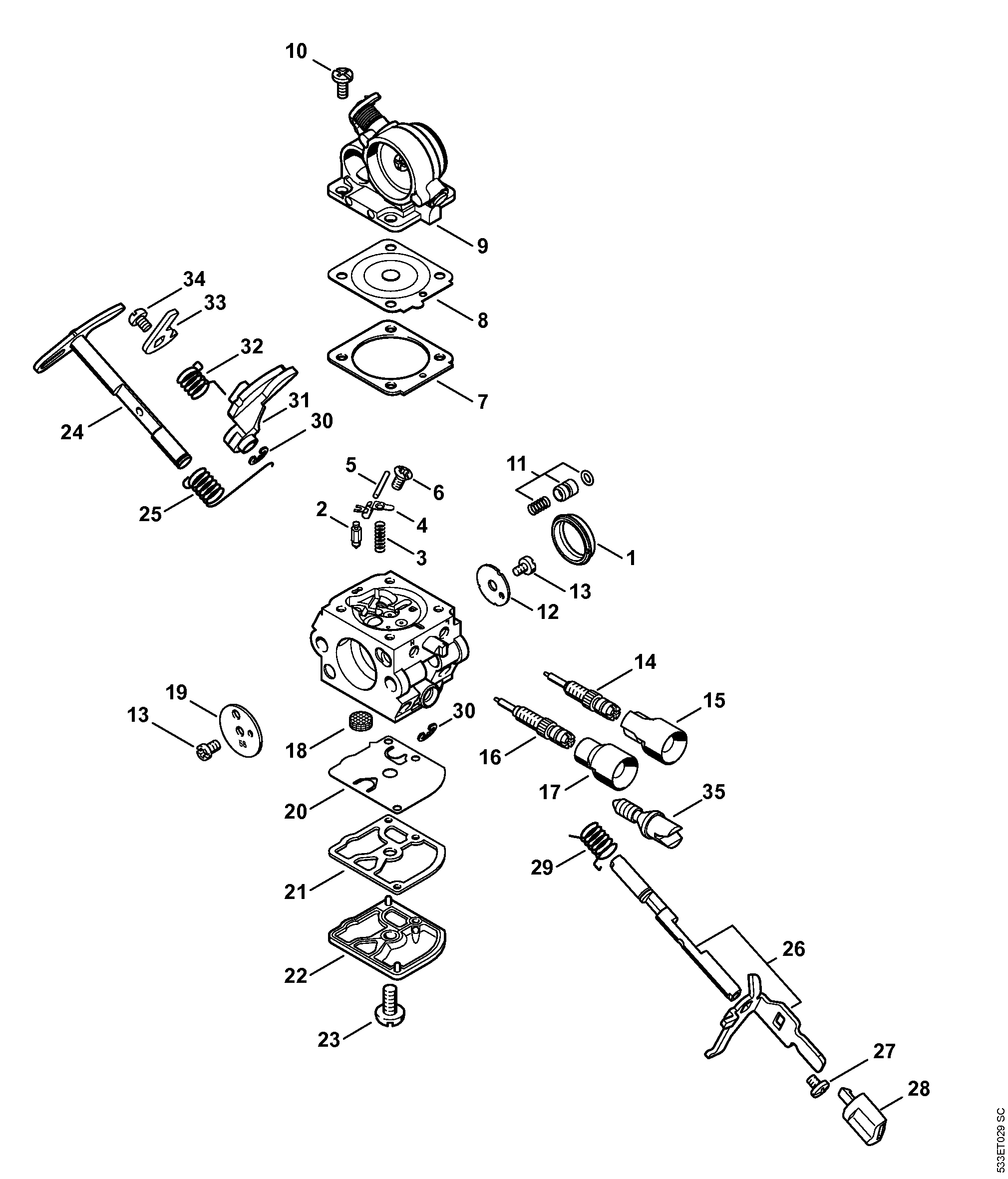

Carburetor C1Q-S270

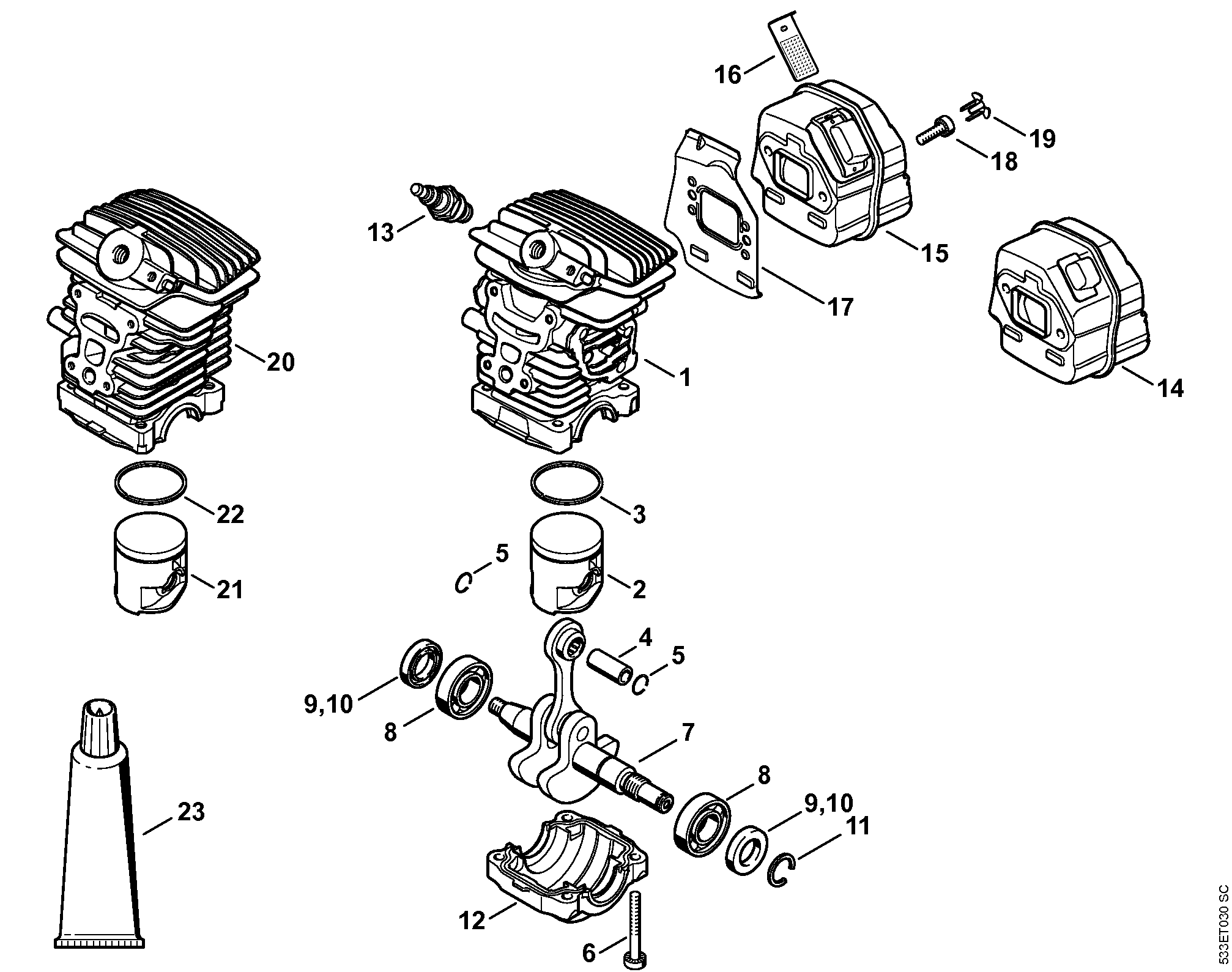

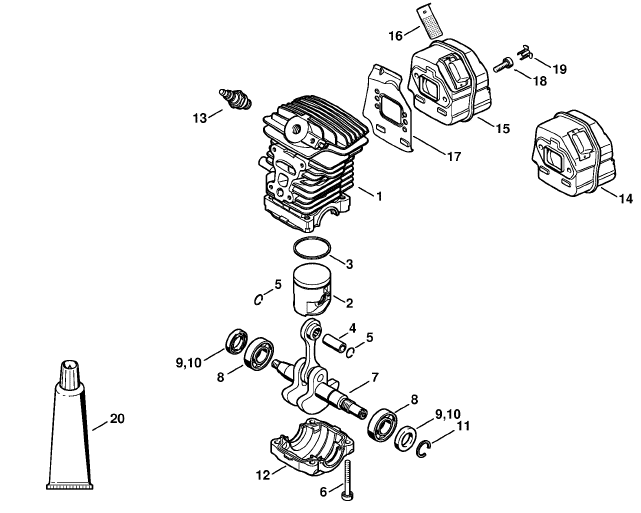

Cylinder

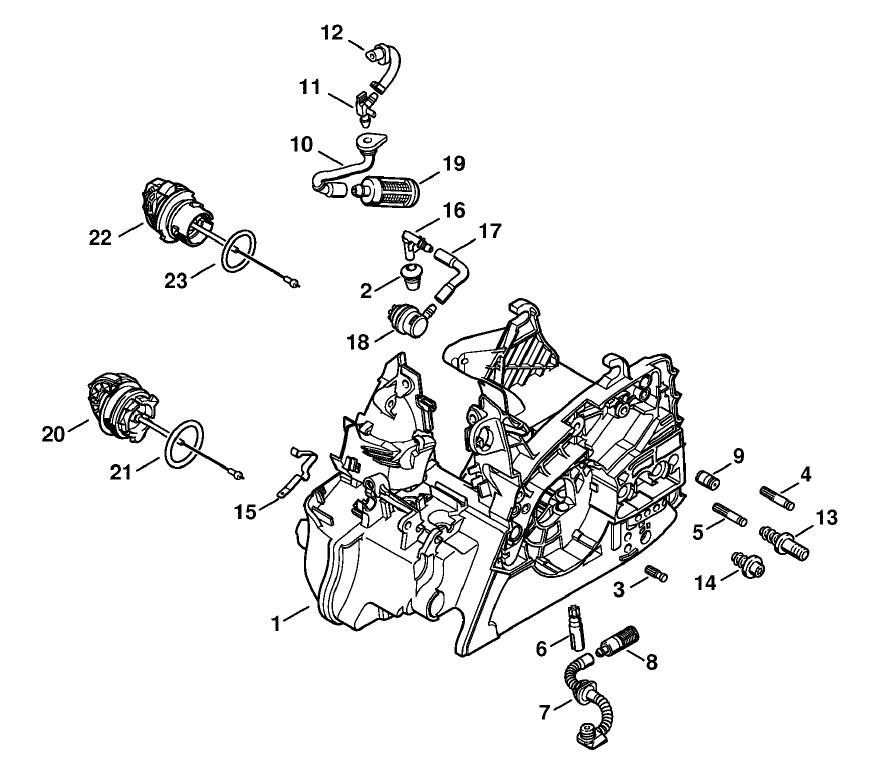

Engine housing

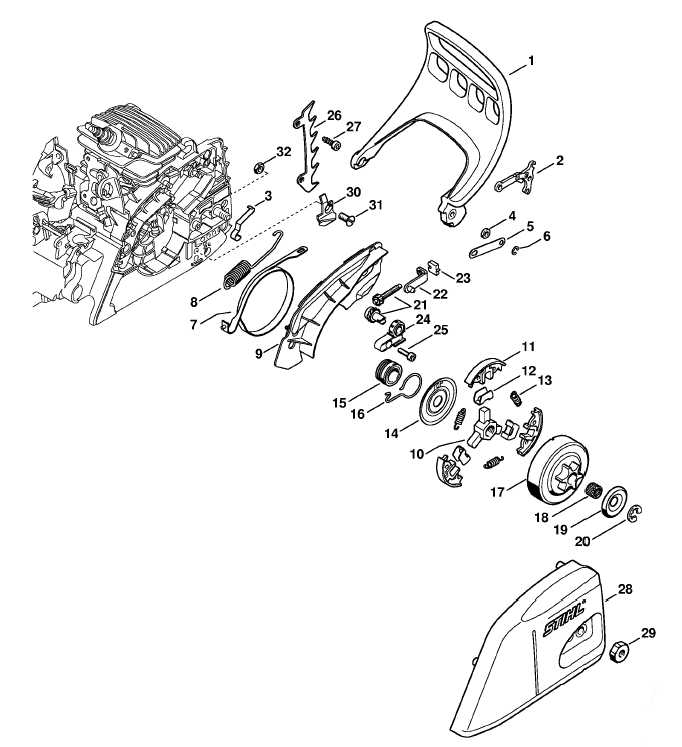

Hand guard

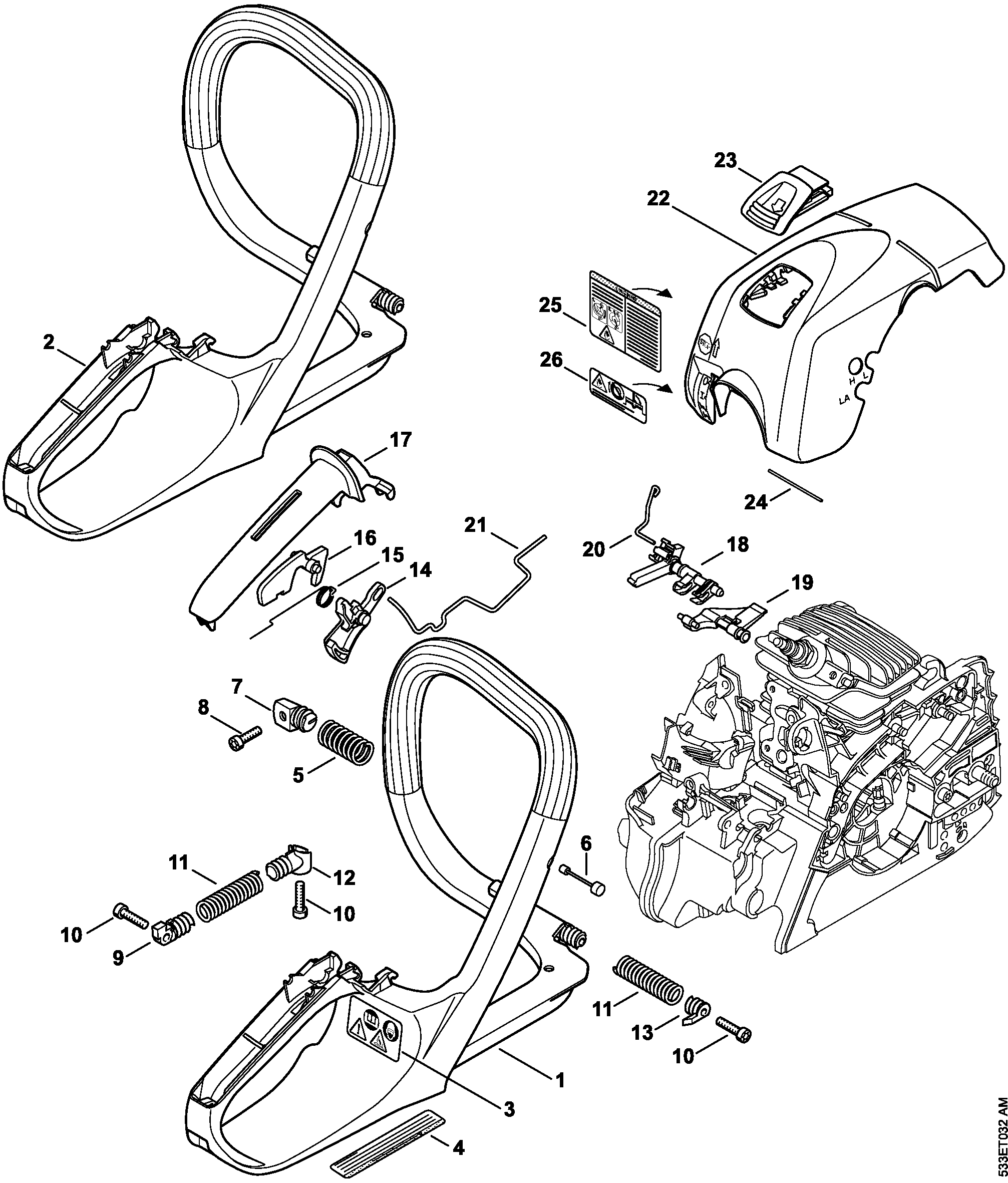

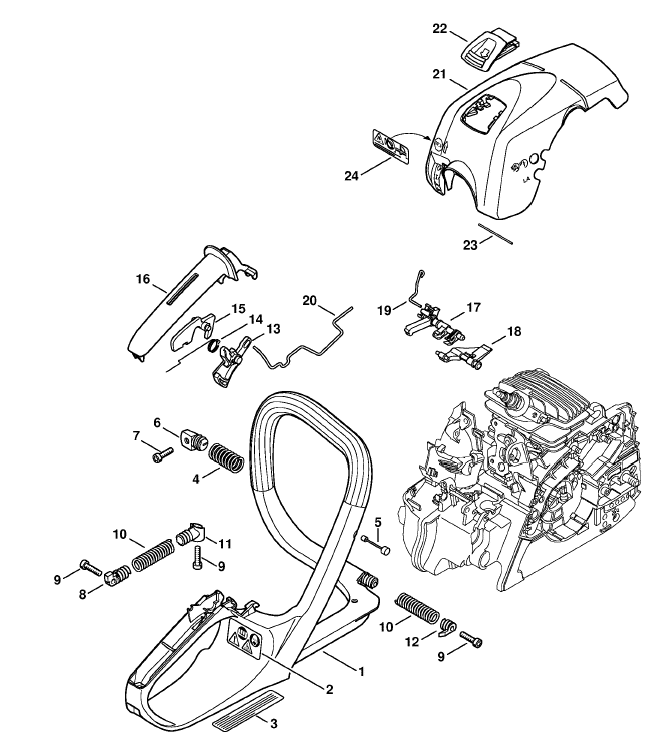

Handle frame

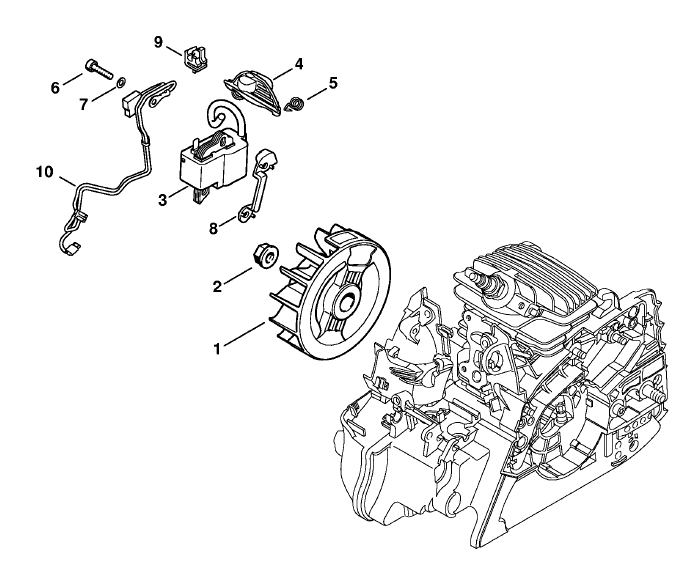

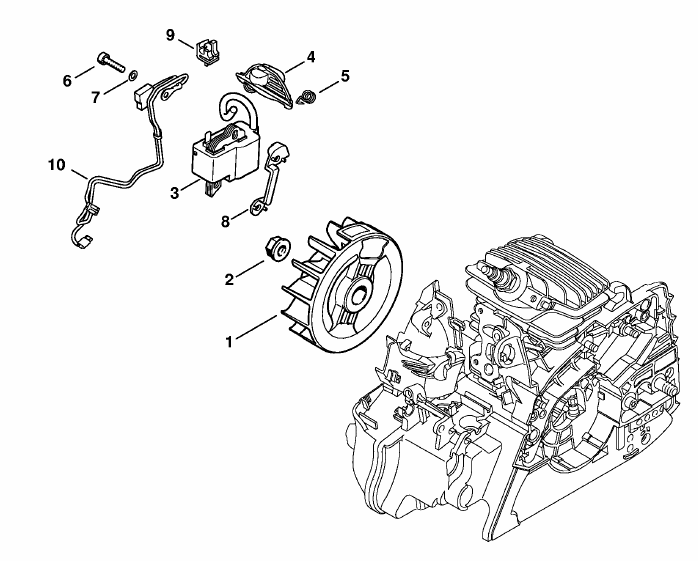

Ignition system

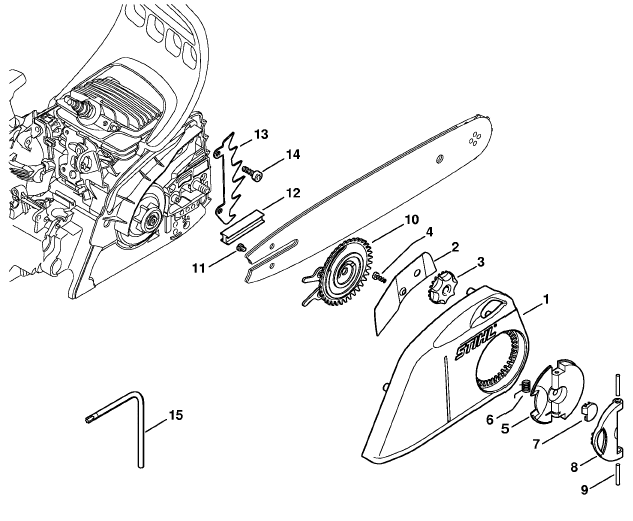

Quick chain tensioner

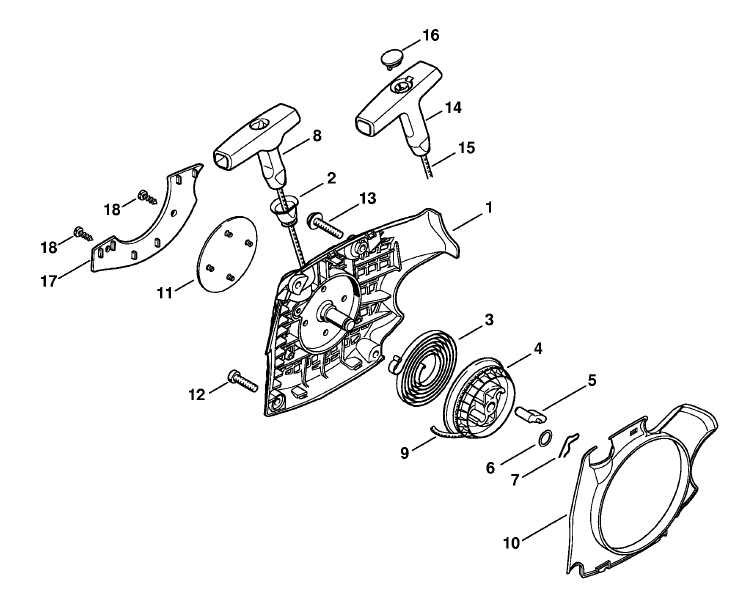

Rewind starter
Tightening torques 1

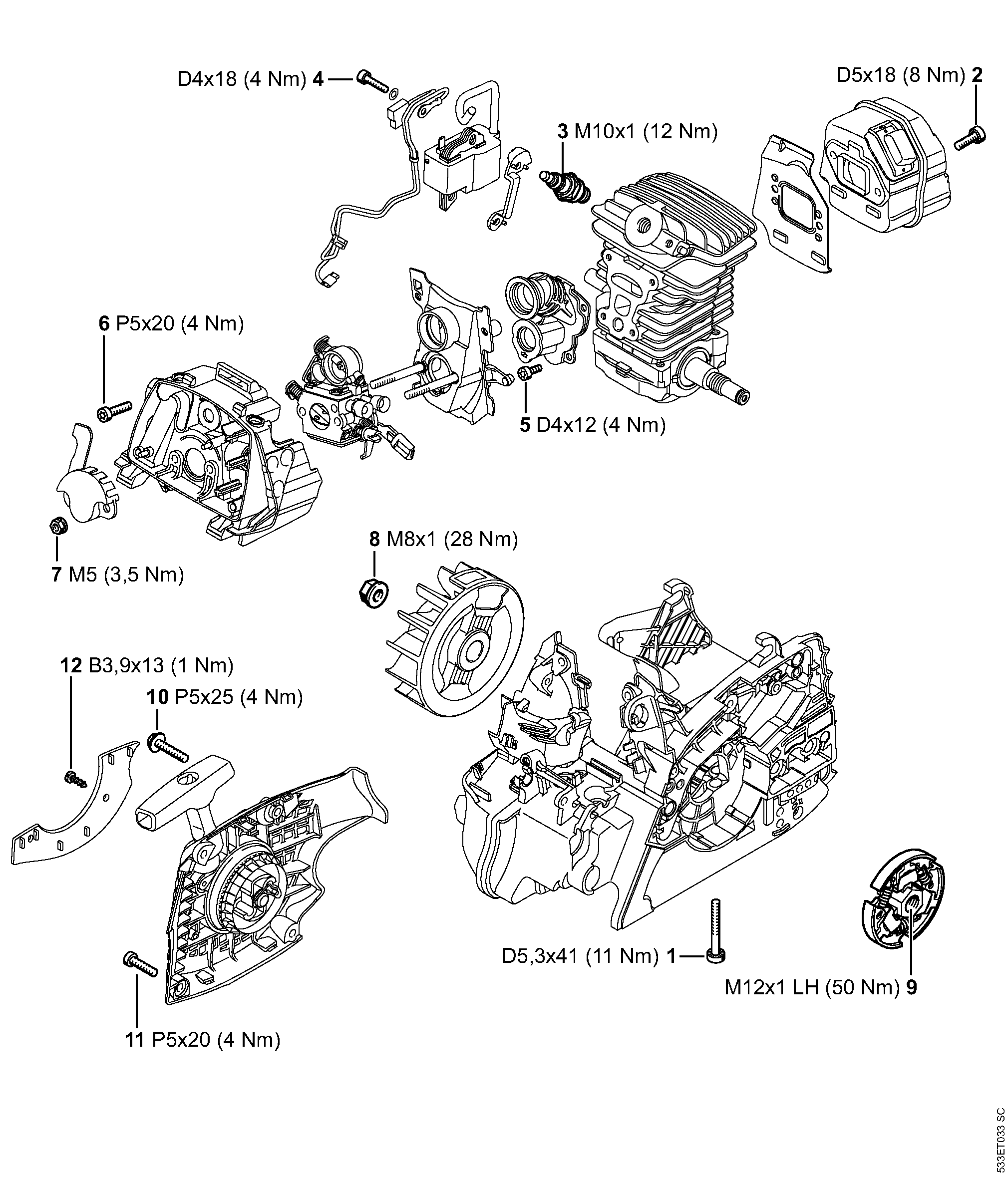

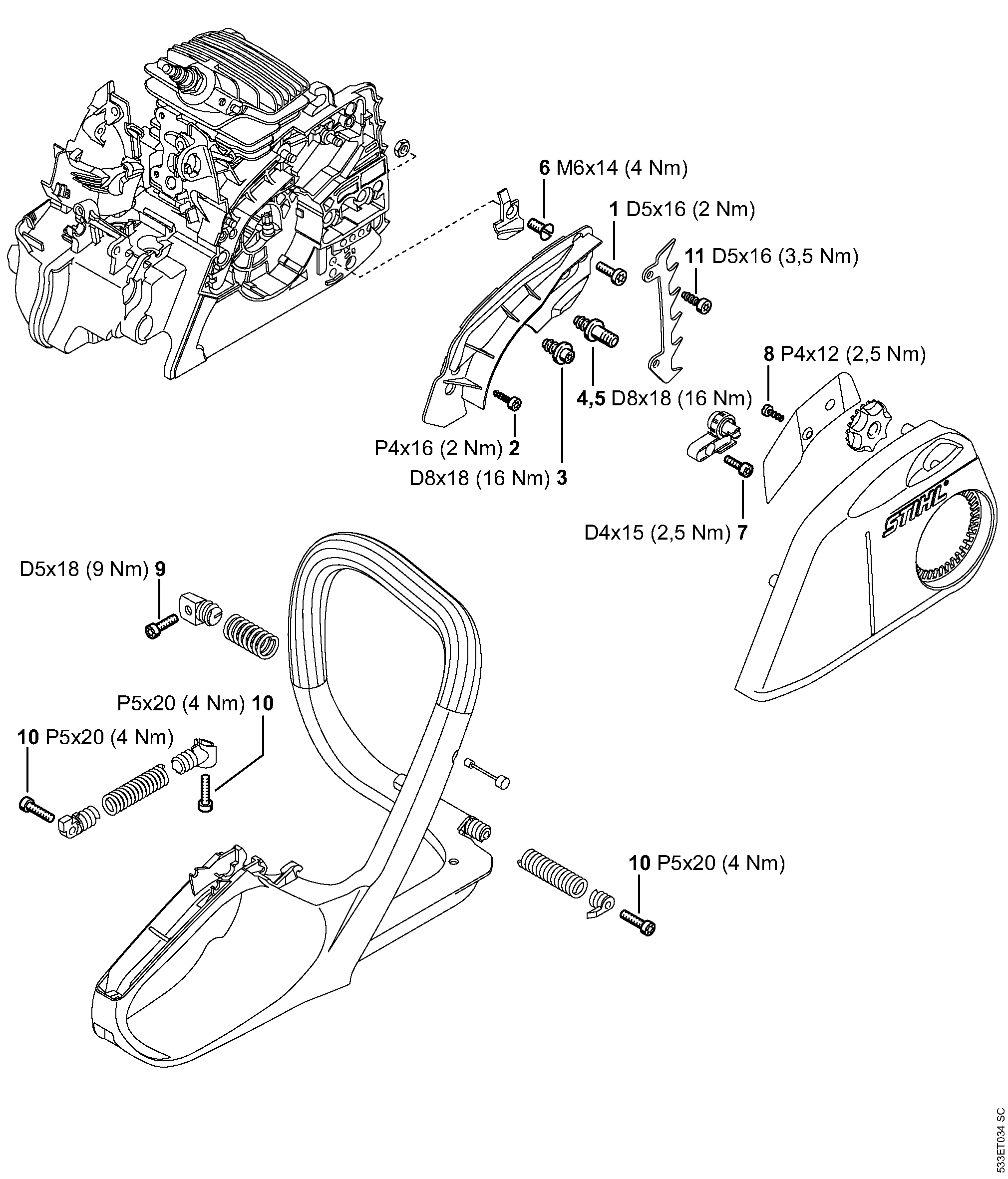

Tightening torques

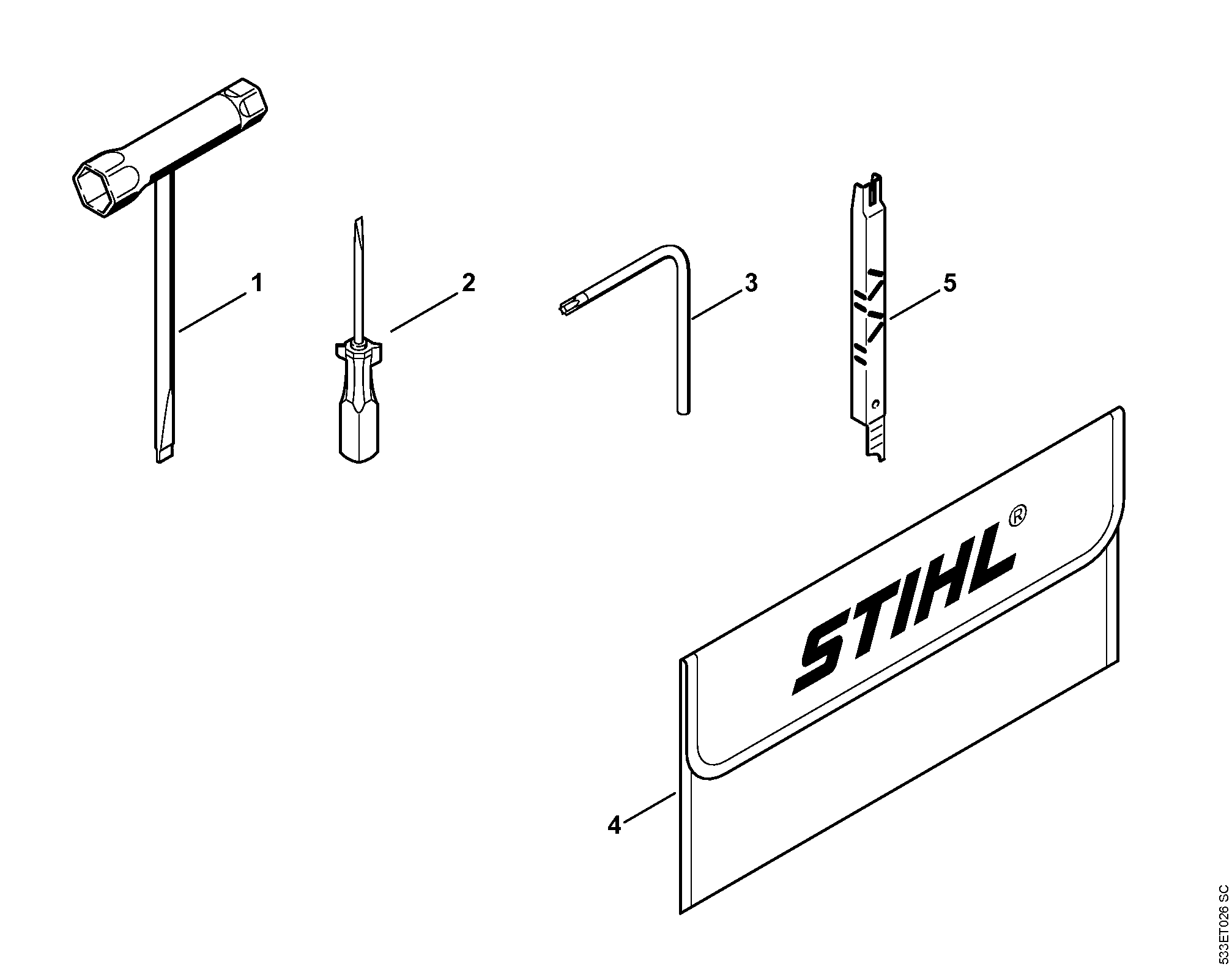

Tools
