Diagrams for the Stihl MS 170 Chainsaw
Use our interactive exploded view diagrams to easily identify the parts that fit your machine, select a popular part, or view the complete list of all parts that fit a Stihl MS 170 Chainsaw.
Select year or serial number...
Diagrams for this machine
Select a page to view from the list of diagrams below. Diagrams are usually named by your machine serial number or year of manufacture.
View all parts for the Stihl MS 170 Chainsaw

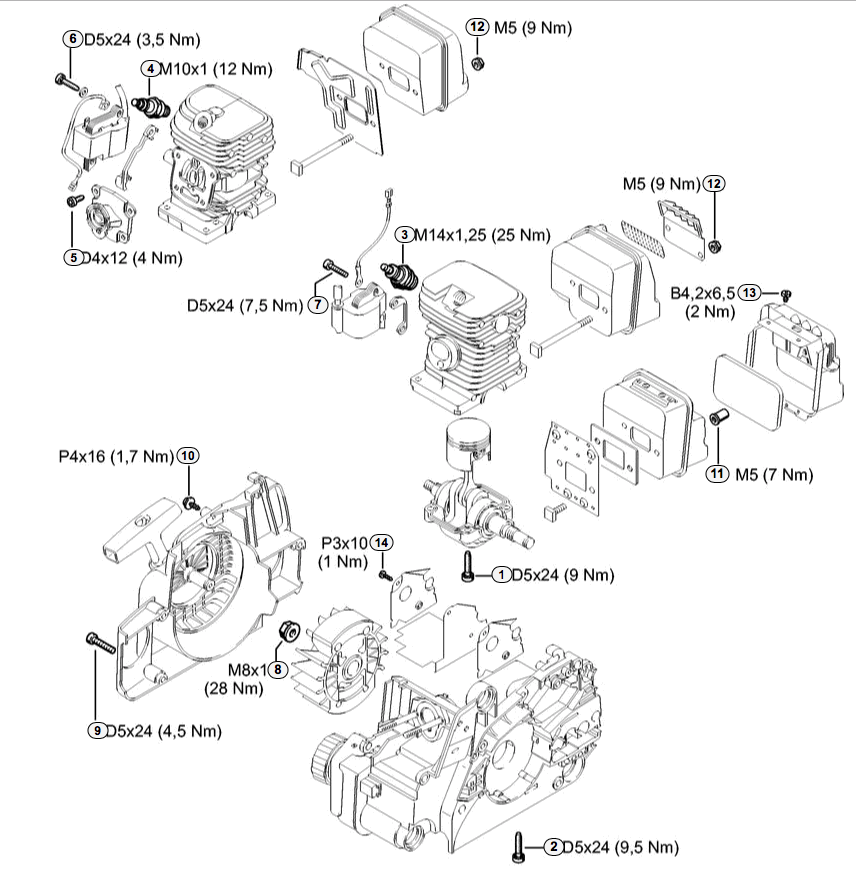

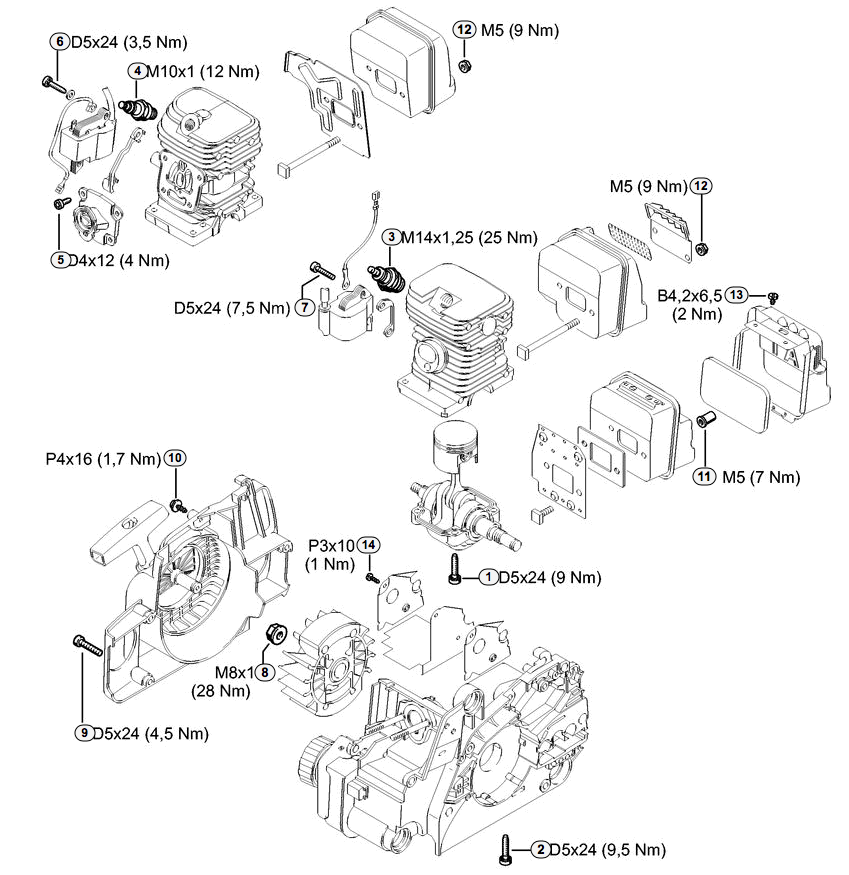

MS170

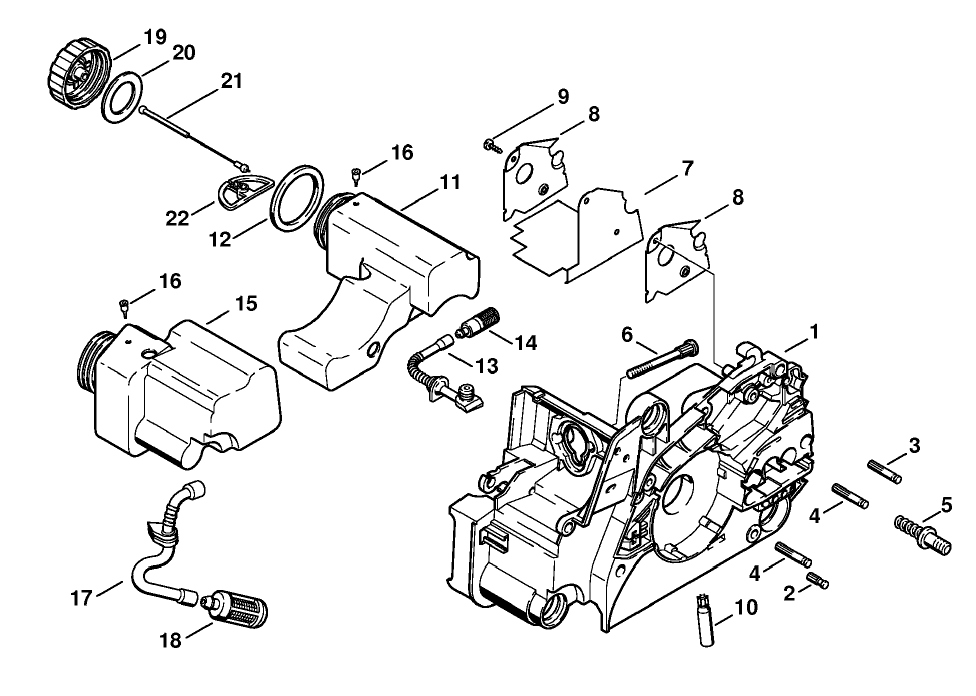

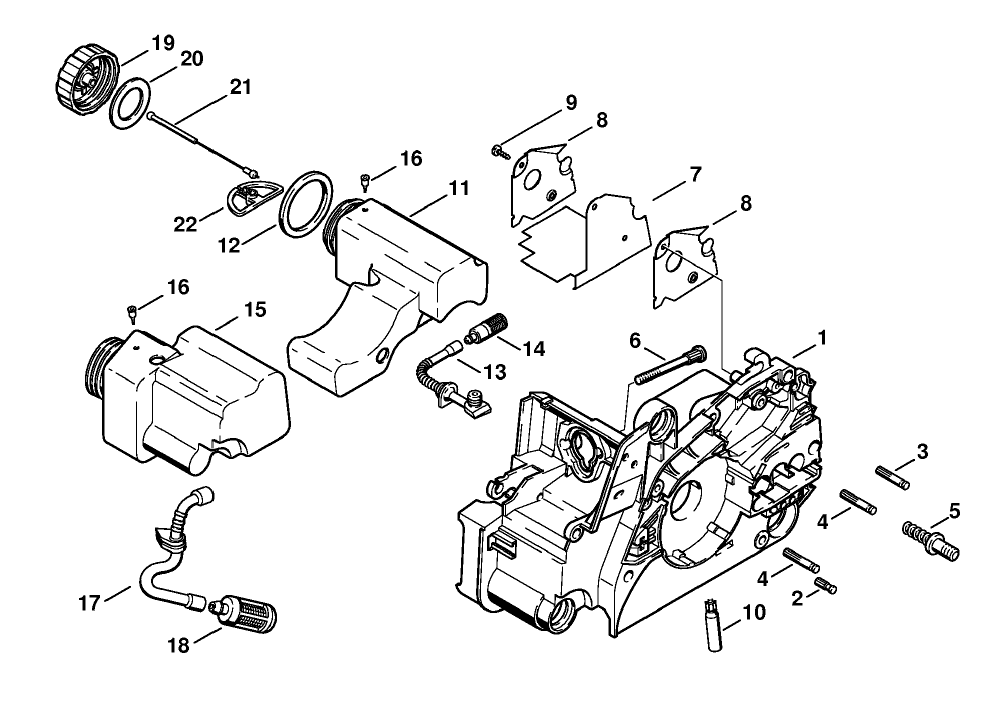

Engine Housing

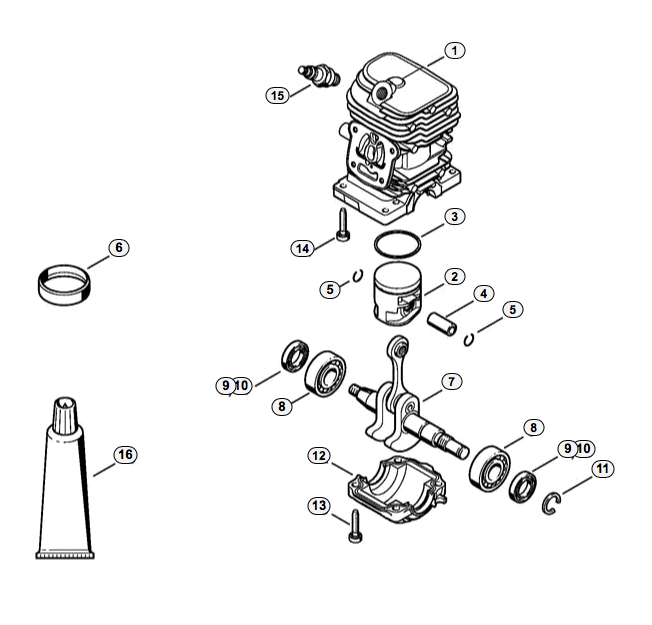

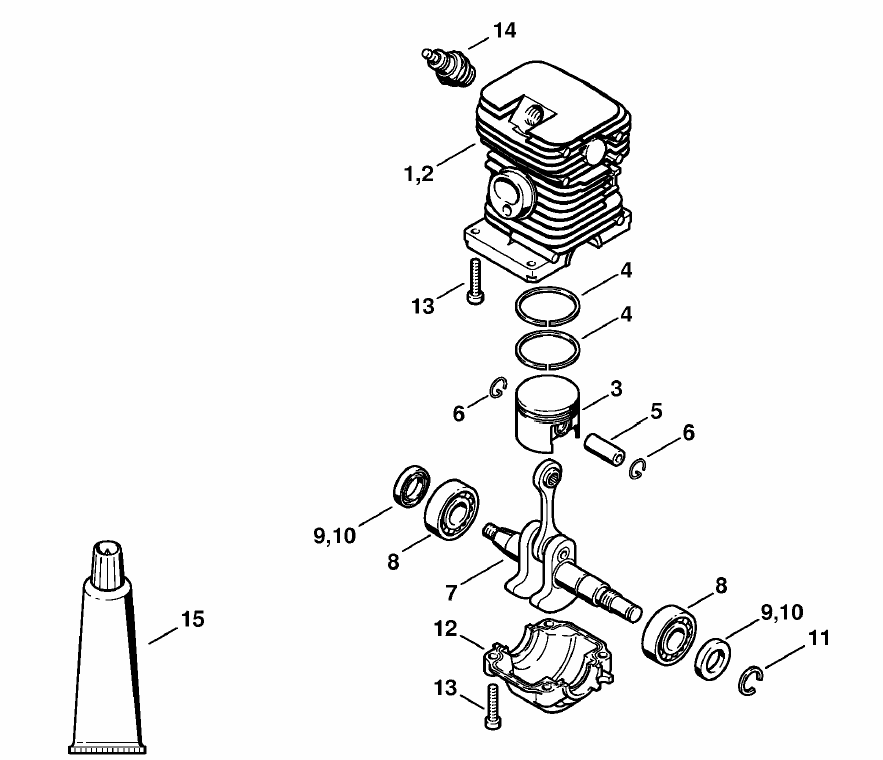

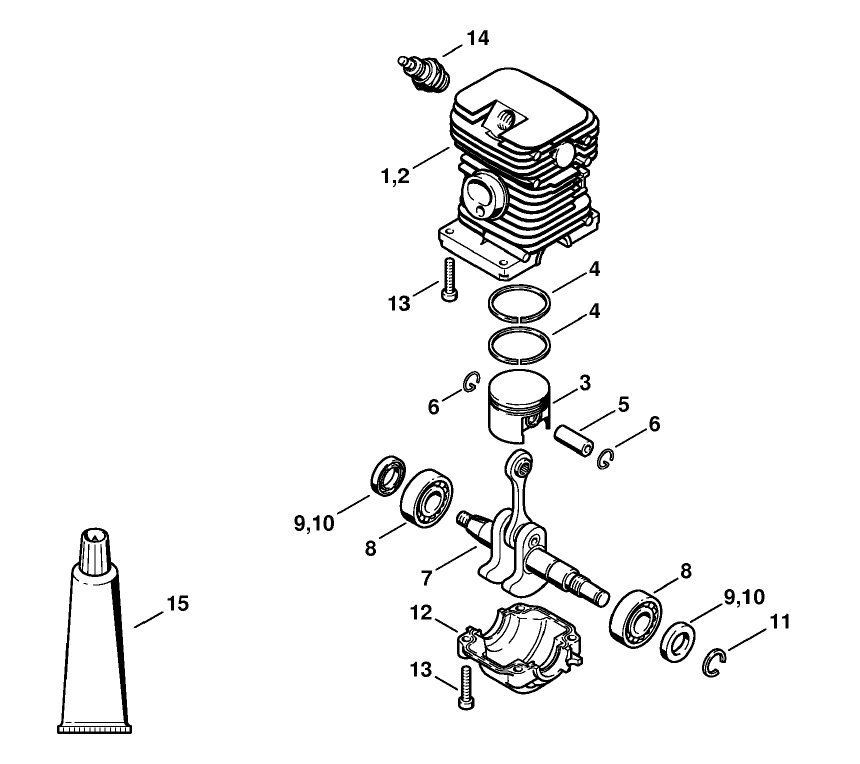

Cylinder

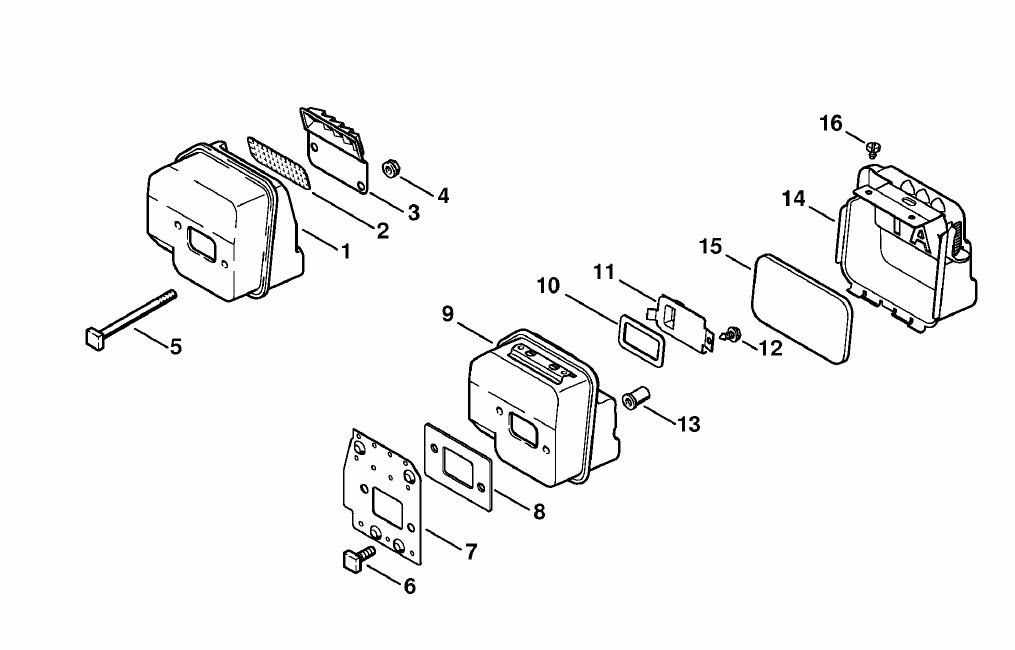

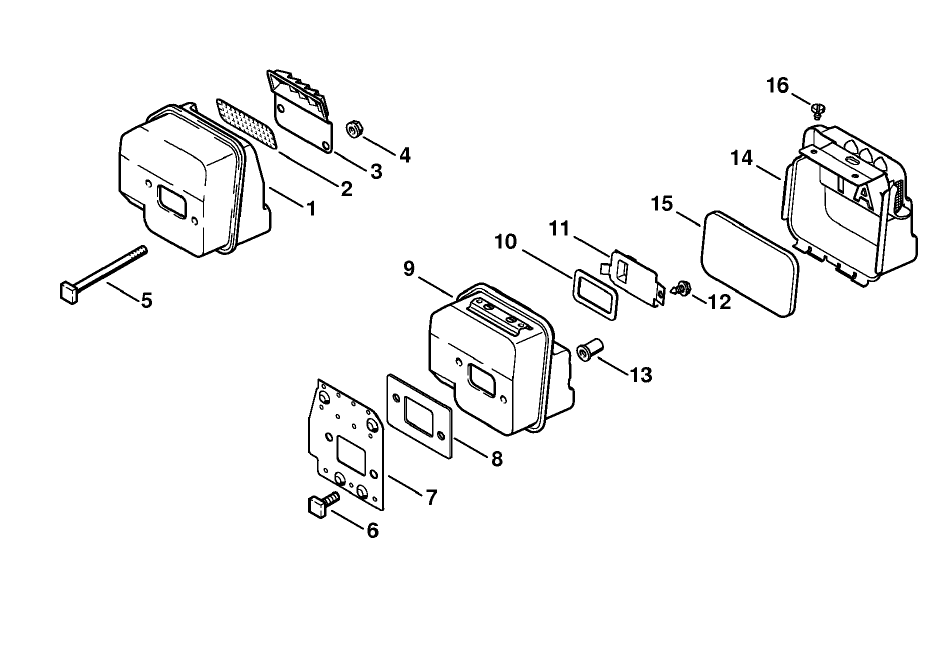

Muffler

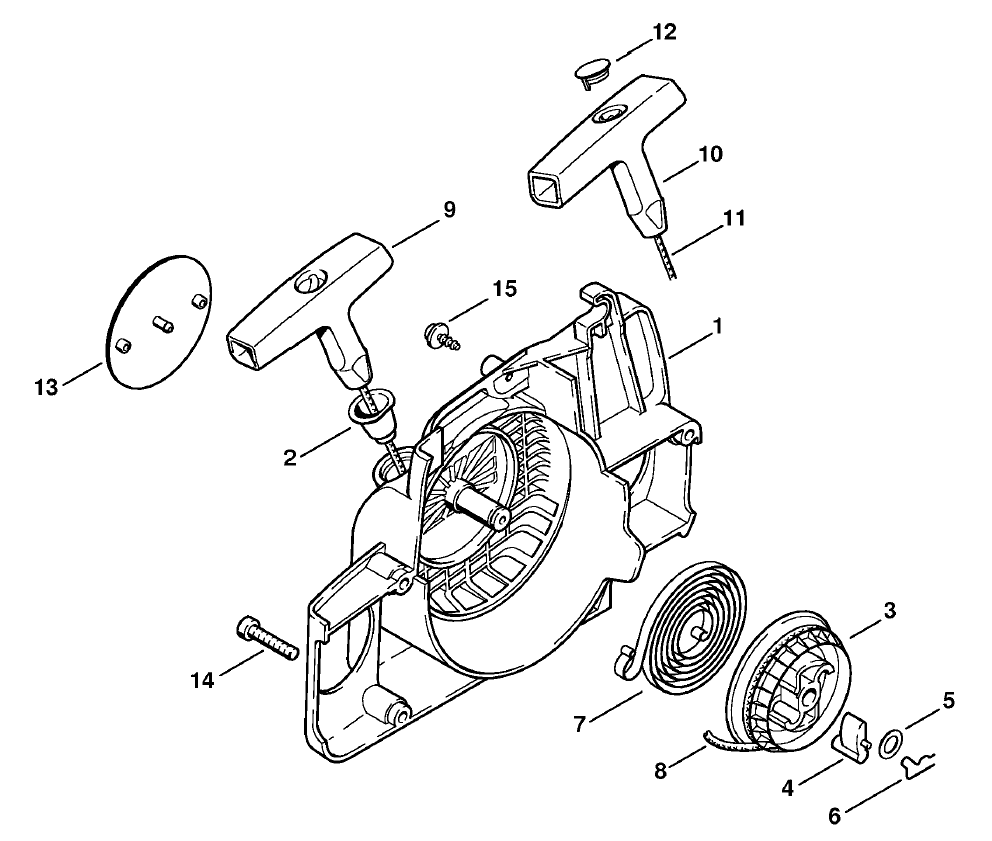

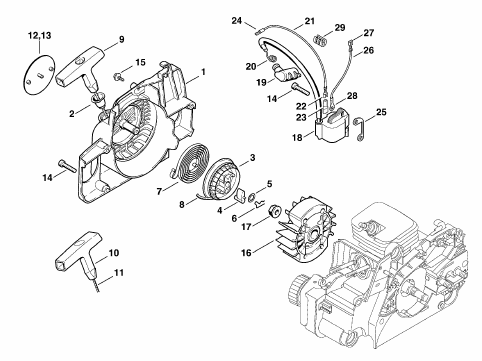

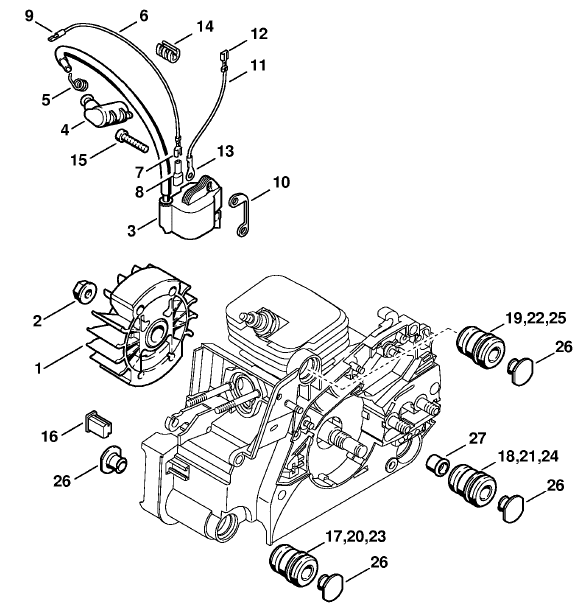

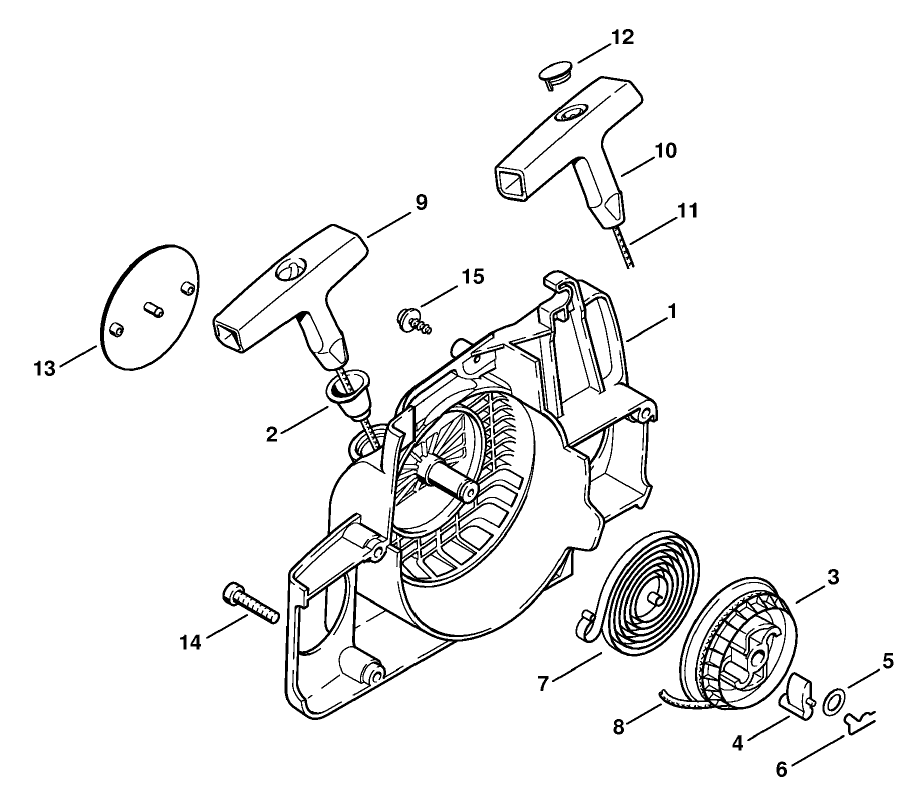

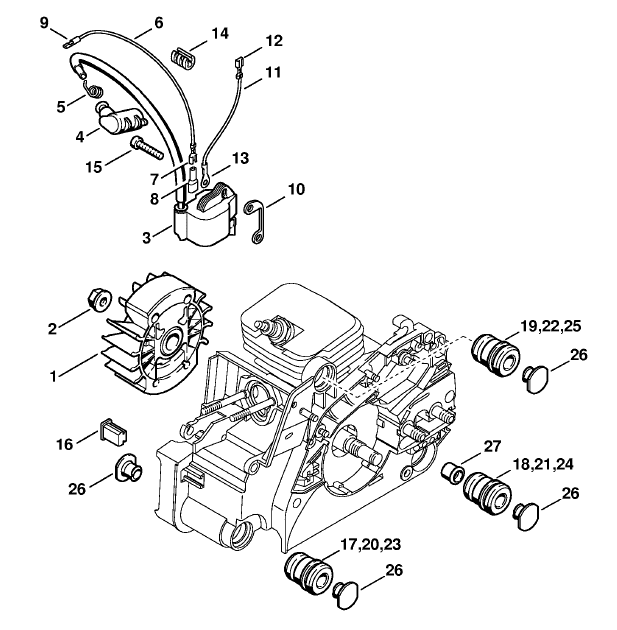

Rewind Starter -Ignition System

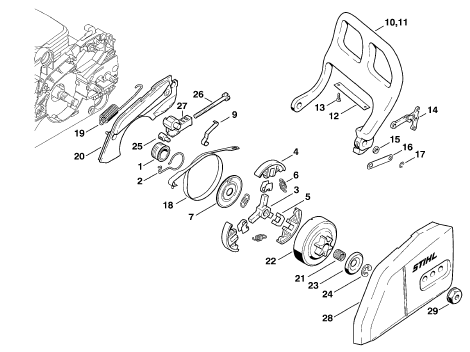

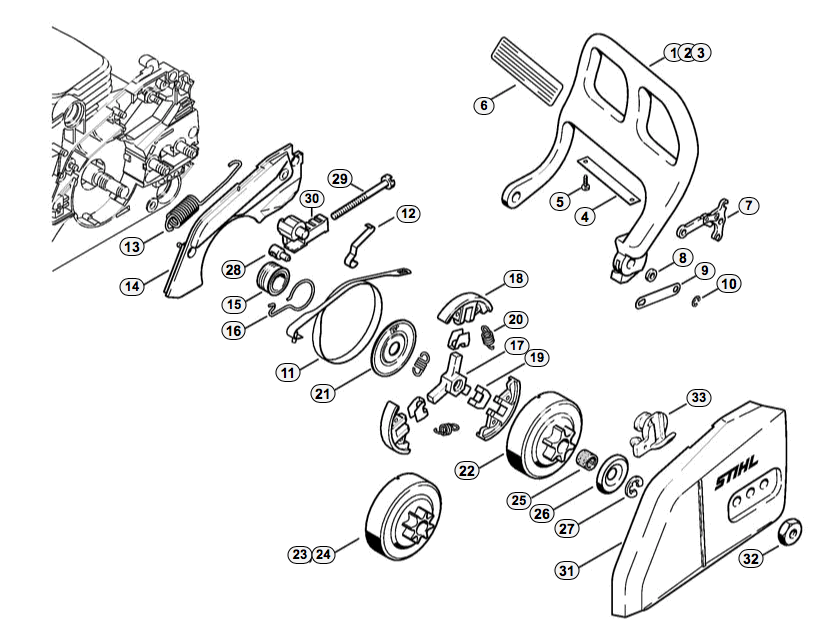

Chain Brake

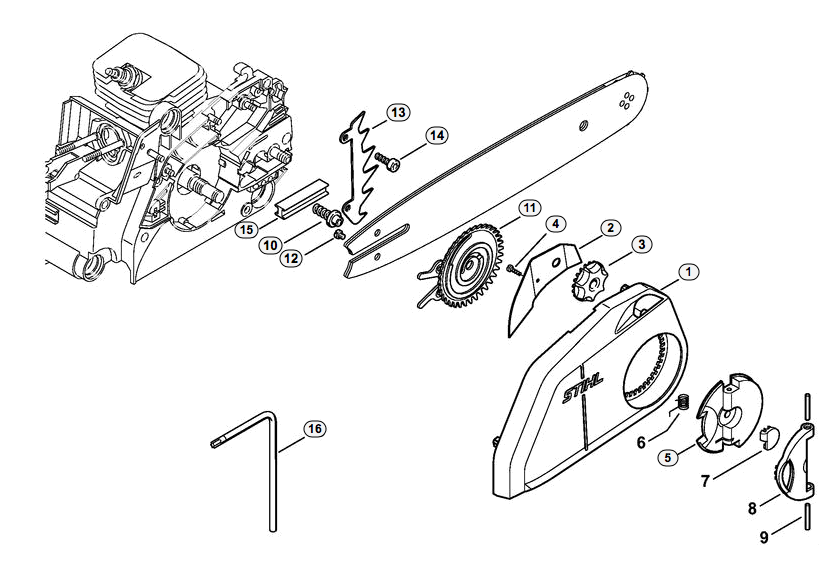

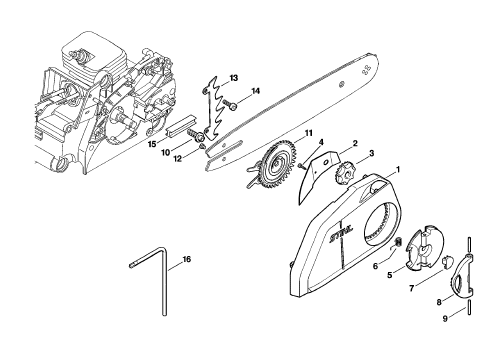

Quick Tensioner Parts

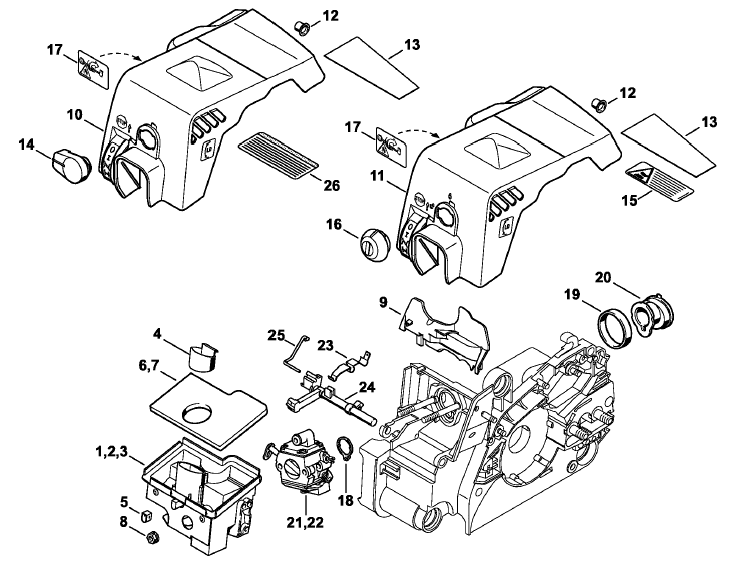

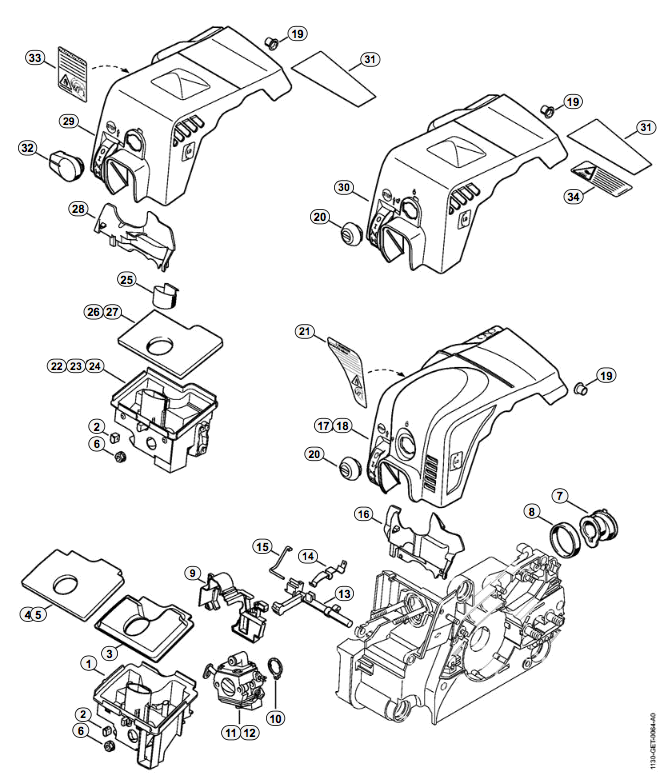

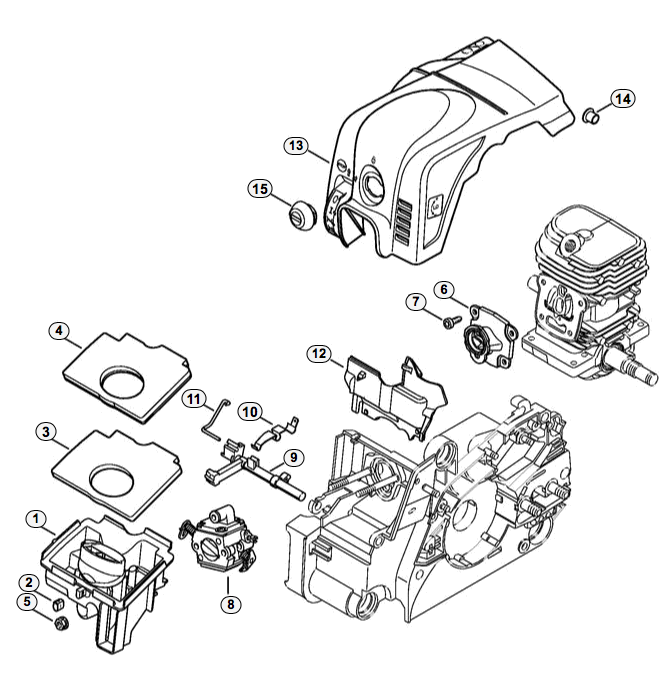

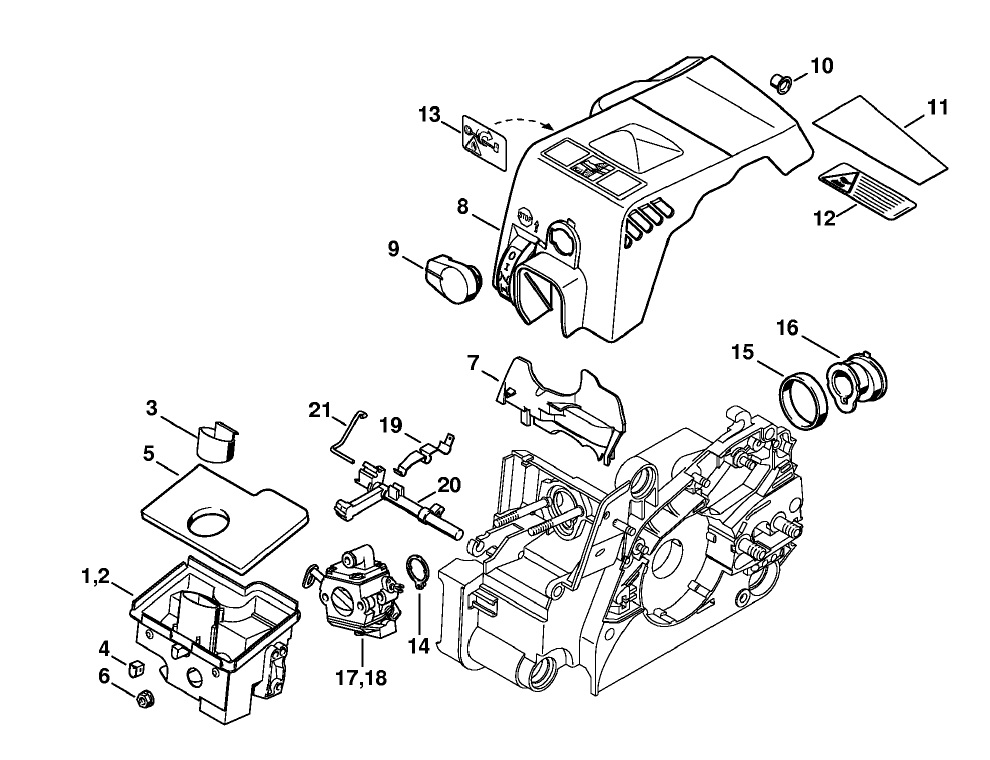

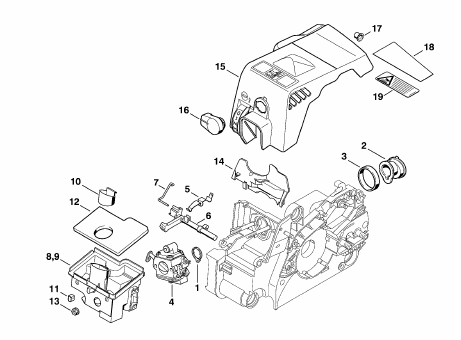

Air Filter - Cover

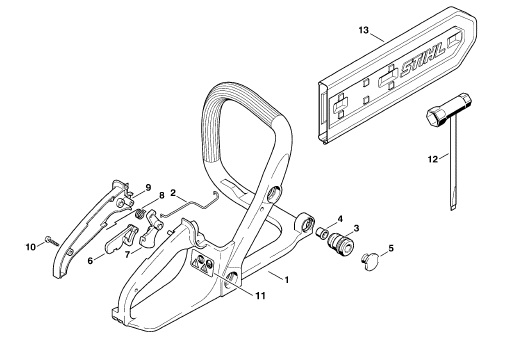

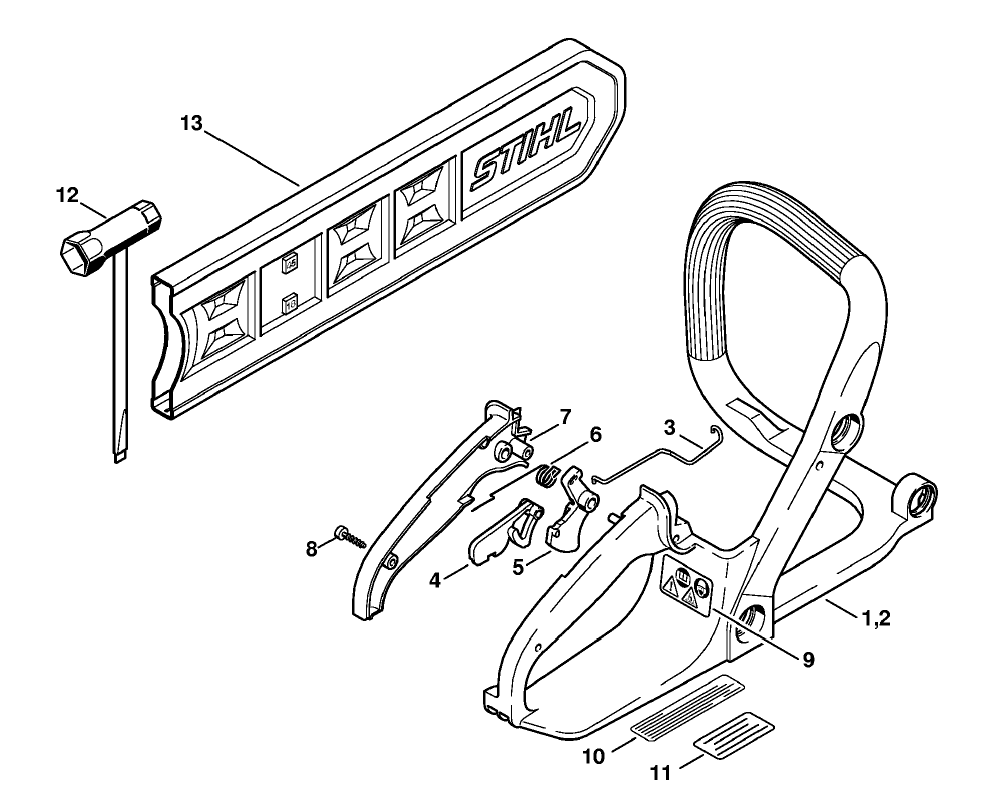

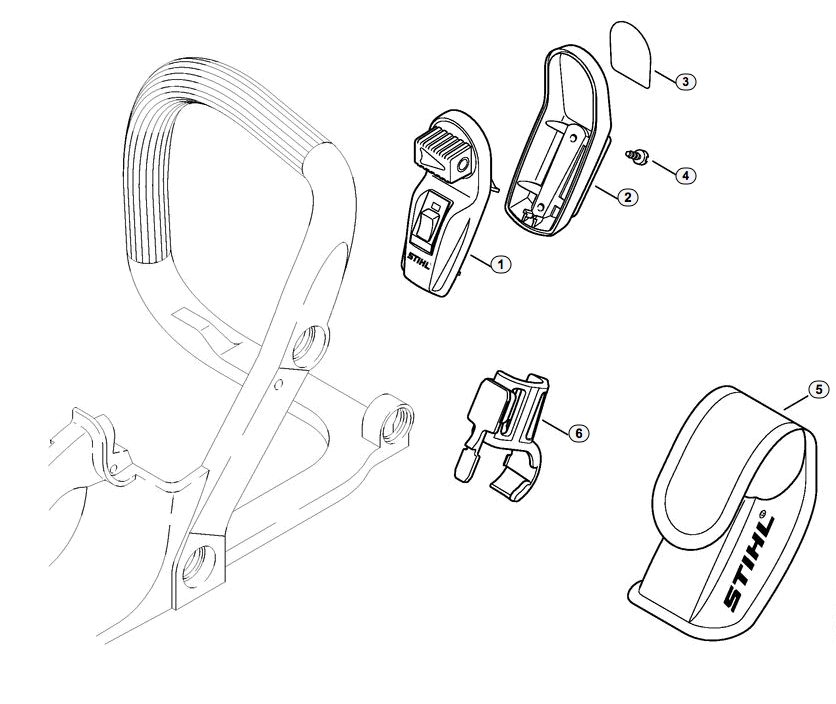

Handle Frame - Tools

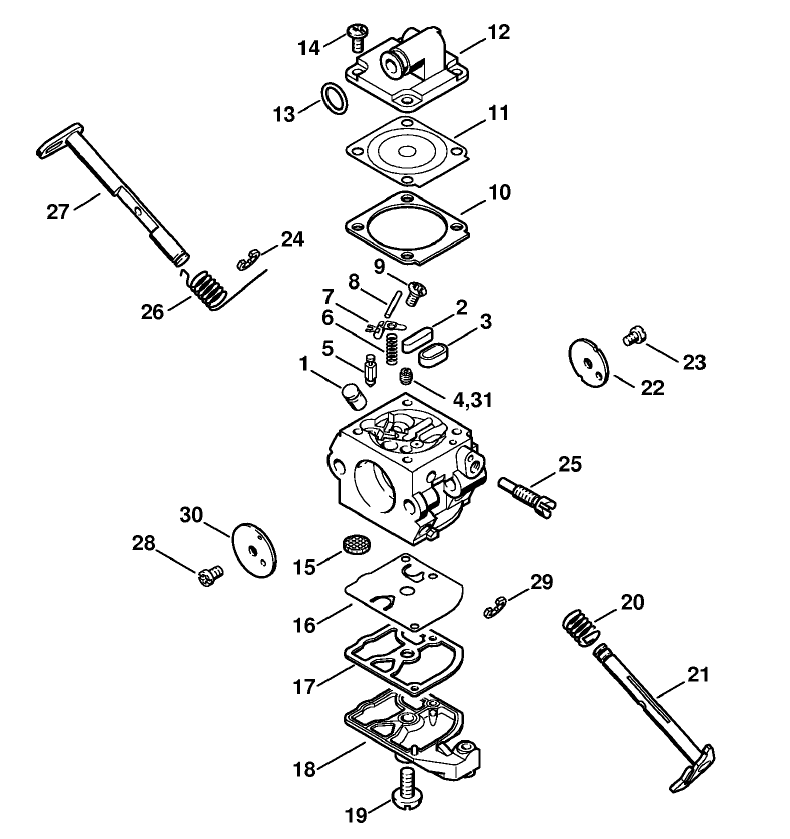

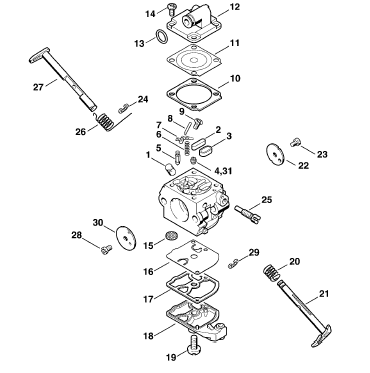

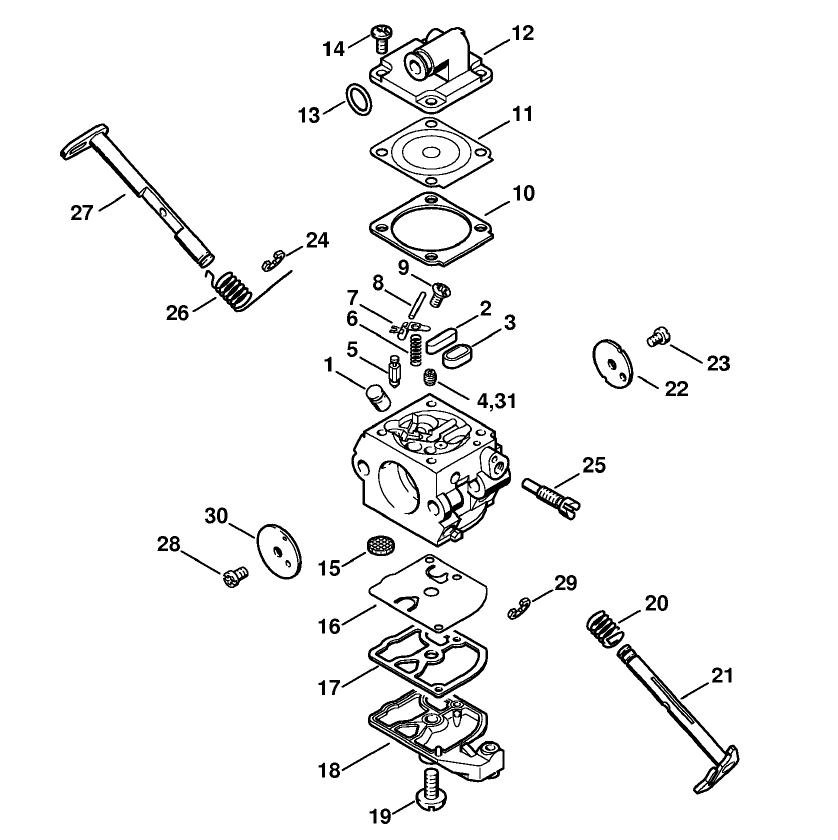

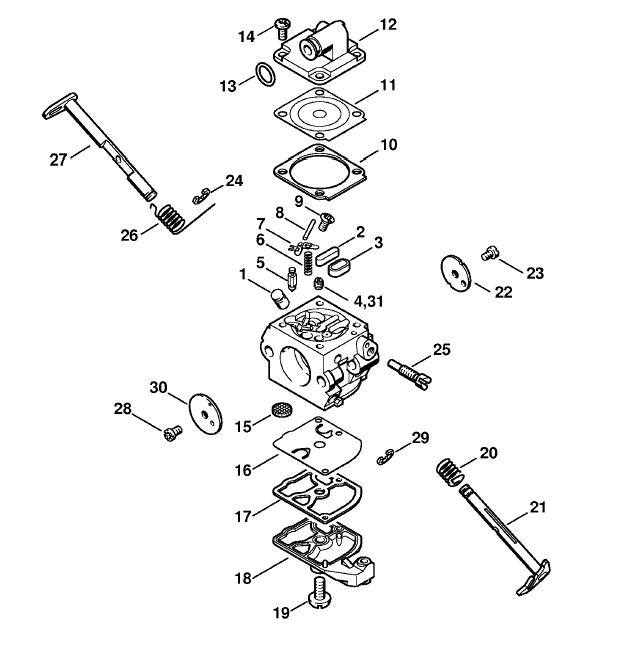

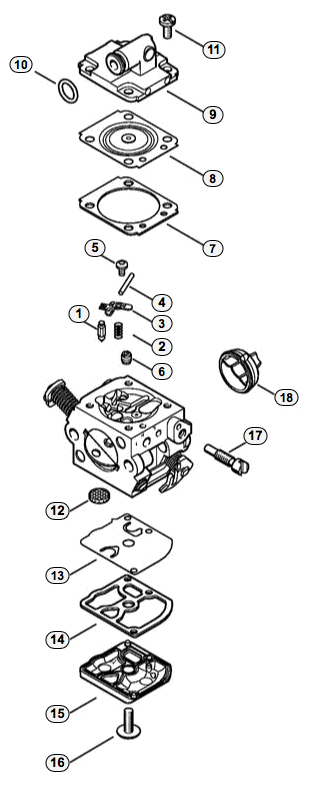

Carburetor C1Q-S57A
MS170C-E

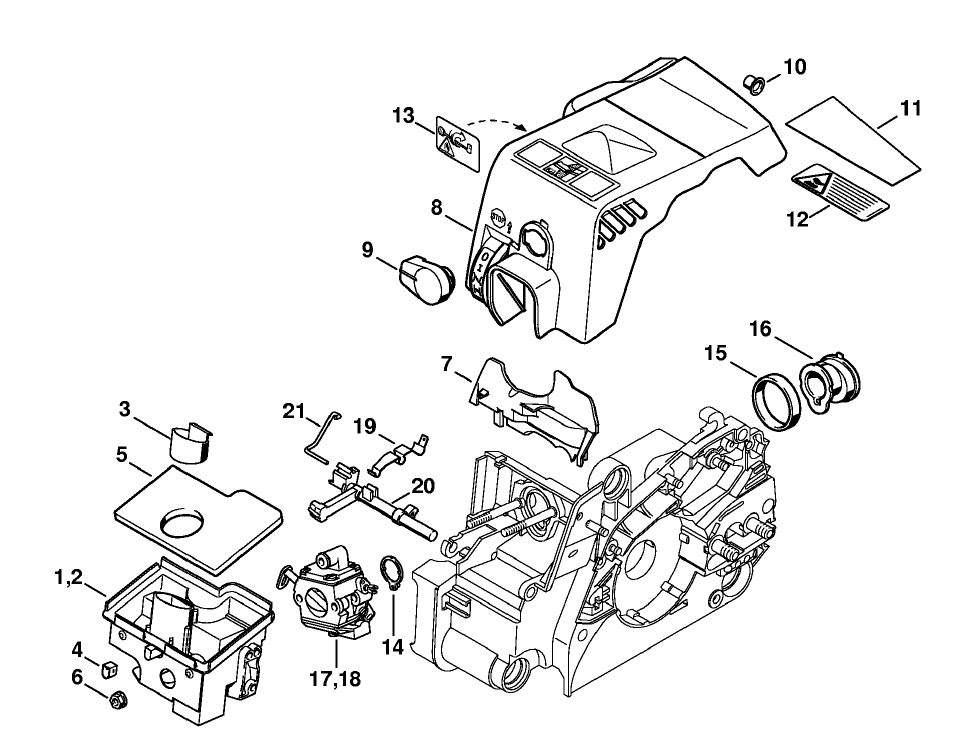

Air Filter
Carburetor C1Q-S57A

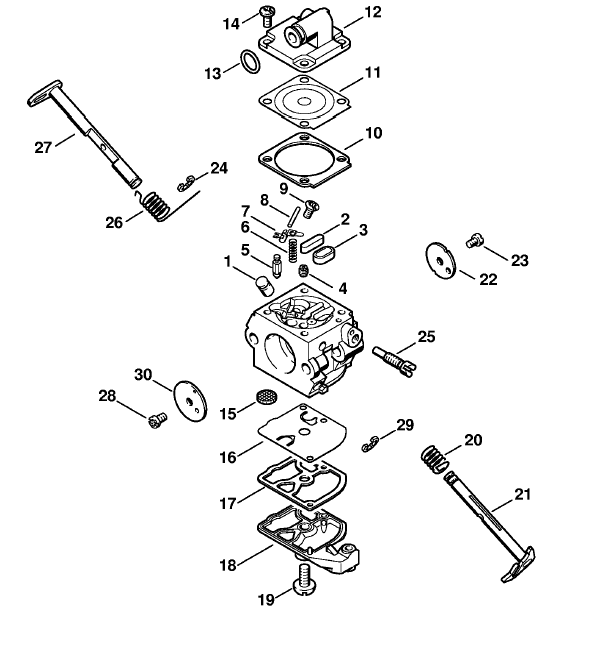

Carburetor C1Q-S137 BR

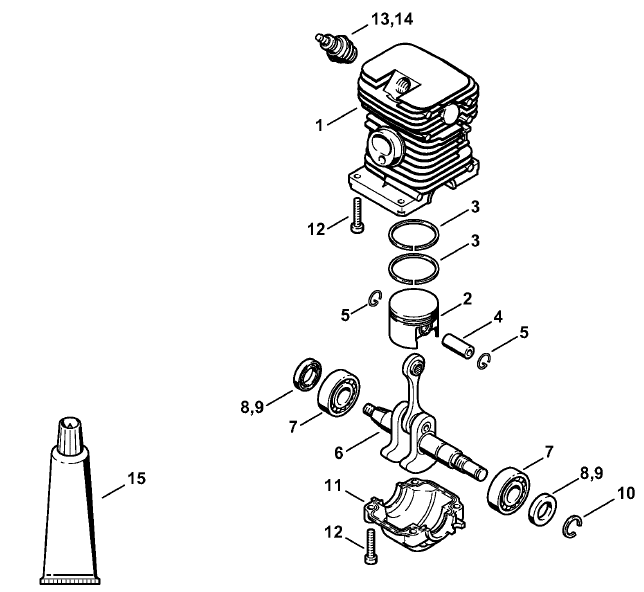

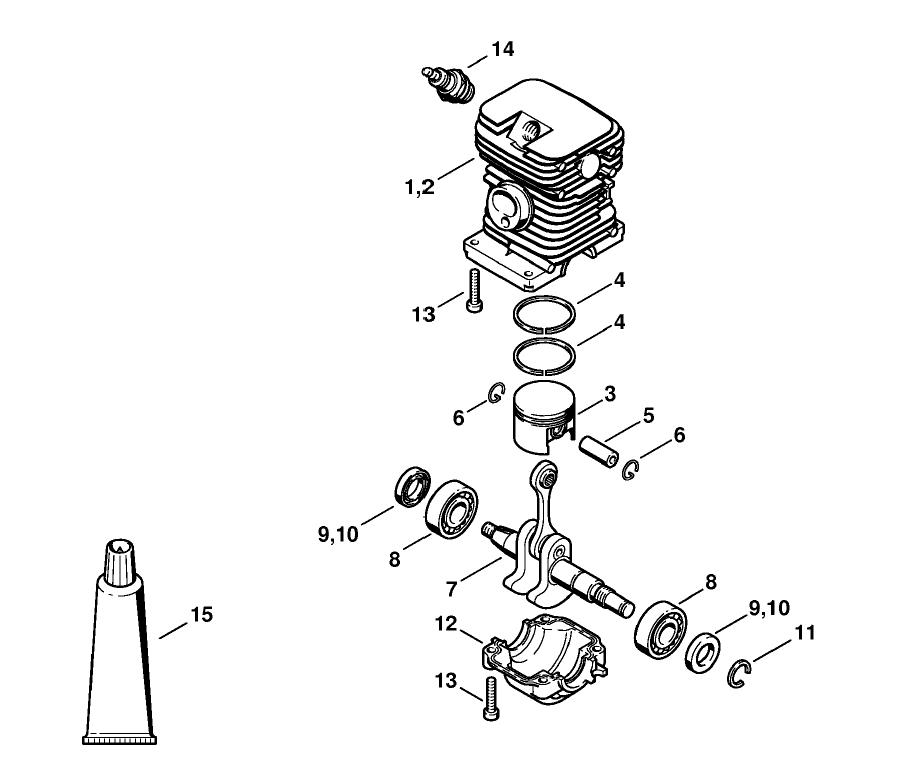

Cylinder

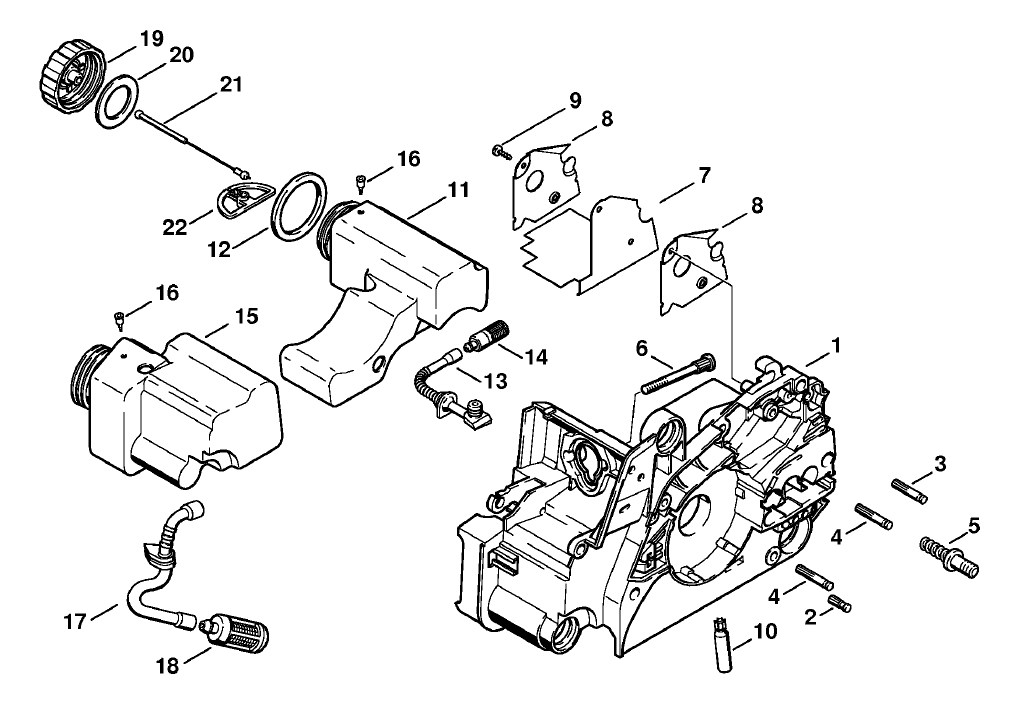

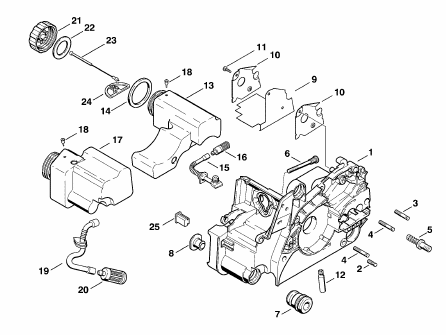

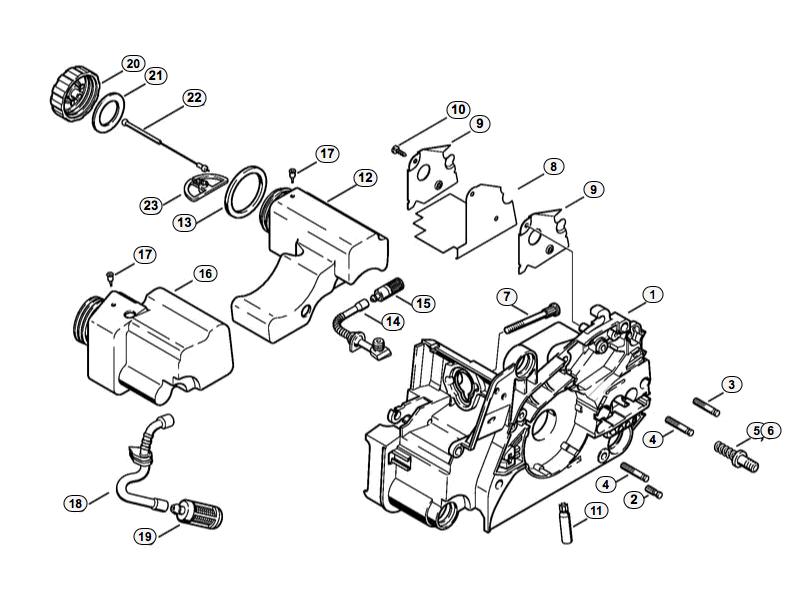

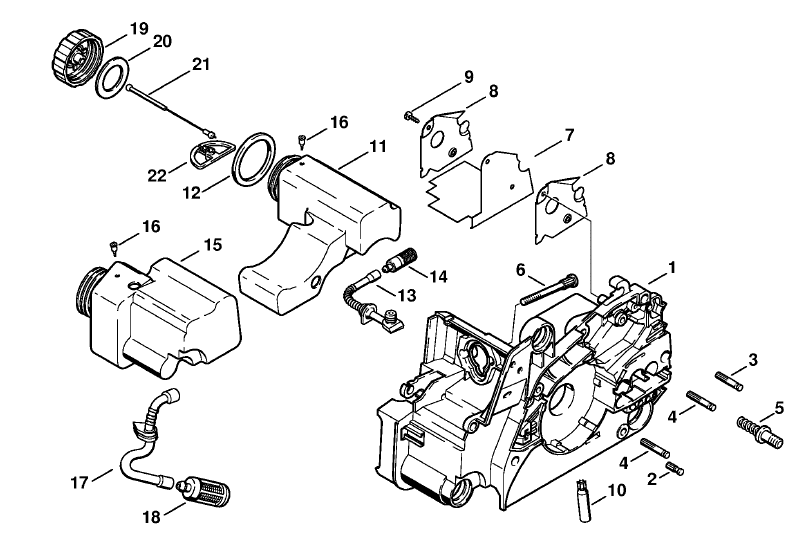

Engine Housing

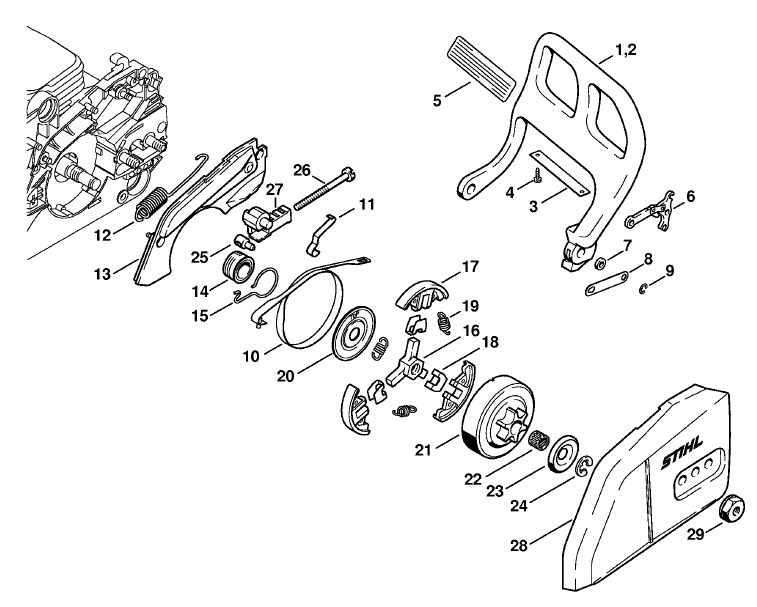

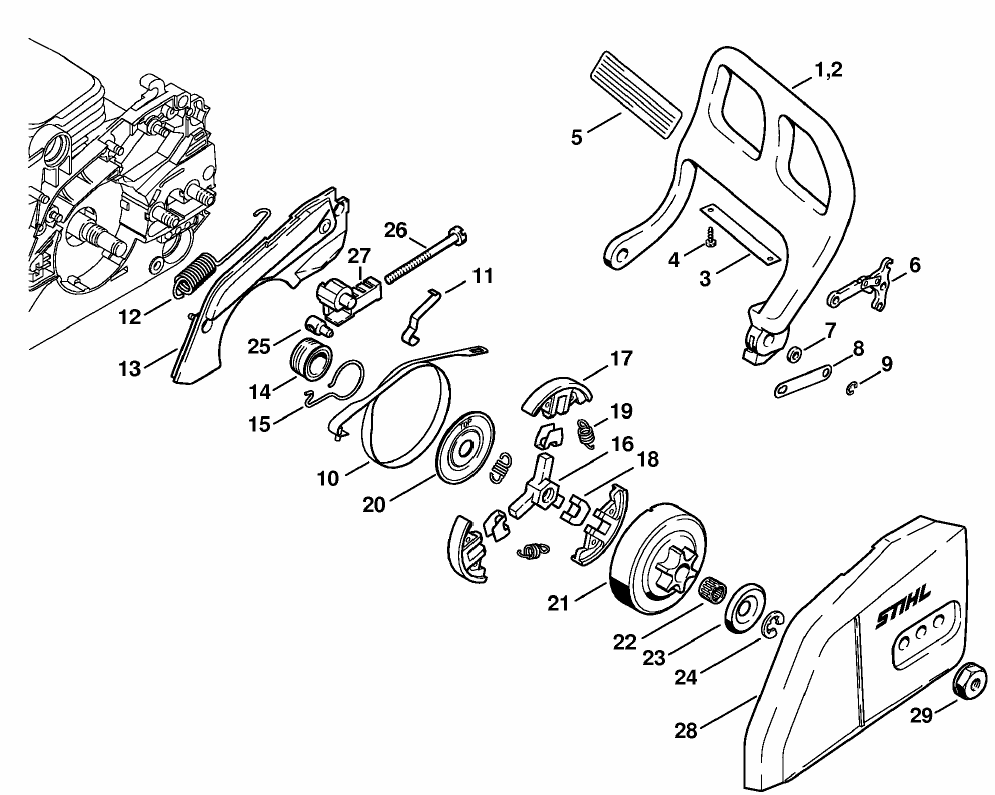

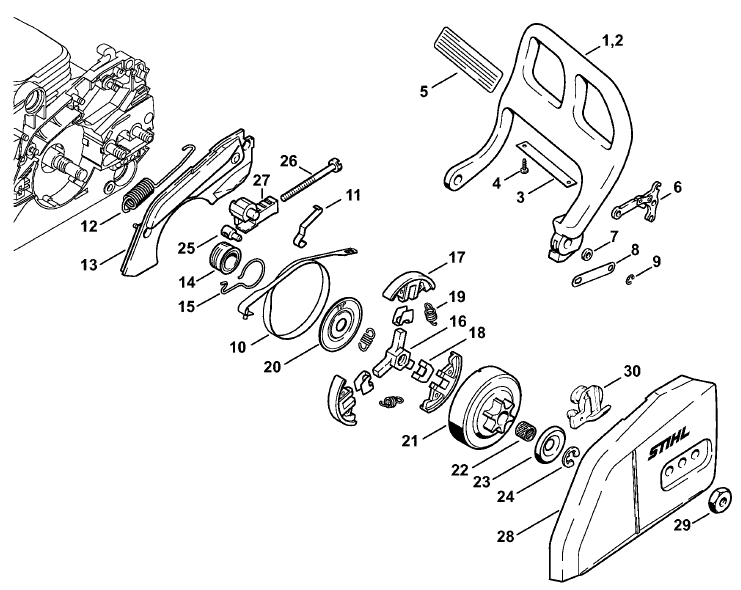

Hand Guard

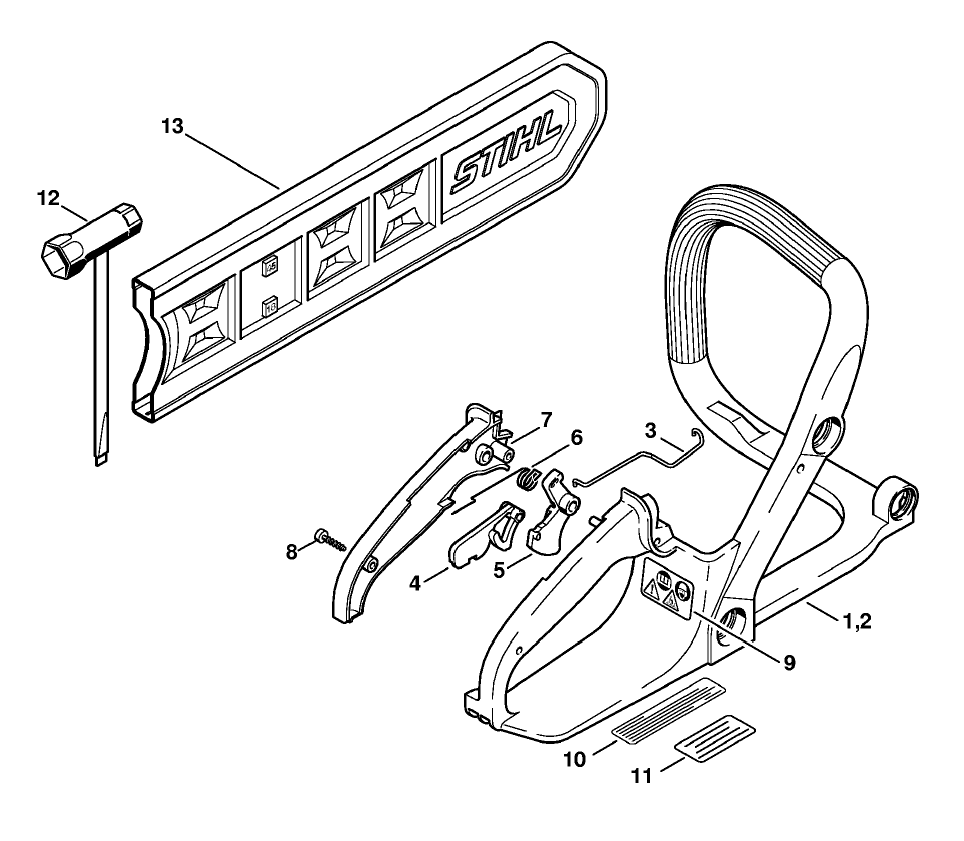

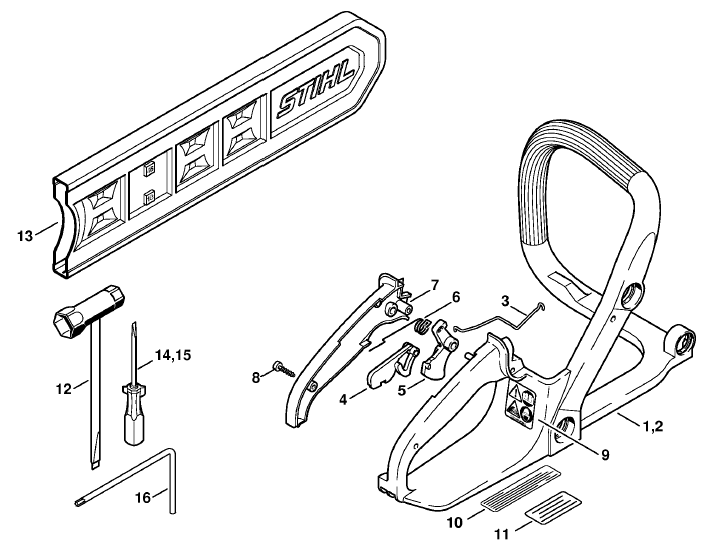

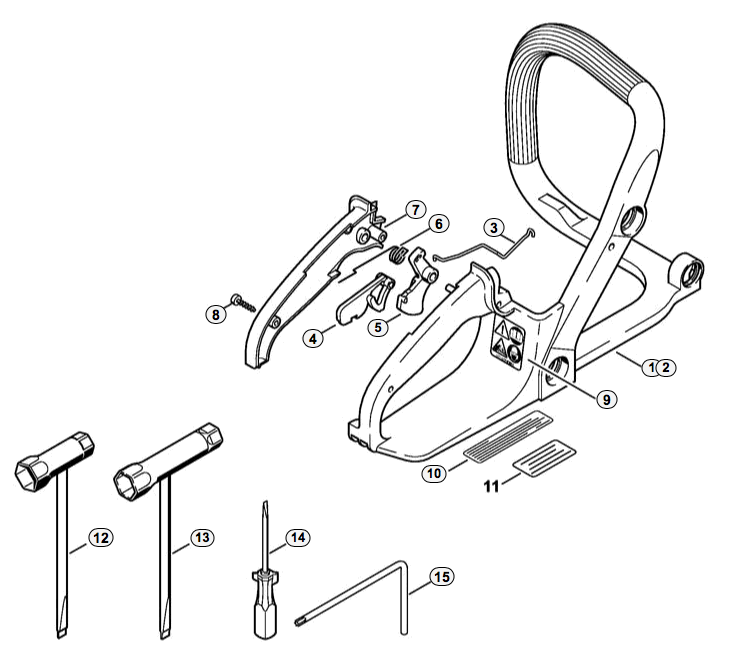

Handle Frame

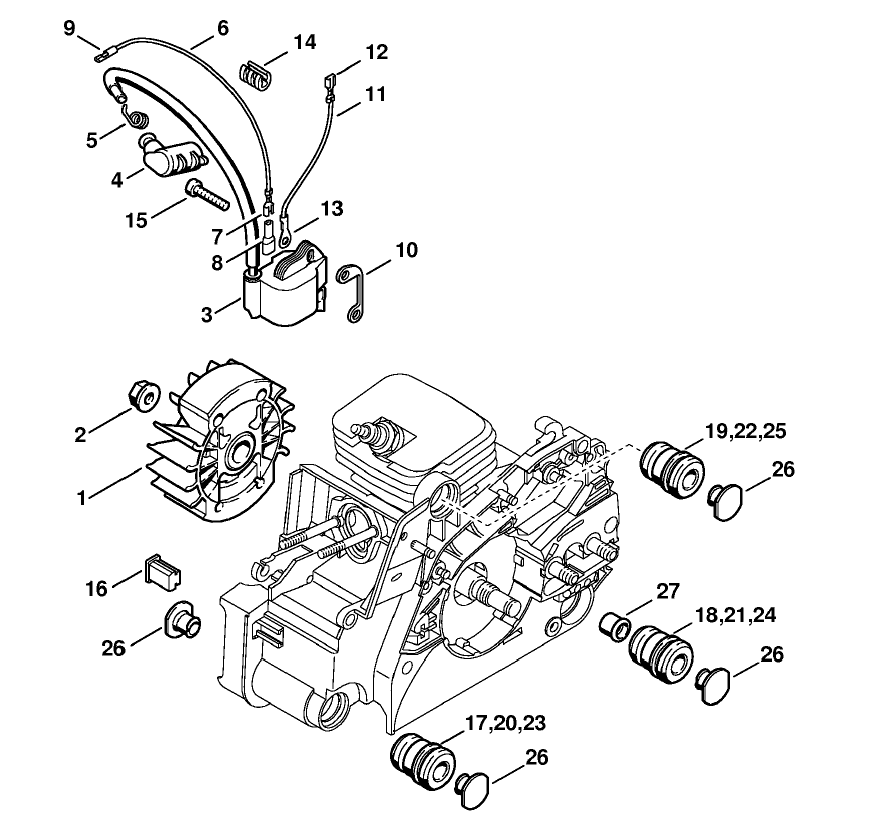

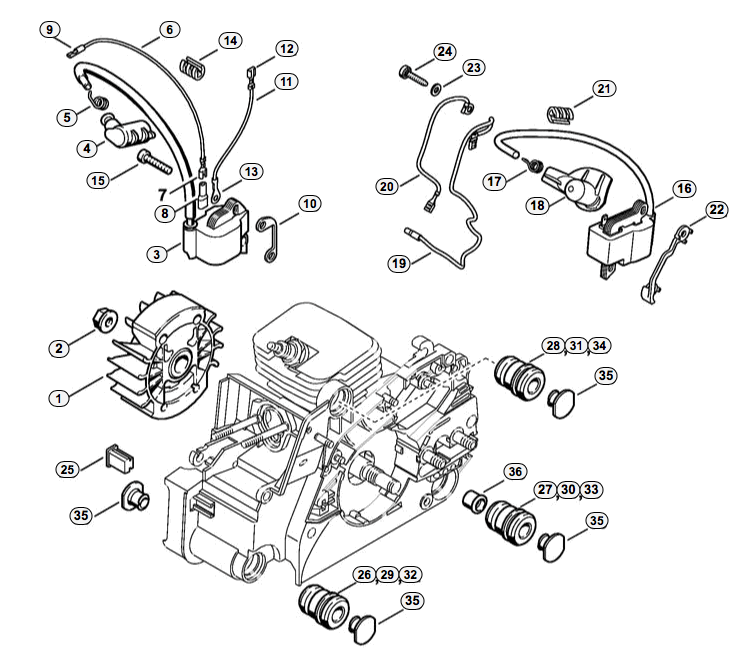

Ignition System AV System

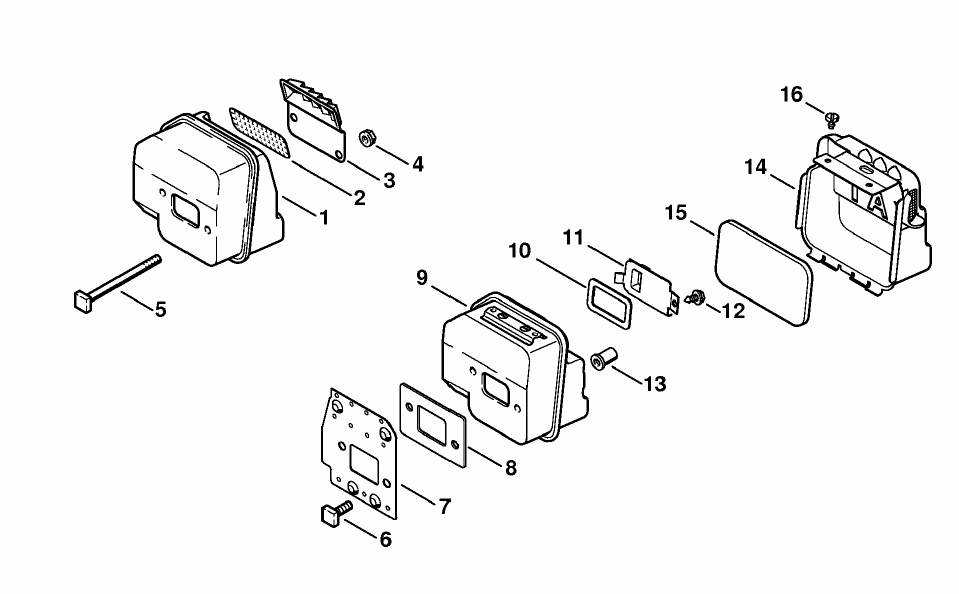

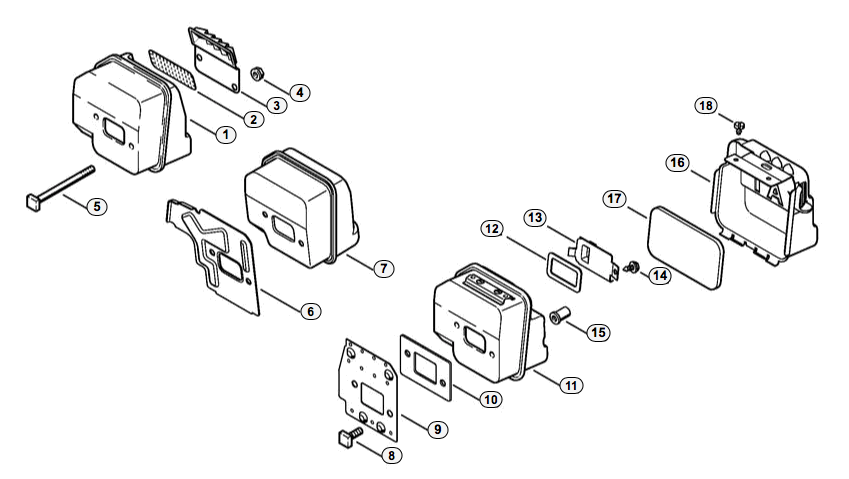

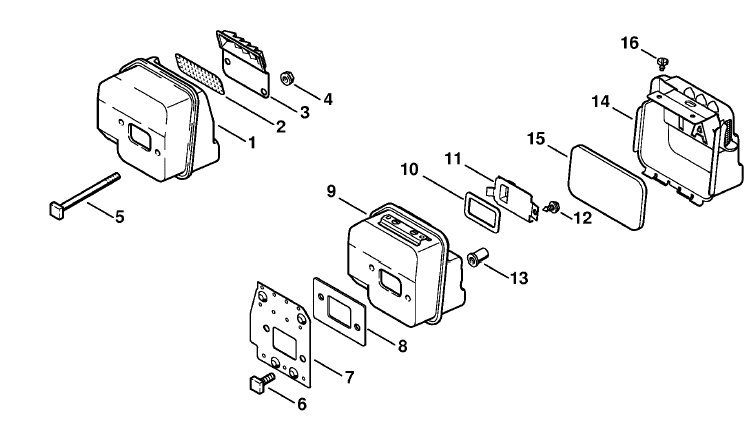

Muffler

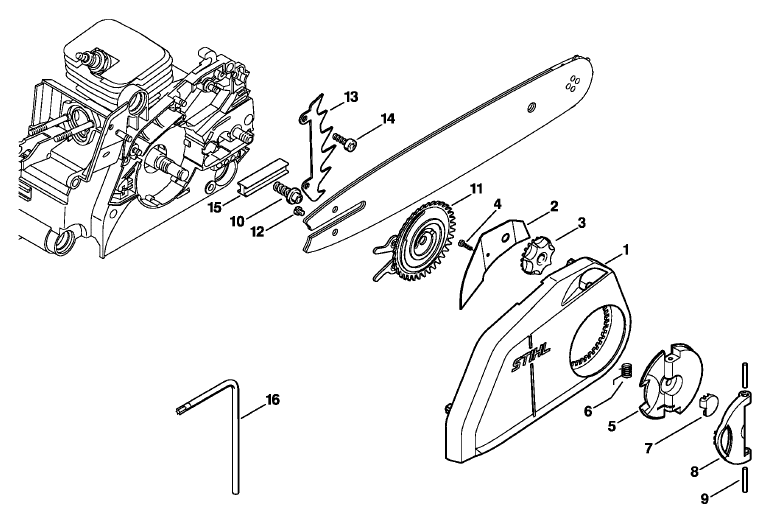

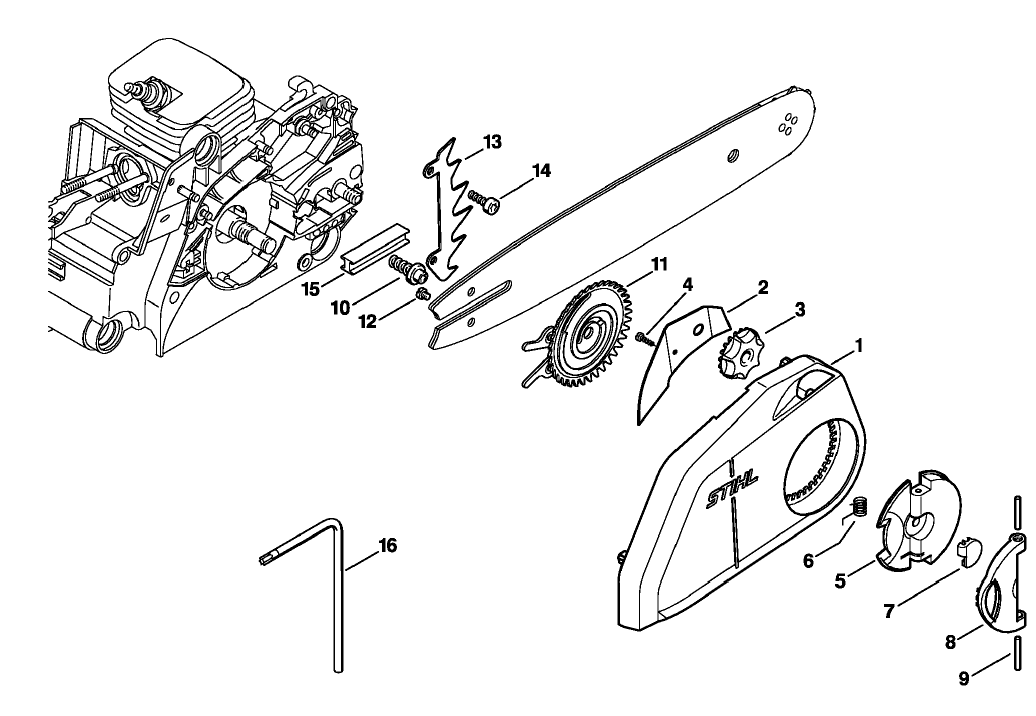

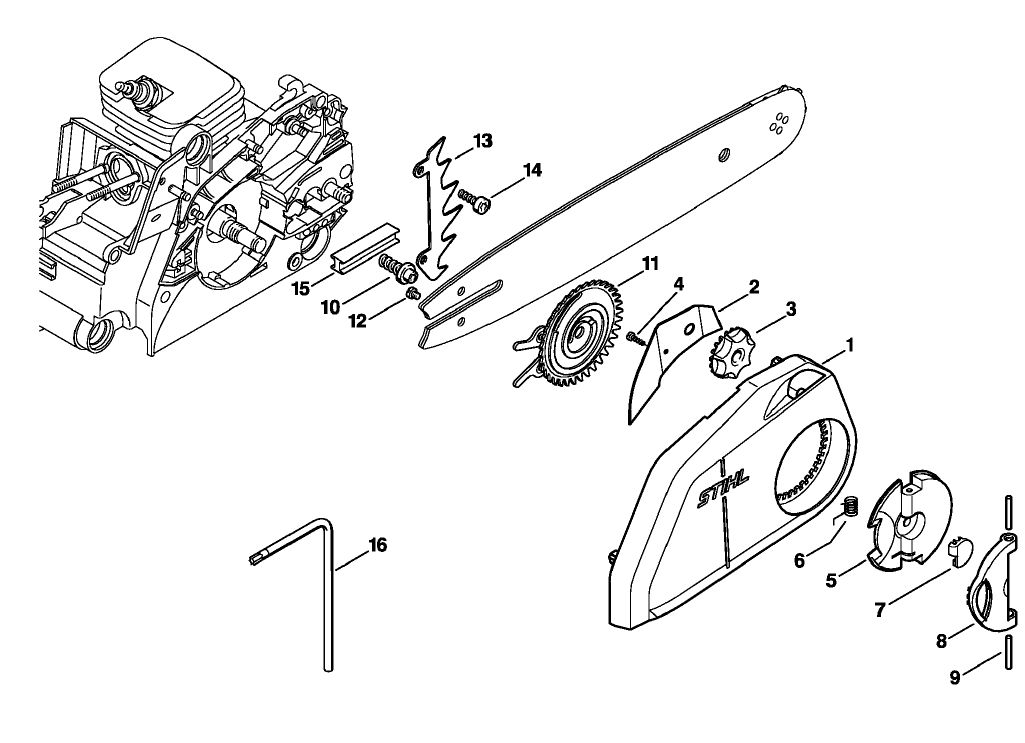

Quick Chain Tensioner

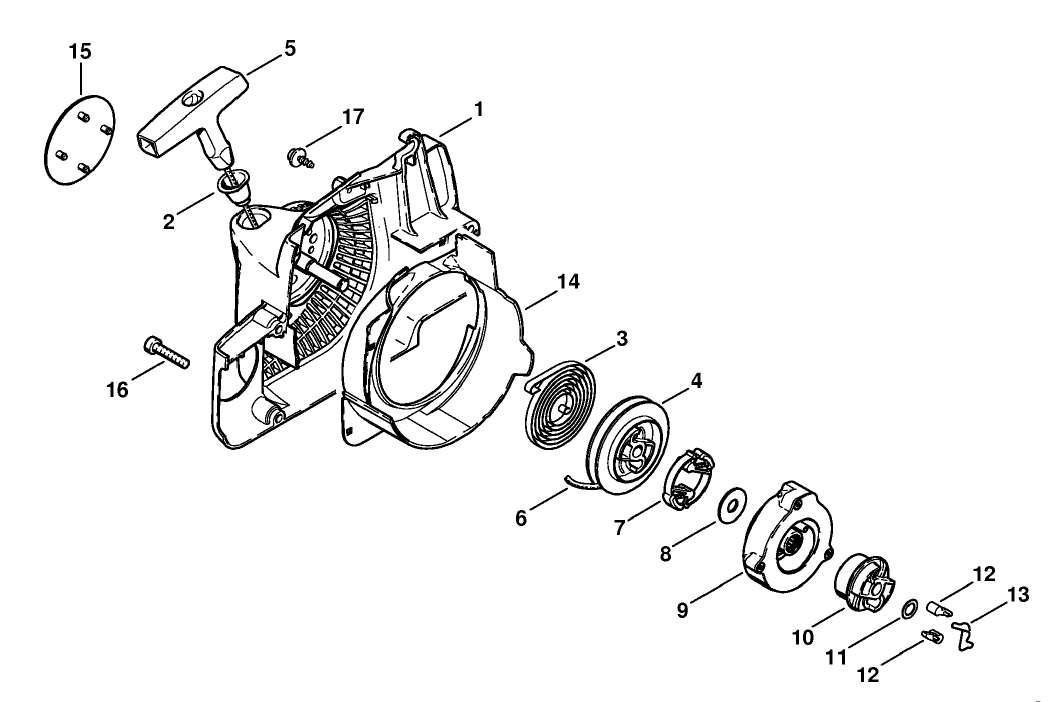

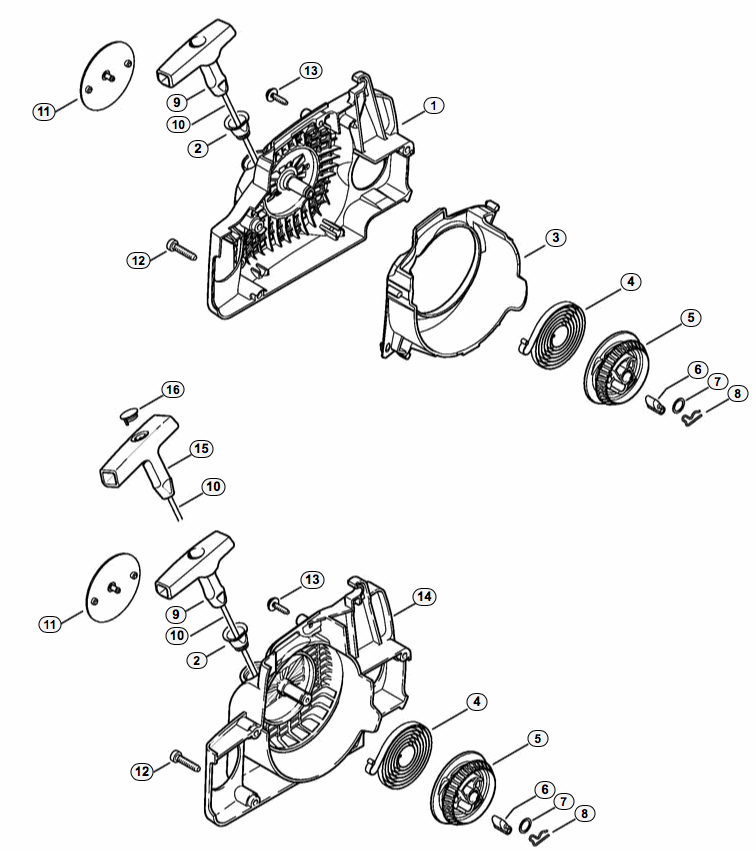

Rewind Starter Ergostart
MS170C-ED
Air Filter

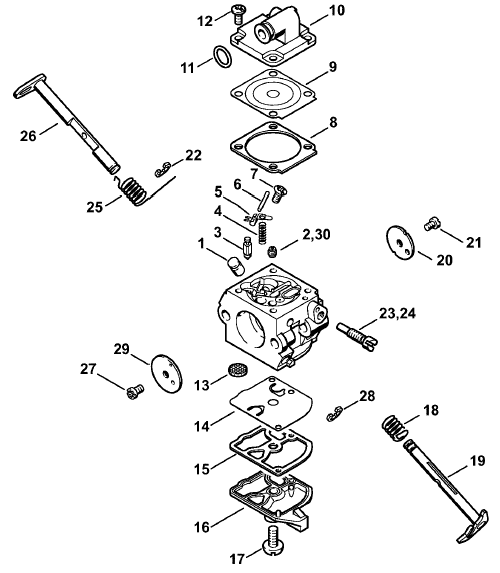

Carburetor C1Q S57B
Cylinder
Engine Housing

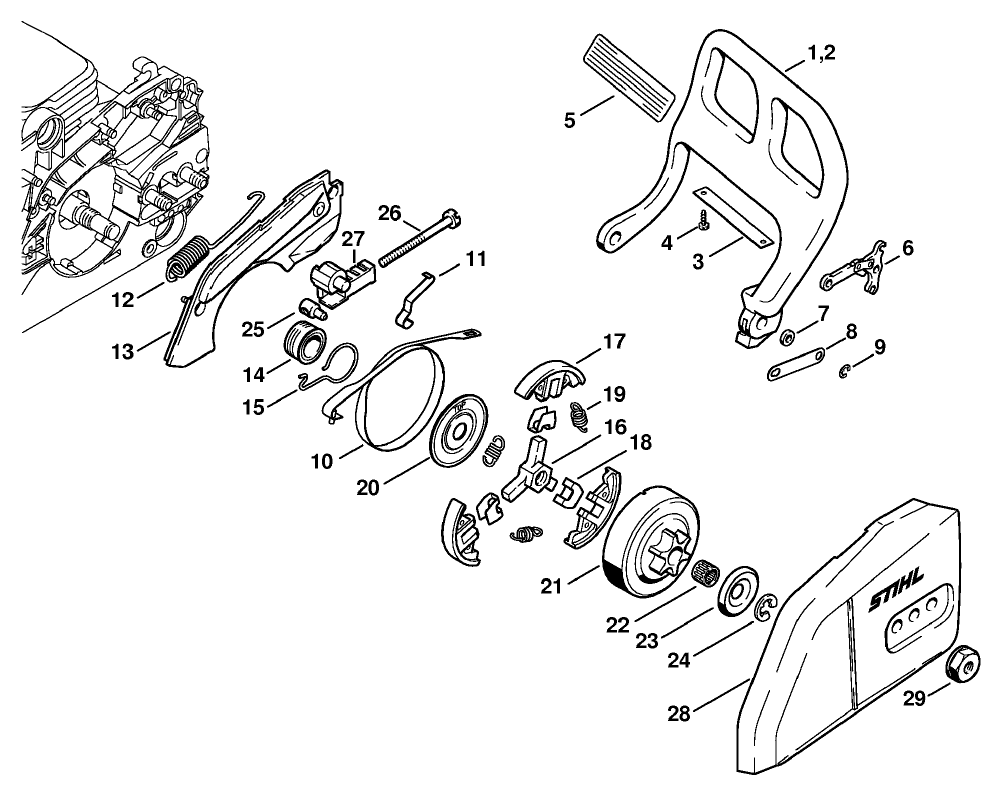

Hand Guard

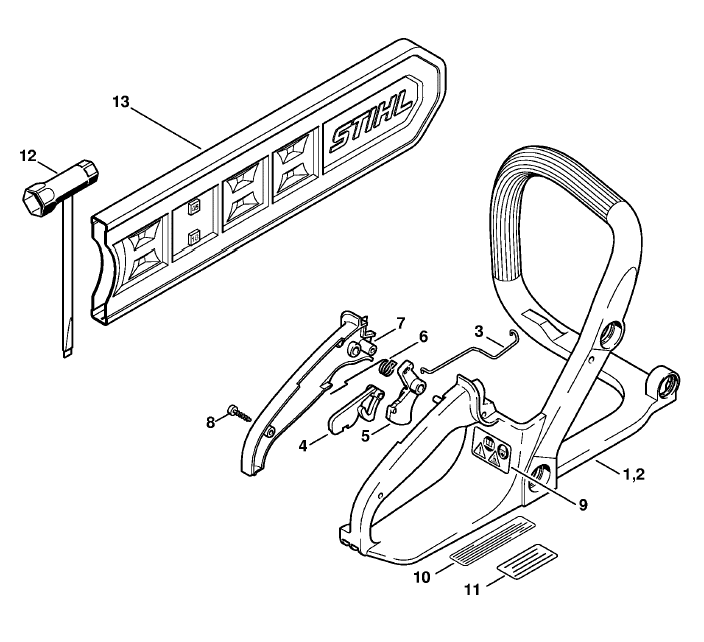

Handle Frame
Ignition System
Muffler

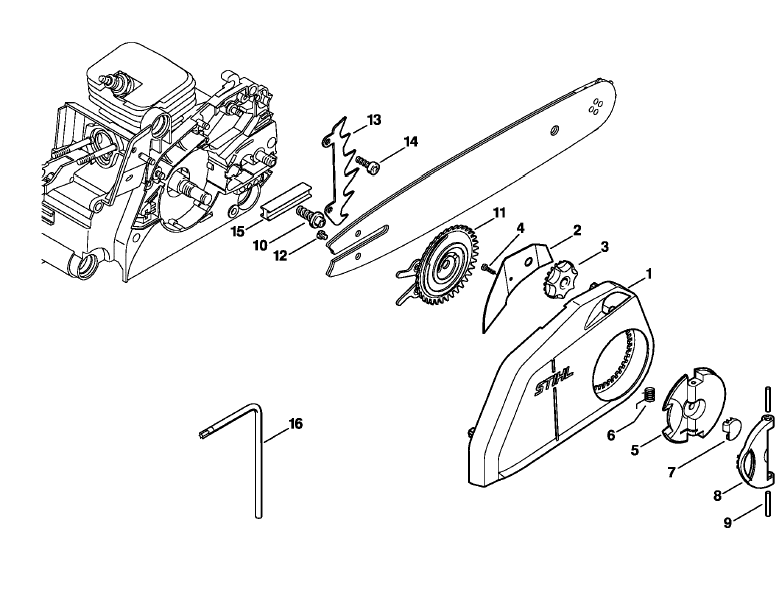

Quick Chain Tensioner

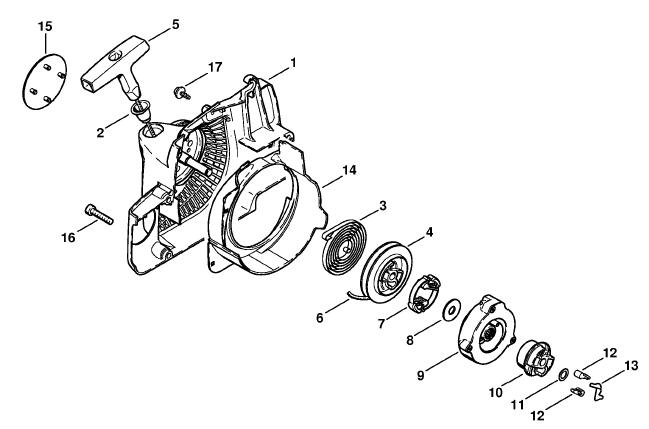

Rewind starter ErgoStartEasy2Start
MS170D
Air Filter
Carburetor C1Q-S57A
Carburetor C1Q-S137 BR
Cylinder
Engine Housing
Hand Guard
Handle frame
Ignition System
Muffler
Quick Chain Tensioner
Rewind Starter
MS170Z

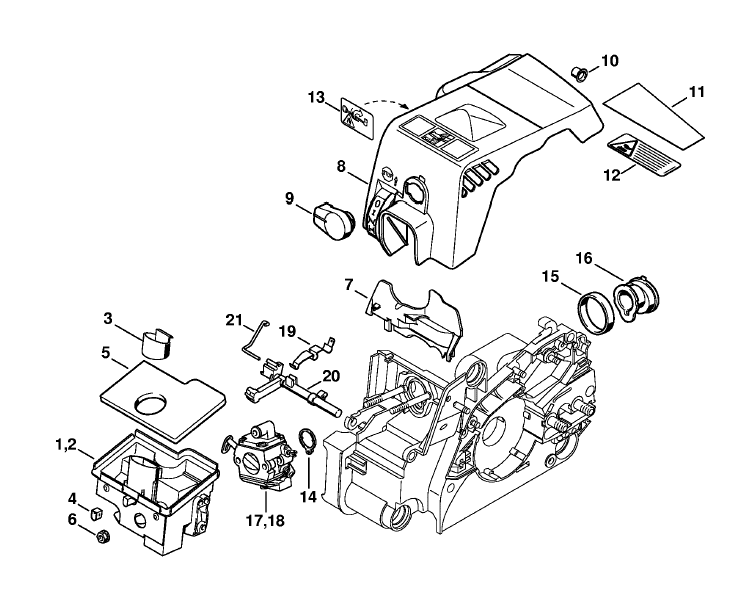

Air Filer
Carburetor C1Q-S57A

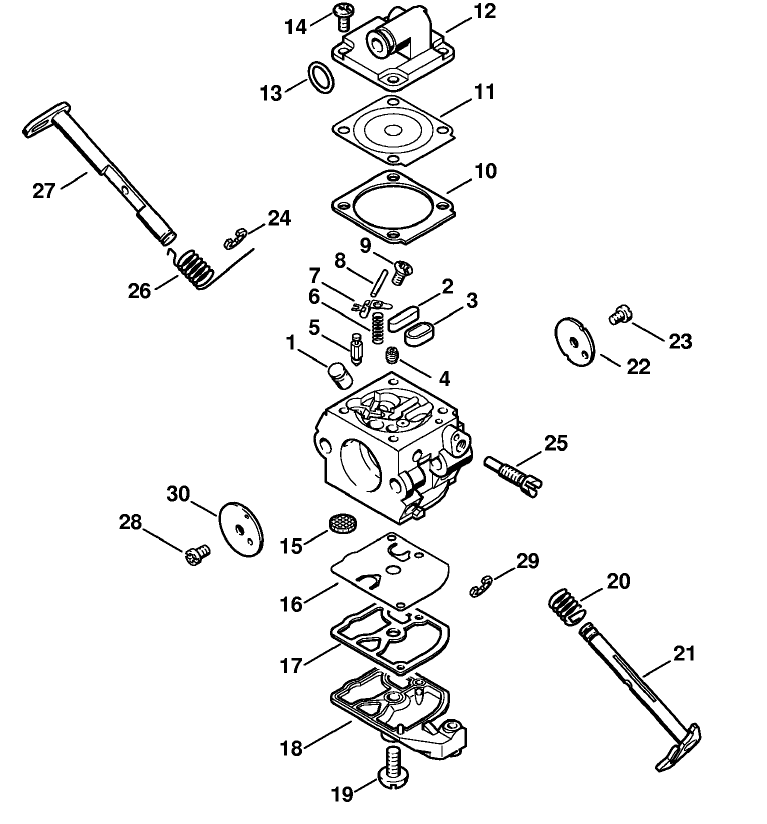

Carburetor C1Q-S137 BR
Cylinder
Engine Housing
Hand guard
Handle Frame

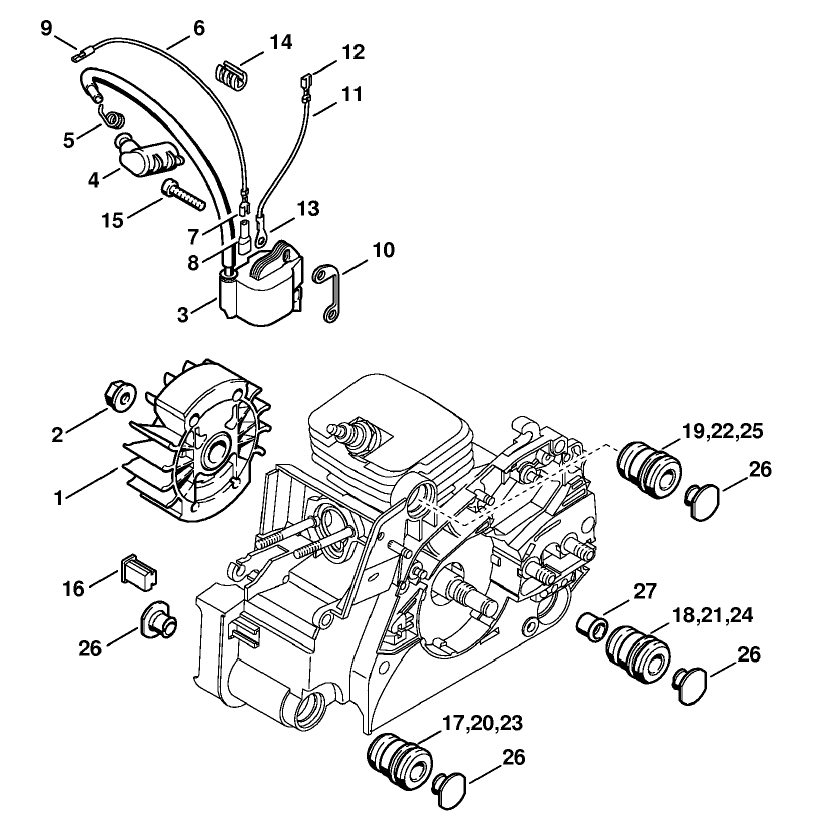

Ignition System
Muffler
Quick Chain Tensioner
Rewind Starter
